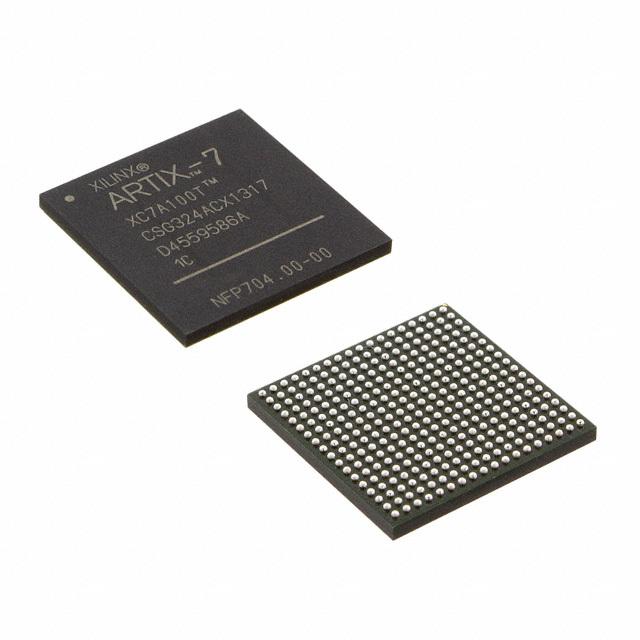

XC7A100T-1CSG324C Troubleshooting Guide: Common Problems and Solutions

Having issues with the Xilinx Artix-7 XC7A100T-1CSG324C on your board? You're not alone. Even for seasoned engineers, bringing up a new board with a complex FPGA can be a challenging process. From configuration failures to unexpected I/O behavior, a myriad of issues can arise. This guide covers the most common problems hardware engineers and technicians encounter with the XC7A100T-1CSG324C and provides proven, step-by-step fixes based on official datasheet recommendations and extensive field experience.

XC7A100T-1CSG324C Quick Reference

Before diving into troubleshooting, it's essential to have the key specifications of the XC7A100T-1CSG324C at your fingertips. These parameters define the device's capabilities and operating requirements, and a mismatch between your design and these specs is often the root cause of problems.

Parameter	Value
FPGA Family	Artix-7
Logic Cells	101,440
Number of LUTs	15,850
Total Block RAM	4,860 Kbits
Number of DSP Slices	240
Package	CSG324 (324-ball Chip Scale BGA)
Speed Grade	-1 (Slowest commercial grade)
Operating Temperature	Commercial (0°C to 85°C Junction)

The XC7A100T-1CSG324C is a powerful and cost-effective FPGA from the Xilinx (now AMD) 7-series family. Built on a 28nm process, it offers a substantial amount of logic, block RAM, and DSP resources, making it a popular choice for a wide range of applications. These include software-defined radio (SDR), machine vision, industrial control, medical imaging, and high-performance computing. Its balance of performance, power, and cost makes it a workhorse for designs that require more capability than a microcontroller but do not warrant the expense of a higher-end Kintex or Virtex device.

Common Problem #1: Configuration Failure (DONE Pin Stays Low)

Symptom: After applying power, the FPGA does not appear to function. The most telling sign is that the dedicated DONE pin remains at a logic low state. You may also be unable to detect the FPGA in the JTAG chain using Vivado Hardware Manager, or the system it controls is completely unresponsive.

Root Cause: The DONE pin going high signifies that the FPGA has successfully loaded its configuration bitstream from an external source (like a QSPI flash) or via JTAG and has entered user mode. If it stays low, a critical step in this boot-up process has failed. The most common culprits are:

• Power Supply Issues: Incorrect voltage levels, excessive ripple, or improper power-on sequencing for the various supply rails (VCCINT, VCCAUX, VCCO, etc.).
• Configuration Mode Selection: The M[2:0] mode pins are incorrectly strapped, telling the FPGA to listen for a bitstream from a source that isn't providing one.
• Clocking Problems: The configuration clock (CCLK) is absent, unstable, or at the wrong frequency.
• Bitstream or Flash Memory Issues: The bitstream file is corrupt, intended for a different FPGA part, or the flash memory itself is faulty or not communicating correctly.

Fix: Follow this systematic approach to diagnose the configuration failure.

1. Verify All Power Rails: This is the absolute first step. Use a multimeter or oscilloscope to probe the test points for every power rail required by the Artix-7. According to the DS181 datasheet, you must verify VCCINT (core voltage), VCCAUX (auxiliary voltage), VCCBRAM (Block RAM voltage), and the VCCO for each I/O bank you are using. Pay close attention to the recommended power-on sequence detailed in the Artix-7 FPGAs PCB Design and Pin-Planning Guide (UG475). VCCINT must be stable before VCCAUX and VCCOs are applied. An oscilloscope is superior to a multimeter here, as it can reveal ripple, noise, or slow rise times that a multimeter would miss.
2. Check Mode Pins (M[2:0]): These three pins determine the configuration mode. For the common Master SPI mode (booting from a QSPI flash), the pins should be set to a specific logic level (e.g., M[2:0] = 001). Refer to the Artix-7 Configuration User Guide (UG470) for the definitive table of mode settings. Verify the logic levels on these pins directly on the PCB. A common mistake is a floating mode pin, which can lead to an indeterminate state. Ensure they are tied firmly to VCCO or GND through appropriate resistors.
3. Inspect the Configuration Interface: If using Master SPI mode, use an oscilloscope or logic analyzer to probe the interface between the FPGA and the flash memory. At power-on, you should see activity on the CCLK, MOSI (FPGA_DOUT), and CS (chip select) lines. The FPGA should be outputting a clock on CCLK to read the bitstream from the flash. If there is no clock, re-check the power and mode pins. If there is a clock but no data or incorrect data, the issue could be the flash device, the bitstream file itself, or signal integrity on the SPI bus.
4. Validate JTAG Chain: If you cannot see the device in Vivado, the problem lies with the JTAG interface. Check that TMS, TCK, TDI, and TDO are correctly routed. Ensure the JTAG clock (TCK) is not excessively fast for your board layout and cable length. Check for shorts or opens on these lines. A common error is swapping TDI and TDO on the connector.

Common Problem #2: I/O Signal Integrity and Logic Errors

Symptom: The FPGA configures successfully (DONE is high), but the design behaves erratically. You might see corrupted data on a communication bus (UART, SPI, I2C), glitches on output signals, or logic that works in simulation but fails intermittently in hardware.

Root Cause: These issues often point to a mismatch between the physical hardware reality and the assumptions made in the HDL design and constraints.

• Incorrect I/O Standard or VCCO Voltage: An I/O bank powered by VCCO=3.3V cannot correctly drive or receive a 1.8V LVCMOS18 signal. This is a fundamental and frequent error.
• Missing or Incorrect Pin Constraints: The implementation tool (Vivado) has placed a signal on a physical pin that is different from what the PCB layout expects, or it has used a default I/O standard that is incompatible with the connected device.
• Signal Integrity Issues: On high-speed signals, issues like impedance mismatches, crosstalk from adjacent traces, or inadequate termination can corrupt the signal, causing bit errors.
• Timing Violations: The design fails to meet its timing constraints (setup/hold times), leading to metastable behavior and unpredictable logic outputs. This is especially common when interfacing with external devices or crossing clock domains improperly.

Fix: Debugging I/O issues requires a two-pronged approach: verifying the design files and probing the physical hardware.

1. Audit Your Constraints File (XDC): This is the most critical step. Open your project's XDC file and meticulously verify every single pin location (`set_property PACKAGE_PIN ...`), I/O standard (`set_property IOSTANDARD ...`), and VCCO requirement. Cross-reference the pin assignments with your board's schematic. Ensure that every I/O pin used in your design has an explicit location and I/O standard constraint. Do not rely on Vivado's defaults.
2. Verify VCCO Voltages: For every I/O bank in use on the XC7A100T-1CSG324C, physically measure the VCCO supply voltage. Confirm that it matches the voltage required by the I/O standard you defined in your XDC file for that bank. For example, if Bank 34 is constrained to use LVCMOS33, its VCCO_34 pin must be connected to a stable 3.3V supply.
3. Use an Oscilloscope: A high-speed oscilloscope is your best friend for signal integrity problems. Probe suspect signals as close to the FPGA pin as possible. Look for non-monotonic edges, excessive ringing, overshoot/undershoot, and ground bounce. If you see these, you may need to adjust drive strength or slew rate settings in your XDC file, or the PCB may require layout modifications (e.g., adding termination resistors).
4. Review Timing Reports: After running implementation in Vivado, always open the timing summary report. Look for any setup or hold time violations (indicated by a negative slack). If violations exist, the design is not guaranteed to work at the specified clock frequency. You must fix these either by optimizing your HDL code, adjusting constraints, or using a slower clock. The Integrated Logic Analyzer (ILA) core is an invaluable tool to capture internal signal behavior at speed on the device itself, helping you correlate timing failures with logical errors.

Common Problem #3: Excessive Power Draw and Thermal Issues

Symptom: The XC7A100T-1CSG324C becomes excessively hot during operation, potentially exceeding the commercial junction temperature limit of 85°C. The board's power regulators may also overheat, or the total current consumption is significantly higher than what was predicted by the Xilinx Power Estimator (XPE) spreadsheet.

Root Cause: High power consumption in an FPGA is a function of both static and dynamic power.

• High Dynamic Power: This is the dominant factor and is caused by signal transitions (toggling). Inefficient HDL, high clock frequencies, and wide data buses with high toggle rates are primary contributors.
• Inefficient HDL Coding: Creating large, unnecessary combinatorial logic paths or failing to use resources like Block RAMs and DSPs effectively can dramatically increase the logic and interconnect usage, leading to higher power.
• Lack of Clock Gating: Allowing clocks to run continuously to modules that are not active wastes significant power.
• Inadequate Thermal Management: The CSG324 package has a specific thermal resistance. Without proper airflow or a heatsink for a high-power design, the heat generated cannot be dissipated effectively, causing the junction temperature to rise.

Fix: Tackling power and thermal issues involves both design optimization and physical hardware considerations.

1. Analyze Power with Vivado: The most powerful tool at your disposal is the `report_power` command in Vivado, run after place and route. This tool provides a detailed breakdown of power consumption by module, clock domain, and resource type. It uses the switching activity from your post-synthesis simulation (SAIF file) or default estimates to provide a much more accurate picture than the pre-design XPE spreadsheet. Identify the "hotspots" in your design from this report.
2. Optimize Your HDL: Based on the power report, refactor your code. If a module is consuming too much power, see if you can pipeline it to reduce combinatorial path depth, use clock enables to gate its operation when idle, or rewrite algorithms to be more resource-efficient. For example, use dedicated Block RAM for memories instead of inferring them from LUTs.
3. Implement Intelligent Clocking: Use the clocking resources (MMCMs and PLLs) to generate only the necessary clocks. Employ clock enables or use the BUFGCE primitive to gate clocks to large sections of logic that are not always in use. This is one of the most effective techniques for reducing dynamic power.
4. Verify Thermal Solution: Refer to the Artix-7 datasheet (DS181) for the thermal resistance specifications (Theta-JA, Junction-to-Ambient). Calculate the expected temperature rise based on your power analysis (T_rise = Theta-JA * Power). If the resulting junction temperature (T_junction = T_ambient + T_rise) approaches or exceeds 85°C, you must improve your thermal solution. This could mean adding a heatsink to the FPGA package, increasing airflow with a fan, or both. Ensure there is a good thermal interface material (TIM) between the FPGA package and any heatsink.

Systematic Debug Checklist

When a board with an XC7A100T-1CSG324C is not working, avoid random probing. Follow a structured checklist to isolate the problem efficiently.

Step	Check Item	Expected Result	If Failed
1	Visual Inspection	No visible shorts, solder bridges, or missing components. Correct FPGA orientation.	Rework PCB. Check component placement files.
2	Power Rails (VCCINT, VCCAUX, VCCOs)	Voltages are within datasheet spec (e.g., VCCINT ~1.0V). Stable with low ripple. Correct power-on sequence.	Debug power supply regulators. Check for shorts to ground.
3	Main Oscillator / Clock Input	Clean, stable clock signal at the correct frequency present at the FPGA's clock input pin.	Check oscillator circuit, crystal, and loading capacitors.
4	PROGRAM_B Pin	Should be held high. Pulsing low initiates reconfiguration.	Check pull-up resistor. Ensure no other device is holding it low.
5	Configuration Mode Pins (M[2:0])	Pins are at the correct logic levels for the intended boot mode.	Check pull-up/pull-down resistors and schematic.
6	JTAG Chain	Vivado Hardware Manager detects the XC7A100T and any other devices in the chain.	Verify JTAG connector, cabling, and signal integrity on TCK, TMS, TDI, TDO.
7	Configuration Flash Interface	During boot, CCLK is active, and data is read from the flash device on the MISO/DOUT pin.	Check flash power, connections, and ensure a valid bitstream is programmed.
8	DONE Pin	Goes high after the FPGA successfully loads the entire bitstream.	If all above steps pass but DONE is low, the bitstream itself may be corrupt or for the wrong part. Regenerate and reprogram.

This checklist covers the most common "dead board" scenarios. If the device passes all these checks but still fails, the problem is likely more subtle, residing within the logic of your design or in a complex signal integrity issue. At this point, you should leverage internal-to-the-chip tools like the Vivado Logic Analyzer (ILA) to trace signals in real-time. Comparing the behavior of signals in the failing hardware against a working simulation is a powerful debug technique. For more complex issues, exploring the full range of Xilinx documentation is essential. You can Browse Artix-7 Series components and find related application notes that may provide further insight into your specific problem.

Sourcing and Authenticity: Avoiding Counterfeit Parts

In today's strained supply chain, the temptation to source components from unauthorized or gray market channels is high. However, for a complex device like the XC7A100T-1CSG324C, this is an extremely risky proposition. Counterfeit FPGAs are a significant problem and can introduce nightmarish, difficult-to-diagnose issues into your project, wasting weeks of engineering time and potentially leading to product recalls.

Signs of a counterfeit or poorly handled part include:

• Physical Appearance: Incorrect markings, laser etching that is misaligned or has the wrong font, different package texture, or bent/re-balled BGA spheres.
• Functional Failures: The device may fail to program entirely, draw excessive current, or have a very high number of I/O or logic failures. It might work at room temperature but fail at higher temperatures.
• Performance Issues: A remarked part (e.g., a slower speed grade sold as a faster one) will fail timing even with a valid design.
• Security Risks: In the worst-case scenario, a counterfeit part could contain a hardware trojan or backdoor, a major security risk for any connected product.

The only way to be certain you are receiving a genuine, factory-new Xilinx part is to source from authorized distributors or highly reputable, traceable independent distributors. These suppliers provide full traceability back to the original manufacturer, ensuring the parts have not been tampered with, have been stored in proper environmental conditions, and will perform to the datasheet specifications. Attempting to save a small amount on component cost by buying from an unvetted source like an auction site can cost orders of magnitude more in debug time, board respins, and lost market opportunity. Protect your design and your company's reputation by using a trusted supply chain partner. When you are ready to move from prototype to production, you can Check XC7A100T-1CSG324C Inventory & Pricing through reliable channels to ensure authenticity.

Video Demonstration

Frequently Asked Questions (XC7A100T-1CSG324C FAQ)

Why is the DONE pin on my XC7A100T-1CSG324C not going high?

If the DONE pin remains low, it indicates a configuration failure. The most common causes are incorrect power sequencing (VCCINT must be stable before VCCAUX/VCCO), incorrect configuration mode settings on the M[2:0] pins, or a problem with the configuration clock (CCLK). You should first verify all power rails with an oscilloscope, then confirm the logic levels on the mode pins match your intended boot source (e.g., Master SPI), and finally, probe the configuration interface to ensure the FPGA is attempting to read from the flash memory.

How do I verify the JTAG connection is working?

The easiest way is to use the Vivado Hardware Manager and attempt to "Auto Detect" the JTAG chain. If it fails, first perform a physical check of the JTAG header, cable, and connections to the TDI, TDO, TMS, and TCK pins on the FPGA. Ensure the JTAG TCK frequency in Vivado is not set too high for your setup (start with a lower frequency like 1-3 MHz). If it still fails, you can use a multimeter to check for continuity from the JTAG pod to the FPGA balls, and an oscilloscope to verify signal activity on TCK and TMS when Vivado attempts to connect.

My design works in simulation but fails on the XC7A100T-1CSG324C. What's wrong?

This is a classic "sim-to-real" gap. Simulation does not model real-world physics like signal integrity, power supply noise, or timing issues that haven't been properly constrained. First, check your timing reports in Vivado for any violations. Second, verify that your I/O constraints (pin locations, I/O standards) in the XDC file perfectly match your PCB schematic. Finally, use the Integrated Logic Analyzer (ILA) core to probe key signals inside the FPGA in real-time to see where the hardware behavior diverges from your simulation.

What are the most critical power rails to check first when debugging?

The absolute most critical power rail is the core voltage, VCCINT (typically 1.0V). Without a stable core voltage, none of the internal logic will function. The second most critical is the auxiliary voltage, VCCAUX (typically 1.8V), which powers internal resources like JTAG and configuration logic. Finally, you must check the VCCO for each I/O bank you are using, as this powers the output drivers. The Artix-7 datasheet specifies a strict power-on sequence: VCCINT, then VCCAUX, then VCCOs. Failure to follow this can prevent the device from initializing correctly.

Can I change the I/O voltage on a bank after programming?

No, you cannot. The I/O standard for a pin (e.g., LVCMOS33, LVCMOS18) is configured during bitstream loading based on your XDC constraints. The VCCO supply for that bank must match the voltage required by that standard. Applying a different VCCO voltage than what the I/O standard expects will lead to incorrect logic levels, potential damage to the FPGA or connected devices, and is a common source of I/O errors.
