XC7A100T-1CSG324C Equivalents, Replacements, and Cross-Reference Guide

Navigating the complexities of the electronic component supply chain is a daily challenge for hardware engineers and procurement professionals. When a key component like the Xilinx XC7A100T-1CSG324C FPGA faces allocation, long lead times, or obsolescence, finding a suitable replacement becomes critical to keeping production lines running. This guide provides a detailed technical analysis of potential equivalents, substitutes, and cross-reference options for the XC7A100T-1CSG324C, focusing on pin-compatible alternatives and functional replacements that may require board-level modifications.

XC7A100T-1CSG324C Overview and Current Availability

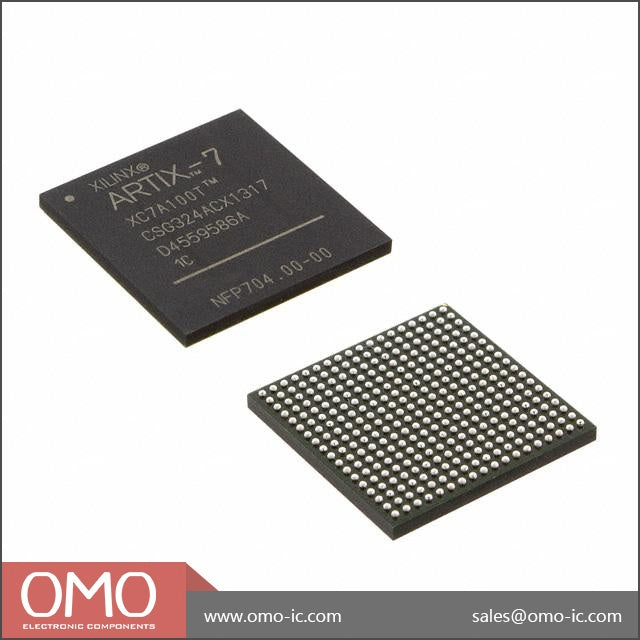

The XC7A100T-1CSG324C is a mid-density Field-Programmable Gate Array (FPGA) from the Xilinx (now AMD) Artix-7 family. It is engineered on a 28nm process technology, offering a balance of performance, power efficiency, and cost. This particular model is highly regarded for its substantial logic resources, making it suitable for a wide range of applications including industrial automation, machine vision, software-defined radio (SDR), and advanced driver-assistance systems (ADAS).

Key specifications from the official datasheet (DS181) include:

• Logic Cells: 101,440
• CLB Flip-Flops: 126,800
• Slices: 15,850
• Block RAM: 4,860 Kb
• DSP Slices: 240
• Package: CSG324 (a 324-ball Chip-Scale BGA with a 15x15 mm body and 0.8 mm pitch)
• Speed Grade: -1 (Standard performance, commercial temperature range)
• Temperature Grade: C (Commercial, 0°C to 85°C junction temperature)
• Max User I/O: 210

The Artix-7 family is known for its high-performance logic, integrated memory, and DSP capabilities, all while maintaining a low power envelope compared to higher-end families like Kintex-7. The "-1" speed grade represents the slowest commercial offering, which is often sufficient for many cost-sensitive designs. The CSG324 package is a compact BGA that allows for dense PCB layouts. Due to its popularity and versatility, the XC7A100T-1CSG324C can be subject to supply chain constraints, including allocation and extended lead times. This makes understanding the available alternatives a crucial part of any robust design and procurement strategy.

Pin-Compatible Equivalents

For engineers facing a line-down situation, a pin-compatible, drop-in replacement is the ideal solution. While a true "drop-in" that requires no design changes is rare, the Artix-7 family offers several pin-compatible options within the same CSG324 package. However, it's critical to understand that "pin-compatible" does not mean "functionally identical" without re-verification.

Speed Grade Variations: The most common substitutes are parts with different speed grades.

• XC7A100T-2CSG324C: This is the next faster speed grade (-2). It is pin-compatible and will generally work as a replacement for the -1 grade. However, the design must be re-targeted in the Xilinx Vivado Design Suite to the -2 part and a new bitstream must be generated. Furthermore, a full static timing analysis (STA) is mandatory. A faster part has shorter propagation delays, which can sometimes expose hold-time violations that were not present with the slower -1 part. These violations must be fixed, often by adding small buffer delays in the logic path.
• XC7A100T-3CSG324C: This is the fastest speed grade available. The same rules apply as with the -2 grade, but the risk of hold-time violations is even higher. Never assume a faster part will simply "work better" without rigorous verification.

Temperature Grade Variations:

• XC7A100T-1CSG324I: This is the industrial temperature grade version (-40°C to 100°C junction temperature). It is a perfectly acceptable, pin-compatible replacement for the commercial grade (-C) part. The industrial part is tested to a more stringent standard and can operate in harsher environments. While it can be used in a commercial application, it is typically more expensive. The reverse is not true: you cannot use a commercial grade part in a design specified for industrial temperatures.

Logic Density Variations:

• XC7A75T-CSG324C: The Artix-7 family includes a smaller device, the XC7A75T, in the same CSG324 package. This part is pin-compatible but has fewer logic resources (75,520 logic cells vs 101,440). If your design utilizes less than ~70% of the XC7A100T's resources, it might be possible to migrate down to the XC7A75T. This requires recompiling the entire project for the new target device and verifying that it still meets resource and timing constraints. This is a viable option for cost reduction or when the 100T is unavailable, but it is not a simple drop-in replacement.

Functional Alternatives (May Require Redesign)

When no pin-compatible parts are available, the search expands to functional alternatives. These are parts with similar logic capacity and features but from different families or manufacturers. This path always requires a full PCB redesign and significant engineering effort.

Within the Xilinx/AMD Portfolio:

• Spartan-7 Family: For designs that are not pushing the performance limits of the Artix-7, migrating to a higher-end Spartan-7 device could be an option. Spartan-7 is also built on the 28nm process and is optimized for lower cost and power. However, the package options and I/O counts will differ, necessitating a new PCB layout. The design methodology in Vivado is very similar, which simplifies the HDL and IP migration.
• Kintex-7 Family: If the design requires even more performance or I/O than the Artix-7 provides, migrating up to the Kintex-7 family is the logical step. Kintex-7 offers more DSP slices, higher-speed transceivers, and more logic capacity. This is a significant redesign effort, involving a new footprint, a more complex power delivery network (PDN), and a higher price point.

From Other Manufacturers:

• Intel (formerly Altera) Cyclone V / Cyclone 10 GX: Intel's Cyclone series FPGAs are the direct competitors to the Artix-7 family. A device from the Cyclone V or Cyclone 10 GX family with around 100K Logic Elements (LEs) would be a functional equivalent. However, this is a major undertaking. It requires learning a new IDE (Intel Quartus Prime), converting all Xilinx-specific IP cores (like MMCMs, memory controllers) to their Intel equivalents, and a complete PCB redesign due to different pinouts, package types, and power supply requirements.
• Lattice Semiconductor ECP5 / CertusPro-NX: Lattice offers compelling alternatives, particularly in the low-power and small-form-factor space. The ECP5 family offers devices with up to 84K LUTs and SERDES, making it a competitor for some Artix-7 applications. The newer CertusPro-NX family offers more performance and features on a more advanced process node. As with Intel, switching to Lattice requires a complete toolchain change (Lattice Diamond or Radiant) and a full hardware redesign.

Choosing a functional alternative is a strategic decision that trades immediate availability for significant non-recurring engineering (NRE) costs and development time.

Detailed Comparison Table

This table provides a side-by-side comparison of the XC7A100T-1CSG324C and its most direct pin-compatible alternatives. All data is sourced from the official Xilinx DS181 datasheet.

Parameter	XC7A100T-1CSG324C	XC7A100T-2CSG324C	XC7A100T-1CSG324I	XC7A75T-1CSG324C
Logic Cells	101,440	101,440	101,440	75,520
CLB Flip-Flops	126,800	126,800	126,800	94,400
Block RAM (Kb)	4,860	4,860	4,860	3,600
DSP Slices	240	240	240	180
Speed Grade	-1 (Standard)	-2 (Faster)	-1 (Standard)	-1 (Standard)
Temperature Grade	Commercial (0°C to 85°C)	Commercial (0°C to 85°C)	Industrial (-40°C to 100°C)	Commercial (0°C to 85°C)
Max User I/O	210	210	210	210
Pin-Compatible	N/A	Yes	Yes	Yes
Bitstream Change Required?	N/A	Yes	Yes	Yes

Migration Guide: Switching from XC7A100T-1CSG324C

Successfully migrating from the XC7A100T-1CSG324C to an alternative, even a pin-compatible one, requires a methodical approach. Simply swapping the chip on the board is a recipe for failure. Follow this engineering checklist to ensure a smooth transition:

1. Verify Pin-to-Pin Compatibility: The first step is to obtain the datasheets for both the original and replacement parts. Cross-check every single pin, paying special attention to power, ground, configuration, and I/O pins. For parts in the same family and package, like the XC7A100T-2CSG324C, this is usually a perfect match, but it must be verified.
2. Re-target the Design in Software: Open your project in the Xilinx Vivado Design Suite. Change the target device to the exact part number of the replacement (e.g., from XC7A100T-1CSG324C to XC7A100T-2CSG324C). This is a critical step that informs the tool about the new timing and resource characteristics.
3. Generate a New Bitstream: A new bitstream file (.bit) must be generated for the new target device. The FPGA's internal configuration logic checks the device ID at power-up, and a bitstream generated for a -1 speed grade will be rejected by a -2 speed grade part, and vice-versa.
4. Perform Full Static Timing Analysis (STA): This is the most important step. After synthesis and implementation for the new part, run a full STA.
   • Setup Violations: If you are moving to a slower part (e.g., from a -2 to a -1), you may encounter new setup time violations that need to be fixed through logic optimization or pipelining.
   • Hold Violations: If you are moving to a faster part (e.g., from a -1 to a -2), you are more likely to see hold time violations. The faster logic paths can cause data to arrive at a flip-flop before the previous data has been held long enough. These must be fixed, typically by adding buffers to the data path.
5. Review Power Delivery Network (PDN): While core and auxiliary voltages are typically the same across speed grades, a faster part may have slightly higher transient current demands (dI/dt). Review the datasheet's power specifications and ensure your PDN design, including decoupling capacitors, has sufficient margin.
6. Full System Re-validation: After programming the board with the new bitstream, the entire system should undergo full functional and regression testing. Test all interfaces, performance-critical paths, and corner cases to ensure the replacement part behaves as expected under all operating conditions.

For engineers considering a wider range of options, it's helpful to Browse Artix-7 Series to understand the full spectrum of densities, packages, and speed grades available within this versatile family.

Where to Source XC7A100T-1CSG324C and Alternatives

In today's volatile market, sourcing components requires a multi-faceted strategy. The primary goal is to secure authentic components while avoiding the risks of the grey market.

Authorized Distributors: The safest source for any component is through the manufacturer's authorized distribution channel. These parts come with a full chain of custody, guaranteeing they are authentic and have been stored correctly. However, during times of shortage, they may have long lead times or be on allocation.

Independent Distributors: This is where a trusted global distributor like WWDParts.com plays a vital role. We specialize in sourcing components from a global network of vetted suppliers, including excess inventory from OEMs and EMS providers. This allows us to find parts that are unavailable through traditional channels. Our rigorous inspection and testing processes help mitigate the risk of counterfeit components.

Counterfeit Awareness: Be extremely wary of sourcing high-value FPGAs from auction sites or unvetted brokers. Counterfeiters are sophisticated, often re-marking lower-spec parts (e.g., a smaller XC7A35T or a slower speed grade) to look like a high-demand part like the XC7A100T. These parts may appear to work initially but will fail under load, at temperature extremes, or may have missing internal resources, leading to costly failures and recalls. Always work with a supplier who provides traceability or has robust anti-counterfeit procedures. You can Check XC7A100T-1CSG324C Inventory & Pricing with us to access our global stock.

Video Demonstration

Frequently Asked Questions (XC7A100T-1CSG324C FAQ)

Can I use a faster XC7A100T-2CSG324C to replace a XC7A100T-1CSG324C?

Yes, this is a common and often successful substitution, but it is not a simple "drop-in" replacement. You must re-target your design in the Vivado software to the -2 speed grade, generate a new bitstream, and perform a full static timing analysis. While the faster part can solve setup time issues, it can introduce new hold time violations because data signals may arrive at flip-flops too quickly. These new violations must be identified and fixed before the design can be considered reliable.

Is the industrial grade XC7A100T-1CSG324I a drop-in replacement for the commercial XC7A100T-1CSG324C?

Yes, for a commercial application, the industrial grade part is a valid and safe replacement. It is pin-compatible and has the same performance characteristics at commercial temperatures. The industrial part is tested for a wider temperature range (-40°C to 100°C) and is therefore more robust. The only significant downside is that the industrial grade part is typically more expensive. However, you cannot go the other way; a commercial part cannot be used in a system that requires an industrial temperature range.

What is the difference between XC7A100T and XC7A75T in the same CSG324 package?

The primary difference is the amount of internal logic resources. The XC7A100T has 101,440 logic cells, while the XC7A75T has 75,520. While they are pin-compatible in the CSG324 package, they are not functionally interchangeable without a design change. If your design uses less than the capacity of the XC7A75T, you can migrate down by recompiling your entire project for the smaller device. This requires verifying that your design still fits and meets all timing constraints after the new place-and-route process.

Are there any Intel/Altera or Lattice parts that are drop-in replacements for the XC7A100T-1CSG324C?

No, there are absolutely no drop-in replacements from other FPGA manufacturers. Each manufacturer uses proprietary package footprints, pinouts, power rail schemes, and configuration methods. Migrating from a Xilinx Artix-7 to an Intel Cyclone or Lattice ECP5 is a major engineering project that requires a complete PCB redesign, a new power delivery network, and a full porting of the HDL code and IP cores to the new manufacturer's toolchain and architecture.

My design is failing timing after I switched to a faster speed grade part. Why would a faster part cause failures?

This is a classic hardware engineering pitfall related to timing closure. A faster speed grade part has shorter logic and routing delays. While this helps meet setup time requirements (data must arrive *before* the clock edge), it can cause hold time violations (data must remain stable *after* the clock edge). With the faster part, the new data can race through the logic and arrive at a flip-flop's input before the previous data's hold time requirement has been met, causing corruption. This is why re-running a full static timing analysis and specifically checking for hold violations is mandatory when changing speed grades.
