LFE5U-45F-8BG381C Troubleshooting Guide: Common Problems and Solutions

Having issues with the LFE5U-45F-8BG381C? As a hardware engineer, there's nothing more frustrating than a board that won't boot or a high-speed interface that fails intermittently. This guide is built from over a decade of field experience debugging FPGAs, focusing on the Lattice ECP5 series. We'll cover the most common problems hardware engineers encounter with the LFE5U-45F-8BG381C and provide proven, step-by-step fixes based on datasheet recommendations and real-world debug sessions.

LFE5U-45F-8BG381C Quick Reference

Before diving into complex debug, it's essential to confirm the device's key characteristics. The LFE5U-45F-8BG381C is a versatile member of the Lattice ECP5 family, balancing a significant number of logic resources with high-performance I/O in a compact BGA package. It's engineered for applications requiring high bandwidth and low power consumption, such as industrial video cameras, machine vision systems, small cell base stations, and various communication bridges.

Its feature set includes multiple DSP blocks for signal processing, sufficient embedded block RAM (EBR), and flexible I/O that support a wide range of standards including LVDS, and DDR3 memory interfaces. The 'F' in the part number indicates the presence of high-speed SERDES transceivers, making it suitable for protocols like PCI Express, Gigabit Ethernet (SGMII), and CPRI. The combination of these features makes it a workhorse for many mid-range FPGA applications.

Common Problem #1: FPGA Fails to Configure (DONE Pin Stays Low)

Symptom: After power is applied, the `DONE` pin on the FPGA remains low indefinitely. The device does not start executing its programmed logic, and it may not be visible in the JTAG chain. This is the most fundamental "is it alive?" test for any FPGA, and its failure is a common first hurdle in board bring-up.

Root Cause: This issue almost always points to a problem in one of four areas: power, clocking, configuration mode, or the configuration bitstream itself. The FPGA has a specific power-on sequence and requires stable power and clock signals to begin its boot process. If the `PROGRAMN` pin is held low, or the configuration mode pins (`M0`, `M1`, `M2`) are set incorrectly for your intended boot source (e.g., Master SPI from an external flash), the FPGA will wait in a state of limbo.

Fix: Follow this systematic approach to isolate the fault. Do not skip steps.

1. Power Rail Verification: This is non-negotiable. Use an oscilloscope, not just a multimeter.
   • Probe the core voltage (VCC, 1.1V), auxiliary voltage (VCCAUX), and all I/O bank voltages (VCCIO).
   • Check for the correct DC level. Is 1.1V actually 1.1V, or is it 0.95V?
   • Verify the power-on sequence. The ECP5 datasheet specifies the required sequence (typically VCC, then VCCAUX, then VCCIOs). An incorrect sequence can put the device into an unknown state.
   • Look for excessive ripple and noise. High-frequency noise on the core supply can cause internal logic to fail, including the configuration state machine. Ensure your bypass capacitors are correctly placed and valued, as close to the BGA pins as possible.
2. Status and Control Pin Checks:
   • `PROGRAMN` Pin: This pin is active low. It must be high for the FPGA to attempt configuration. Check if it's being held low by another circuit or is floating. It should have a pull-up resistor.
   • `DONE` Pin: This pin is an open-drain output and requires an external pull-up resistor. Verify the resistor is present and connected to the correct VCCIO rail.
   • `INITN` Pin: If this pin is driven low, it indicates an error during the configuration process (like a CRC check failure). If it's low, the problem is likely with your bitstream or the SPI flash communication.
3. Configuration Mode and Clock:
   • Verify the `M[2:0]` pins. Their logic levels at power-on determine the configuration mode. Cross-reference their state on your board with the ECP5 datasheet's configuration modes table. A common mistake is having a floating mode pin, leading to an undefined state.
   • If using an external clock source for configuration (e.g., in a slave mode), probe the clock pin. Is the clock present, stable, and at the expected frequency?
   • If using Master SPI mode, probe the SPI flash interface (CS, CLK, MOSI, MISO) during the boot attempt. Do you see activity? If not, the FPGA isn't even trying to read the flash. If you see activity but it fails, you may have a signal integrity issue on those traces or a faulty flash chip.

Common Problem #2: SERDES Link Instability or Failure

Symptom: A high-speed serial link, such as SGMII, PCIe, or a custom protocol using the SERDES transceivers, fails to establish a link, has a very high bit error rate (BER), or links up and down intermittently. The eye diagram, when measurable, is completely closed or has significant jitter and noise.

Root Cause: SERDES channels operate at gigabit-per-second speeds, making them extremely sensitive to physical layer issues. The root cause is rarely the FPGA logic itself, but rather the analog and signal integrity environment. Common culprits include:

• Power Supply Noise: The SERDES analog circuitry (VCCA) requires an exceptionally clean power source. Noise from digital switching can couple into the analog supply, introducing jitter.
• Reference Clock Jitter: The reference clock (REFCLK) provided to the SERDES PLL is the heartbeat of the link. Any jitter on this clock is multiplied by the PLL and directly translates to jitter on the high-speed output data.
• Signal Integrity on PCB: Impedance discontinuities, stubs, crosstalk from adjacent signals, and losses in the PCB material all degrade the signal as it travels from the FPGA to the connector or receiving chip.
• Incorrect SERDES Attributes: The SERDES transceivers are highly configurable. Using the wrong settings for pre-emphasis, post-emphasis, or receiver equalization (EQ) for your specific channel will result in a failed link.

Fix: Debugging SERDES requires a mix of careful measurement and software configuration.

1. Isolate the Power and Clock:
   • Measure the VCCA rail for the SERDES block with an oscilloscope set to AC coupling and high bandwidth. The noise should be in the low single-digit millivolts range. If you see more, your filtering and decoupling strategy for the analog supply is insufficient. Consider adding a ferrite bead and more capacitors or using a dedicated low-noise LDO.
   • Verify the SERDES reference clock. Use a high-bandwidth scope with jitter analysis software if possible. Check for frequency accuracy, amplitude, and, most importantly, phase jitter. Ensure you are using a dedicated low-jitter oscillator as recommended in the ECP5 documentation.
2. Analyze the Physical Channel:
   • Review your PCB layout. Were the differential pairs routed with 100-ohm controlled impedance? Are they tightly coupled and length-matched? Did you minimize vias? If vias were necessary, were they designed correctly (e.g., with ground stitching vias)?
   • Use a TDR (Time-Domain Reflectometer) if available to check the impedance profile of the trace. This can reveal manufacturing defects or design flaws.
3. Leverage Internal Tools and Tuning:
   • Loopback Modes: The ECP5 SERDES has internal loopback capabilities. Start with a near-end PCS loopback. This tests the digital logic. Then move to a near-end PMA loopback, which tests the full path from the digital logic through the serializer and back through the deserializer within the same FPGA. If these pass, your FPGA logic and basic SERDES block are likely fine, and the problem is in the physical channel to the remote end.
   • SERDES Tuning: Use the Lattice Diamond software's SERDES/PCS configuration wizard. Don't just accept the defaults. The tool allows you to adjust transmitter pre-emphasis and receiver equalization. For a lossy channel (long trace), you'll need more pre-emphasis on the transmitter and more aggressive equalization on the receiver. This is often an iterative process: make a small change, re-test the link, and check the BER.

Common Problem #3: Timing Closure Failures in Hardware

Symptom: The FPGA design simulates perfectly and compiles without errors in the Lattice Diamond software. However, when loaded onto the LFE5U-45F-8BG381C, the system behaves erratically, produces incorrect data, or freezes. The behavior is often intermittent and may be sensitive to temperature or operating voltage.

Root Cause: This is a classic sign of a timing failure. The synthesis and place-and-route (P&R) tools were unable to ensure that all signal paths in your design could propagate within the required clock cycle. This creates setup or hold time violations. Even if the tool reports "timing met," it might be barely meeting it, and slight variations in silicon, temperature, or voltage on the actual hardware can push the path over the edge into failure.

Fix: Solving timing issues is a core FPGA design skill. It's a process of analysis and targeted optimization.

1. Deep-Dive into the Timing Report: The single most important file generated by the P&R tool is the timing analysis report (`.twr` file in Diamond). Do not ignore it.
   • Look for the "worst-case slack" for all clock domains. A negative slack value means a timing violation.
   • Identify the specific paths that are failing. The report will show you the source register, the destination register, and the full logic and net delay breakdown along the path.
   • Pay attention not just to failing paths, but also to paths with very little positive slack (e.g., less than 0.5 ns). These are your weakest links and are prone to fail under real-world conditions.
2. Constraint-Driven Design:
   • Check Your Constraints (.sdc file): Are all clocks in your design properly defined with a `create_clock` constraint? Are the relationships between asynchronous clocks defined with `set_clock_groups`? Have you specified I/O delays with `set_input_delay` and `set_output_delay`? Incorrect or missing constraints are a primary cause of hidden timing failures. The tool can't fix what it doesn't know is a requirement.
   • Use Multicycle and False Path Constraints: If you know a path takes more than one clock cycle to complete by design, or if a path is logically impossible (e.g., between two mutually exclusive states), tell the tool! Use `set_multicycle_path` and `set_false_path` to relax timing on these paths, allowing the tool to focus its optimization efforts on the paths that truly matter.
3. HDL Code Optimization:
   • Pipeline, Pipeline, Pipeline: The most effective way to fix a long combinatorial path (the usual cause of setup violations) is to break it up with registers. Look at the failing path in the timing report and find a logical place in your Verilog/VHDL code to add a pipeline stage. This shortens the path and increases the maximum clock frequency.
   • State Machine Encoding: For complex state machines, consider using a one-hot encoding style. While it uses more registers, it often reduces the combinatorial logic needed for state decoding, improving timing.
   • Resource Awareness: Be mindful of how your code will synthesize. A large case statement or a deep chain of `if-else` statements can create long priority encoder logic.

Comprehensive Debug Checklist

When you're stuck, go back to basics. Use this checklist to systematically verify every critical aspect of the FPGA's operation.

If you've gone through this entire checklist and are still facing issues, the problem may be more subtle. Consider potential thermal issues by monitoring the device temperature. A design that works on a cold board but fails after a few minutes may have timing paths that are marginal at higher temperatures. Also, it's worth double-checking the part number against your design files. Accidentally using a slower speed grade or a different package can lead to inexplicable failures. When debugging, it's often useful to compare your board's behavior to other designs in the ECP5 family. You can Browse ECP5 Series to see the specifications of related parts and gain a broader understanding of the platform's capabilities and constraints.

Sourcing and Verifying Genuine LFE5U-45F-8BG381C Parts

In today's strained supply chain, the temptation to source components from unverified, third-party brokers is high. For a complex component like the LFE5U-45F-8BG381C, this is a significant risk. Counterfeit or poorly handled components are a major cause of board failures that are nearly impossible to debug.

Signs of a non-genuine or improperly handled part include:

• Cosmetic Issues: Inconsistent laser markings, different fonts or logos, or signs of blacktopping (re-coating the surface to hide old markings).

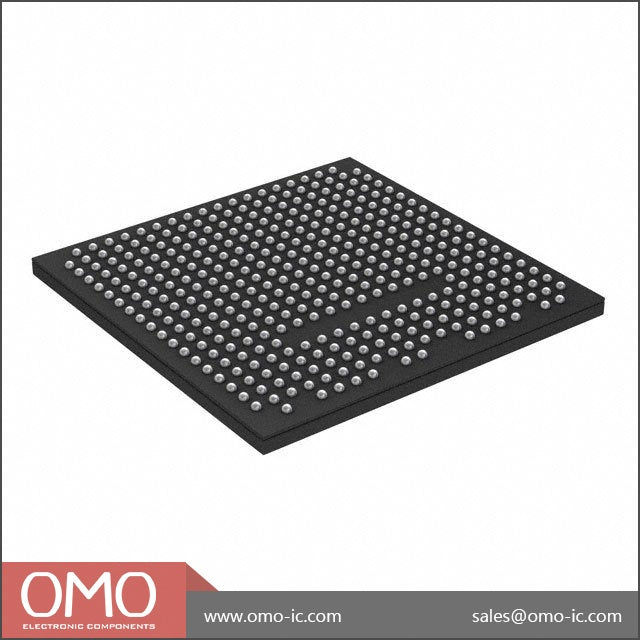

• Physical Damage: Bent or missing BGA balls, chipped corners, or scratches. This often indicates parts were salvaged from e-waste.
• Packaging: Parts arriving outside of sealed, moisture-sensitive packaging (MSL bags) with a humidity indicator card. FPGAs are sensitive to moisture, and improper handling can lead to catastrophic failure during reflow soldering (the "popcorn effect").

While visual inspection can catch obvious fakes, sophisticated counterfeits may look identical to genuine parts but contain incorrect or non-functional silicon. They might fail at specific temperatures, have higher power consumption, or lack entire features like the SERDES block. The only reliable way to guarantee authenticity and performance is to source through a trusted, traceable supply chain. Authorized distributors and vetted global suppliers who provide traceability back to the original manufacturer are your best line of defense. This ensures the parts you receive are authentic, have been handled according to strict ESD and MSL standards, and will perform exactly as the datasheet specifies. Don't let weeks of engineering effort be wasted by a questionable component. Check LFE5U-45F-8BG381C Inventory & Pricing with a reliable partner to ensure your project's success.

Video Demonstration

Frequently Asked Questions (LFE5U-45F-8BG381C FAQ)

Why is the DONE pin on my LFE5U-45F-8BG381C not going high after power-on?

If the DONE pin stays low, the FPGA has failed to complete its configuration process. The most common causes are power supply issues (incorrect voltage, excessive noise, or wrong power-up sequence), incorrect configuration mode settings (check M0/M1/M2 pins), or a problem with the configuration source itself, such as a blank or corrupted SPI flash. Start by meticulously verifying all power rails with an oscilloscope, then confirm your configuration mode pins are correctly pulled high or low for your intended boot scheme.

My JTAG chain is not detected by the Lattice Diamond programmer. What should I check first?

First, verify the physical connections. Ensure your JTAG pod is correctly connected to the header and that the TCK, TMS, TDI, and TDO pins have a clear path to the FPGA. Check for solder bridges or open circuits. Second, confirm the VCCIO voltage of the JTAG bank on the FPGA matches the voltage reference setting on your JTAG programmer. A mismatch can prevent communication. Finally, check the TCK signal integrity with an oscilloscope; it should be a clean square wave without excessive ringing or reflections.

The FPGA seems to get very hot, even with a light design. Is this normal?

Excessive heat can indicate a problem. While FPGAs do generate heat, a simple design should not make the LFE5U-45F-8BG381C extremely hot at idle. Potential causes include I/O contention where two drivers are fighting each other, floating input pins that cause internal logic to oscillate, or a short circuit on the PCB. Another possibility is an incorrect core voltage; even a slightly elevated VCC can significantly increase power consumption and heat. Use the power estimation tools in Lattice Diamond to get an expected power budget for your design and compare it to your measured results.

I'm seeing data corruption on a DDR3 interface connected to the ECP5. What are the likely causes?

DDR3 interfaces are high-speed and timing-critical. Data corruption often stems from signal integrity or timing issues. Key areas to investigate are: incorrect trace length matching on the PCB for the data, address, and clock groups; poor power delivery to the memory and FPGA I/O banks (PDN impedance); and incorrect timing constraints or calibration settings within the ECP5's DDR3 memory controller IP. Rerunning the memory controller calibration or using Lattice's DDR3 IP core analysis tools can help diagnose the issue.

Can I change the I/O voltage on a bank of the LFE5U-45F-8BG381C?

Yes, the LFE5U-45F-8BG381C features multiple I/O banks, and each bank's voltage level is determined by its corresponding VCCIO pin. For example, you can have Bank 1 operating at 1.8V to interface with a modern ADC, while Bank 2 operates at 3.3V to control legacy peripherals. It is critical that the VCCIO supply for a given bank is powered and stable before any signals are driven into that bank. You must also ensure the I/O standard selected in your FPGA design (e.g., LVCMOS33, LVCMOS18) matches the VCCIO voltage supplied to that bank.
