XC7A100T-1CSG324C Datasheet, Specs & Pricing (Xilinx Artix-7)

XC7A100T-1CSG324C Datasheet, Pinout, Equivalents, and Specs

The XC7A100T-1CSG324C is a Field-Programmable Gate Array (FPGA) from the Xilinx Artix-7 family, manufactured using a 28nm process technology. It provides a high-performance logic architecture optimized for low power consumption and cost-sensitive applications. This device integrates a substantial number of logic cells, Block RAM, and DSP slices, making it suitable for complex digital signal processing, embedded systems, and high-throughput connectivity solutions.

What is the XC7A100T-1CSG324C?

The XC7A100T-1CSG324C is a high-density FPGA that belongs to the Xilinx 7 Series portfolio. Built on a 28nm HPL (High-Performance, Low-Power) process, the Artix-7 family is engineered to deliver the best performance-per-watt ratio in its class. The internal architecture consists of configurable logic blocks (CLBs), each containing Look-Up Tables (LUTs) and flip-flops, surrounded by a rich routing matrix. This specific model, the XC7A100T, offers 101,440 logic cells, significant on-chip memory, and dedicated DSP resources, positioning it for tasks that require parallel processing capabilities beyond what traditional microcontrollers can offer. Its target markets include industrial automation, machine vision, portable medical equipment, and software-defined radio (SDR).

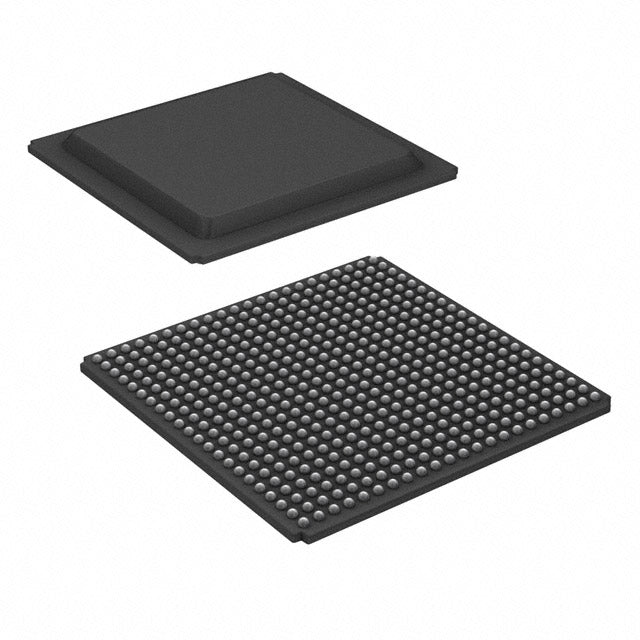

XC7A100T-1CSG324C FPGA architecture and package

Pinout Configuration and Packaging

The XC7A100T-1CSG324C is offered in the CSG324 package. This is a 324-ball Chip Scale BGA with a 19x19 mm body size and a 1.0 mm ball pitch. This package provides a balance between a compact footprint and a sufficient number of I/O pins for complex designs. The 324 pins are allocated to power, ground, configuration, and user I/O. The user I/O pins are organized into banks, each with an independent VCCO supply rail, allowing for interfacing with multiple logic standards (e.g., LVCMOS33, LVCMOS18, LVDS). Careful pin planning is essential during PCB design to optimize signal integrity, especially for high-speed interfaces like DDR3 memory or Gigabit Ethernet.

Core Architectural Features

  • Programmable Logic Fabric: Features 15,850 logic slices, which are comprised of 63,400 6-input Look-Up Tables (LUTs) and 126,800 flip-flops, providing a substantial resource for implementing complex digital logic.
  • On-Chip Memory: Includes 4,860 Kbits of total Block RAM, configurable as 36Kb blocks. These blocks can be configured as true dual-port, simple dual-port, or single-port RAM, as well as ROM or FIFOs, offering flexible data buffering and storage.
  • Digital Signal Processing (DSP): Contains 240 dedicated DSP48E1 slices. Each slice includes a 25x18 multiplier, an accumulator, and a pre-adder, enabling high-performance, fixed-point arithmetic for applications like filtering, FFTs, and correlation.
  • Clock Management: Integrates six Mixed-Mode Clock Managers (MMCMs) and two Phase-Locked Loops (PLLs). These resources provide advanced clock synthesis, jitter filtering, and deskew capabilities, critical for managing complex clocking domains in system-on-chip (SoC) designs.
  • High-Speed Transceivers: Equipped with eight GTP transceivers capable of data rates up to 6.6 Gb/s. These are suitable for implementing serial protocols such as PCI Express (Gen1/Gen2), SATA, SGMII, and XAUI.

Specifications Parameter Table

Specification Technical Details
Logic Cells 101,440
Total Block RAM 4,860 Kbits
DSP Slices (DSP48E1) 240
Maximum User I/O 210 (in CSG324 package)
Core Voltage (VCCINT) 1.0V (Nominal)
Package CSG324 (19x19mm, 1.0mm pitch)

XC7A100T-1CSG324C Equivalents, Cross Reference, and Lifecycle

The XC7A100T-1CSG324C is an active production device from Xilinx (now AMD). When considering equivalents, designers often look within the same family for scalability. The XC7A75T-1CSG324C is a lower-density, pin-compatible alternative for less complex designs, potentially offering cost savings. Conversely, the XC7A200T in a compatible package (e.g., FBG484) provides a migration path for designs requiring more logic resources, though it is not pin-compatible with the CSG324 package. Pin-to-pin compatibility is a key advantage of the Artix-7 family, but it is critical to verify power pin assignments and I/O bank capabilities across different density devices. For current availability and sourcing, it is recommended to Check XC7A100T-1CSG324C Inventory & Pricing from authorized distributors. For a broader selection of devices with varying logic densities and package options, engineers can Browse Artix-7 Series components.

Typical Application & Circuit Considerations

In system-level design, the XC7A100T-1CSG324C requires a carefully designed Power Distribution Network (PDN) to ensure stable operation. The primary power rails include VCCINT (1.0V core voltage), VCCAUX (1.8V auxiliary voltage), and one or more VCCO rails (1.2V to 3.3V) for the I/O banks. Each power rail must be adequately decoupled with a combination of bulk and high-frequency ceramic capacitors placed as close as possible to the BGA balls. Power sequencing is also critical; the recommended sequence is typically VCCINT, then VCCAUX, followed by VCCO. For high-speed designs utilizing the GTP transceivers or DDR memory interfaces, controlled impedance routing on the PCB is mandatory to maintain signal integrity and meet timing budgets.

Video Demonstration

Frequently Asked Questions (XC7A100T-1CSG324C FAQ)

Q: What is the significance of the "-1" speed grade in the XC7A100T-1CSG324C part number?

A: The "-1" in the part number denotes the speed grade of the device. For Xilinx 7 Series FPGAs, a lower number indicates a slower speed grade. The available speed grades are typically -1 (slowest), -2, and -3 (fastest). A faster speed grade device can achieve higher clock frequencies and has lower propagation delays, but it also consumes more static power. The -1 speed grade is the commercial-grade, standard performance option, suitable for a wide range of applications where the absolute maximum performance is not the primary requirement.

Q: How many GTP transceivers are available on the XC7A100T-1CSG324C, and what are their maximum data rates?

A: The XC7A100T-1CSG324C is equipped with eight GTP (Gigabit Transceiver) channels. Each of these transceivers is capable of operating at data rates up to 6.6 Gb/s. These are highly versatile and can be used to implement a variety of standard serial communication protocols, including PCI Express (Gen1/Gen2), Serial ATA (SATA), Gigabit Ethernet (SGMII), and Aurora. They feature built-in equalization (CTLE, DFE) to compensate for channel losses in PCB traces and cables.

Q: What are the primary power supply rails required for the XC7A100T-1CSG324C and their nominal voltages?

A: The device requires several key power rails for operation. The core logic runs on VCCINT, which has a nominal voltage of 1.0V. The auxiliary internal logic, including the JTAG and configuration circuits, uses VCCAUX at a nominal 1.8V. The I/O banks are powered by VCCO rails, which can range from 1.2V to 3.3V depending on the I/O standard being used. Additionally, the GTP transceivers require their own dedicated power supplies, MGTAVCC (1.0V) and MGTAVTT (1.2V).

Q: Can the internal Block RAM in the XC7A100T be configured as true dual-port memory?

A: Yes, the 36Kb Block RAM primitives within the XC7A100T architecture can be configured as true dual-port memory. In this mode, the memory block has two completely independent ports (Port A and Port B), each with its own address, data, clock, and control signals. This allows for simultaneous read and write operations to different memory locations, which is essential for applications requiring shared data access between two different clock domains or processing modules.

Q: What is the maximum number of user I/O pins available in the CSG324 package for this device?

A: In the CSG324 package, the XC7A100T provides a maximum of 210 user I/O pins. The remaining pins of the 324-ball grid array are dedicated to power, ground, and special-purpose configuration functions (e.g., JTAG, mode pins). The 210 available I/Os are organized into High-Range (HR) and High-Performance (HP) banks, allowing for a wide variety of single-ended and differential I/O standards to be implemented.
