XC6SLX45-2FGG484I Datasheet, Pinout, Equivalents, and Specs

The XC6SLX45-2FGG484I is a Field-Programmable Gate Array (FPGA) from the Xilinx (now AMD) Spartan-6 family, engineered to provide a robust balance of logic density, I/O flexibility, and cost-effectiveness. It solves the problem of implementing complex digital logic, signal processing, and system-level connectivity in applications where power consumption and unit cost are critical design constraints. As a mid-range device in the logic-optimized (LX) Spartan-6 lineup, it is a workhorse for a vast array of industrial, automotive, and communications equipment that require significant processing capability without the overhead of high-end FPGAs.

What is the XC6SLX45-2FGG484I?

The XC6SLX45-2FGG484I is a specific member of the Spartan-6 family, built on a mature 45nm low-power copper interconnect process technology. The part number itself provides a wealth of information for an engineer: XC for Xilinx, 6S for Spartan-6, LX for Logic-Optimized, 45 for its relative logic density, -2 for its speed grade, FGG484 for its package, and I for its industrial temperature rating.

At its core, the XC6SLX45 is a sea of programmable logic blocks surrounded by configurable I/O. The fundamental building block is the "slice," and this device contains 6,822 of them. Each Spartan-6 slice is highly flexible, containing four 6-input Look-Up Tables (LUTs) and eight flip-flops. These 6-input LUTs are a significant architectural improvement over older FPGA families, as they can implement more complex logic functions per block, leading to better resource utilization and potentially higher performance. A single 6-input LUT can also be configured as two independent 5-input LUTs, providing further design flexibility.

Beyond general-purpose logic, the XC6SLX45 integrates specialized hardware blocks to offload common, performance-critical tasks. It includes 58 DSP48A1 slices, which are hard-silicon blocks designed for digital signal processing. Each DSP slice contains a high-speed 18x18 multiplier, an adder, and an accumulator, making it ideal for implementing functions like FIR filters, FFTs, and correlators far more efficiently than in general-purpose logic. For data storage, the device features 2,088 Kbits of distributed Block RAM (BRAM). This memory is arranged in 18 Kb blocks that can be configured in various widths and depths, serving as FIFOs, data buffers, or processor memory.

Clocking is managed by four Clock Management Tiles (CMTs). Each CMT contains two Digital Clock Managers (DCMs) and one Phase-Locked Loop (PLL). These resources provide sophisticated clock synthesis, jitter filtering, and clock deskew capabilities, which are essential for managing complex timing domains within a system and interfacing with external high-speed peripherals. The device also includes hard Memory Controller Blocks (MCBs) capable of interfacing directly with DDR, DDR2, DDR3, and LPDDR memory, simplifying the design of systems requiring large amounts of external RAM.

Pinout Configuration and Packaging

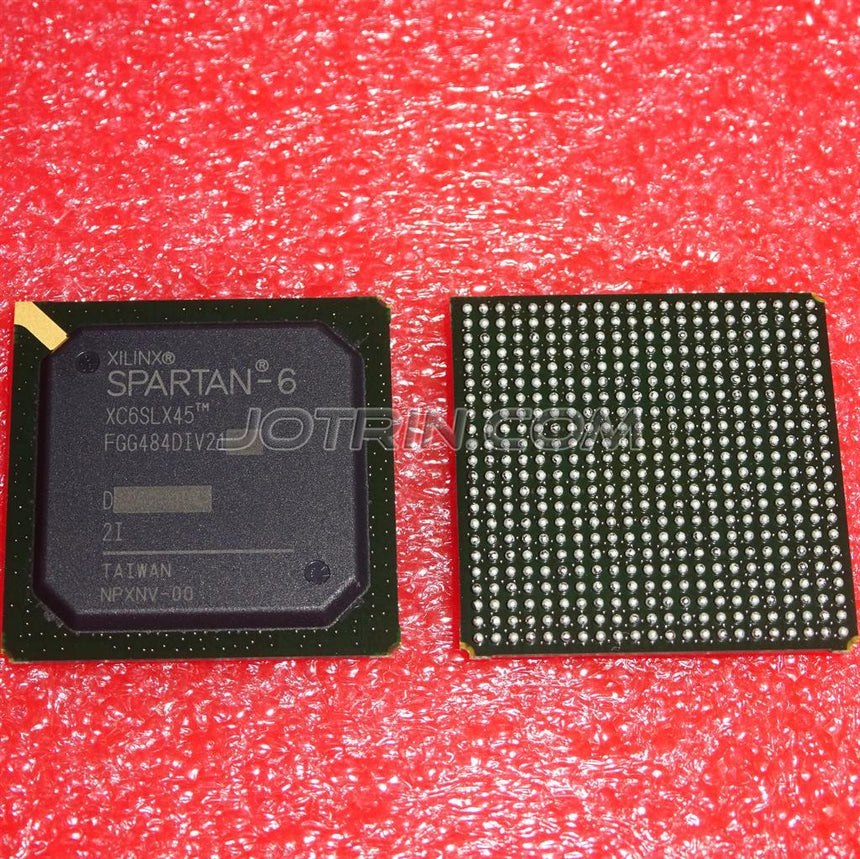

The XC6SLX45-2FGG484I is housed in the FGG484 package. This is a 484-pin Fine-Pitch Ball Grid Array (BGA) with a 23x23 mm body size and a 1.00 mm ball pitch. This package provides a good balance between I/O count and PCB layout complexity, making it suitable for cost-sensitive but dense designs. Out of the 484 balls, a maximum of 358 can be used as general-purpose user I/O.

The pinout is organized into several I/O banks. A key feature of the Spartan-6 architecture is that each bank can be powered by a separate VCCO supply voltage. This allows the FPGA to interface directly with multiple logic standards (e.g., 3.3V LVCMOS, 2.5V LVCMOS, 1.8V HSTL) simultaneously without the need for external level-shifting circuitry. This dramatically simplifies board design and reduces component count.

Critical pins for any design include:

• VCCINT: The core voltage supply, which powers the internal logic fabric. This must be a stable 1.2V nominal supply.
• VCCAUX: The auxiliary voltage supply, powering resources like the JTAG interface and CMTs.
• VCCO: The I/O bank supply voltage. There will be multiple VCCO pins, one for each bank, which can be set to different voltages as required by the application.
• GND: A large number of ground pins are provided for signal and power integrity. A solid ground plane on the PCB is essential.
• GCLK Pins: Dedicated global clock input pins that can drive the high-fanout global clock networks for low-skew clock distribution.
• JTAG Pins (TMS, TCK, TDI, TDO): The standard Test Access Port for programming the device, debugging with tools like ChipScope Pro, and boundary scan testing.
• Configuration Pins (e.g., M0, M1, CCLK, PROGRAM_B, DONE): These pins set the configuration mode (e.g., Master SPI, Slave Serial) and manage the bitstream loading process.

Due to the complexity of the 484-pin BGA, engineers must refer to the official Xilinx UG385 Spartan-6 FPGA Packaging and Pinouts User Guide for the exact pin locations, bank assignments, and special function pins. Using the correct pinout file from the ISE Design Suite for the FGG484 package is non-negotiable for a successful board layout.

Core Architectural Features

• Advanced 6-Input LUT Fabric: Provides superior logic capacity and performance compared to previous generations. Each LUT can be configured as a single 6-input function generator or as two 5-input LUTs with shared inputs, enabling highly efficient logic packing and reducing routing congestion.
• High-Performance DSP48A1 Slices: The device integrates 58 dedicated DSP slices, each featuring a pre-adder, an 18x18 two's complement multiplier, and a 48-bit accumulator. These blocks operate at high speeds and are essential for implementing computationally intensive algorithms in applications like wireless communications and machine vision.
• Integrated Memory Controller Blocks (MCBs): Includes dedicated hard IP blocks for interfacing with a wide range of external memory standards, including DDR, DDR2, DDR3, and LPDDR. This simplifies the often-complex task of memory interface design, saving logic resources and guaranteeing timing performance.
• Flexible Clock Management Tiles (CMTs): Features four CMTs, each with DCMs and a PLL. This allows for precise clock synthesis (frequency multiplication/division), phase shifting, and jitter attenuation, ensuring robust timing across the entire design and for external interfaces.
• Power-Saving Modes: The Spartan-6 family incorporates a suspend mode that significantly reduces static power consumption by powering down most of the internal fabric while retaining configuration data. This allows for quick wake-up and is beneficial for battery-powered or power-sensitive applications.

Specifications Parameter Table

Specification	Technical Details
Logic Cells	43,661
Number of Slices	6,822
Total Block RAM	2,088 Kbits (116 blocks of 18 Kb)
DSP48A1 Slices	58
Clock Management Tiles (CMTs)	4
Maximum User I/O (FGG484 Package)	358
Core Voltage (VCCINT)	1.2V (Nominal, Range: 1.14V to 1.26V)
Operating Temperature Range (Industrial Grade)	-40°C to +100°C (Junction Temperature, Tj)

XC6SLX45-2FGG484I Equivalents, Cross Reference & Lifecycle

The Spartan-6 family is considered a mature product line. While not recommended for brand-new designs starting from scratch, it remains in production to support the vast number of existing products that rely on it. Its longevity and stability make it a valuable component for maintenance, repair, and overhaul (MRO) operations, as well as for ongoing production of established designs. For availability and lead times, it is always best to Check XC6SLX45-2FGG484I Inventory & Pricing with a reliable distributor.

When considering alternatives, there are several categories:

• Direct Package-Compatible Variants: The most straightforward replacements are other devices in the same family and package. The XC6SLX45-3FGG484I is a drop-in replacement that offers a higher performance speed grade. The XC6SLX45-2FGG484C is also a drop-in replacement but is rated for the commercial temperature range (0°C to 85°C T_j), making it unsuitable for applications requiring industrial-grade ruggedness.
• Functional Alternatives (Requiring Redesign): Migrating to a newer FPGA family like the Artix-7 series is a common upgrade path. A device like the XC7A50T-2FGG484I offers similar logic capacity and is also available in a 484-pin BGA package. However, this is not a drop-in replacement. Migrating requires a complete project port from the ISE Design Suite to the Vivado Design Suite, architectural changes (e.g., 7-series uses different slice and clocking structures), and a full re-verification of the design. The pinouts are not compatible and a new PCB would be required.

Typical Applications & Circuit Considerations

The XC6SLX45-2FGG484I's feature set makes it highly suitable for a wide range of logic-intensive applications where cost and power are key factors. Its generous I/O count and flexible I/O standards are particularly valuable.

Common system-level use cases include:

• Industrial Automation: Implementing real-time motor control loops, acting as the central logic for Programmable Logic Controllers (PLCs), and performing pre-processing tasks in machine vision systems like image filtering and blob detection.
• Broadcast and Pro A/V: Used in video switchers, glue logic for format conversion (e.g., SDI to HDMI), audio mixing, and OSD (On-Screen Display) generation.
• Automotive Systems: Found in older-generation infotainment head units for display control, CAN/LIN bus bridging, and sensor data aggregation.
• Test and Measurement: Creating custom waveform generators, logic analyzers, and data acquisition front-ends.
• Software Defined Radio (SDR): The DSP48A1 slices are well-suited for implementing digital down-converters (DDCs), digital up-converters (DUCs), and polyphase channel filters in the digital front-end of a radio.

For a successful implementation, hardware engineers must pay close attention to several circuit details. Power integrity is paramount. The VCCINT, VCCAUX, and VCCO rails require careful decoupling. A standard practice is to place a combination of bulk capacitors (e.g., 10-47µF) and high-frequency ceramic capacitors (e.g., 0.1µF, 0.01µF) as close as physically possible to the BGA pins. The Spartan-6 datasheet (DS162) specifies a recommended power-on sequence: VCCINT first, followed by VCCAUX, and then VCCO. While the device is generally robust, adhering to this sequence enhances long-term reliability.

PCB layout for the FGG484 package requires a multi-layer board (typically 6 layers or more) to properly route signals and provide solid power and ground planes. High-speed interfaces, such as the connections to an external DDR memory, demand controlled-impedance traces to maintain signal integrity. Differential pairs for LVDS I/O also require careful length-matching and routing. The wide range of available devices in the family makes it a versatile choice for many projects. You can Browse Spartan-6 Series to find the optimal density and package for your specific requirements.

Video Demonstration

Frequently Asked Questions (XC6SLX45-2FGG484I FAQ)

What is the difference between the XC6SLX45 and XC6SLX45T?

The primary difference is the inclusion of high-speed serial transceivers. The 'T' suffix in XC6SLX45T indicates it has integrated GTP (GigaBit Transceiver) blocks, which are used for multi-gigabit serial protocols like PCI Express, Serial ATA, and XAUI. The standard XC6SLX45 (non-T variant) lacks these GTP transceivers, making it a more cost-effective choice for designs that rely on parallel I/O or lower-speed serial interfaces like LVDS.

What software is used to program the XC6SLX45-2FGG484I?

The XC6SLX45-2FGG484I is supported by the Xilinx ISE Design Suite, with the last major version being 14.7. It is critical to note that this device is a legacy part and is not supported by the modern Xilinx Vivado Design Suite. Any new development or modification of existing projects for this FPGA must be done using the appropriate version of ISE.

What does the "-2FGG484I" part of the model number mean?

This suffix provides key device specifications. The "-2" indicates the speed grade, with -2 being a standard performance grade (a -3 would be faster). "FGG484" defines the package: a 484-pin Fine-Pitch Ball Grid Array. Finally, the "I" signifies that the device is rated for the industrial operating temperature range, which is a junction temperature of -40°C to 100°C.

Can I migrate a design from a Spartan-3E to a Spartan-6 like the XC6SLX45?

Yes, migration is a common engineering task, but it is not a simple drop-in process and requires a significant redesign effort. The core architectures are different; Spartan-3E uses 4-input LUTs while Spartan-6 uses more efficient 6-input LUTs. Clocking resources, block RAM structures, and I/O blocks are also different. The design's HDL code must be re-synthesized, re-implemented (place and route), and fully re-timed and verified for the Spartan-6 target using the ISE Design Suite.

What type of configuration memory should I use with the XC6SLX45?

The most common configuration solution for the XC6SLX45 is an external SPI flash memory chip. The FPGA is set to Master SPI mode by tying the M0 and M1 mode pins to the correct logic levels. Upon power-up, the FPGA automatically generates a clock (CCLK) and reads its configuration bitstream from the SPI flash. For the XC6SLX45, the uncompressed bitstream size is 13,958,336 bits, so a 16 Mbit or 32 Mbit SPI flash is typically a safe and cost-effective choice.
