XC7Z010-1CLG400I Equivalents, Replacements, and Cross-Reference Guide

As a hardware engineer or procurement professional, navigating the component landscape is a daily challenge. When a specific part like the Xilinx XC7Z010-1CLG400I faces allocation, long lead times, or end-of-life concerns, finding a suitable replacement becomes critical. This guide provides a senior engineering perspective on finding equivalents for the XC7Z010-1CLG400I, covering pin-compatible drop-ins, functional alternatives, and the essential migration considerations to ensure a successful transition.

XC7Z010-1CLG400I Overview and Current Availability

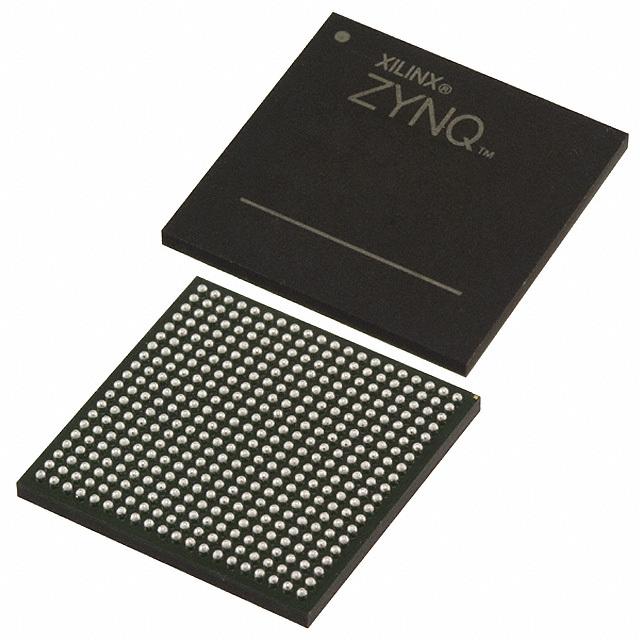

The XC7Z010-1CLG400I is a System-on-Chip (SoC) from the Xilinx (now AMD) Zynq-7000 family. These devices are notable for tightly integrating a dual-core ARM Cortex-A9 based Processing System (PS) with Artix-7 based Programmable Logic (PL) on a single die. This architecture allows for the software programmability of a microprocessor and the hardware parallelism of an FPGA, making it suitable for a wide range of applications including industrial automation, medical imaging, and advanced driver-assistance systems (ADAS).

Let's break down the part number:

• XC7Z010: Identifies the device. The '7Z010' specifies the smallest member of the Zynq-7000 family in terms of logic resources.
• -1: This is the speed grade. '-1' is the slowest commercial/industrial speed grade, with the PS ARM cores specified to run up to 667 MHz according to the Zynq-7000 (DS191) datasheet.
• CLG400: Defines the package. This is a 400-ball Chip Scale Ball Grid Array (CSBGA) with a 0.8mm pitch, measuring 17x17 mm.
• I: Indicates the temperature grade. 'I' stands for Industrial, with a junction temperature operating range of -40°C to 100°C.

Key specifications from the official datasheet (DS191) include 28K logic cells, 17,600 LUTs, 2.1 Mb of Block RAM, and 80 DSP slices in the PL section. The PS features the dual-core ARM Cortex-A9 MPCore processor, along with a rich set of peripherals like UART, SPI, I2C, CAN, USB, and Gigabit Ethernet.

In terms of lifecycle and availability, the Zynq-7000 family is mature, having been on the market for over a decade. While it remains a popular choice and is still in active production, its maturity means it can be subject to supply chain fluctuations, especially for the lower-cost, high-volume members like the XC7Z010. Newer families like the Zynq UltraScale+ MPSoC offer higher performance, but for many established designs, finding a compatible Zynq-7000 part is the only viable path.

Pin-Compatible Equivalents

For engineers facing a line-down situation, a pin-compatible, drop-in replacement is the ideal solution. Within the Zynq-7000 family, Xilinx designed certain devices in the same package to be pin-compatible to allow for design scalability. For the XC7Z010-1CLG400I, there are several options to consider, though each comes with caveats.

1. Different Speed Grades: The most direct replacement is the same device in a faster speed grade, such as the XC7Z010-2CLG400I or XC7Z010-3CLG400I. These parts are guaranteed to be pin-for-pin identical. A faster speed grade part will meet or exceed the timing performance of the '-1' grade. While this is generally a safe substitution, it's crucial to perform a new static timing analysis (STA) in Vivado targeting the new part number. The primary downside is cost; faster speed grades are typically more expensive. Power consumption may also differ slightly and should be re-evaluated.

2. Larger Device in the Same Package: The XC7Z020-1CLG400I is the next device up in the Zynq-7000 family and is also offered in the CLG400 package. Xilinx designed these to be migration-compatible. The XC7Z020 offers significantly more PL resources (85K logic cells vs. 28K). For many designs, this can serve as a drop-in replacement. However, you must verify the pinout meticulously using the official Xilinx documentation (UG865). While most I/O and power pins align, there can be subtle differences, especially with pins that are I/O on the smaller device but become dedicated power or configuration pins on the larger one. If your design uses only the common I/O, the migration is straightforward. The main considerations are increased cost and higher static power consumption of the larger die.

3. Different Temperature Grades: You can always replace a commercial grade part (e.g., XC7Z010-1CLG400C) with an industrial grade (I) part, as the industrial part has a wider operating range. However, you can not go the other way for a product specified for industrial environments. Using a commercial part with a 0°C to 85°C junction temperature range in place of an industrial part rated for -40°C to 100°C would violate the design's environmental specifications and is not a valid replacement.

In summary, no replacement should be considered "blindly" drop-in. The best practice is to always re-generate the bitstream for the new target part and re-run full timing analysis, even for a simple speed grade change.

Functional Alternatives (May Require Redesign)

When a pin-compatible replacement isn't available or a product refresh is being considered, looking at functional alternatives is the next step. These are not drop-in replacements and will require a full board respin and significant software porting effort.

Within the Xilinx/AMD Ecosystem: If you are committed to the Xilinx toolchain (Vivado, Vitis), the most logical step is to migrate to a different Zynq family or a different package.

• Zynq-7000 in a different package: The XC7Z010 is available in other packages like the CPG225. If a board redesign is already on the table, this could be an option driven by cost or availability, but it offers no functional advantage.
• Zynq UltraScale+ MPSoC: This is the next-generation family. Devices like the ZU2 or ZU3 offer a significant performance uplift with 64-bit quad-core ARM Cortex-A53 processors, ARM Cortex-R5 real-time cores, and more advanced programmable logic. This is a migration path for new product generations, not a simple substitute. It requires a complete redesign of hardware (DDR4 vs DDR3, different power rails) and a major software porting effort from the 32-bit A9 to the 64-bit A53 architecture.

From Other Manufacturers: Switching to a different manufacturer is the most drastic step, as it requires abandoning your existing toolchain and design IP.

• Intel (formerly Altera) Cyclone V SoC: This is the most direct competitor to the Zynq-7000. It also features a dual-core ARM Cortex-A9 processor system integrated with FPGA fabric. Devices like the 5CSEBA2U19I7N are comparable in function. However, migration requires a complete hardware redesign (different footprint, power scheme) and a complete software and HDL redesign using the Intel Quartus Prime toolchain. All Xilinx-specific IP cores would need to be replaced with Intel equivalents.
• Microchip PolarFire SoC: This family is a strong contender, especially for applications where power is a primary concern. It stands out by using a RISC-V processor subsystem instead of ARM. This is a major architectural difference. While it offers excellent performance-per-watt, moving to a PolarFire SoC means redesigning for a new package, new power architecture, and adopting a completely different CPU architecture and its associated software ecosystem (Libero SoC).

These functional alternatives represent major engineering decisions. The cost of redesign, software porting, and re-validation often outweighs the cost of sourcing the original part through a reliable independent distributor, unless a next-generation product is the goal.

Detailed Comparison Table

This table provides a high-level comparison between the XC7Z010-1CLG400I, its pin-compatible upgrade, and a key functional alternative from a competing manufacturer. Specifications are based on manufacturer datasheets.

Parameter	XC7Z010-1CLG400I (Xilinx)	XC7Z020-1CLG400I (Xilinx)	5CSEBA4U19I7N (Intel Cyclone V SE)
Processor System (PS)	Dual-core ARM Cortex-A9 @ up to 667 MHz	Dual-core ARM Cortex-A9 @ up to 667 MHz	Dual-core ARM Cortex-A9 @ up to 800 MHz
Logic Cells (LCs)	28K	85K	40K Logic Elements (LEs)
Block RAM	2.1 Mb	4.9 Mb	~3.4 Mb
DSP Slices / Blocks	80	220	60 Variable-precision DSP blocks
Package	CLG400 (17x17mm, 0.8mm pitch)	CLG400 (17x17mm, 0.8mm pitch)	UBGA484 (19x19mm, 0.8mm pitch)
Max User I/O	100 (in this package)	100 (in this package)	~188
Development Toolchain	Vivado / Vitis	Vivado / Vitis	Quartus Prime

Migration Guide: Switching from XC7Z010-1CLG400I

Successfully migrating to an alternative component, even a supposedly "pin-compatible" one, requires a methodical verification process. Rushing this step can lead to costly board failures and production delays. Here is a checklist for your engineering team.

1. Hardware Design Verification:

• Pinout and Footprint: If migrating to a pin-compatible part like the XC7Z020, do not assume 100% compatibility. Obtain the official pinout files for both devices and perform a pin-by-pin comparison. Pay special attention to No Connect (NC) pins, power pins (VCCINT, VCCAUX, VCCO), and dedicated configuration pins (MIO). A pin that was a user I/O on the Z010 might be a dedicated function on the Z020.
• Power Delivery Network (PDN): A larger or faster device will have different power characteristics. The XC7Z020, with its larger fabric, will have higher static current draw. Both faster speed grades and larger devices can exhibit higher transient current demands. Use the Xilinx Power Estimator (XPE) spreadsheet with your design's utilization to model the new power requirements. Your PCB's PDN, including voltage regulators and decoupling capacitors, must be able to support the new load profile.
• Thermal Analysis: Increased power consumption directly translates to increased heat dissipation. Re-evaluate your thermal solution. A simple speed grade change might be fine, but moving from a Z010 to a Z020 could require a larger heatsink or improved airflow to keep the junction temperature within the industrial grade limits.

2. Software and Firmware Changes:

• Toolchain Targeting: You must change the target device in your Vivado project settings. This is the most fundamental step. All subsequent steps depend on the tools knowing the exact part number you are now using.
• Bitstream Generation: A new bitstream for the programmable logic must be generated. A bitstream for a XC7Z010 will not work on a XC7Z020.
• First Stage Bootloader (FSBL): The FSBL is highly device-specific. It is generated by the Vitis tools (or older Xilinx SDK) based on the hardware definition exported from Vivado. You must regenerate the FSBL for the new target device.
• Timing Closure: After recompiling your design for the new part, you must run a full static timing analysis (STA). Even when moving to a faster speed grade, which should theoretically make timing easier to meet, you must verify that all paths still close timing correctly. New critical paths could emerge due to subtle changes in the device architecture.

A thorough review of these areas is non-negotiable for a successful migration. For exploring options within the same family, you can Browse Zynq-7000 Series to see the various device, package, and speed grade combinations available.

Where to Source XC7Z010-1CLG400I and Alternatives

In today's volatile electronics market, securing a reliable supply chain is as important as the design itself. When sourcing a high-value component like the XC7Z010-1CLG400I, your options generally fall into two categories.

Authorized Distributors: This is the most direct and safest channel. You receive parts directly from the manufacturer's sanctioned supply chain, guaranteeing authenticity and full traceability. However, during periods of high demand or allocation, lead times can be extremely long, and stock may be unavailable.

Independent Distributors: This is where WWDParts operates. Reputable independent distributors specialize in sourcing components that are hard-to-find, on allocation, or have long lead times through the authorized channel. We leverage a global network of vetted suppliers to find available stock. When choosing an independent distributor, it is crucial to select one with robust quality control and anti-counterfeit procedures. High-value SoCs are prime targets for counterfeiting, which can range from blacktopping (re-marking a cheaper part) to outright empty packages. A trustworthy supplier will offer inspection services, date code verification, and testing to mitigate these risks.

Avoid sourcing critical components from open marketplaces like eBay or AliExpress, as the risk of receiving counterfeit or damaged parts is unacceptably high for a professional environment. Always prioritize suppliers who can provide traceability and quality assurance. If you are currently looking for this part, you can Check XC7Z010-1CLG400I Inventory & Pricing to see current availability.

Video Demonstration

Frequently Asked Questions (XC7Z010-1CLG400I FAQ)

Can I use an XC7Z020-1CLG400I as a direct replacement for an XC7Z010-1CLG400I?

Yes, in many cases you can, as they are designed to be migration-compatible. Both parts share the same CLG400 package and have highly similar pinouts for power and common I/O. However, it is not guaranteed to be a "drop-in" replacement without verification. You must perform a pin-by-pin review using the official Xilinx pinout files to ensure no I/O pins used in your design conflict with any dedicated pins on the larger XC7Z020. Furthermore, you must re-evaluate your board's power delivery and thermal management, as the XC7Z020 has a larger FPGA fabric and will have higher static power consumption.

What is the difference between speed grades -1, -2, and -3 for the XC7Z010?

The speed grade indicates the performance of the silicon. A higher number (e.g., -3) corresponds to a faster part, while a lower number (e.g., -1) is a slower part. According to the Zynq-7000 datasheet (DS191), a -1 speed grade has a maximum PS clock frequency of 667 MHz, a -2 runs up to 766 MHz, and a -3 runs up to 866 MHz. The programmable logic (FPGA fabric) also has faster internal timing paths in the higher speed grades. You can always replace a slower part with a faster one (e.g., use a -2 to replace a -1), but you must re-run timing analysis. The primary trade-off is that faster speed grades are more expensive.

Is the commercial grade XC7Z010-1CLG400C a valid replacement for the industrial XC7Z010-1CLG400I?

No, this is not a valid replacement for products that must operate in industrial environments. The 'I' in XC7Z010-1CLG400I signifies an industrial temperature grade with a junction temperature range of -40°C to 100°C. The 'C' in the commercial part signifies a range of only 0°C to 85°C. Using a commercial part in an application that could experience temperatures below freezing or high operational heat loads would violate the component's specifications and could lead to system failure. The reverse is acceptable; an industrial part can always be used in place of a commercial one.

My design uses a XC7Z010. Can I switch to an Intel Cyclone V SoC?

While the Intel Cyclone V SoC is a functional equivalent (also combining an ARM Cortex-A9 with FPGA fabric), switching is a massive undertaking that is not a "replacement" but a complete product redesign. This would require a new PCB layout for the different package and pinout, a new power architecture, and a complete migration of your software and HDL code from the Xilinx Vivado/Vitis toolchain to the Intel Quartus toolchain. All of your intellectual property (IP) cores would need to

---
