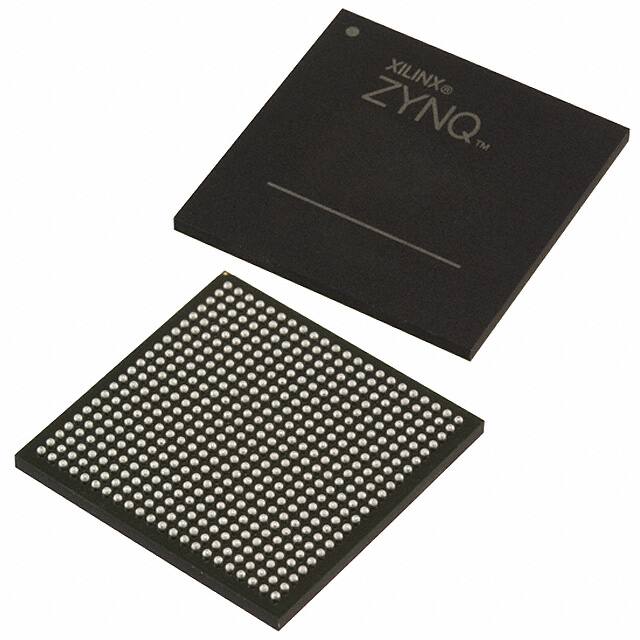

XC7Z020-2CLG400C Design-In Guide: Why Choose It and How to Use It
Modern embedded systems frequently face a difficult trade-off: the need for high-level processing, like running a Linux-based web server or a complex user interface, versus the demand for deterministic, low-latency, parallel processing for tasks like motor control or real-time sensor fusion. Traditionally, this required a two-chip solution—a microprocessor (MPU) and a field-programmable gate array (FPGA)—leading to increased board space, power consumption, and inter-chip communication bottlenecks. The Xilinx XC7Z020-2CLG400C, part of the Zynq-7000 family, directly addresses this challenge by integrating a powerful processing system and programmable logic onto a single die, creating a true System-on-Chip (SoC).
Table of Contents
The Design Challenge XC7Z020-2CLG400C Solves
The core engineering problem solved by the XC7Z020-2CLG400C is the convergence of software-driven control and hardware-accelerated performance. Consider a system for industrial vision. It needs to capture high-speed image data from a sensor (a task for parallel hardware), perform real-time pre-processing like filtering or edge detection (ideal for hardware acceleration), and then run complex object recognition algorithms, manage network communication, and update a user interface (tasks for a software environment). A traditional MPU would struggle with the raw data rate and parallelism of the image sensor interface, while a traditional FPGA would be inefficient for running a TCP/IP stack or a graphical file system.
Using a separate MPU and FPGA introduces significant design hurdles. The physical interface between the two chips (e.g., PCIe, parallel bus) becomes a performance bottleneck, adds latency, and consumes considerable power and PCB area. Debugging becomes a two-domain problem, requiring separate toolchains and synchronization efforts. The XC7Z020-2CLG400C eliminates these issues by placing a dual-core ARM Cortex-A9 Processing System (PS) and Artix-7 class Programmable Logic (PL) on the same silicon. They are connected by a high-bandwidth AXI4 interconnect fabric, enabling thousands of low-latency connections between the software and hardware domains.
This architecture provides the best of both worlds:
- The Processing System (PS): A familiar, application-grade processor capable of running operating systems like Linux or real-time operating systems (RTOS). It comes with a hardened set of standard peripherals, including Gigabit Ethernet, USB 2.0, CAN, SPI, I2C, and UART, reducing the need to implement these in logic.
- The Programmable Logic (PL): A flexible fabric of logic cells, DSP slices, and block RAM. It is ideal for creating custom high-speed interfaces, parallel data processing pipelines, and offloading computationally intensive algorithms from the CPU. This is where you build the "secret sauce" of your hardware that differentiates your product.
By using the XC7Z020-2CLG400C, an engineering team can partition their design effectively. The software team can work in a standard ARM environment using C/C++ and familiar OS-level APIs, while the hardware team can develop custom accelerators and interfaces in VHDL or Verilog. The unified Xilinx Vivado Design Suite manages the integration, providing a cohesive workflow from system design to implementation and debug.
Key Specifications at a Glance
The following specifications are critical for design-in decisions. All values are sourced from the official AMD-Xilinx datasheets for the Zynq-7000 family.
| Parameter | Value | Why It Matters for Your Design |
|---|---|---|
| Processing System (PS) | Dual-core ARM Cortex-A9 MPCore | Provides robust processing power for running a full operating system (like Linux) or an RTOS, managing complex application logic, networking, and user interfaces. |
| Programmable Logic (PL) Cells | 85K Logic Cells | A substantial amount of logic for implementing custom peripherals, parallel processing pipelines, and hardware accelerators. This is a mid-range capacity within the Zynq-7000 family. |
| DSP Slices | 220 | Dedicated hardware blocks for high-performance arithmetic operations, crucial for signal processing, filtering, and mathematical acceleration in applications like SDR or motor control. |
| Block RAM | 4.9 Mb | Fast on-chip memory that can be used for data buffering between the PS and PL, implementing FIFOs, or as local memory for PL-based soft processors. |
| Speed Grade | -2 | A mid-tier performance grade that offers a good balance between maximum clock frequency and power consumption. The CPU can run up to 866 MHz in this grade. |
| Temperature Grade | C (Commercial) | Specifies an operating junction temperature range of 0°C to 85°C. This part is suitable for controlled indoor environments, not for automotive or extreme industrial applications. |
| Package | CLG400 (400-ball BGA) | A 17x17mm, 0.8mm pitch Chip Scale BGA. It enables a compact design but requires advanced PCB fabrication and assembly capabilities. The 'L' signifies it is a Pb-free package. |
| I/O Pins | Up to 200 (125 HR, 75 HP) | A mix of High-Range (HR) and High-Performance (HP) I/O banks in the PL, providing flexibility for interfacing with various logic levels and high-speed standards. |
XC7Z020-2CLG400C vs Alternatives: Head-to-Head
Choosing an SoC is a major architectural decision. Here’s how the XC7Z020-2CLG400C stacks up against other common approaches.
| Feature | XC7Z020-2CLG400C | MCU + FPGA (e.g., STM32H7 + Artix-7) | Intel Cyclone V SoC |
|---|---|---|---|
| Integration | Single-chip solution with high-bandwidth on-die AXI interconnects. | Two separate chips requiring an inter-chip bus (SPI, parallel, PCIe), increasing latency and board space. | Single-chip solution, also with an integrated ARM core (Cortex-A9) and FPGA fabric. |
| PS-PL Bandwidth | Very high (multiple GB/s) via internal AXI bus. Low latency. | Limited by the physical I/O and protocol used between chips. Significantly lower bandwidth and higher latency. | Very high, comparable to Zynq, via internal AXI/Avalon bus. |
| Development Ecosystem | Unified Xilinx Vivado/Vitis toolchain for hardware, software, and system integration. PetaLinux for embedded Linux builds. | Requires two separate toolchains (e.g., STM32CubeIDE and Vivado), increasing development complexity and integration effort. | Unified Intel Quartus Prime toolchain. Different workflow and IP ecosystem compared to Xilinx. |
| Power Consumption | Generally lower than a two-chip solution due to elimination of I/O drivers for the inter-chip bus. | Higher total power consumption due to the I/O power of two separate devices and the inter-chip communication. | Comparable to Zynq-7000, but specific power profiles depend heavily on the design and process node. |
| Design Flexibility | Fixed ratio of PS to PL resources. Peripherals in PS are fixed. | High flexibility. You can choose the exact MCU and FPGA that meet your needs, potentially optimizing for cost or specific features. | Fixed ratio of PS to PL resources. Different set of hardened peripherals in the PS (e.g., may have different SERDES capabilities). |
When to choose the XC7Z020-2CLG400C: This device is the optimal choice when your application requires tight, high-bandwidth coupling between software algorithms and hardware acceleration. If your system performance is limited by the latency of moving data between a processor and an FPGA, the Zynq-7000 architecture is a clear winner. The unified development environment simplifies complex projects, reducing the integration burden on the engineering team. While a two-chip solution offers more mix-and-match flexibility, it comes at the cost of performance, power, and board space. The choice between the XC7Z020 and a direct competitor like the Cyclone V SoC often comes down to prior team experience with the respective ecosystems (Vivado vs. Quartus), specific peripheral needs, and the available IP cores for each platform.
Recommended Application Circuit
Designing a board around the XC7Z020-2CLG400C requires careful attention to several key support systems. While a full schematic is design-dependent, any successful implementation must correctly address power, memory, booting, and clocking.
Power Delivery Network (PDN): The Zynq-7000 has multiple, distinct power domains that must be powered correctly and in the proper sequence. Key rails include VCC_PSINTFP (PS core), VCC_PLINT (PL core), VCCPAUX/VCCPLL (PS auxiliary/PLLs), VCCO_DDR, and multiple VCCO banks for the PL I/O. Using a dedicated Power Management IC (PMIC) designed for Xilinx SoCs is a common and reliable approach, as it integrates multiple switching regulators and handles the required power-up/down sequencing. Alternatively, a discrete solution using multiple DC-DC converters can be implemented, but the sequencing logic must be carefully designed according to the datasheet specifications (see UG933, Zynq-7000 SoC PCB Design Guide).
DDR Memory: The Processing System relies on an external DDR3, DDR3L, or LPDDR2 memory for its primary workspace. The XC7Z020-2CLG400C contains a hardened DDR memory controller. The connection to the DDR chip is a high-speed interface that requires impedance-controlled traces (typically 40-50Ω single-ended) and precise length matching for data, address, and clock groups. The Vivado tools provide pin planning assistance to simplify the routing of this critical interface.
Boot and Configuration: The device must be configured at startup. Boot mode is selected by setting the state of several MIO (Multiplexed I/O) pins. Common boot sources include an on-board QSPI flash memory, an SD card, or JTAG for development. For a production embedded system, booting from QSPI is the most common method. The boot image, containing the First Stage Bootloader (FSBL), PL bitstream, and application code (e.g., U-Boot and Linux kernel), is programmed into the flash.
Clocking: A stable clock source, typically a 33.333 MHz or 50 MHz crystal oscillator, must be provided to the PS_CLK input. From this single reference, internal PLLs within the PS generate all necessary clocks for the CPU cores, DDR controller, and peripherals. The PL can be clocked from outputs of the PS PLLs or from its own dedicated clock inputs.
For a deeper dive into the available peripherals and IP, you can Browse Zynq-7000 Series components and related application notes.
PCB Layout and Thermal Design Tips
The CLG400 package is a 0.8mm pitch BGA, which mandates a high-density interconnect (HDI) PCB design. A successful layout is non-negotiable for system stability and performance.
Layer Stackup and Fanout: A minimum of an 8-layer PCB is typical for a moderately complex Zynq design, with 10 or 12 layers being common for designs with multiple high-speed interfaces. The BGA fanout strategy is critical. "Dog-bone" fanouts with microvias are standard. For the inner rows, via-in-pad (VIP) technology may be necessary, which increases fabrication cost but allows for denser routing and better decoupling capacitor placement.
Decoupling: The datasheet specifies a large number of decoupling capacitors for the various power rails. These must be placed on the bottom side of the PCB, directly underneath the BGA, with the shortest possible connection to the BGA balls and ground planes via low-inductance vias. A solid ground plane beneath the BGA is essential. A PDN simulation using a tool like HyperLynx is strongly recommended to ensure power integrity and meet the target impedance for each rail.
Thermal Management: The XC7Z020-2CLG400C is a commercial grade part with a maximum junction temperature of 85°C. The CLG400 package includes an exposed thermal pad that must be effectively coupled to a ground plane for heat dissipation. An array of thermal vias should be placed within the thermal pad footprint on the PCB, connecting it to multiple internal ground planes. For applications with heavy utilization of both the ARM cores and the PL fabric, a heatsink may be required. Thermal simulations should be performed early in the design process to determine if a heatsink and airflow are necessary to keep the junction temperature within the specified limits under worst-case operating conditions.
Where to Buy XC7Z020-2CLG400C
The XC7Z020-2CLG400C is a high-performance SoC, and securing a reliable supply chain is crucial for production. This component is packaged in a 400-ball Chip Scale BGA (CLG400) and is typically supplied by manufacturers in trays for prototyping or in tape & reel for high-volume automated assembly. Due to the complexity and high demand for such devices, lead times can fluctuate. Working with a global distributor that specializes in electronic components can help mitigate supply chain risks.
A distributor can provide access to global inventory, manage buffer stock, and offer visibility into lead times, which is essential for project planning and manufacturing schedules. They can also ensure component authenticity, which is a major concern with high-value FPGAs and SoCs. When you are ready to procure this part for your next design, you can Check XC7Z020-2CLG400C Inventory & Pricing to get the most current availability and sourcing information.
Video Demonstration
Frequently Asked Questions (XC7Z020-2CLG400C FAQ)
What is the main difference between the XC7Z020 and a standard FPGA like an Artix-7?
The fundamental difference is the integration of a hardened dual-core ARM Cortex-A9 processor system (PS) on the same die as the FPGA fabric (PL). A standard Artix-7 is purely programmable logic; you would need to implement a "soft" processor core like a MicroBlaze, which consumes logic resources and does not perform as well as the hardened ARM cores. The XC7Z020 provides a complete, application-grade processing system with dedicated peripherals like Ethernet and USB, which are not present in a standard FPGA.
Can I run Linux on the XC7Z020-2CLG400C?
Yes, absolutely. The dual-core ARM Cortex-A9 processor is more than capable of running a full Linux operating system. Xilinx provides a tool called PetaLinux, which is a complete, pre-configured embedded Linux distribution and development kit specifically for Zynq devices. This allows you to leverage the vast ecosystem of open-source Linux software, drivers, and libraries for your application's non-real-time tasks.
How does the XC7Z020 compare to an Intel (Altera) Cyclone V SoC?
The Intel Cyclone V SoC is a direct competitor and shares a similar architecture: a dual-core ARM Cortex-A9 integrated with an FPGA fabric. The choice between them often depends on secondary factors. The Zynq-7000 PL is based on the Artix-7 fabric, while the Cyclone V SoC uses the Cyclone V fabric; they have different logic structures and resource counts. The development ecosystems are also distinct, with Xilinx using Vivado/Vitis and Intel using Quartus. An engineering team's prior experience and familiarity with one of these toolchains is often the deciding factor.
What does the "-2CLG400C" suffix mean
