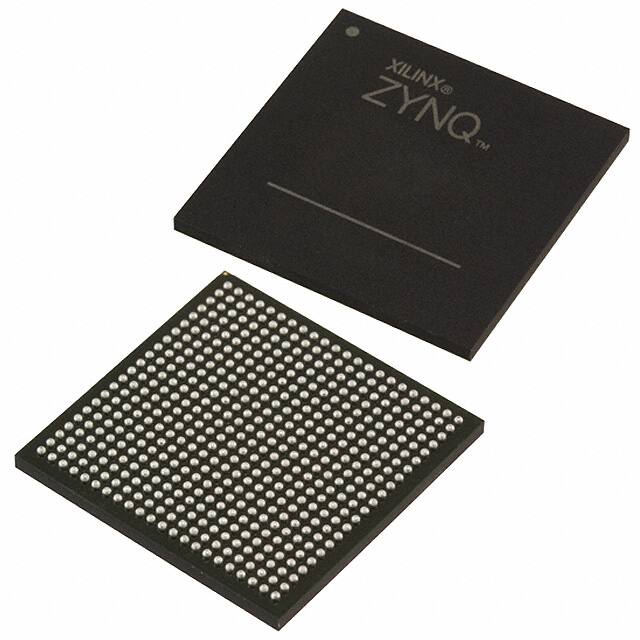

XC7Z020-2CLG400C Design-In Guide: Why Choose It and How to Use It
Modern embedded systems often face a difficult trade-off: the sequential processing power of a microprocessor for complex algorithms and control flow versus the parallel processing capability of an FPGA for high-throughput data manipulation. Traditionally, this meant a two-chip solution, leading to increased board space, higher power consumption, and a critical communication bottleneck between the two devices. The Xilinx XC7Z020-2CLG400C directly confronts this challenge by integrating a powerful dual-core ARM processor system with flexible FPGA logic on a single die, creating a true System-on-Chip (SoC) that eliminates these compromises.
Table of Contents
The Design Challenge XC7Z020-2CLG400C Solves
For years, hardware engineers have architected systems using a microprocessor (MPU) or microcontroller (MCU) alongside a separate FPGA. The MPU would handle tasks like running an operating system, managing user interfaces, network stacks, and complex decision-making logic. The FPGA, in turn, would be tasked with high-speed, parallel operations: digital signal processing, custom communication protocols, real-time motor control, or video stream processing. While functional, this discrete approach presents significant engineering hurdles.
The primary issue is the communication bottleneck. Data transfer between the MPU and FPGA is typically limited by the speed of the connecting bus, whether it's a relatively slow serial interface like SPI or a wider, pin-intensive parallel bus. This latency and limited bandwidth can cripple system performance, especially in applications where the processor and logic must exchange data in real-time. Furthermore, a two-chip solution consumes more PCB real estate, increases the bill of materials (BOM) complexity, and often leads to higher overall system power consumption due to I/O signaling between the chips.
The XC7Z020-2CLG400C, a member of the Zynq-7000 family, was created to solve this exact problem. It is not merely an FPGA with a soft-core processor. Instead, it is a processor-centric SoC that features a hardened, dedicated Processing System (PS) and versatile Programmable Logic (PL) on the same silicon. The PS contains a dual-core ARM Cortex-A9 MPCore processor, along with a rich set of peripherals like UART, I2C, SPI, CAN, USB, and Gigabit Ethernet. The PL is based on Xilinx's 28nm Artix-7 FPGA fabric, providing a substantial amount of reconfigurable logic for hardware acceleration.
The true innovation lies in the high-bandwidth AXI4 (Advanced eXtensible Interface) interconnects that tightly couple the PS and PL. These on-chip connections provide multi-gigabit per second data transfer rates, orders of magnitude faster than any off-chip bus. This allows the ARM cores to offload computationally intensive functions to custom hardware accelerators in the PL with minimal latency. The software running on the PS can configure, control, and exchange data with the PL as if it were an on-chip peripheral, enabling a level of software-hardware co-design previously unattainable. This architecture is ideal for applications like advanced driver-assistance systems (ADAS), software-defined radio (SDR), industrial automation, and medical imaging, where a blend of sophisticated software control and high-performance hardware processing is essential.
Key Specifications at a Glance
Understanding the core specifications of the XC7Z020-2CLG400C is crucial for determining its suitability for your application. The values below are derived from the official Xilinx Zynq-7000 SoC datasheet (DS191).
| Parameter | Value | Why It Matters |
|---|---|---|
| Processing System (PS) | Dual-core ARM Cortex-A9 MPCore | Provides robust, symmetric multiprocessing (SMP) or asymmetric multiprocessing (AMP) capabilities, suitable for running a high-level OS like Linux and real-time application code simultaneously. |
| Max PS Clock Frequency | 866 MHz (-2 Speed Grade) | Defines the raw processing power available for software execution. Higher frequency allows for more complex algorithms and faster response times. |
| Programmable Logic (PL) | 85K Logic Cells | This is the fundamental resource of the FPGA fabric. It determines the size and complexity of custom hardware logic, accelerators, and peripherals you can implement. |
| Block RAM | 560 KB | Fast, on-chip dual-port memory within the PL. Essential for buffering data in streaming applications, implementing FIFOs, and storing coefficients for DSP functions. |
| DSP Slices | 220 | These are dedicated hardware blocks for multiply-accumulate operations. They provide massive acceleration for signal processing tasks like FIR filters, FFTs, and correlators, far exceeding the performance of a general-purpose processor. |
| Package | CLG400 (400-pin Chip Scale BGA) | A 17x17mm, 0.8mm pitch BGA. The package size and pin count dictate PCB layout complexity and the number of available user I/O pins. |
| Temperature Grade | Commercial (0°C to 85°C Junction) | Specifies the guaranteed operating junction temperature range. This part is intended for controlled environments, not for harsh industrial or automotive applications which require 'I' or 'Q' grades. |
| PS-PL Interconnects | AXI4 Interfaces | High-bandwidth, low-latency on-chip buses connecting the processor to the logic fabric. This is the key enabler for true hardware/software co-design and acceleration. |
XC7Z020-2CLG400C vs Alternatives: Head-to-Head
When selecting a processing solution, it's important to weigh the XC7Z020 against other common architectures.
| Feature | XC7Z020-2CLG400C (Zynq-7000) | Intel Cyclone V SE/SX | MCU + Discrete FPGA |
|---|---|---|---|
| Architecture | Tightly integrated ARM Cortex-A9 PS + 28nm PL on a single die. | Tightly integrated ARM Cortex-A9 HPS + 28nm FPGA fabric on a single die. | Two separate chips: a high-performance MCU (e.g., STM32H7) and a separate FPGA (e.g., Lattice ECP5). |
| PS-PL Bandwidth | Very high, via multiple on-chip AXI4 interconnects. | Very high, via AXI-based HPS-to-FPGA bridge. | Low to moderate. Limited by off-chip bus (SPI, QSPI, parallel bus), creating a significant performance bottleneck. |
| Development Tools | Unified AMD-Xilinx Vivado/Vitis toolchain for hardware and software co-design. | Unified Intel Quartus Prime + SoC EDS for hardware and software. | Two separate, often incompatible, toolchains (e.g., STM32CubeIDE for MCU, Lattice Diamond for FPGA). Integration is manual. |
| System Latency | Very low between PS and PL due to on-chip communication. | Very low between HPS and FPGA fabric. | High due to off-chip I/O delays, bus protocol overhead, and driver latency. |
| Board Complexity & Size | Reduced. Single BGA, though power management is complex. | Reduced. Similar footprint and complexity to Zynq. | Increased. Two large packages, plus interconnect routing and separate support components (clocks, power). |
| Boot Process | Processor-centric. PS boots first from QSPI/SD/NAND, then configures the PL. | Processor-centric. HPS boots and then configures the FPGA fabric. | Independent. MCU boots from its flash, FPGA loads configuration from its own dedicated flash memory. |
In summary, the choice depends heavily on the required level of interaction between the processor and the custom logic. The XC7Z020-2CLG400C is the superior choice when your application demands high-bandwidth, low-latency data exchange between software algorithms and hardware accelerators. Its unified toolchain simplifies the complex task of hardware/software co-design. An Intel Cyclone V SoC is a direct competitor, and the choice often boils down to prior experience with the vendor's ecosystem, specific peripheral requirements, or commercial factors. The MCU + Discrete FPGA approach remains viable for systems where the FPGA's role is limited to simple I/O expansion or non-intensive co-processing, and where the communication bandwidth between the two is not a limiting factor. For any application requiring true system-level integration and performance, the Zynq-7000 architecture provides a more elegant and powerful solution.
Recommended Application Circuit
Designing a board around the XC7Z020-2CLG400C requires careful attention to several critical support circuits. While a full schematic is beyond the scope of this guide, focusing on these key areas is essential for a successful design.
Power Delivery Network (PDN): This is arguably the most critical aspect of a Zynq design. The SoC has numerous power rails for the processor core (VCC_PSINT), FPGA core logic (VCCINT), Block RAM (VCCBRAM), auxiliary logic (VCCAUX), and multiple I/O banks (VCCO). Each rail has specific voltage, tolerance, and current requirements. Furthermore, a specific power-on and power-off sequence must be followed to prevent damage to the device. While discrete regulators can be used, it is highly recommended to use a Power Management IC (PMIC) specifically designed for Zynq SoCs, such as those from Texas Instruments or Analog Devices. These PMICs integrate multiple regulators and a sequencer, simplifying the PDN design significantly. Always use the Xilinx Power Estimator (XPE) spreadsheet to calculate current requirements based on your specific design utilization.
Boot and Configuration: The Zynq-7000 device has a processor-centric boot sequence. The PS's BootROM first reads mode pins to determine the boot device (e.g., QSPI Flash, NAND Flash, SD Card, JTAG). The first-stage bootloader (FSBL) is loaded from this device into the On-Chip Memory (OCM). The FSBL then initializes the PS, including the DDR controller, and proceeds to load the main application code and, optionally, the bitstream to configure the PL. A typical design includes a QSPI flash (128Mb or larger) for storing the boot image and an SD card slot for field updates and data logging.
DDR Memory Interface: The PS requires external DDR memory to run an OS and large applications. The XC7Z020 supports DDR3, DDR3L, and DDR2. A DDR3/3L interface is most common. This is a high-speed interface running at hundreds of MHz, requiring meticulous PCB layout with controlled impedance traces and precise length matching of data, address, control, and clock signals. The memory topology (fly-by vs. T-branch) and termination scheme must be carefully considered based on the number of memory chips used.
Clocking: A stable, low-jitter clock source is required for the PS_CLK input. A typical value is 33.333 MHz. This clock is used by the PS PLLs to generate the various clock frequencies for the ARM cores, DDR controller, and peripherals. Additional clock sources may be needed for the PL side, depending on the application's requirements. When designing your system, you can explore other devices in the family to find the perfect fit. Browse Zynq-7000 Series to see other options.
PCB Layout and Thermal Design Tips
The physical implementation of a Zynq-based design is as important as the circuit schematic. The CLG400 package is a 17x17mm, 0.8mm pitch Ball Grid Array (BGA), which demands an advanced PCB design process.
Layer Stackup and Fanout: A minimum of 8-10 layers is typical for a moderately complex Zynq-7020 design. The fine pitch of the BGA requires careful fanout strategies. Vias-in-pad (VIP) can be used but increase fabrication cost. A more common approach is "dog-bone" fanout, where a short trace connects the BGA pad to a via slightly offset from the pad. This requires precise control over via and pad sizes. The high number of power and ground pins necessitates multiple solid ground planes and dedicated power planes to ensure low-impedance power delivery.
Decoupling Capacitors: Follow Xilinx's recommendations (found in user guide UG933) for decoupling. Place a network of capacitors (e.g., 10µF, 1µF, 0.1µF) for each power rail as close as physically possible to the BGA's power and ground balls. Use the smallest capacitor packages (0402 or 0201) that your assembly process can handle to minimize loop inductance. Place larger bulk capacitors further away on the board.
High-Speed Signal Integrity: The DDR3 interface is the most sensitive part of the layout. All traces in the data, address, and control groups must be length-matched to within tight tolerances (typically a few millimeters). Maintain consistent controlled impedance (e.g., 50Ω single-ended, 100Ω differential) across the entire trace length. Route these signals on inner layers, sandwiched between ground planes, to shield them from noise.
Thermal Management: The XC7Z020-2CLG400C can dissipate several watts of power under heavy load. The junction temperature must be kept below the 85°C maximum for the commercial grade part. The CLG400 package includes a metal lid that acts as a heat spreader. It is essential to have a dense grid of thermal vias directly under the BGA's central ground pads to conduct heat away from the die and into the PCB's ground planes. For many applications, a heatsink attached to the top of the package is required. The choice of heatsink (passive or active with a fan) depends on the calculated power dissipation from the XPE tool and the system's ambient temperature and airflow.
Where to Buy XC7Z020-2CLG400C
The XC7Z020-2CLG400C is a mature and widely adopted component, making it available through a variety of distribution channels. As a high-complexity SoC, it is critical to source from reputable distributors to avoid counterfeit or improperly handled parts. For production volumes, these devices are typically supplied in JEDEC trays. For prototyping and smaller runs, they may be available as single units or on cut tape, though this is less common for high-pin-count BGAs.
Lead times and availability can fluctuate based on global semiconductor market dynamics. Given its popularity in long-lifecycle products in the industrial, medical, and communications sectors, demand remains steady. It is always prudent to check real-time stock levels and pricing with authorized or independent distributors who specialize in traceable, high-quality components. For procurement professionals and engineers looking to secure inventory for upcoming production runs or get immediate pricing for a new design, a reliable source is essential. Check XC7Z020-2CLG400C Inventory & Pricing to get the latest availability information for your project.
Video Demonstration
Frequently Asked Questions (XC7Z020-2CLG400C FAQ)
What is the main difference between the Zynq XC7Z020 and a standard Artix-7 FPGA?
The fundamental difference is that the XC7Z020 is a System-on-Chip (SoC), not just an FPGA. It contains a hardened, dual-core ARM Cortex-A9 Processing System (PS) that is a permanent part of the silicon. An Artix-7 is a pure FPGA, containing only Programmable Logic (PL). While you can implement a soft-core processor (like MicroBlaze) in an Artix-7, it consumes logic resources and does not offer the performance or dedicated peripherals of the Zynq's hardened ARM cores.
Do I need to license the ARM cores separately to use the XC7Z020?
No, you do not need a separate license for the ARM Cortex-A9 cores themselves; their use is included with the purchase of the Zynq device. The primary cost is the device itself and the development tools. The AMD-Xilinx Vivado/Vitis software suite has free versions (like the WebPACK edition) with some limitations, as well as paid editions that unlock the full capabilities for larger devices and advanced features.
