XC7Z020-2CLG400C Design-In Guide: Why Choose It and How to Use It
Modern embedded systems often face a difficult trade-off: the need for complex software processing versus the demand for real-time, high-throughput hardware acceleration. A general-purpose processor might struggle with deterministic, low-latency signal processing, while a pure FPGA lacks the ecosystem for running a rich operating system with networking stacks and user interfaces. The Xilinx XC7Z020-2CLG400C directly addresses this challenge by providing a single-chip solution that tightly integrates a powerful ARM-based processing system with adaptable FPGA fabric. This guide will walk you through why this Zynq-7000 SoC is a compelling choice and how to successfully integrate it into your next design.
Table of Contents
The Design Challenge XC7Z020-2CLG400C Solves
As a hardware engineer, you've likely encountered designs that pull you in two different directions. On one hand, the product requires a sophisticated user interface, network connectivity, file system management, and the ability to run complex application-level software. This domain is the natural home of microprocessors and microcontrollers running an operating system like Linux or a real-time operating system (RTOS). On the other hand, the same product must interface with the physical world, demanding high-speed data acquisition, custom communication protocols, real-time motor control, or parallel processing of video streams. These tasks are where FPGAs excel, offering deterministic, low-latency performance that software running on a general-purpose CPU can't guarantee.
The traditional approach is to use a two-chip solution: a microprocessor for the software tasks and a separate FPGA for the hardware acceleration. While functional, this method introduces significant design hurdles. The interface between the CPU and FPGA (often a parallel bus or a high-speed serial link like PCIe) becomes a system bottleneck, adding latency and complexity. Board space, power consumption, and BOM cost all increase. Furthermore, the development workflow is fragmented, requiring separate teams and toolchains for software and hardware, making integration and debugging a significant challenge.
The XC7Z020-2CLG400C, part of the Xilinx Zynq-7000 family, elegantly solves this problem. It is not just an FPGA with a processor core soft-implemented inside; it is a true System on Chip (SoC) where a hardened, dual-core ARM Cortex-A9 processor (the Processing System, or PS) is fabricated on the same die as a substantial block of 28nm FPGA fabric (the Programmable Logic, or PL). The PS and PL are connected by a high-bandwidth AXI interconnect, providing thousands of low-latency connections. This architecture offers the best of both worlds in a single package. You can boot Linux on the ARM cores to handle system control and networking, while offloading computationally intensive or time-critical tasks to custom hardware accelerators in the PL. This single-chip approach reduces latency, shrinks board size, lowers power consumption, and streamlines the development process by unifying the hardware and software design flows under the Vivado and Vitis toolchains.
Key Specifications at a Glance
The following specifications are derived from the official Xilinx Zynq-7000 (DS191) datasheet and are critical for design-in decisions for the XC7Z020-2CLG400C.
| Parameter | Value | Why It Matters |
|---|---|---|
| Processing System (PS) | Dual-core ARM® Cortex®-A9 MPCore™ up to 866 MHz | Provides a robust, familiar software environment capable of running high-level operating systems (Linux, RTOS) for complex application logic, networking, and control. |
| Programmable Logic (PL) Logic Cells | 85K | This is the fundamental resource for building custom hardware. 85K cells provide ample space for multiple custom peripherals, complex state machines, and significant data processing pipelines. |
| PL Look-Up Tables (LUTs) | 53,200 | LUTs are the building blocks of combinatorial logic in the FPGA. This number directly relates to the complexity of the logic functions you can implement. |
| PL Block RAM | 4.9 Mb (140 x 36 Kb blocks) | Essential for on-chip data buffering between processing stages, implementing FIFOs, or creating small scratchpad memories for the PL, reducing reliance on external DDR. |
| PL DSP Slices | 220 | These are hardened hardware blocks that accelerate multiply-accumulate (MAC) operations. They are crucial for high-performance digital signal processing tasks like FIR filters, FFTs, and video encoding/decoding. |
| Package | CLG400 (400-ball Chip Scale BGA) | A compact, high-density package. While it enables smaller board designs, it requires advanced PCB fabrication and assembly processes. |
| Max User I/O | 200 | Defines the number of physical connections to the outside world. This count is sufficient for interfacing with a wide range of sensors, actuators, memory, and communication PHYs. |
| Speed Grade / Temp Grade | -2 / Commercial (0°C to 85°C) | The -2 speed grade offers a strong performance profile for the PS and PL. The commercial temperature range makes it suitable for a wide variety of indoor and controlled-environment applications. |
XC7Z020-2CLG400C vs Alternatives: Head-to-Head
Choosing the right processing core is a critical decision. Here's how the XC7Z020-2CLG400C stacks up against other common approaches.
| Feature | XC7Z020-2CLG400C | Intel Cyclone V SE (e.g., 5CSEBA5) | Discrete MCU + FPGA (e.g., STM32H7 + Lattice ECP5) |
|---|---|---|---|
| Integration | Single-chip SoC with tightly coupled PS+PL via AXI bus. | Single-chip SoC with tightly coupled HPS+FPGA via AXI bus. | Two separate chips, connected by a parallel bus, SPI, or SERDES. |
| Processor Core | Dual ARM Cortex-A9 | Dual ARM Cortex-A9 | Varies (e.g., ARM Cortex-M7), typically lower performance than A9. |
| Logic Resources | ~85K Logic Cells | ~85K Logic Elements (LEs) | Varies by FPGA choice, often smaller to manage cost/complexity. |
| System Latency | Lowest, due to on-chip high-bandwidth interconnect. | Low, comparable to Zynq. | Highest, limited by the off-chip interface speed and protocol overhead. |
| Development Tools | Xilinx Vivado, Vitis, PetaLinux. A mature and unified ecosystem. | Intel Quartus Prime, SoC EDS. Also a mature ecosystem. | Separate toolchains for MCU (e.g., STM32CubeIDE) and FPGA (e.g., Lattice Diamond), requiring more integration effort. |
| Board Complexity | High (BGA, complex power), but single-chip simplifies placement. | High (BGA, complex power), similar to Zynq. | Potentially higher component count and routing complexity between chips, but may allow for simpler 2-chip PCBs. |
The XC7Z020-2CLG400C shines in applications where the interplay between software and hardware is constant and performance-critical. While an Intel Cyclone V SE offers a very similar architecture and is a strong competitor, the choice often comes down to an engineer's or organization's familiarity with the respective toolchains (Vivado vs. Quartus). The Xilinx ecosystem is widely regarded for its extensive documentation, community support, and the powerful Vitis unified software platform that simplifies heterogeneous computing. A discrete MCU + FPGA solution offers the most flexibility in component selection, potentially allowing for a lower-cost MCU if processing needs are minimal. However, this comes at the significant cost of increased inter-chip latency, higher board complexity, increased power, and a fragmented development workflow. For any design that requires a powerful OS and significant, tightly-coupled hardware acceleration, the integrated SoC approach of the Zynq-7000 is almost always the superior technical choice.
Recommended Application Circuit
Designing with a complex SoC like the XC7Z020-2CLG400C requires careful attention to its support circuitry. A robust design is built on a solid foundation of power, clocking, and configuration. Here are key considerations:
Power Delivery Network (PDN): The Zynq-7000 has multiple power domains that must be serviced with clean, stable power. Key rails include VCCINT (core logic), VCCPAUX and VCCPLL (auxiliary and PLL), VCCO (I/O banks), and VCC_DDR. Each of these rails has specific voltage and noise requirements. Furthermore, a specific power-on sequence is required for reliable operation. It is strongly recommended to use a Power Management IC (PMIC) designed for Xilinx FPGAs, such as devices from Texas Instruments or Analog Devices. These PMICs integrate multiple switching regulators and a sequencer into a single chip, simplifying the PDN design significantly.
Configuration and Boot: The Zynq-7000's ARM-based PS boots first, like a traditional microprocessor. It executes a First Stage Bootloader (FSBL) from on-chip ROM, which then loads the user's boot image from a non-volatile source. Common boot sources, selectable via MIO pins, include QSPI flash, NAND flash, or an SD card. A QSPI flash (typically 128Mb or 256Mb) is the most common choice for storing the bootloader, FPGA bitstream, and application code. JTAG is always available for development and debugging, allowing you to load code directly into memory without programming the flash.
Clocking: The PS requires a stable, low-jitter clock source (PS_CLK), typically 33.333 MHz or 50 MHz. This is the master clock from which all PS peripheral clocks and the DDR memory clock are derived. The PL can be clocked from various sources, including oscillators connected to PL clock pins or, more commonly, clock signals generated by PLLs within the PS and routed to the PL via the interconnect.
DDR Memory: The PS includes a hardened DDR3/DDR3L memory controller. To run Linux or any substantial application, an external DDR memory chip is mandatory. The interface is high-speed and requires careful layout with controlled impedance and length-matched traces. The specific DDR chip and topology must be configured in the Vivado tools to generate the correct controller settings. For a comprehensive selection of compatible components and other devices in the family, you can Browse Zynq-7000 Series parts and peripherals.
PCB Layout and Thermal Design Tips

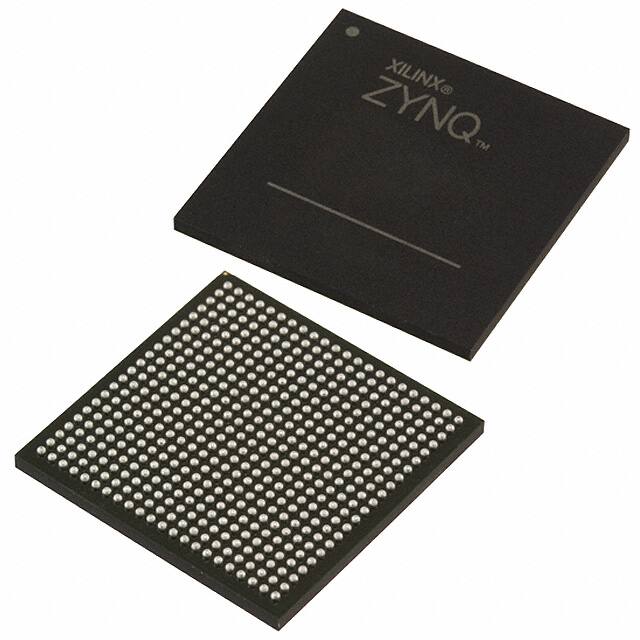

The high performance of the XC7Z020-2CLG400C is only achievable with a well-executed PCB layout and thermal management strategy. The CLG400 package is a 0.8mm pitch BGA that demands an advanced PCB process.
PCB Layout Guidance:
- Layer Stackup: A minimum of an 8-layer PCB is recommended, with 10 or 12 layers being common for complex designs. A typical stackup would include signal layers on the top and bottom, multiple ground and power planes in the center, and additional routing layers. Solid ground planes are critical for signal integrity and EMI control.
- Decoupling: Follow Xilinx's recommendations for decoupling capacitors religiously. Place capacitors as close as physically possible to the BGA balls they are servicing. Use a range of capacitor values (e.g., 10uF, 1uF, 0.1uF) to provide low impedance across a wide frequency spectrum. Place the smallest value capacitors closest to the BGA.
- BGA Fanout: Due to the 0.8mm pitch, via-in-pad (VIP) or microvias are often necessary to fan out the inner rows of the BGA. Plan your fanout strategy early, as it impacts cost and manufacturability.
- High-Speed Traces: The DDR3 interface is the most critical high-speed bus. Traces must be routed with controlled impedance (e.g., 50-ohm single-ended, 100-ohm differential) and length-matched within tight tolerances. Avoid stubs and sharp corners, and reference a solid ground plane.
Thermal Management:
The XC7Z020-2CLG400C can dissipate significant power, depending on the PS clock speed, PL utilization, and I/O toggle rates. The CLG400 package features a central ground pad that is also the primary path for heat dissipation. This pad must be soldered to a large copper area on the PCB, which should be stitched with an array of thermal vias to the internal ground planes and a bottom-side copper pour. Early in your design cycle, use the Xilinx Power Estimator (XPE) tool to get a realistic estimate of your power consumption. For many applications, a heatsink attached to the top of the chip or the PCB area underneath it will be necessary to keep the junction temperature below the 85°C maximum for the commercial grade part.
Where to Buy XC7Z020-2CLG400C
The XC7Z020-2CLG400C is a mature and widely adopted component, making it available from a broad range of global distributors. However, due to its popularity in industries from automotive to industrial control and communications, demand can be high and lead times can vary. Procurement professionals should plan accordingly and work with trusted, authorized distributors to ensure component authenticity and a reliable supply chain.
The part number breaks down as follows:
- XC: Xilinx Commercial
- 7Z020: Zynq-7000 family, device 020
- -2: Speed Grade
- CLG400: 400-ball Lidless Chip Scale BGA Package
- C: Commercial Temperature Range (0°C to 85°C junction)
The device is supplied in tray or tape & reel packaging for automated assembly. When sourcing, always verify the full part number, including the speed and temperature grade, to ensure it meets your design's performance and environmental requirements. To see current stock levels, pricing information, and available packaging options from a network of verified suppliers, please Check XC7Z020-2CLG400C Inventory & Pricing.
Video Demonstration
Frequently Asked Questions (XC7Z020-2CLG400C FAQ)
What's the main difference between the Zynq-7000 XC7Z020 and a standard FPGA like a Spartan-7?
The fundamental difference is the architecture. A standard FPGA like a Spartan-7 is a blank slate of Programmable Logic (PL). In contrast, the XC7Z02
