XC7Z010-1CLG400I Equivalents, Replacements, and Cross-Reference Guide

Looking for a XC7Z010-1CLG400I equivalent or replacement? In today's challenging supply chain environment, securing a specific System-on-Chip (SoC) can delay production and force costly redesigns. This guide provides a comprehensive analysis for hardware engineers and procurement specialists seeking pin-compatible drop-ins, functional alternatives, and clear migration paths to navigate shortages of the Xilinx (now AMD) XC7Z010-1CLG400I. We will delve into the technical nuances of substitution, ensuring you can make informed decisions that balance availability, cost, and engineering effort.

XC7Z010-1CLG400I Overview and Current Availability

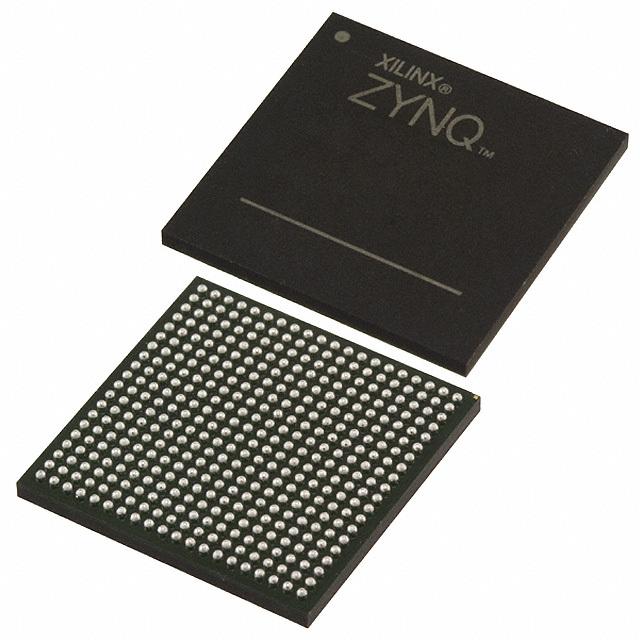

The XC7Z010-1CLG400I is a member of the Zynq-7000 family, a portfolio of devices that tightly integrate a dual-core ARM Cortex-A9 based Processing System (PS) with Artix-7 based Programmable Logic (PL) on a single die. This architecture allows for software-driven control and hardware-accelerated performance, making it a popular choice for a wide range of applications including industrial automation, medical imaging, automotive driver assistance, and embedded vision systems.

Breaking down the part number:

• XC7Z010: Identifies the specific device, the smallest in the Zynq-7000 family.
• -1: Represents the slowest speed grade. According to the official datasheet (DS191), this corresponds to a maximum CPU frequency of 667 MHz for the ARM cores.
• CLG400: Specifies the package type, a 400-ball lidless chip-scale BGA with a 0.8mm pitch and a 17x17mm footprint.
• I: Denotes the industrial temperature range, with a junction temperature rating of -40°C to 100°C.

Key specifications from the manufacturer's documentation include 28K logic cells, 17,600 LUTs, 2.1 Mb of Block RAM, and 80 DSP slices in its programmable logic fabric. This is paired with the robust processing system that includes on-chip memory, external memory interfaces (DDR3, DDR3L, DDR2, LPDDR2), and a rich set of peripheral I/O controllers like UART, SPI, I2C, CAN, USB, and Gigabit Ethernet.

Regarding its lifecycle and availability, the Zynq-7000 family is considered a mature and active product line. However, like many components built on established process nodes, it has been subject to significant supply chain volatility, extended lead times, and allocation. This has made finding stock of the XC7Z010-1CLG400I particularly difficult, driving engineers to seek out viable replacements to avoid production line stoppages.

Pin-Compatible Equivalents

For engineers facing a line-down situation, a pin-compatible, drop-in replacement is the ideal solution as it minimizes or eliminates the need for a costly and time-consuming PCB redesign. Fortunately, the Zynq-7000 family offers several options within the same CLG400 package that are pin-compatible with the XC7Z010-1CLG400I.

1. Different Speed or Temperature Grades:

• XC7Z010-2CLG400I: This is the same device but with a faster (-2) speed grade, allowing the ARM cores to run at up to 766 MHz. It is a direct, drop-in replacement. A design that met timing closure with the -1 speed grade will have more timing margin with the -2 grade. The bitstream must be recompiled in the Vivado Design Suite by changing the target device part number, but no other design changes are typically necessary.
• XC7Z010-1CLG400C: This is the commercial grade version, rated for a junction temperature of 0°C to 85°C. If your product's operating environment does not require the full industrial range, this part can be used as a drop-in replacement. This is a common substitution when industrial-grade parts are unavailable, but requires careful validation of the end product's thermal performance.

2. Larger Device in the Same Family and Package:

• XC7Z020-1CLG400I: The XC7Z020 is the next device up in the Zynq-7000 family and is offered in the same CLG400 package. It is pin-compatible with the XC7Z010. This makes it an excellent, albeit more expensive, replacement option. The XC7Z020 offers significantly more PL resources: 85K logic cells, 53,200 LUTs, 4.9 Mb of Block RAM, and 220 DSP slices. While the PS is identical, the increased PL allows for more complex hardware acceleration. To use this part, the Vivado project must be retargeted to the XC7Z020 and the entire design (PS configuration and PL bitstream) must be recompiled. Since the pinout is the same, the board-level constraints file can be reused. Power consumption may be slightly higher, so a review of the Power Delivery Network (PDN) is prudent.

It is critical to understand that "pin-compatible" does not mean "firmware-compatible." You cannot load a bitstream compiled for an XC7Z010 onto an XC7Z020. The design tools must be used to generate a new boot image and bitstream for the specific target device.

Functional Alternatives (May Require Redesign)

When pin-compatible options are exhausted, the next step is to consider functionally similar SoCs that require a PCB redesign. This is a significant undertaking, involving not just a new layout but also a new software toolchain and potentially different power management and memory architectures. This path is typically chosen for new product revisions or as a last resort to sustain a product line when the original part is facing obsolescence or extreme long-term unavailability.

1. Intel (formerly Altera) Cyclone V SoC Family:

The most direct competitor to the Xilinx Zynq-7000 series is the Intel Cyclone V SoC family. These devices also feature a dual-core ARM Cortex-A9 MPCore Hard Processor System (HPS) integrated with FPGA fabric. A part like the 5CSEBA2U19I7N offers a comparable feature set to the smaller Zynq devices. Migrating to a Cyclone V SoC involves a complete platform shift:

• Hardware Redesign: The package (e.g., 484-pin UBGA) and pinout are completely different, requiring a new PCB layout. Power supply requirements and sequencing will differ, necessitating a new PMIC or discrete power solution. The DDR memory interface and pinout will also need to be redesigned.
• Toolchain Migration: The design environment shifts from AMD/Xilinx Vivado to Intel Quartus Prime. All PL (FPGA) code must be migrated, and IP cores from Xilinx must be replaced with equivalent Intel IP.
• Software Migration: The software development flow changes from Vitis/PetaLinux to Intel's SoC Embedded Design Suite (EDS). While the ARM core is the same, board support packages (BSPs), drivers, and bootloaders are specific to the silicon vendor and must be completely redeveloped or adapted for the new platform.

2. AMD/Xilinx Zynq UltraScale+ MPSoC Family:

For a forward-looking redesign, migrating up the AMD/Xilinx product stack to the Zynq UltraScale+ MPSoC is a viable option. Devices like the ZU2 or ZU3 in the CG package offer a significant performance uplift with quad-core ARM Cortex-A53 and dual-core ARM Cortex-R5F processors. This is not a simple replacement; it is a full-scale platform upgrade. It requires a new PCB, a more complex power system, and a migration to DDR4 memory. However, it keeps the project within the Vivado/Vitis ecosystem, which can ease the software and PL migration effort compared to switching vendors.

Detailed Comparison Table

The table below provides a side-by-side comparison of the XC7Z010-1CLG400I, its pin-compatible upgrade (XC7Z020-1CLG400I), and a functional alternative from Intel (5CSEBA4U19I7N), which is a mid-range Cyclone V SoC. This helps illustrate the trade-offs when considering a replacement.

Parameter	XC7Z010-1CLG400I	XC7Z020-1CLG400I (Pin-Compatible Upgrade)	Intel 5CSEBA4U19I7N (Functional Alternative)
Processor System (PS/HPS)	Dual-core ARM Cortex-A9 @ 667 MHz	Dual-core ARM Cortex-A9 @ 667 MHz	Dual-core ARM Cortex-A9 @ 925 MHz
Logic Cells (K)	28	85	40 (KLEs)
LUTs	17,600	53,200	~26,880 (ALMs)
Block RAM (Mb)	2.1	4.9	3.08
DSP Slices / Multipliers	80	220	87 (18x18 Multipliers)
Package	CLG400 (17x17mm, 400-ball)	CLG400 (17x17mm, 400-ball)	U484 (19x19mm, 484-ball)
Max User I/O	100	100	188
Redesign Effort	N/A	Minimal (Firmware recompile)	Major (Full HW/SW redesign)

Migration Guide: Switching from XC7Z010-1CLG400I

Successfully migrating away from the XC7Z010-1CLG400I, even to a pin-compatible part, requires a methodical engineering process. Simply swapping the chip on the board is not sufficient and can lead to non-functional or unreliable products. Follow this checklist to ensure a smooth transition.

1. Confirm Pin-for-Pin Compatibility: If you are considering another Zynq-7000 device in the same package (like the XC7Z020-1CLG400I), your first step is to download the official pinout files from the AMD/Xilinx website for both the original and replacement parts. Overlay them to confirm that all power, ground, configuration, and I/O pins match exactly. For the CLG400 package, the Z010 and Z020 are indeed pin-compatible, but this verification is a mandatory first step for any substitution.

2. Re-Target and Recompile Firmware: This is the most critical step. The FPGA bitstream and the Processing System configuration are highly specific to the target device. Open your Vivado project, change the target part number in the project settings from XC7Z010-1CLG400I to your chosen replacement (e.g., XC7Z020-1CLG400I). Then, run a full recompilation of the design, including synthesis, implementation, and bitstream generation. You will also need to export the new hardware definition file (XSA) to your software environment (Vitis) and rebuild the bootloaders (FSBL/SSBL) and any software applications.

3. Review Power and Thermal Budgets: Migrating to a larger device (XC7Z020) or a faster speed grade (-2) can increase power consumption. Analyze the datasheet's power characteristics and use the Xilinx Power Estimator (XPE) tool with your design's utilization data to get a more accurate estimate. Ensure your existing Power Delivery Network (PDN), including voltage regulators and decoupling capacitors, can handle the potentially higher transient and static currents. Similarly, verify that your existing thermal solution (heatsink, fan, airflow) is sufficient to keep the junction temperature of the new device within its specified limits.

4. Perform Full System Validation: After creating the new firmware and confirming the hardware can support it, you must perform a full regression test on the updated system. This includes power-on sequencing, boot-up tests, peripheral I/O checks (Ethernet, USB, SPI, etc.), memory interface stress tests, and application-level functional validation. Pay close attention to timing-sensitive interfaces. While a faster speed grade usually helps, moving to a larger device can introduce different internal routing delays that might affect timing margins on critical paths.

For engineers exploring the broader family of devices, you can Browse Zynq-7000 Series to compare features and availability across the entire portfolio.

Where to Source XC7Z010-1CLG400I and Alternatives

Securing authentic electronic components is paramount to product reliability and performance. When sourcing the XC7Z010-1CLG400I or its potential replacements, it is crucial to partner with trusted distributors. The open market is fraught with risks, including counterfeit, remarked, or improperly stored components that can cause catastrophic field failures.

Authorized distributors are the safest channel, as they receive parts directly from the manufacturer. However, during periods of high demand and allocation, their stock may be depleted with long factory lead times. This is where a reliable independent distributor like WWDParts becomes a vital partner. We specialize in sourcing constrained and hard-to-find components through a globally vetted network of suppliers. Every component undergoes rigorous inspection and testing protocols to ensure authenticity and quality, mitigating the risks associated with the open market.

When you need to secure inventory, whether it's for immediate production or for building a buffer stock, a targeted search is the most effective approach. You can Check XC7Z010-1CLG400I Inventory & Pricing on our platform to get real-time availability and request a quote. Our team can also assist in sourcing the pin-compatible alternatives discussed in this guide, such as the XC7Z020-1CLG400I, to keep your production lines moving.

Video Demonstration

Frequently Asked Questions (XC7Z010-1CLG400I FAQ)

Can I use an XC7Z020-1CLG400I to replace an XC7Z010-1CLG400I?

Yes, this is a common and viable replacement strategy. The XC7Z020-1CLG400I is in the same Zynq-7000 family and uses the identical CLG400 package, making it pin-for-pin compatible. However, it is not a direct "drop-in" from a firmware perspective. You must change the target device in your Vivado project settings and recompile the entire design to generate a new bitstream and software configuration. The XC7Z020 offers more programmable logic resources, making it a powerful upgrade, but you must validate power and thermal performance as it may consume slightly more power.

Is the commercial grade XC7Z010-1CLG400C a drop-in replacement for the industrial XC7Z010-1CLG400I?

Yes, from a functional and pinout perspective, the commercial grade ('C') part is a drop-in replacement for the industrial grade ('I') part. The key difference is the operating junction temperature range: the 'C' grade is rated for 0°C to 85°C, while the 'I' grade is rated for -40°C to 100°C. If your product's end-use environment and thermal design ensure the chip's junction temperature will always remain within the commercial limits, then this is a perfectly acceptable substitution, especially when industrial parts are scarce.

What is the difference between speed grade -1, -2, and -3 in Zynq-7000 devices?

The speed grade indicates the maximum performance of the device. A -1 speed grade is the slowest, a -2 is faster, and a -3 is the fastest available. For example, in the XC7Z010, a -1 part has a max CPU frequency of 667 MHz, while a -2 part can run at 766 MHz. You can always replace a slower speed grade part with a faster one (e.g., use a -2 to replace a -1) as it will provide more timing margin. However, you cannot replace a faster part with a slower one without performing a full timing analysis to ensure your design still meets its performance requirements.

Can I replace a Xilinx Zynq-7000 with an Intel Cyclone V SoC?

No, this is not a drop-in replacement. While an Intel Cyclone V SoC is a functional alternative that also combines ARM cores with FPGA fabric, it is a completely different product from a different manufacturer. Migrating from a Zynq-7000 to a Cyclone V SoC would require a complete hardware redesign (new PCB layout, power solution, memory) and a full software and toolchain migration (from Vivado to Quartus). This is a major engineering effort and should only be considered for a new product revision or as a last resort if Zynq-7000 devices are unobtainable for the long term.

Are the firmware/bitstreams compatible between different Zynq-7000 devices?

No, they are not. The configuration bitstream for the Programmable Logic (PL) is specific to the exact part number, including the device size (Z010 vs. Z020) and speed grade. Loading a bitstream compiled for one part onto another will fail or result in undefined behavior. You must always use the AMD/Xilinx Vivado Design Suite to retarget your project to the new part number and generate a fresh bitstream and boot image. This ensures all internal routing, resource mapping, and timing information is correct for the specific silicon you are using.
