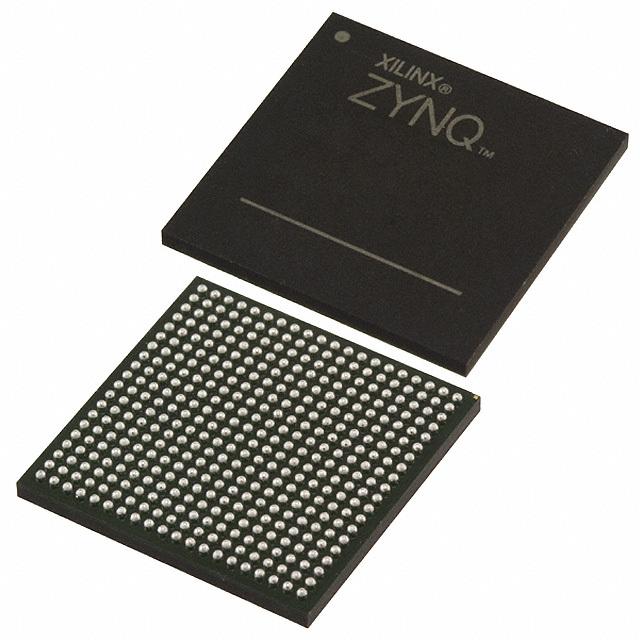

XC7Z010-1CLG400I Application Guide: From Datasheet to Working Circuit

When designing a compact, high-performance industrial vision system, the challenge lies in balancing real-time image processing with higher-level application logic and network connectivity. The XC7Z010-1CLG400I System-on-Chip (SoC) directly addresses this by integrating a dual-core ARM processor with programmable logic in a single device. This allows it to handle demanding tasks like pre-processing raw sensor data in its fabric while simultaneously running an operating system and a GigE Vision stack on its processing system, all within a constrained power and form-factor budget.

Application Context: Where XC7Z010-1CLG400I Fits in the System

In a modern industrial automation or quality control setting, a smart camera needs to do more than just capture an image. It must process, analyze, and communicate results in real-time. The XC7Z010-1CLG400I is an ideal central component for such a system due to its heterogeneous computing architecture. It combines a software-programmable Processing System (PS) with a hardware-programmable Programmable Logic (PL) section.

Consider a system block diagram for a GigE Vision smart camera. The XC7Z010-1CLG400I sits at the heart of the design:

• Image Sensor Interface: A CMOS image sensor, often with a MIPI CSI-2 or parallel LVDS interface, connects directly to the I/O pins of the PL. The PL is perfectly suited for implementing the high-speed, bit-level precision required for a MIPI D-PHY receiver or a custom parallel data capture module. This real-time data capture is something a traditional microprocessor struggles with.
• Real-Time Image Processing Pipeline (in PL): Once the raw Bayer data is captured, it flows through a pipeline implemented in the PL's logic fabric. This pipeline can perform tasks like debayering (color filter array interpolation), color space conversion (e.g., RGB to YUV), gamma correction, and defect pixel correction. By implementing these pixel-intensive operations in hardware, the ARM cores in the PS are freed from this heavy computational load. The PL's on-chip Block RAM is used for line buffering, and its DSP slices accelerate filtering and matrix multiplication operations.
• Application & Network Processing (in PS): The pre-processed image frames are transferred from the PL to the main system memory (DDR3) via a high-bandwidth AXI4 interconnect. Now, the dual-core ARM Cortex-A9 processor, running a Linux distribution like PetaLinux or a real-time operating system (RTOS), takes over. It can run sophisticated computer vision libraries like OpenCV to perform object detection, measurement, or barcode reading. Simultaneously, the PS manages the Gigabit Ethernet MAC peripheral, running a full GigE Vision protocol stack to stream video data and handle control commands from a host PC.
• System Control and Peripherals: The PS's MIO (Multiplexed I/O) pins are used for standard system functions: I2C to configure the image sensor and other ICs, UART for a debug console, and GPIO for status LEDs or trigger inputs. The entire system boots from a QSPI flash memory device connected to the PS, providing a reliable and fast startup sequence.

This partitioning of tasks is the key strength of the Zynq architecture. The PL handles the deterministic, high-throughput, parallel processing of the image stream, while the PS provides the flexibility of a software environment for complex decision-making, network communication, and user interaction. The XC7Z010, being one of the smaller devices in the Zynq-7000 family, provides a cost-effective solution for applications where the PL logic requirements are moderate but the need for a powerful dual-core processor is still present.

Core Specifications for This Application

The following specifications for the XC7Z010-1CLG400I are critical when designing an industrial vision system. All values are sourced from the official Xilinx/AMD datasheets for the Zynq-7000 family.

Reference Circuit and Component Selection

Designing a board around the XC7Z010-1CLG400I requires careful attention to several critical support subsystems. A robust design is not just about connecting the pins; it's about creating a stable environment in which the SoC can operate reliably.

Power Supply Subsystem: This is arguably the most critical part of a Zynq design. The device has multiple power domains that must be powered in a specific sequence to prevent damage and ensure proper initialization. The key rails are:

• VCCINT (1.0V): Powers the internal logic core of the PL and PS. This is the highest current rail.
• VCCBRAM (1.0V): Powers the Block RAM in the PL. Often tied to VCCINT.
• VCC_PSINTFP / VCC_PSINTLP (1.0V): Core voltage for different parts of the PS.
• VCCAUX (1.8V): Powers auxiliary internal logic, including PLLs and JTAG.
• VCC_PSAUX (1.8V): Auxiliary voltage for the PS. Often tied to VCCAUX.
• VCCO_DDR / VCC_PSDDR (1.35V/1.5V): Powers the DDR memory controller I/O, matching the DDR3L/DDR3 voltage.
• VCCO (Bank Dependent): Powers the PL I/O banks. Can be set from 1.2V to 3.3V to match external device logic levels.

The required power-up sequence is generally VCCINT first, followed by VCCAUX, and then the various VCCO rails. Using a dedicated Power Management IC (PMIC) like the Infineon IRPS5401 is highly recommended as it integrates multiple regulators and a programmable sequencer, simplifying the design. Alternatively, a discrete solution with multiple DC-DC converters and a power sequencer IC can be used.

DDR Memory Interface: The XC7Z010 requires external DDR3 or DDR3L memory for the PS to operate. The layout of this interface is extremely sensitive. Traces must be impedance-controlled (typically 50 Ω single-ended, 100 Ω differential). Length matching is required for traces within byte lanes and between the clock and address/control groups. Follow the guidelines in Xilinx UG933 "Zynq-7000 SoC PCB Design and Pin-Planning Guide" meticulously. Failure to do so will result in data corruption and system instability.

Configuration and Boot: The SoC must load its configuration from non-volatile memory on startup. The boot mode is selected by the state of MIO pins [7:2] during power-on reset. For a reliable embedded system, booting from QSPI NOR flash is a common choice. This requires a 4-bit SPI flash device (e.g., a Micron MT25Q series part) connected to the dedicated QSPI MIO pins. The boot process involves the on-chip BootROM loading a First Stage Bootloader (FSBL) from flash, which then configures the PL and loads the main application software (e.g., U-Boot and the Linux kernel).

Clocking and Peripherals: A single, low-jitter external clock source (e.g., 33.333 MHz crystal oscillator) must be provided to the PS_CLK input. From this, internal PLLs generate all necessary clocks for the CPU, DDR controller, and peripherals. For our vision application, an Ethernet PHY like the Microchip KSZ9031RNX would connect to the PS's MIO pins via the RGMII interface. The camera sensor itself would connect to the PL's I/O banks, which are highly configurable and support standards like LVDS. The flexibility of the Zynq platform means you can implement nearly any sensor interface. When selecting components, it's wise to Browse Zynq-7000 Series documentation to understand the full range of supported peripherals and interface standards.

Design Pitfalls and How to Avoid Them

Many first-time Zynq designs fail due to a few common, avoidable mistakes. Understanding these upfront can save weeks of frustrating debugging.

Beyond the table, a frequent issue is underestimating the complexity of the BGA package. The 0.8mm pitch of the CLG400 package requires a multi-layer PCB (typically 8 layers or more) with microvias or via-in-pad technology for proper fanout, especially for the inner balls. Partnering with a PCB fabricator experienced with fine-pitch BGAs is essential. Similarly, the assembly process requires precise solder paste application and X-ray inspection to ensure there are no shorts or open connections under the BGA, particularly on the central ground pad.

Performance Optimization Tips

Getting a Zynq design to work is the first step; optimizing it for performance, power, and thermal efficiency is the next. Here are key areas to focus on for the XC7Z010-1CLG400I.

Thermal Management: The industrial temperature rating is for the silicon junction, not the ambient air. The actual junction temperature depends on power consumption and the thermal resistance of your cooling solution. The CLG400 package features a large central ground pad which is also the primary thermal path. This pad MUST be soldered down to a large copper area on the PCB, which should be stitched with an array of thermal vias to internal ground planes and a bottom-side copper plane. For high-performance applications where both ARM cores and a significant portion of the PL are active, a heatsink attached to the top of the package or the PCB is often mandatory. Use the Xilinx Power Estimator (XPE) spreadsheet early in the design cycle to get a realistic estimate of power dissipation and plan your thermal strategy accordingly.

Signal and Power Integrity (SI/PI): A clean power delivery network (PDN) is vital for performance. Use a sufficient number of decoupling capacitors for each power rail, placed as close to the BGA balls as physically possible. A mix of capacitor values (e.g., 10µF, 1µF, 100nF, 10nF) is effective at suppressing noise across a wide frequency spectrum. Use a PDN analysis tool to ensure voltage droop is within acceptable limits. For high-speed signal integrity, ensure all differential pairs (like LVDS or clock lines) and single-ended traces (like DDR3) have controlled impedance and are routed over a continuous reference plane to minimize EMI and reflections.

PS-PL Bandwidth: The AXI interconnect is the data highway between the PS and PL. To maximize throughput for our vision application, use AXI Direct Memory Access (DMA) controllers. An AXI DMA allows the PL to write processed image frames directly into the PS's DDR memory without any CPU intervention, freeing the ARM cores for other tasks. For streaming data, the AXI4-Stream protocol is much more efficient than memory-mapped AXI4, as it eliminates address-phase overhead. Configure the AXI interconnects in Vivado with appropriate data widths (32-bit or 64-bit) and clock rates to meet your bandwidth budget.

Related Components and Accessories

A successful XC7Z010-1CLG400I design relies on a well-chosen ecosystem of supporting components. Sourcing these parts from a reliable distributor is key to a smooth production run.

• Power Management: For an all-in-one solution, the Infineon IRPS

  ---
