XC7Z020-2CLG400C Design-In Guide (Xilinx Zynq-7000)

XC7Z020-2CLG400C Design-In Guide: Why Choose It and How to Use It

Modern embedded systems often face a difficult trade-off: the sequential processing power of a microprocessor versus the parallel processing capability of an FPGA. Designers frequently find themselves needing to process high-bandwidth sensor data in real-time while also managing a complex user interface, networking stack, and file system. Using a separate CPU and FPGA introduces latency, increases board space, and complicates power management and system integration. The Xilinx XC7Z020-2CLG400C directly addresses this challenge by tightly integrating a dual-core ARM processor system with programmable logic on a single System-on-Chip (SoC), offering a powerful, single-chip solution for a new class of "software-defined hardware."

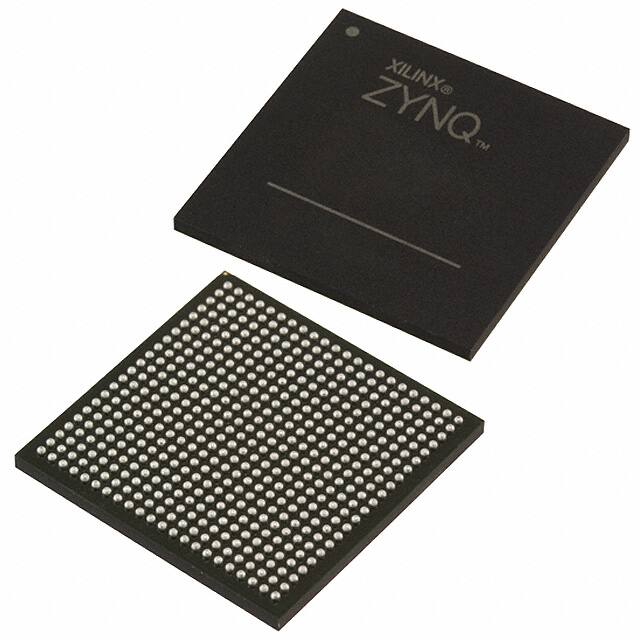

XC7Z020-2CLG400C Zynq-7000 electronic component

The Design Challenge XC7Z020-2CLG400C Solves

The core challenge in many advanced embedded systems is the concurrent need for high-throughput, real-time data processing and sophisticated, software-driven control. Consider a professional drone's flight controller. It must simultaneously process multiple high-resolution video streams, run complex sensor fusion algorithms from gyros and accelerometers with microsecond-level determinism, and control multiple motors with precise PWM signals. At the same time, it needs to run a higher-level operating system to handle GPS navigation, communicate over a wireless link, and log flight data. A traditional microcontroller, even a high-end one, would struggle with the massive parallelism required for the signal processing. A pure FPGA could handle the parallelism but would be an inefficient and cumbersome platform for running the networking stack and file system.

This is precisely the problem domain where the XC7Z020-2CLG400C excels. It is a member of the Zynq-7000 family, which isn't just an FPGA with a processor core bolted on; it's a fundamentally different architecture. The device is partitioned into two main sections: the Processing System (PS) and the Programmable Logic (PL).

  • The Processing System (PS): This is a hardened, feature-rich dual-core ARM Cortex-A9 MPCore processor subsystem. It includes standard peripherals like UART, I2C, SPI, CAN, USB, and Gigabit Ethernet, along with a dedicated memory controller. This section behaves like a familiar application processor, capable of booting Linux, an RTOS (like FreeRTOS), or running bare-metal code. This is where you run your application software, manage your network, and handle complex sequential tasks.
  • The Programmable Logic (PL): This is genuine Xilinx 7-series FPGA fabric, equivalent in capability to the Artix-7 family. This is where you implement custom hardware. You can create massively parallel data processing pipelines, custom communication interfaces, real-time motor controllers, or any logic that benefits from hardware execution. The PL in the XC7Z020 provides 85K logic cells, which is substantial for a wide range of acceleration tasks.

The true power of the Zynq architecture lies in the high-bandwidth connection between the PS and PL. They are linked on-chip via multiple AXI (Advanced eXtensible Interface) ports, providing thousands of low-latency connections. This tight integration allows the software running on the ARM cores to configure, control, and stream data to and from the custom hardware in the PL as if it were just another memory-mapped peripheral. This eliminates the I/O bottlenecks, latency, and board complexity of a two-chip (CPU + FPGA) solution, enabling a level of performance and integration that was previously unattainable in this form factor.

Key Specifications at a Glance

Understanding the key resources of the XC7Z020-2CLG400C is crucial for determining if it's the right fit for your application. The specifications below are derived from the official Xilinx Zynq-7000 SoC (DS191) datasheet.

Parameter Value Why It Matters for Your Design
Processing System (PS) Dual-core ARM Cortex-A9 MPCore™ with CoreSight™ Provides a powerful and familiar software environment. Capable of running a full OS like Linux for complex applications, or an RTOS for real-time control, separating high-level tasks from hardware acceleration.
Max PS Clock Frequency 866 MHz (-2 Speed Grade) Defines the raw computational throughput for software tasks. The -2 speed grade offers a strong balance between high performance and manageable power consumption for commercial-grade applications.
Programmable Logic (PL) 85K Logic Cells, 106,400 Flip-Flops This is the heart of the FPGA fabric. This quantity is sufficient for significant hardware acceleration, including video processing pipelines, multiple custom protocol engines, or complex state machines.
Block RAM 4.9 Mb (140 x 36Kb blocks) Essential on-chip memory for buffering data between the PS and PL, implementing FIFOs, and creating local data stores for hardware accelerators. This reduces reliance on external DDR and avoids system bottlenecks.
DSP Slices 220 These are dedicated hardware blocks for high-performance 25x18 multiply-accumulate operations. They are critical for accelerating DSP algorithms like FIR filters, FFTs, and correlators in SDR, radar, and audio/video applications.
Package 400-pin Chip Scale BGA (CLG400) A compact (17x17 mm) but high-density package with a 0.8mm pitch. It enables a high I/O count in a small footprint but requires advanced PCB design and manufacturing capabilities (e.g., multi-layer boards, via-in-pad).
Temperature Grade Commercial (0°C to 85°C Junction) The 'C' in the part number specifies its operating range. This is suitable for most indoor, industrial, and consumer applications. Designs must include thermal management to keep the junction temperature below 85°C under full load.

XC7Z020-2CLG400C vs Alternatives: Head-to-Head

Choosing the XC7Z020 involves understanding its position relative to other common solutions.

Feature XC7Z020-2CLG400C High-End MCU (e.g., STM32H7) Mid-Range FPGA + CPU (e.g., Artix-7 + ARM)
System Integration Single-chip SoC with tight PS-PL coupling. Single-chip, but all peripherals are fixed-function. Two-chip solution, requiring board-level integration.
Real-Time Parallelism Excellent. PL provides true hardware parallelism for many tasks. Limited. Relies on DMA and fixed peripherals; cannot create new parallel hardware paths. Excellent. Dedicated FPGA provides massive parallelism.
CPU-Hardware Latency Extremely low (nanoseconds) via on-chip AXI bus. N/A (all integrated peripherals). High (microseconds) due to off-chip interface (e.g., PCIe, parallel bus).
I/O Flexibility Very high. Most PL I/O pins can be configured for any standard or custom digital protocol. Low. I/O is tied to fixed-function peripherals (UART, SPI, etc.). Very high. The FPGA defines the I/O functionality.
Design Complexity High. Requires both hardware (HDL) and software skills, plus complex PCB layout. Low to Medium. Simpler power, familiar software tools, less complex PCB. Very High. Two complex devices to design for, plus the interface between them. Increased board size and power complexity.
Development Workflow Unified tools (Vivado/Vitis) manage hardware, software, and the interface. Standard MCU IDEs (e.g., CubeIDE, Keil). Separate toolchains for FPGA and CPU, requiring manual integration.

In summary, the decision to use the XC7Z020-2CLG400C hinges on the need for tight, low-latency coupling between a powerful software environment and custom, high-throughput hardware logic. If your application can be serviced entirely by fixed-function peripherals on a standard MCU, the Zynq may be overkill. If your application is pure hardware acceleration with minimal software control, a standalone FPGA might be more cost-effective. However, for the rapidly growing class of applications that need both—like advanced driver-assistance systems (ADAS), software-defined radio, machine vision, and industrial automation—the XC7Z020-2CLG400C offers a compelling single-chip solution that balances performance, flexibility, and system cost in a way that discrete solutions cannot match.

Recommended Application Circuit

Designing with the XC7Z020-2CLG400C is a system-level task that extends far beyond simply placing the chip on a board. A robust support circuit is mandatory for proper operation. Key subsystems include power, memory, configuration, and clocking.

Power Delivery Network (PDN): This is arguably the most critical aspect of the design. The Zynq SoC requires multiple, independent, and clean power rails. These typically include:

  • VCCINT (1.0V): Core voltage for the internal logic. This is a high-current rail requiring a fast-transient-response regulator.
  • VCCAUX (1.8V): Auxiliary voltage for internal functions.
  • VCCO (1.8V/2.5V/3.3V): I/O voltage for the PL banks. Different banks can have different VCCO levels, enabling interfacing with multiple logic standards.
  • VCCP (1.8V): Voltage for the PS I/O banks.
  • VCC_DDR (1.5V/1.35V): Voltage for the external DDR memory interface.
Proper power sequencing is mandatory. The Xilinx datasheets specify the required order in which these rails must come up. Using a dedicated Power Management IC (PMIC) designed for Xilinx FPGAs is highly recommended, as it simplifies sequencing and reduces component count. Alternatively, discrete regulators can be used, but the sequencing logic must be implemented carefully. The Xilinx Power Estimator (XPE) spreadsheet is an essential tool for calculating the current requirements for each rail based on your specific design's resource utilization.

Memory Interface: The PS relies on an external DDR memory (DDR2, DDR3, or DDR3L) for program and data storage. The XC7Z020's memory controller is powerful but requires a meticulously designed PCB interface. This involves precise 50-ohm impedance control for single-ended traces, 100-ohm differential impedance for clock pairs, and strict length-matching for all signals within the data/address groups. Any failure in the DDR interface will lead to system instability or failure to boot.

Configuration and Boot: Upon power-up, the Zynq's ARM core (CPU0) begins executing code from its on-chip boot ROM. This ROM code looks for a First Stage Bootloader (FSBL) in a specified location. The boot source is determined by a set of mode pins. Common boot devices are QSPI flash or an SD card. The FSBL is responsible for initializing the PS, configuring the PL with the bitstream, and then loading the main application (e.g., U-Boot, Linux kernel, or a bare-metal application) into DDR memory. The boot device (QSPI or SD Card) must be connected to the dedicated MIO pins on the PS.

These design principles are common across the Zynq-7000 family, making the knowledge gained from one project highly reusable. You can Browse Zynq-7000 Series to see other devices with different PL sizes and package options that share this core architecture.

PCB Layout and Thermal Design Tips

The physical implementation of a design using the XC7Z020-2CLG400C is as critical as the logical design. The 400-pin, 0.8mm pitch BGA package demands an advanced PCB fabrication process and careful layout practices.

PCB Stack-up and Fanout: A minimum of an 8-layer PCB is typical for this device, with 10 or 12 layers being common for more complex designs. This allows for dedicated ground planes, multiple power planes, and sufficient routing layers for the dense BGA and DDR interface. The 0.8mm pitch makes a "dog-bone" fanout (where a trace runs between two pads to a via) possible, but for the inner rows, via-in-pad (VIP) technology may be necessary. VIP requires a more advanced and costly PCB process but provides the best signal integrity and allows for placing decoupling capacitors directly under the BGA on the reverse side of the board.

Decoupling Strategy: High-performance devices like the Zynq have very fast switching logic, which creates high-frequency current demands. A robust decoupling capacitor network is essential to provide a low-impedance power source at all frequencies. Follow the recommendations in the Xilinx UG933 Zynq-7000 PCB Design Guide. This means placing a range of capacitor values (e.g., 10uF, 1uF, 0.1uF, 0.01uF) as close as physically possible to every power pin of the BGA. The smallest value capacitors should have the highest priority for proximity to the pin.

Thermal Management: The XC7Z020-2CLG400C can dissipate several watts of power, depending on the utilization of the PS cores, DSP slices, and PL fabric. The 'C' commercial grade requires the junction temperature to remain below 85°C. The CLG400 package includes a central ground/thermal pad. It is absolutely critical that this pad is soldered to the PCB and connected to a large ground/thermal plane with an array of thermal vias. This is the primary path for heat to exit the device into the PCB. For high-performance applications, a heatsink may be required. Always perform a thermal analysis using power estimates from the XPE tool to determine if a heatsink and/or airflow is necessary to stay within the safe operating temperature range.

Where to Buy XC7Z020-2CLG400C

The XC7Z020-2CLG400C is a sophisticated and high-demand component used in a wide array of industries. When sourcing this part, it is crucial to understand the part number and purchase from a reliable distributor.

  • XC7Z020: The base device, defining the PL (85K cells) and PS (dual A9) resources.
  • -2: The speed grade. -2 is faster than -1 but slower than -3.
  • CLG400: The 17x17mm, 400-pin, 0.8mm pitch lidless chip scale BGA package.
  • C: Commercial temperature grade (0°C to 85°C junction). An 'I' would indicate Industrial grade (-40°C to 100°C).
Due to its complexity and value, this component is a target for counterfeiting and improper handling. Sourcing from unauthorized channels carries significant risk of receiving remarked, damaged, or non-functional parts. To ensure authenticity, traceability, and proper storage (especially for moisture-sensitive BGAs), always procure these devices from an authorized or reputable global distributor like WWDParts. We provide access to verified inventory and help you manage lead times for your production schedule. Check XC7Z020-2CLG400C Inventory & Pricing to see current availability and request a quote for your project.

Video Demonstration

Frequently Asked Questions (XC7Z020-2CLG400C FAQ)

What's the main difference between the Zynq-7000 and a regular FPGA like the Artix-7?

The fundamental difference is architecture. A regular FPGA like the Artix-7 is pure programmable logic; any processor functionality must be implemented as a "soft core" using the FPGA's logic resources, which is less efficient and slower than a dedicated processor. The Zynq-7000 is a true System-on-Chip (SoC) that features a hardened, dual-core ARM Cortex-A9 processor system (PS) alongside the Artix-7 equivalent programmable logic (PL). This means the Zynq boots like a processor, can run operating systems like Linux out-of-the-box, and has dedicated peripherals like USB and Ethernet that do not consume any logic resources.

Can I run Linux on the XC7Z020-2CLG400C?

Yes, absolutely. The dual-core ARM Cortex-A9 processor is more than capable of running a full Linux operating system. Xilinx (now AMD) provides extensive support for this through the PetaLinux Tools, which simplifies the process of building a custom Linux distribution for the Zynq platform. This allows you to leverage the vast ecosystem of Linux drivers, libraries, and applications for tasks like networking, storage, and user interfaces, while offloading real-time, high-performance tasks to the programmable logic.

How do I program the FPGA (PL) part and the ARM (PS) part?

Programming is done through a unified tool suite called Vitis. The workflow typically involves two
