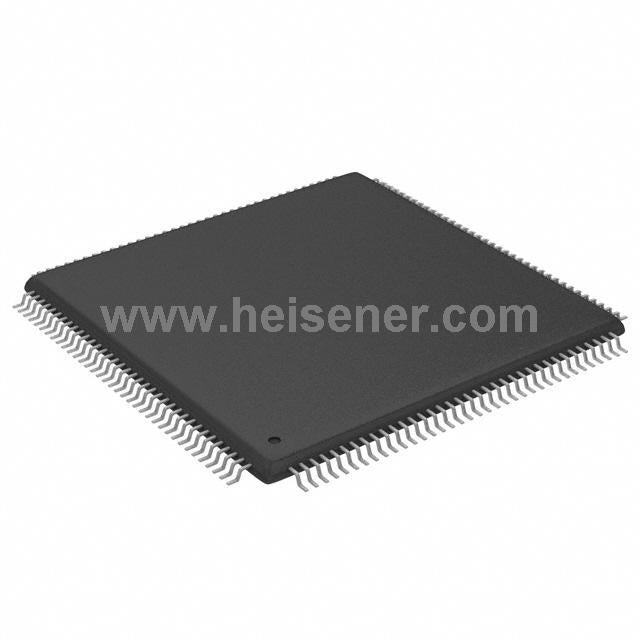

XC6SLX9-2TQG144I Application Guide: From Datasheet to Working Circuit

When designing a custom industrial data acquisition and control unit, the sheer number of disparate sensor interfaces can quickly overwhelm a typical microcontroller. This is a classic scenario where a cost-effective FPGA like the Xilinx XC6SLX9-2TQG144I excels. It can act as a powerful co-processor, handling the real-time, parallel demands of multiple SPI, I2C, and GPIO-based sensors, aggregating the data, and presenting a clean, high-speed interface to a host processor. This offloads the timing-critical tasks from the main CPU, simplifying software and improving overall system responsiveness and reliability.

Application Context: Where XC6SLX9-2TQG144I Fits in the System

In modern industrial automation and monitoring systems, a central controller often needs to interface with a wide variety of sensors and actuators. A typical system might include temperature sensors (I2C), pressure transducers (SPI), motor encoders (quadrature), and various limit switches (GPIO). A single microcontroller attempting to manage these diverse, and often high-speed, interfaces can struggle with timing constraints and software complexity. This is where the XC6SLX9-2TQG144I serves as an ideal "I/O expander and pre-processor."

Consider a block diagram for a machine monitoring system. The core of the system is a host microcontroller (MCU), perhaps an ARM Cortex-M4, responsible for high-level decision making, networking, and user interface management. The XC6SLX9 FPGA sits between this MCU and the physical world of sensors. Its role is to be the master of real-time I/O.

Here's how it breaks down:

• Sensor Interfacing: The FPGA's logic fabric is configured with multiple independent interface controllers. You can instantiate several SPI master modules to continuously poll high-speed ADCs or pressure sensors, an I2C master to read from temperature/humidity sensors, and custom logic to decode quadrature signals from a motor encoder. Because these operations happen in parallel within the hardware, there is no preemption or task-switching overhead as you would find in a software-based approach on an MCU.
• Data Aggregation and Buffering: As data streams in from the various sensors, it can be temporarily stored in the FPGA's internal Block RAM (BRAM). This creates a buffer, decoupling the high-frequency, real-time sensor polling from the less frequent, block-based communication with the host MCU. For example, the FPGA can collect 1,000 samples from an ADC and store them in BRAM before alerting the MCU that a block of data is ready.
• Pre-processing: With 16 dedicated DSP48A1 slices, the XC6SLX9 can perform significant signal processing on the incoming data streams. This could involve applying a Finite Impulse Response (FIR) filter to noisy sensor readings, calculating a moving average, or detecting threshold crossings. This pre-processing reduces the computational load on the host MCU, freeing it up for more complex algorithms.
• Host Interface: The FPGA presents a simplified, unified interface to the host MCU. This is often a fast SPI slave interface or a parallel bus (memory-mapped I/O). The MCU's job is reduced to writing configuration parameters to the FPGA (e.g., "set ADC sample rate") and reading back blocks of pre-processed data from the FPGA's BRAM. This abstraction layer makes the MCU's software dramatically simpler and more robust.

In this architecture, the XC6SLX9-2TQG144I is not the main "brain" but rather the powerful and flexible "nervous system" of the design, handling the low-level, high-speed reflexes that a software-driven processor is ill-suited for.

Core Specifications for This Application

When selecting the XC6SLX9-2TQG144I for a data aggregation role, certain parameters from the datasheet are more critical than others. The following table highlights the key specifications and their relevance to our industrial sensor hub application.

Reference Circuit and Component Selection

A successful FPGA design is built upon a solid foundation of support circuitry. The XC6SLX9-2TQG144I, while powerful, requires careful attention to power, configuration, and clocking. A minimal, robust reference circuit is not just a suggestion; it's a prerequisite for stable operation.

Power Supply Subsystem: The Spartan-6 family has three primary power domains that must be serviced:

• VCCINT (1.2V): This is the core voltage for the FPGA's internal logic. It's the most current-hungry rail and is highly sensitive to noise. A high-efficiency switching regulator is often used to generate this voltage, followed by extensive decoupling. Place at least one 0.1µF ceramic capacitor as close as possible to every VCCINT pin. Supplement this with several 10µF to 47µF bulk capacitors distributed around the FPGA.
• VCCAUX (2.5V): This auxiliary voltage powers internal resources like the JTAG and configuration logic. It has lower current requirements than VCCINT but still needs clean power. An LDO (Low-Dropout Regulator) is often sufficient. Decouple with 0.1µF and 10µF capacitors.
• VCCO (1.2V - 3.3V): This is the I/O voltage for each of the FPGA's four banks. A key feature of the Browse Spartan-6 Series is that each bank can have a different VCCO. For our sensor hub, you might power Bank 0 and Bank 1 with 3.3V for legacy SPI sensors, and Bank 2 with 1.8V to interface with a modern MCU. Each VCCO rail requires its own decoupling network.

Configuration and JTAG: For development and production programming, the JTAG interface (TCK, TMS, TDI, TDO) is essential. These pins should be brought out to a standard 2x5 0.1" header. For standalone operation, the FPGA must load its configuration from an external non-volatile memory. The most common method is Master SPI mode, where the FPGA acts as a SPI master and reads its bitstream from a standard SPI NOR Flash chip (e.g., a Winbond W25Q32 or Micron N25Q series). To enable this mode, the mode pins (M0, M1) must be pulled to the correct levels (M0=L, M1=H for Master SPI). The CCLK, MOSI, MISO, and CS pins for the configuration SPI interface should be connected between the FPGA and the flash chip.

Clocking: A stable clock is the heartbeat of the FPGA. A standard, low-jitter canned oscillator (e.g., 50 MHz) is a reliable choice. This clock should be fed into one of the dedicated global clock input pins (GCLK). From there, the internal Clock Management Tiles (CMTs) can be used in your HDL design to synthesize all other required clock frequencies (e.g., 100 MHz for the core logic, 25 MHz for a specific SPI bus) with low skew.

Design Pitfalls and How to Avoid Them

Many FPGA project failures can be traced back to simple hardware mistakes made during the schematic capture and layout phases. Here are some common pitfalls with the XC6SLX9-2TQG144I and how to sidestep them.

A particularly insidious issue is related to the power-on sequence. The Spartan-6 datasheet specifies a recommended power-on sequence for VCCINT, VCCAUX, and VCCO to ensure proper device initialization. While the device is designed to be tolerant of simultaneous power-up, for maximum reliability, you should sequence the rails: VCCINT first, then VCCAUX, then VCCO. Many modern power management ICs (PMICs) or sequencers can handle this automatically. If using discrete regulators, you can often orchestrate the sequence using their 'Enable' pins and the 'Power Good' output of the previous regulator in the chain.

Performance Optimization Tips

Once the basic circuit is functional, several areas can be optimized for better performance, lower noise, and improved thermal management.

Thermal Management: The XC6SLX9 in the TQG144 package is not designed for extreme power dissipation. If your design utilizes a high percentage of logic and runs at high clock frequencies, thermal management becomes important. The primary path for heat to escape is through the pins and into the PCB. A solid ground plane directly under the FPGA with numerous thermal vias is the most effective way to draw heat away. For designs operating in high ambient temperatures, a small, flat-profile heatsink can be attached to the top of the package using thermal adhesive, but ensure it does not interfere with nearby components.

Signal Integrity and EMI Reduction: High-speed signals, especially clocks and the data lines to the host MCU, require careful layout. Route these signals as controlled-impedance traces on an internal layer, sandwiched between ground planes. Avoid routing them near noisy parts of the board like switching regulators. Use series termination resistors (typically 22-33Ω) placed close to the driving pin to dampen reflections on long traces. A well-designed power distribution network (PDN) with low impedance across a wide frequency range is your best defense against EMI. This is achieved with a good mix of decoupling capacitors and solid power/ground planes.

Logic and Timing Optimization: Within the Xilinx ISE or Vivado design suite, use timing constraints (.ucf or .xdc files) to inform the tools about your performance requirements. Specify the input clock frequency and any required input/output delays. This allows the placer and router to work intelligently, placing critical logic close together to minimize routing delays and meet your timing goals. For the sensor hub application, constraining the path from the sensor input pin to the first register stage is crucial for reliable data capture.

Related Components and Accessories

Building a board around the XC6SLX9-2TQG144I requires a small bill of materials for support components. Selecting reliable, well-matched parts is key to a successful design.

• Power Regulators: For the 1.2V VCCINT rail, a switching regulator like the Texas Instruments TPS62130 is a good choice for its efficiency. For the lower-current 2.5V VCCAUX and various VCCO rails, LDOs like the Analog Devices ADP121 or TI's LP5907 series offer low noise and a small footprint.
• Configuration Flash: A reliable SPI NOR Flash is mandatory for standalone operation. The Winbond W25Q series (e.g., W25Q32JVSSIQ) or Micron's M25P/N25Q series are industry standards and well-supported by Xilinx tools. A 32Mbit device is more than sufficient for the XC6SLX9's bitstream.
• Clock Oscillator: A standard 4-pin surface-mount crystal oscillator provides the system clock. Look for parts from reputable manufacturers like Abracon, SiTime, or Epson with low jitter (under 10ps RMS is good). A 50 MHz frequency is a versatile starting point.
• Connectors: For debugging, a 2x5 10-pin shrouded header (2.54mm pitch) for the JTAG connection is standard. For I/O, use connectors appropriate for your application, such as simple 0.1" headers or more robust industrial connectors.

Procuring all these components from a single, reliable source can streamline logistics. You can Check XC6SLX9-2TQG144I Inventory & Pricing and find many of these complementary parts in the same catalog.

Video Demonstration

Frequently Asked Questions (XC6SLX9-2TQG144I FAQ)

How do I power the XC6SLX9-2TQG144I correctly?

The device requires three distinct voltage supplies. VCCINT is the 1.2V core voltage and requires the most current and best decoupling. VCCAUX is a 2.5V supply for auxiliary internal logic. VCCO is the I/O voltage, which can range from 1.2V to 3.3V, and is supplied independently to each of the four I/O banks, allowing for mixed-voltage I/O.

What's the difference between VCCINT, VCCAUX, and VCCO?

VCCINT (1.2V) powers the core logic fabric (LUTs, flip-flops, etc.). VCCAUX (2.5V) powers specific auxiliary circuits like the configuration logic and JTAG port. VCCO powers the I/O buffers that drive signals off-chip, and its voltage level determines the logic standard (e.g., LVCMOS33 if VCCO is 3.3V) for that specific bank of pins.

How do I program the device in-system?

There are two primary methods. For development and debugging, you use the JTAG interface (TCK, TMS, TDI, TDO pins) connected to a Xilinx programming cable (like a Platform Cable USB II). For a finished product that boots on its own, you program a non-volatile memory chip, typically a SPI NOR Flash, with the FPGA's bitstream file. The FPGA then reads this file automatically at power-on to configure itself.

Can this FPGA interface with 3.3V and 1.8V logic simultaneously?

Yes, this is a key strength of the Spartan-6 architecture. The XC6SLX9-2TQG144I has its I/O pins divided into banks. You can supply a 3.3V VCCO to one bank to interface with 3.3V sensors, and a 1.8V VCCO to another bank to interface with a 1.8V microcontroller, all on the same chip without needing external level-shifting hardware.

What kind of external memory is needed for configuration?

For the device to configure itself upon power-up (a non-volatile setup), you need an external memory chip. The most common and recommended choice is a SPI NOR Flash memory. A device with 16Mbit or 32Mbit capacity is more than enough for the XC6SLX9's configuration file and is very cost-effective.
