The XC6SLX16-2CSG324C can be evaluated for custom interfaces, buffered acquisition and arithmetic pipelines. A useful design-in decision starts with a resource budget and a board implementation plan. This guide follows that process from requirements to a reproducible release, with particular attention to the CSG324 package and commercial temperature grade.
Technical update: October 14, 2026. The calculations below are planning examples, not measured performance.
Define the design before choosing the density
List the required interfaces, clock domains, peak data rates, arithmetic widths, storage depths and startup behavior. Separate mandatory functions from optional features. For an existing product, capture the released constraints and timing reports before estimating how much room a new feature needs. For a new board, implement representative logic early enough to influence pin allocation and component selection.
AMD DS160, Tables 1 and 2, lists 14,579 logic cells, 2,278 slices, 32 DSP48A1 slices and 576 Kb of block RAM for the LX16. There are two clock management tiles, each with two DCMs and one PLL. The LX16/CSG324 combination supports up to 232 user I/O. It has no GTP transceivers or hard PCI Express endpoint. These counts establish a starting budget; they do not establish an application's throughput.
Track LUTs, registers, DSPs and block RAM separately in the implementation report. A design can exhaust one resource while leaving others unused. Keep an explicit allowance for debug visibility and anticipated revisions, then check whether routing and timing remain practical at that utilization.
Budget memory by organization and workload
For an illustrative acquisition buffer, assume 4,096 samples of 16 bits each. The payload is 65,536 bits, or 8 KiB. That number alone does not determine the physical block allocation: port widths, independent clocks and FIFO organization also matter. Generate the intended memory structure and inspect the resulting allocation before freezing the architecture.
A display illustrates a different constraint. Assuming uncompressed 640 × 480 pixels at 24 bits per pixel, one frame requires 7,372,800 bits, or 921,600 bytes. This exceeds the device's on-chip block-RAM capacity. A streaming pipeline with line storage or external memory is therefore a different design choice from a full on-chip frame buffer. Account for blanking, arbitration and memory latency when estimating bandwidth; the pixel count does not provide those allowances.
When considering the smaller LX9, note that DS160 lists the same 576 Kb block-RAM capacity for LX9 and LX16. The LX16 adds logic and DSP resources, but that density change does not double block RAM. Any substitution still needs package, pinout and implementation review.
Allocate pins and banks before schematic release

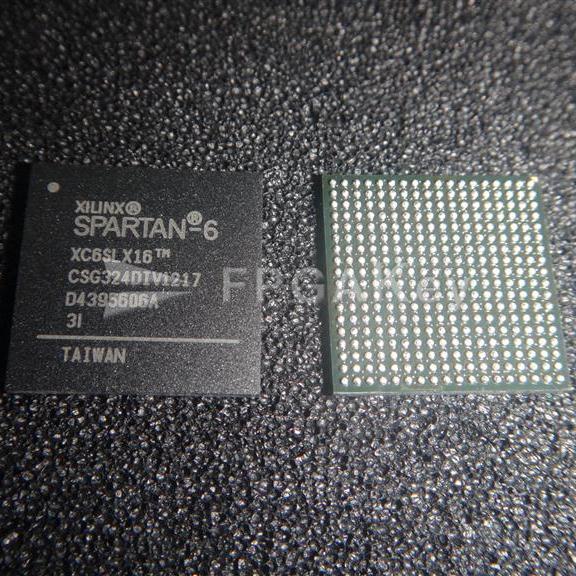

CSG324 is a 324-ball package with a 15 × 15 mm body and 0.8 mm pitch. Use the LX16 column in UG385's CSG324 pinout tables when checking the symbol and constraints. Supplies, grounds and dedicated functions account for part of the ball array; 324 is not the number of user signals.
Create a bank-assignment worksheet containing each signal's direction, I/O standard, bank voltage, connected component and reset-time state. Reserve configuration and clock functions before allocating ordinary GPIO. Check any memory-interface placement restrictions before routing the rest of the board. A pin that appears free in the schematic may already be committed by a configuration or reference-voltage requirement.
Run an early implementation with the proposed pin assignments. Give the layout engineer the same constraints revision used for that check. Review ball orientation and net names independently, especially when importing a library symbol or changing the package variant.
Design the supplies around the selected operating conditions
For standard-performance -2 operation, DS162 Table 2 specifies VCCINT at 1.2 V nominal, with a 1.14–1.26 V range. Memory-controller operation can involve separate extended-performance conditions. VCCAUX supports nominal 2.5 V or 3.3 V subject to the documented restrictions; during configuration, VCCO_2 at 1.8 V requires VCCAUX at 2.5 V.
DS162 states that Spartan-6 devices have no required power-on sequence. Still verify startup current, rail ramps and configuration supply conditions. Regulator enable order alone is not a complete power-on review. Select each bank supply together with its I/O standard, and check both endpoints of every interface.
Estimate current for the intended workload, including startup and high-activity operation. Give the power designer a stated switching-activity assumption and update it as implementation information improves. Review voltage tolerance at the FPGA, including regulator error, distribution loss and transients. Use UG393 for the PCB power-distribution design; capacitor values and placement need a board-specific assessment.
Specify a complete configuration path
The FPGA must receive configuration data after power-up. Choose the loading method alongside the board architecture. For SPI boot, select the exact flash device after checking command support, voltage, capacity and startup timing. Reserve room for the actual generated image and any intended recovery image.
UG380 documents mode selection through M1 and M0, configuration clocking and the roles of PROGRAM_B, INIT_B and DONE. Review the selected interface schematic against that guide, including pull-ups and shared pins. Keep accessible observation points and a reviewed JTAG connection so manufacturing can distinguish a programming failure from an application failure.
Define what the application is allowed to drive before and after startup. External circuits may need a safe state while configuration is incomplete. Record the startup-clock selection, reset-release conditions and any clock-lock dependencies with the bitstream release.
Close timing and check the physical implementation
Treat -2 as a timing-grade selection, not a promise of a universal clock frequency. Constrain input clocks and external interface timing, inspect unconstrained paths and justify timing exceptions. Review transfers between unrelated clock domains separately. A timing exception does not implement a safe transfer mechanism.
Before committing the PCB, agree the BGA escape geometry, via process and stack-up with the fabricator. Choose layer count from routing and power-distribution needs. Use the manufacturer package drawing for the footprint rather than adding an assumed central exposed pad. Preserve return paths at layer changes and review demanding interfaces with appropriate signal-integrity analysis.
The final C denotes a commercial junction-temperature range of 0–85°C, as specified in DS162. Establish the thermal case for the actual enclosure, airflow and workload. Ambient or package-surface temperature is not automatically the junction temperature.
Make the release reproducible and orderable
Archive the HDL, constraints, tool and IP versions, implementation reports, programming files and checksums together. Record the exact target XC6SLX16-2CSG324C in the project and BOM. Rebuild the release in the intended development environment before relying on it for production maintenance.
For purchasing details, use the specifications and purchasing guide. Request a dated quotation with the exact part number, quantity, packaging and required documents; engineering suitability does not establish stock or delivery terms. For an assembled board that fails to boot or operate, follow the separate boot, JTAG and timing troubleshooting guide.
Document editions: DS160 v2.0 (October 25, 2011), DS162 v3.1.1 (January 30, 2015), UG385 v2.4 (November 13, 2019), UG380 v2.11 (March 22, 2019) and UG393 v1.3 (October 17, 2012). These identify the referenced document revisions, not the device's introduction date.
