ICE40HX8K-CB132 Datasheet, Pinout, Equivalents, and Specs

The ICE40HX8K-CB132 is a high-performance, low-power Field-Programmable Gate Array (FPGA) from Lattice Semiconductor's popular iCE40 family. It is engineered to solve a common problem in modern electronics: the need for flexible, high-speed digital logic in power- and space-constrained applications. By providing a fabric of 7680 configurable logic cells, embedded memory, and clock management resources in a compact BGA package, the ICE40HX8K-CB132 bridges the gap between performance-limited microcontrollers and costly, power-hungry ASICs or larger FPGAs.

What is the ICE40HX8K-CB132?

The ICE40HX8K-CB132 is a member of the iCE40 "HX" or High-Performance series of FPGAs. As an SRAM-based FPGA, it offers a blank slate of digital logic that can be configured by loading a "bitstream" file from an external non-volatile memory, typically a SPI flash chip, upon power-up. This reconfigurability is its defining characteristic, allowing hardware engineers to implement custom digital circuits tailored precisely to their application needs.

At its core, the device's architecture is built around a two-dimensional array of Programmable Logic Blocks (PLBs). The ICE40HX8K contains 7680 Logic Cells (LCs), which are the fundamental building blocks. Each LC consists of a 4-input Look-Up Table (LUT4), a D-type flip-flop, and dedicated carry-chain logic. The LUT4 can be programmed to implement any 4-input combinatorial logic function, while the flip-flop provides the ability to create registered, sequential logic such as counters, state machines, and pipelines. The fast carry-chain interconnects are crucial for efficiently implementing arithmetic functions like adders and comparators.

To support complex data processing, the logic fabric is augmented with dedicated hardware blocks. The ICE40HX8K-CB132 includes 128 kbits of Embedded Block RAM (EBR), organized as 16 independent 8-kbit dual-port RAM blocks. This on-chip memory is essential for tasks like data buffering, implementing FIFOs (First-In, First-Out), creating lookup tables, or serving as scratchpad memory for a soft-core processor. The dual-port nature allows simultaneous read and write access from different parts of the design, enabling high-throughput data pipelines.

Clock management is handled by two on-chip hard IP Phase-Locked Loops (PLLs). These are critical components for any serious digital design, providing the ability to synthesize new clock frequencies from a single external reference clock, de-skew clock signals across the chip to meet timing requirements, and reduce clock jitter for more reliable high-speed operation. The presence of these hard-IP blocks frees up valuable logic resources that would otherwise be consumed implementing a less-performant "soft" PLL.

Pinout Configuration and Packaging

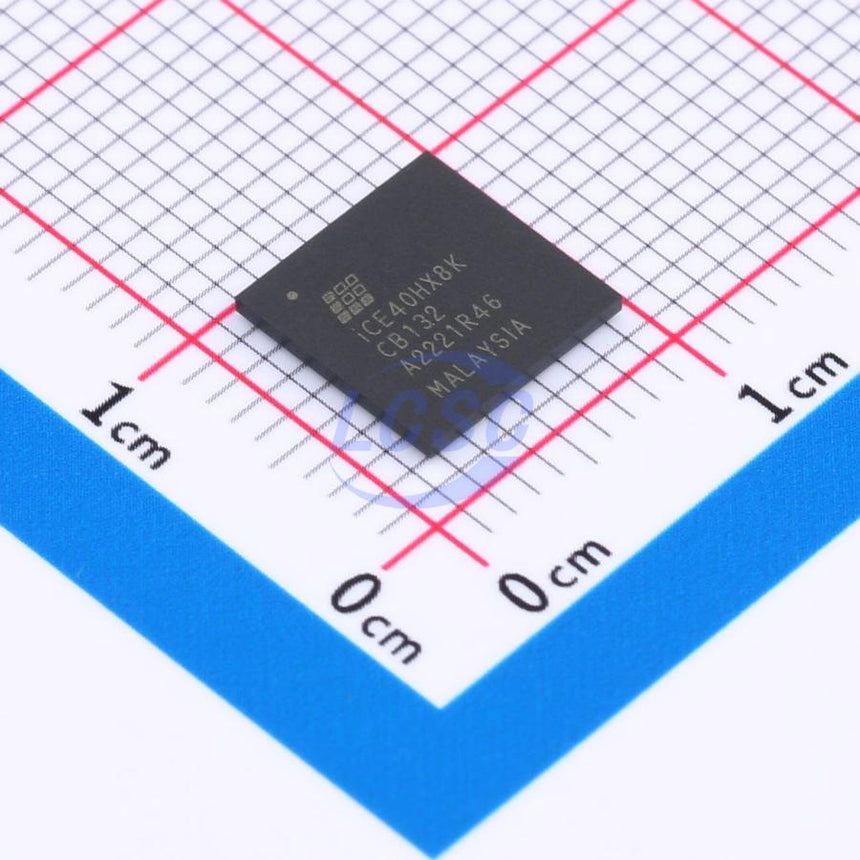

The ICE40HX8K-CB132 is offered in a 132-ball Chip Scale Ball Grid Array (csBGA) package, denoted by the "CB132" suffix. This package has an 8x16 ball grid with a fine 0.4mm pitch, enabling a very small footprint on the PCB, which is ideal for space-constrained applications. However, this fine pitch necessitates more advanced PCB manufacturing and assembly processes, typically requiring a multi-layer board (4-layer minimum is common practice) and careful fanout strategies like via-in-pad or dog-bone vias.

The 132 pins are categorized into several functional groups:

• Power Supply Pins: The device has multiple power domains. VCC provides the 1.2V nominal supply to the FPGA core logic. VCC_PLL is a dedicated 1.2V supply for the two PLLs, which should be filtered separately for low-noise operation. VCCIO_x pins supply power to the I/O banks. The CB132 package has three user I/O banks (Bank 0, 1, 2) and a dedicated configuration bank (Bank 3), each with its own VCCIO pin. This allows for interfacing with logic at different voltage levels (e.g., 3.3V, 2.5V, 1.8V) simultaneously.
• Ground Pins (GND): Numerous ground pins are provided and must all be connected to a solid ground plane for signal integrity and thermal management.
• General Purpose I/O (PIO): These are the user-configurable pins that can be programmed as inputs, outputs, or bidirectional signals supporting standards like LVCMOS and LVTTL. The CB132 package provides up to 95 user I/Os.
• Configuration Pins: Since the FPGA is SRAM-based, it requires configuration on power-up. The primary interface for this is a set of dedicated SPI pins (SPI_SS_B, SPI_SCK, SPI_SI, SPI_SO) used to read the configuration bitstream from an external SPI flash memory. Other important configuration-related pins include CRESET_B (a global reset pin) and CDONE (a status pin that indicates when configuration is complete).
• Global Clock Inputs (GBIN): There are dedicated pins that can drive the global clock networks, providing low-skew clock distribution throughout the chip. These are the preferred inputs for system clocks.

Proper pin assignment and power distribution are critical first steps in a successful FPGA design. Engineers must carefully plan I/O bank voltages and ensure that all power and ground pins are connected and adequately decoupled.

Core Architectural Features

• Flexible Logic Architecture: The device is built upon 7680 4-input Look-Up Table (LUT) based Logic Cells. Each cell can be configured as a small logic gate, a 16x1 ROM, or part of a larger function. The integrated D-type flip-flop in each LC allows for the efficient implementation of registered and pipelined designs, which is essential for achieving high clock speeds.
• Embedded Block RAM (EBR): Features 128 kbits of dedicated dual-port block RAM. This memory is organized into 16 blocks of 8k-bits each (configurable as 1024x8). This on-chip memory is significantly faster than external memory and is ideal for implementing FIFOs, data buffers, and processor memory without consuming general-purpose logic resources.
• Hard IP Phase-Locked Loops (PLLs): Includes two hard-IP PLL blocks for advanced clock management. These blocks can perform frequency multiplication and division, phase shifting, and clock de-skewing. Using hard IP for this function ensures predictable, high-performance clocking while saving thousands of logic cells that would be needed for a soft-PLL implementation.
• Flexible, Multi-Voltage I/O: The I/O pins are organized into independent banks, each with its own VCCIO supply. This allows the ICE40HX8K-CB132 to interface directly with other components operating at different voltage standards (e.g., 3.3V, 2.5V, 1.8V) without the need for external level-shifter ICs, saving board space and cost.
• Low Power Consumption: As part of the iCE40 family, the device is designed for low static and dynamic power. It features a low 1.2V core voltage and offers programmable I/O drive strength, allowing designers to tune power consumption based on performance requirements. While the "HX" series is optimized for performance, it maintains a power profile suitable for many battery-powered and portable devices.

Specifications Parameter Table

ICE40HX8K-CB132 Equivalents, Cross Reference & Lifecycle

Direct, drop-in replacements for FPGAs are exceedingly rare due to the complexity of their internal architecture and pin functions. The concept of "equivalents" in the FPGA world usually refers to other devices within the same family that may be pin-compatible for a subset of functions, or alternative parts that solve a similar problem but require a full redesign.

Within the iCE40 Family:

• ICE40HX4K-CB132: This is the most direct alternative. It comes in the same CB132 package and is pin-compatible. It offers half the logic resources (~4k LCs) and RAM. If a design initially targeting the HX8K is found to use less than 50% of its resources, migrating down to the HX4K can be a cost-effective optimization. The PCB layout would not need to change, but the project would need to be re-compiled for the smaller device.
• Other iCE40 Series (LP/UP): The iCE40LP (Low-Power) and iCE40UP (UltraPlus) series are not direct equivalents. The LP series prioritizes minimizing static power, while the UP series adds hard-IP DSP blocks and more RAM. While they might be suitable alternatives for a new design, they are not pin-compatible with the HX series and would require a complete hardware and software redesign.

Lifecycle Status: The iCE40 family, including the HX series, is an active product line from Lattice Semiconductor and is widely used, particularly within the open-source hardware community. However, for long-term production planning, it is always best practice to consult official sources for lifecycle information. You can Check ICE40HX8K-CB132 Inventory & Pricing to gauge current market availability.

Typical Applications & Circuit Considerations

The combination of performance, low power, and small form factor makes the ICE40HX8K-CB132 suitable for a wide range of embedded applications where microcontrollers lack the necessary speed or parallelism.

Common Applications:

• Sensor Fusion: Aggregating and pre-processing data from multiple high-speed sensors like IMUs, cameras, and microphones in drones, robotics, and AR/VR systems. The FPGA's parallel processing capability allows it to handle multiple data streams simultaneously.
• Video and Display Interfacing: Driving LED matrix displays, converting between video standards (e.g., DVI to LVDS), or capturing data from camera sensors like MIPI CSI-2. The high-speed I/O and internal RAM are critical for these tasks.
• Glue Logic Consolidation: Replacing dozens of discrete logic chips (like counters, decoders, and level shifters) with a single FPGA. This reduces board size, component count, and power consumption while increasing design flexibility.
• Signal Processing and Motor Control: Implementing custom digital filters (FIR/IIR), FFTs, or sophisticated Pulse-Width Modulation (PWM) generators for advanced motor control algorithms.
• Prototyping and Education: The iCE40 family is famous for its compatibility with a fully open-source toolchain (Yosys, nextpnr, IceStorm). This makes the ICE40HX8K an excellent platform for learning digital design, prototyping ASIC functionality, and for hobbyist projects.

Circuit Design Considerations:

A successful design with the ICE40HX8K-CB132 requires attention to detail in the surrounding circuitry. The power delivery network is paramount. Each power rail (VCC, VCC_PLL, and each VCCIO) must be decoupled with a combination of capacitors (e.g., 10uF, 1uF, and 0.1uF) placed as close to the BGA balls as possible. The VCC_PLL supply, in particular, should be isolated with a ferrite bead to filter noise from the digital core.

As an SRAM-based device, an external non-volatile memory is mandatory for storing the configuration bitstream. A simple, low-cost SPI flash memory (e.g., Winbond W25Q series) is the standard choice. The FPGA's dedicated SPI configuration pins must be connected to this flash, and the FPGA will automatically load the bitstream on power-up if wired in the default SPI master mode.

Finally, the PCB layout for the 0.4mm pitch BGA is non-trivial. A 4-layer PCB is highly recommended to provide solid power and ground planes. A "dog-bone" fanout pattern is typically used, where traces are routed from the BGA pads to vias placed just outside the BGA field. Signal integrity for high-speed traces must be considered, with techniques like impedance control and length matching employed where necessary. To explore other devices in this versatile family, you can Browse iCE40 Series.

Video Demonstration

Frequently Asked Questions (ICE40HX8K-CB132 FAQ)

What is the difference between the iCE40 HX, LP, and UP series?

The iCE40 family is segmented to target different application needs. The HX series, including the ICE40HX8K, stands for "High-Performance" and is optimized for logic density and speed. The LP series means "Low-Power" and is designed for applications where minimizing static power consumption is the primary concern, often for battery-powered devices. The UP or "UltraPlus" series adds specialized hard IP blocks like DSP engines for multiplication and accumulation, making it ideal for signal processing tasks.

What software is used to program the ICE40HX8K-CB132?

There are two main toolchain options. The official path is using Lattice's proprietary software, such as Lattice Diamond or Lattice Radiant, which provide a complete, vendor-supported environment for synthesis, place-and-route, and simulation. Alternatively, the iCE40 family is uniquely supported by a mature, fully open-source toolchain known as Project IceStorm. This toolchain uses Yosys for Verilog synthesis, nextpnr for place-and-route, and other tools for bitstream generation, making it extremely popular with hobbyists, researchers, and developers who prefer open-source workflows.

Does the ICE40HX8K-CB132 retain its configuration when powered off?

No, it does not. The ICE40HX8K-CB132 is an SRAM-based FPGA, which means its configuration is volatile and is lost when power is removed. To function, it must load its configuration data (the "bitstream") from an external non-volatile memory source every time it powers up. The most common method is to use an external SPI flash memory chip connected to the FPGA's dedicated configuration pins.

What are the power supply requirements for the ICE40HX8K-CB132?

The device requires several distinct power supplies for proper operation. A nominal 1.2V supply (VCC) is needed for the internal logic core. The I/O pins are grouped into banks, and each bank requires its own VCCIO supply, which can be set to 1.8V, 2.5V, or 3.3V to match the logic levels of connected devices. Additionally, the on-chip PLLs require their own clean 1.2V supply (VCC_PLL) to ensure low-jitter clock generation.

What does the "CB132" package designator mean?

The "CB132" designation is a code for the physical package of the chip. "C" typically stands for Chip Scale Package, "B" indicates it is a Ball Grid Array (BGA), and "132" is the number of solder balls. Therefore, CB132 refers to a 132-ball Chip Scale BGA. This type of package is very compact but requires more advanced PCB manufacturing and assembly techniques compared to leaded packages like QFPs.
