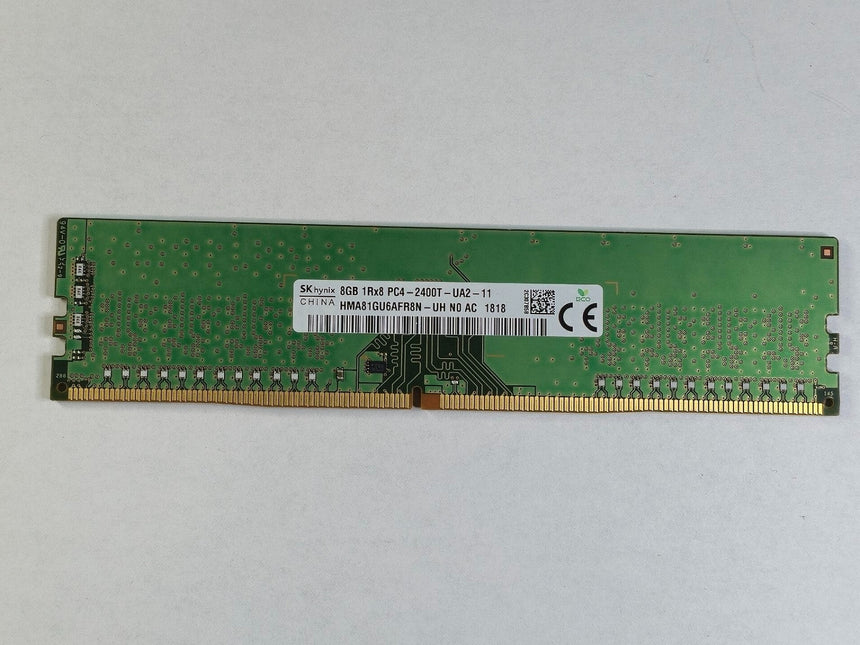

When designing a high-performance single-board computer (SBC) or a compact industrial workstation, memory selection is a critical decision that impacts overall system throughput and stability. The SK Hynix HMA81GU6AFR8N-UH DDR4 module is a frequent choice for these applications, offering a dense 8GB capacity in a standard unbuffered DIMM (UDIMM) form factor. This module is particularly well-suited for systems based on modern SoCs or CPUs that require high-speed, reliable memory for tasks like real-time data processing, edge AI inference, or advanced graphical user interfaces without the overhead of registered or error-correcting code (ECC) memory.
Table of Contents
Application Context: Where HMA81GU6AFR8N-UH Fits in the System
In a typical embedded system or workstation design, the HMA81GU6AFR8N-UH serves as the main system memory. It interfaces directly with the memory controller integrated into the host processor or System-on-Chip (SoC). This direct connection is a hallmark of unbuffered DIMMs (UDIMMs), providing the lowest latency path between the CPU and DRAM.
Let's consider a block diagram for a compact industrial vision system. The core of this system is a powerful SoC, such as one from the Intel Core or AMD Ryzen Embedded series, which features an integrated dual-channel DDR4 memory controller. The HMA81GU6AFR8N-UH module populates one of these channels via a standard 288-pin DDR4 DIMM socket on the mainboard.
The memory's primary role is to act as a high-speed scratchpad for the CPU and other bus masters, like a GPU or a dedicated image signal processor (ISP). When the system captures a high-resolution image from a camera sensor via a MIPI CSI-2 or USB3 Vision interface, the raw image data is transferred by a DMA (Direct Memory Access) controller into a buffer located in the HMA81GU6AFR8N-UH. The CPU then accesses this data to perform operations like image filtering, object detection, or data compression. The 2666 MT/s data rate of this module provides a theoretical peak bandwidth of 21.3 GB/s per channel, which is essential for preventing bottlenecks when processing multi-megapixel images at high frame rates.
The HMA81GU6AFR8N-UH is a non-ECC module, meaning it does not have the extra DRAM chip and logic to detect and correct single-bit memory errors. While this makes it unsuitable for mission-critical servers where data integrity is paramount (e.g., financial transaction processing), it is a perfectly acceptable and cost-effective choice for many industrial and commercial applications. In a vision system, a rare single-bit flip might result in a single incorrect pixel value, which is often imperceptible or correctable by software algorithms. The cost and power savings from omitting ECC are significant advantages in space- and power-constrained designs.
The module communicates with the system not only through the high-speed data (DQ), strobe (DQS), address, and command lines but also via a low-speed I2C/SMBus interface. This bus is used to access the Serial Presence Detect (SPD) EEPROM on the module. At boot time, the system's BIOS/UEFI reads the SPD to learn the module's characteristics: its capacity, speed grades, timing parameters (like its CAS Latency of 19), and voltage requirements. This allows for plug-and-play configuration, where the memory controller automatically sets the optimal parameters for stable operation, a critical feature for field serviceability and upgrades.
Core Specifications for This Application
When integrating the HMA81GU6AFR8N-UH, hardware engineers must focus on the specifications that directly influence system performance, power budget, and PCB layout. The following parameters are derived from the part number and official SK Hynix documentation.
| Parameter | Value | Application Relevance |
|---|---|---|
| Module Density | 8GB | Provides ample space for modern operating systems (Windows, Linux) and demanding applications like video editing or running multiple virtual machines. |
| Module Type | 288-Pin Unbuffered DIMM (UDIMM) | Specifies the physical connector and electrical interface. As a UDIMM, it connects directly to the CPU's memory controller, minimizing latency. |
| Technology | DDR4 SDRAM | Defines the signaling protocol, voltage levels, and features. DDR4 offers higher speeds and lower power consumption compared to its predecessor, DDR3. |
| Speed Grade | PC4-21300 (2666 MT/s) | Determines the maximum data transfer rate. A rate of 2666 MT/s provides a peak bandwidth of 21.3 GB/s, crucial for data-intensive tasks. |
| CAS Latency (CL) | 19 | The number of clock cycles between sending a column address to the memory and the beginning of the data response. A key component of overall memory latency. |
| Operating Voltage (VDD) | 1.2V | The standard supply voltage for DDR4 memory. This low voltage helps reduce overall system power consumption and thermal output. |
| Organization | 1Gx64 (1 Rank x8) | Describes the internal structure. It's a single-rank module composed of eight 8-bit wide DRAM chips, presenting a 64-bit wide interface to the memory controller. |
| Error Correction | Non-ECC | Lacks hardware-level error detection and correction. This reduces cost and power but makes it less suitable for applications requiring the highest data integrity. |
Reference Circuit and Component Selection
Designing a stable and high-performance DDR4 memory subsystem around the HMA81GU6AFR8N-UH goes beyond simply placing a DIMM socket on the PCB. It requires careful planning of the power delivery network (PDN), signal routing, and selection of supporting components. The "circuit" is a system of interconnected parts, not just a single schematic.
Power Delivery Network (PDN): The DDR4 interface requires three main power rails:
- VDD (1.2V): This is the main supply for the DRAM chips. It requires a high-current, low-noise DC-DC converter (buck regulator) capable of handling the significant transient load changes as the memory switches from idle to active states. A regulator capable of delivering at least 5-7A is a safe starting point for a single DIMM, though average consumption is much lower. Extensive decoupling is mandatory. Place a combination of bulk capacitors (e.g., 47-100µF) near the regulator and the DIMM socket, and an array of smaller ceramic capacitors (e.g., 1µF, 0.1µF, 0.01µF) as close as possible to the VDD pins on the DIMM socket itself to supply instantaneous current and filter high-frequency noise.
- VPP (2.5V): This rail is the word line boosting voltage, used internally by the DRAMs during activation. It has much lower current requirements than VDD but must be a stable, low-noise supply. A simple LDO (Low-Dropout Regulator) fed from a higher voltage rail (e.g., 3.3V or 5V) is often sufficient. Per JEDEC specifications, VPP must be available before or at the same time as VDD.
- VTT (0.6V): This is the termination voltage, nominally VDD/2. It is used for the address, command, and control signals that use On-Die Termination (ODT). VTT must be able to both source and sink current to provide proper signal termination. A dedicated DDR termination regulator is required for this function. These specialized ICs track VDD/2 with high accuracy and have the necessary source/sink capability. Do not attempt to create VTT with a simple resistive divider; it will not work due to the current sinking requirement.
Signal Interface and Termination: The connection between the SoC and the DIMM socket is the most critical part of the layout. DDR4 uses a "fly-by" topology for address, command, and control signals. In this topology, the signals are routed sequentially from one DRAM chip to the next on the module, with a termination resistor at the far end of the line on the DIMM itself. This differs from the older "T-topology" and requires precise length matching and impedance control from the PCB designer. The data (DQ) and data strobe (DQS) signals are point-to-point and must be length-matched within their respective byte lanes. All high-speed traces must be routed with controlled impedance, typically 50 Ohms for single-ended signals and 100 Ohms for differential pairs (like clocks and strobes).
When selecting components for your design, you'll need more than just the memory module. You'll be sourcing DIMM sockets, power regulators, and a host of passive components. It's beneficial to explore a wide range of options to find the best fit for your specific mechanical and electrical constraints. You can Browse DDR4 Series components to see various modules and supporting ICs available for your design.
Design Pitfalls and How to Avoid Them
A DDR4 interface is one of the most challenging high-speed interfaces to design correctly. Even experienced engineers can fall into common traps that lead to system instability, boot failures, or subtle data corruption that is difficult to debug.
| Common Mistake | Symptom | Fix |
|---|---|---|
| Inadequate PDN Decoupling | System fails to boot, random crashes under heavy load (e.g., running memory stress tests), or data corruption. Oscilloscope shows significant VDD voltage droop/noise. | Follow SoC/CPU datasheet guidelines strictly. Use a PDN simulation tool (e.g., HyperLynx). Place low-ESR ceramic capacitors (0.1µF, 1µF) directly under the DIMM socket BGA pads on the opposite side of the board. Use wide power planes to minimize inductance. |
| Incorrect Signal Trace Length Matching | Fails to train at the target speed (e.g., 2666 MT/s), falling back to a slower speed (e.g., 2133 MT/s) or failing to boot entirely. Sporadic bit errors detected by memory tests. | Adhere to length matching rules specified in the CPU/SoC design guide. Match lengths within each byte group (DQ[7:0], DQS, DM). Match address/command/control signals as a group. Use your EDA tool's length matching and tuning features. |
| Impedance Mismatches and Discontinuities | Poor signal integrity (excessive ringing, non-monotonic edges), leading to setup/hold time violations. Reduced operating margin, making the system sensitive to temperature and voltage variations. | Work with your PCB fabricator to ensure a controlled impedance process. Maintain consistent trace widths and reference planes. Avoid routing high-speed traces over plane splits. Minimize the use of vias, and when used, ensure they are properly stitched with ground vias. |
| Poor VTT Regulation | Similar to PDN issues; system instability, especially during operations that cause many signals to switch simultaneously. VTT voltage deviates significantly from VDD/2. | Use a dedicated DDR termination regulator IC designed for this purpose. Place the regulator close to the DIMM socket and use a dedicated VTT power plane or wide traces to ensure a low-impedance path to the termination resistors on the DIMM. |
Beyond these specific issues, a general pitfall is failing to consult the processor's hardware design guide. Every CPU and SoC manufacturer (Intel, AMD, NXP, etc.) provides extensive documentation detailing their specific DDR4 layout requirements. These guides are the primary source of truth and provide rules for trace lengths, spacing, impedance targets, and stack-up recommendations. Deviating from these guidelines without a very good reason and thorough simulation is a recipe for failure. Always start with the reference design and datasheet recommendations as your baseline.
Performance Optimization Tips
Once your design with the HMA81GU6AFR8N-UH is functional, there are several areas to focus on for optimizing performance and reliability.
Thermal Management: The HMA81GU6AFR8N-UH, like all DRAM, is sensitive to temperature. High operating temperatures increase the DRAM cell leakage current, which in turn requires more frequent refresh cycles to prevent data loss. The JEDEC standard allows for the memory controller to double the refresh rate (a command called 2x tREFI) when the module's temperature sensor reports a case temperature above 85°C. While this ensures data integrity, it consumes more power and reduces available memory bandwidth, as refresh cycles interrupt normal read/write operations. To optimize performance, ensure adequate airflow over the memory modules. In a fanless or sealed enclosure, this may require a heat spreader attached to the DRAM chips to conduct heat to the chassis. Modeling the thermal environment early in the design process is crucial.
Signal Integrity Tuning: While layout is the primary factor, some SoCs offer configurable drive strength and on-die termination (ODT) settings in the BIOS/UEFI. If you have access to high-bandwidth oscilloscopes and probes, you can perform signal integrity measurements (an "eye diagram") on the data lines. By carefully adjusting the drive strength and ODT values, you can minimize signal reflections and ringing, widening the data eye and improving the timing margin. This can increase the system's stability and robustness against voltage and temperature variations. This is an advanced technique, and for most designs, the "auto" settings determined by the SPD are sufficient.
Power Supply Optimization: The transient response of your VDD power supply is critical. When the memory goes from a low-power self-refresh state to a full-burst read/write, the current draw can increase by orders of magnitude in nanoseconds. If the PDN cannot supply this current instantly, VDD will droop, potentially causing a system crash. Using a DC-DC converter with a fast transient response loop and carefully selected output capacitors (a mix of ceramic and polymer/tantalum) can mitigate this. Probing the VDD rail at the DIMM socket with a 1x probe and AC coupling during a memory stress test is an effective way to measure the quality of your PDN.
Related Components and Accessories
A successful design using the HMA81GU6AFR8N-UH requires a well-chosen ecosystem of supporting components. Procurement professionals and engineers should consider the following when building their Bill of Materials (BOM):
- DDR4 DIMM Sockets: These 288-pin connectors are the physical interface to the module. Reputable manufacturers like TE Connectivity, Molex, and Amphenol offer a variety of options, including vertical and right-angle mounts, with different latching mechanisms and plating materials. Ensure the chosen socket is rated for DDR4 speeds and meets your mechanical requirements.
- Power Management ICs (PMICs): For a complete DDR4 power solution, look for dedicated DDR memory power ICs. Companies like Texas Instruments (TI), Renesas, and Monolithic Power Systems (MPS) offer integrated solutions that provide VDD, VPP, and the critical VTT source/sink rail in a single package. These ICs simplify the design and reduce the footprint of the power solution.
- Decoupling Capacitors: A large quantity of high-quality, low-ESR Multi-Layer Ceramic Capacitors (MLCCs) are non-negotiable. Common values for DDR4 decoupling include 0.1µF, 1µF, and 10µF in small packages like 0402 or 0201 to minimize inductance and allow placement close to the power pins.
Sourcing these components from a reliable distributor is key to avoiding counterfeit parts and ensuring a smooth production run. Once you have finalized your design, you can Check HMA81GU6AFR8N-UH Inventory & Pricing to plan your procurement strategy.
Video Demonstration
Frequently Asked Questions (HMA81GU6AFR8N-UH FAQ)
How do I handle power sequencing for the HMA81GU6AFR8N-UH?
Proper power sequencing is critical for DDR4 memory. According to JEDEC standards, the main 1.2V (VDD/VDDQ) and the 2.5V (VPP) rails must be stable before the clock signals are enabled and the CKE (Clock Enable) pin is driven high. Specifically, VPP should be applied before or at the same time as VDD/VDDQ. The termination voltage, VTT (0.6V), should be established before signals that use it for termination become active. Many dedicated DDR power management ICs (PMICs) handle this sequencing automatically, simplifying the design process significantly.
What are the most critical layout considerations for this DDR4 module?
For the HMA81GU6AFR8N-UH, three layout areas are paramount. First, controlled impedance routing is non-negotiable; typically 50-ohm single-ended and 100-ohm differential for data/strobe/clock pairs. Second, trace length matching is crucial, especially within each 8-bit data byte group (DQ, DQS, DM) and between the clock and the address/command group. Third, the power delivery network (PDN) must be robust, with extensive decoupling capacitors placed directly under the DIMM socket to provide a low-inductance path for transient currents.
Can I use this non-ECC module in a server application?
While you technically can, it is strongly discouraged for most server roles. The HMA81GU6AFR8N-UH is a non-ECC module, meaning it cannot detect or correct single-bit memory errors. In server environments running critical applications (e.g., databases, virtualization hosts, financial systems), data integrity is paramount, and a single bit-flip could lead to data corruption or a system crash. For these applications, ECC or Registered DIMMs (RDIMMs) are the industry standard and should be used instead.
What is the purpose of the VPP pin on a DDR4 interface?
VPP is a 2.5V power rail required by DDR4 SDRAM. Its primary function is to provide the higher voltage needed to drive the word lines within the DRAM array to fully activate a row of memory cells. This "word line boost" voltage is only used during row activation commands and draws relatively low current compared to the main VDD rail. However, it must be a clean, stable supply for reliable memory operation, and it has specific power-up sequencing requirements relative to VDD.
How do I verify the HMA81GU6AFR8N-UH is working correctly in my prototype?
Verification is a multi-step process. First, upon initial power-up, check that the BIOS/UEFI correctly identifies the module's size (8GB) and speed (2666 MT/s) by reading its SPD. This confirms the SMBus interface is working. After booting into an OS, run a comprehensive memory testing utility like MemTest86+ for an extended period (at least 8-12 hours). This software writes complex patterns to all memory addresses and reads them back, and it is highly effective at detecting subtle signal integrity or stability issues that might not cause an immediate crash.
