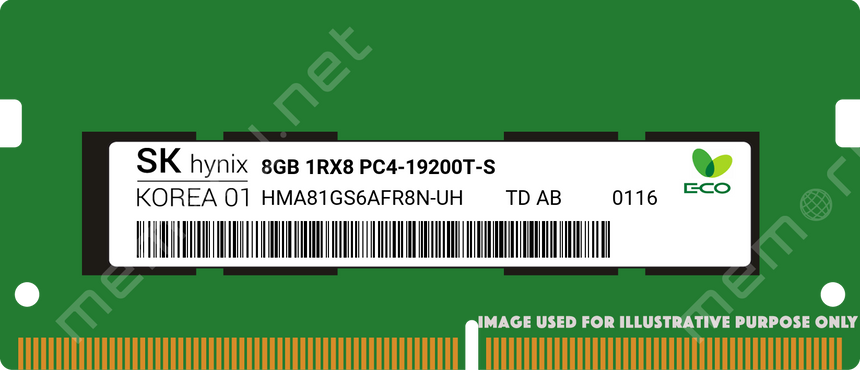

Selecting the right memory module is a critical decision point in embedded systems, high-performance computing, and mobile platform design. Engineers often face the challenge of balancing density, power consumption, thermal performance, and long-term supply chain stability. A suboptimal choice can lead to signal integrity nightmares, thermal throttling, or costly end-of-life redesigns. The SK Hynix HMA81GS6AFR8N-UH DDR4 SODIMM is engineered to address these specific pain points, offering a robust, JEDEC-compliant solution for designs demanding 8GB of reliable, power-efficient memory in a compact form factor.
Table of Contents
The Design Challenge HMA81GS6AFR8N-UH Solves
In modern hardware design, particularly for compact and performance-driven systems like industrial panel PCs, network appliances, and high-end laptops, the memory subsystem is a frequent source of engineering challenges. The primary goal is to maximize data throughput while minimizing power consumption and physical footprint. The HMA81GS6AFR8N-UH directly confronts this multi-faceted problem.
One of the most significant challenges is the transition to higher-speed memory standards like DDR4. While offering substantial bandwidth improvements over its DDR3 predecessor, DDR4 operates at higher frequencies, making signal integrity a primary concern. Issues like crosstalk, reflections, and impedance mismatches become more pronounced, requiring meticulous PCB layout and termination strategies. The HMA81GS6AFR8N-UH, being a standard DDR4-2400 module, operates at a well-understood frequency that represents a sweet spot. It delivers a significant performance uplift without pushing into the more demanding territory of 3200MT/s or higher speeds, which often require more complex and costly board designs with additional layers and stricter routing constraints. This makes it an ideal choice for projects where time-to-market and design cost are as important as raw performance.
Power consumption and thermal management are also critical. Many target applications for SODIMMs are in fanless or space-constrained enclosures where heat dissipation is limited. The HMA81GS6AFR8N-UH is built on DDR4 technology, which features a standard operating voltage of 1.2V—a notable reduction from the 1.5V or 1.35V of DDR3/DDR3L. This lower voltage directly translates to lower power draw and, consequently, less heat generation. For a system populated with one or two of these 8GB modules, the power savings can be substantial, easing the burden on the system's power delivery network (PDN) and thermal solution. Furthermore, its single-rank (1Rx8) organization can be slightly more power-efficient during certain operations compared to a dual-rank (2Rx8) module of the same capacity, as only one rank of DRAM chips is active at a time.
Finally, sourcing and supply chain stability are paramount for professional and industrial products with long life cycles. Choosing a module from a Tier-1 manufacturer like SK Hynix provides a higher degree of confidence in long-term availability, consistent quality, and transparent product change notifications (PCNs). The HMA81GS6AFR8N-UH is a mainstream part, not an esoteric, overclocked module, which improves its sourcing prospects over the product's lifetime. This mitigates the risk of being forced into a costly and time-consuming re-qualification process due to a component going end-of-life unexpectedly.
Key Specifications at a Glance
Understanding the key electrical and physical parameters of the HMA81GS6AFR8N-UH is the first step in a successful design-in. These specifications, derived from official manufacturer data, dictate its performance, compatibility, and integration requirements.
| Parameter | Value | Why It Matters for Your Design |
|---|---|---|
| Density | 8GB | Provides ample memory for modern operating systems (Windows, Linux) and memory-intensive applications like virtualization, data processing, and high-resolution graphics. |
| Technology / Form Factor | DDR4 SDRAM / 260-Pin SODIMM | Utilizes the current-generation memory standard for improved performance and power efficiency. The SODIMM form factor is standard for laptops, NUCs, and compact embedded systems. |
| Speed / Data Rate | PC4-19200 / 2400 MT/s | Offers a peak data transfer rate of 19,200 MB/s, providing substantial bandwidth for most mainstream processing tasks without the extreme layout constraints of higher-speed modules. |
| CAS Latency (CL) | 17 (CL-tRCD-tRP: 17-17-17) | A standard latency for DDR4-2400 modules. This timing parameter is crucial for system performance, especially in latency-sensitive applications. Your system's memory controller must support this timing. |
| Operating Voltage (VDD) | 1.2V | The standard JEDEC voltage for DDR4. This low voltage reduces power consumption and heat generation compared to DDR3 (1.5V/1.35V), simplifying thermal and power supply design. |
| Organization | 1G x 64 | Describes the module's logical structure. It is organized as a 64-bit wide data bus, which is standard for non-ECC SODIMMs. |
| Rank & DRAM Configuration | Single Rank (1Rx8) | This module is built using eight DRAM chips, each with an 8-bit wide interface (x8). Single-rank modules can present an easier electrical load to the memory controller and may offer slight power advantages over dual-rank modules. |
| Operating Temperature (Tcase) | 0°C to 85°C | Defines the standard commercial operating case temperature range. Your system's thermal design must ensure the module's case temperature remains within this window to maintain data integrity and reliability. |
HMA81GS6AFR8N-UH vs Alternatives: Head-to-Head
When selecting an 8GB DDR4 SODIMM, the HMA81GS6AFR8N-UH is not the only option. Here's how it stacks up against common alternatives you might consider.
| Feature | HMA81GS6AFR8N-UH (SK Hynix) | Similar 8GB 2Rx8 Module | Similar 8GB DDR4-2666 Module |
|---|---|---|---|
| Rank | 1Rx8 (Single Rank) | 2Rx8 (Dual Rank) | Typically 1Rx8 or 2Rx8 |
| Controller Load | Presents a single electrical load to the memory controller. Often easier to route and stabilize. | Presents two electrical loads. Can enable rank interleaving for a minor performance boost in some scenarios, but can be a heavier load on the controller. | Similar to other modules of the same rank. |
| Speed (MT/s) | 2400 | 2400 | 2666 |
| CAS Latency (CL) | 17 | 17 | Typically 19 |
| Power Consumption | Generally lower due to single rank. Fewer active DRAMs for many operations. | Slightly higher due to having twice the number of DRAM chips (16 vs. 8). | Slightly higher due to increased clock frequency, though still efficient at 1.2V. |
| Best-Fit Application | Mainstream embedded systems, laptops, and NUCs where a balance of performance, power, and design simplicity is key. | Systems where the memory controller can leverage rank interleaving for maximum throughput, and where the slightly higher power is acceptable. | Performance-oriented systems with a CPU/chipset that explicitly supports 2666 MT/s and a PCB designed for higher speeds. |
When to choose the HMA81GS6AFR8N-UH: This module is the pragmatic choice for a wide range of applications. Its 2400 MT/s speed is supported by a vast number of Intel and AMD processors from the last several generations, ensuring broad compatibility. The single-rank (1Rx8) architecture is often preferred by system designers because it presents a simpler electrical load to the memory controller, which can ease signal integrity challenges and sometimes even reduce power consumption. While a dual-rank (2Rx8) module might offer marginal performance gains through rank interleaving on some controllers, this often comes at the cost of increased power and design complexity. Similarly, while a faster DDR4-2666 module offers more theoretical bandwidth, it may not be supported by your chosen chipset or could require more stringent and costly PCB layout rules. The HMA81GS6AFR8N-UH hits the sweet spot of solid performance, low power, high compatibility, and design simplicity, backed by a Tier-1 manufacturer.
Recommended Application Circuit Considerations
The HMA81GS6AFR8N-UH is a module, not a discrete component, so the "application circuit" refers to the supporting circuitry on your mainboard around the 260-pin SODIMM socket. A robust implementation is non-negotiable for stable operation. The design is dictated primarily by the JEDEC DDR4 standard and the specific requirements of your host processor's memory controller.
Power Delivery Network (PDN): A clean, stable power supply is the foundation of a reliable memory subsystem. You must provide three main voltage rails to the SODIMM socket:
- VDD/VDDQ (1.2V): This is the main supply for the DRAM core and I/O buffers. It is the highest current rail and requires a dedicated, low-noise DC/DC converter. Place a combination of bulk capacitance (e.g., 10-47µF tantalum or ceramic) and extensive high-frequency decoupling capacitors (e.g., 0.1µF, 1µF, 0.01µF X7R/X5R MLCCs) as close as possible to the VDD/VDDQ pins of the SODIMM socket. Follow the processor datasheet's recommendations for PDN impedance targets.
- VPP (2.5V): This voltage is used for activating the word lines within the DRAM chips. It's a higher voltage but requires significantly less current than VDD. It still needs proper decoupling, typically with a few MLCCs near the VPP pins of the socket.
- VREFCA / VREFDQ (0.6V): This is the reference voltage for the command/address and data signals, respectively. It should be exactly half of VDDQ. This rail must be extremely stable and is often generated using a precision voltage divider with a buffer or a dedicated LDO. Any noise on VREF will directly eat into your signal margins.
Signal Termination: DDR4 simplifies some aspects of termination by moving it on-die (On-Die Termination, or ODT). The memory controller and the DRAMs themselves contain programmable termination resistors. The correct ODT values are configured by the BIOS/firmware during memory initialization based on the board topology and module characteristics. However, the Command, Address, and Control signals are typically fly-by topology and require a single discrete termination resistor (e.g., 40-50 Ω) to VTT (which is VDDQ/2) at the far end of the bus, after the last memory slot. Always consult your processor's hardware design guide for the exact topology and termination scheme required. When designing a system, you can find a wide variety of supporting components when you Browse DDR4 Series components and related power management ICs.
PCB Layout and Thermal Design Tips
Proper PCB layout is arguably the most critical factor for a stable DDR4 interface. Errors here are difficult to debug and often require a board respin.
Layout Best Practices:
- Impedance Control: All data (DQ), strobe (DQS), and command/address/control (CAC) traces must be routed with controlled impedance. This is typically 40-50 Ω single-ended and 80-100 Ω differential, but you must follow the specific guidance in your processor's datasheet. Use a PCB stack-up calculator to determine the correct trace widths and spacing for your chosen material (e.g., FR-4).
- Length Matching: Traces must be length-matched within specific groups. All DQ and DQM signals within a byte lane must be tightly matched to their corresponding DQS/DQS# strobe pair. The clock (CK/CK#) and CAC signals also have their own length-matching rules relative to each other. Typical matching constraints are within +/- 5 mils for the tightest groups.
- Routing Topology: Use a fly-by topology for the CAC and clock signals, where the trace runs sequentially past each SODIMM slot (if you have more than one). The data groups (DQ/DQS) are routed point-to-point from the processor to the socket.
- Layering and Referencing: Route DDR4 signals on inner layers of the PCB, sandwiched between solid ground planes. This provides excellent shielding and a clean return path for signals. Avoid changing reference planes, and if you must, ensure there are nearby stitching vias connecting the two reference planes.
- Via Management: Minimize the use of vias on high-speed traces. Each via introduces impedance discontinuities and stubs. If vias are necessary, use them sparingly and ensure proper ground stitching vias are placed nearby.
Thermal Management: While the HMA81GS6AFR8N-UH is power-efficient, an 8GB module operating at 2400 MT/s will still dissipate several watts of heat under heavy load. The JEDEC specification requires the case temperature of the DRAM components to remain below 85°C for normal operation. In a compact, fanless system, this can be a challenge. Ensure there is a clear path for convective airflow over the SODIMM modules. If the system is sealed, consider using a thermal pad to conduct heat from the DRAM chips to the system's chassis or a dedicated heat spreader. Monitor the module's temperature via the on-board thermal sensor (supported by most modern memory controllers) during system validation under worst-case load conditions.
Where to Buy HMA81GS6AFR8N-UH
The HMA81GS6AFR8N-UH is a high-volume memory module from SK Hynix, a globally recognized leader in semiconductor memory. This provides a significant advantage in terms of supply chain stability and product longevity compared to modules from smaller, third-party assemblers. For production environments, these SODIMMs are typically packaged in JEDEC trays, which are suitable for automated handling by EMS providers. For prototyping, engineering validation, and smaller-scale production, modules are also available in individual anti-static bags.
When planning your procurement strategy, it's essential to partner with a distributor who can provide traceability and access to authentic components. Lead times can vary based on global supply and demand dynamics for DRAM. Engaging with your distributor early in the design cycle can help secure allocation and buffer against potential shortages. For up-to-date stock levels, detailed specifications, and competitive pricing, it is recommended to consult a trusted global distributor. You can Check HMA81GS6AFR8N-UH Inventory & Pricing to get the latest availability information for your project planning and procurement needs.
Video Demonstration
Frequently Asked Questions (HMA81GS6AFR8N-UH FAQ)
What is the practical difference between this HMA81GS6AFR8N-UH (1Rx8) and a similar 8GB 2Rx8 module?
The primary difference is the internal organization. A 1Rx8 (single-rank) module like this one has one set of DRAM chips that the memory controller can access. A 2Rx8 (dual-rank) module has two sets. From an engineering perspective, a 1Rx8 module presents a lighter electrical load to the controller, which can simplify signal integrity and PCB layout. A 2Rx8 module allows the controller to perform rank interleaving (sending a command to one rank while the other is busy), which can provide a small performance boost in some specific workloads, but it also consumes slightly more power and presents a heavier load.
My system's processor supports DDR4-2666. Can I use this DDR4-2400 module?
Yes, in almost all cases. DDR4 memory controllers are designed to be backward-compatible with slower speed grades. When you install a DDR4-2400 module like the HMA81GS6AFR8N-UH in a system that supports up to 2666 MT/s, the system's BIOS/UEFI will read the module's Serial Presence Detect (SPD) chip and automatically configure the memory bus to run at the highest common supported speed, which in this case would be 2400 MT/s. You will not get the 2666 MT/s speed, but the system will function correctly and stably at 2400 MT/s.
What are the most critical PCB layout rules for a SODIMM socket using this module?
The three most critical rules are impedance control, length matching, and clean power. First, all high-speed traces (data, strobes, clock, address/command) must be routed with a specific controlled impedance (e.g., 40 Ω single-ended) to prevent signal reflections. Second, traces within functional groups, especially data byte lanes (DQ/DQS), must be meticulously length-matched to ensure signals arrive at the same time. Finally, the power delivery network for the 1.2V VDDQ rail must be extremely low-impedance, with ample decoupling capacitors placed directly at the socket pins to supply clean power during high-speed switching.
Is the HMA81GS6AFR8N-UH suitable for industrial applications with wide temperature ranges?
This specific part number is typically rated for a standard commercial operating case temperature range of 0°C to 85°C. While it is a robust module from a top-tier manufacturer, it is not an "industrial temperature" rated part, which usually specifies operation down to -40°C. If your application requires operation below freezing, you should look for specific industrial-grade memory modules. However, for many industrial control systems that operate in climate-controlled environments, this module's reliability and 0-85°C range are perfectly adequate.
How does the HMA81GS6AFR8N-UH compare to modules from other brands like Micron or Samsung?
Functionally, a JEDEC-compliant 8GB 1Rx8 DDR4-2400 CL17 SODIMM from SK Hynix, Micron, or Samsung will be interchangeable and perform almost identically. All three are Tier-1 manufacturers known for high-quality DRAM and strict adherence to standards. The choice between them often comes down to supply chain factors: availability, pricing at a given time, and existing relationships with distributors. For a new design, the HMA81GS6AFR8N-UH is an excellent baseline choice due to SK Hynix's strong market position and the part's mainstream status.
