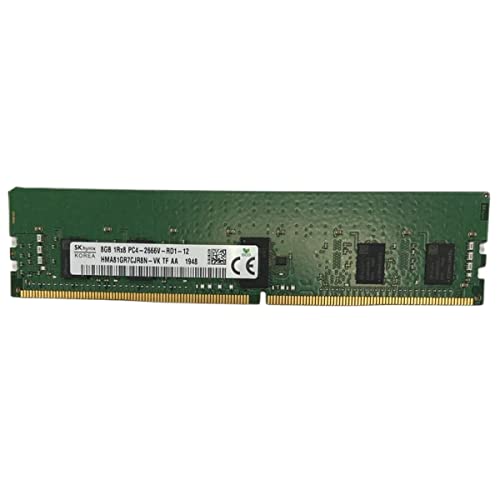

HMA81GR7CJR8N-VK Design-In Guide (HYNIX DDR4)

Modern server and workstation design is a constant battle against performance bottlenecks. As CPU core counts increase and data sets for AI, virtualization, and in-memory databases expand, the memory subsystem is often the first to feel the strain. Engineers are tasked with delivering maximum memory bandwidth and capacity while adhering to strict power, thermal, and reliability budgets. Selecting the right memory module is not just a matter of capacity; it's a critical design choice that impacts system stability, total cost of ownership (TCO), and overall performance. The HMA81GR7CJR8N-VK from SK Hynix is engineered to address this precise challenge, offering a balanced solution for enterprise systems that demand high reliability without the premium cost of the highest-density modules.

The Design Challenge HMA81GR7CJR8N-VK Solves

The primary challenge the HMA81GR7CJR8N-VK addresses is the need for reliable, cost-effective memory scaling in mainstream enterprise servers and workstations. In a world moving towards increasingly complex computational tasks, from running dozens of virtual machines on a single host to processing large-scale analytics, the memory subsystem must provide both high bandwidth and robust data integrity. This SK Hynix module is a Registered DIMM (RDIMM) with Error Correction Code (ECC), a non-negotiable feature for any application where data corruption is unacceptable.

Let's break down the specific problems it solves:

1. Signal Integrity at Scale: As you add more memory modules to a server, the electrical load on the CPU's memory controller increases. This can degrade signal integrity, forcing the system to run at lower speeds or causing instability. The HMA81GR7CJR8N-VK is an RDIMM, which means it has an onboard Registering Clock Driver (RCD). This RCD acts as a buffer for the address and command signals, isolating the individual DRAM chips from the memory controller. This significantly reduces the electrical load, allowing for more modules to be installed per channel and supporting higher density configurations than would be possible with unbuffered DIMMs (UDIMMs).
2. Data Integrity Under Pressure: Standard consumer RAM is susceptible to single-bit errors caused by background radiation or electrical interference. In a server processing critical financial transactions or scientific simulations, a single flipped bit can lead to catastrophic system crashes or, even worse, silent data corruption. The HMA81GR7CJR8N-VK integrates ECC functionality. The module uses extra DRAM chips (an x8 organization instead of x4 for the data bits) to store parity information. The memory controller can use this parity data to detect and correct single-bit errors on the fly, ensuring the integrity of the data being processed and stored. This is the cornerstone of enterprise-grade reliability.
3. Balanced Performance and Compatibility: With a speed grade of PC4-2666V, this module operates at a data rate of 2666 MT/s. This speed is a sweet spot for a wide range of server platforms, including those based on Intel Xeon Scalable (1st and 2nd generation) and AMD EPYC (1st and 2nd generation) processors. While faster modules exist, 2666 MT/s provides excellent performance for most general-purpose computing workloads and is often the maximum supported speed when populating multiple DIMMs per channel. By targeting this speed, the module ensures broad compatibility and predictable performance across a vast installed base of server hardware. The 8GB capacity provides a flexible building block for populating memory channels to achieve desired total system memory, such as 96GB or 192GB in a dual-socket server.

Key Specifications at a Glance

Understanding the core specifications is crucial for any design-in decision. The part number HMA81GR7CJR8N-VK itself encodes much of this information. Here's a breakdown of the parameters that matter most to a hardware engineer.

HMA81GR7CJR8N-VK vs Alternatives: Head-to-Head

Choosing a memory module involves trade-offs. The HMA81GR7CJR8N-VK occupies a specific niche, and understanding how it compares to other options is key to making the right choice for your application.

When choosing between these options, the decision comes down to system architecture and budget. The HMA81GR7CJR8N-VK is functionally very similar to its direct competitor, the M-Brand 8GB module. In this case, the choice often depends on supply chain factors, existing BOM qualifications, and pricing at the time of procurement. Both are excellent choices for mainstream server builds.

The more interesting comparison is with the higher-density 16GB module. While the 16GB module offers a lower cost-per-gigabyte and allows for a higher total system memory, it comes with a trade-off. As a Dual Rank (2Rx8) module, it presents a higher electrical load to the memory controller. Server platforms have rules about how many ranks can be populated per channel, and populating channels with dual-rank DIMMs often forces the memory bus to run at a lower speed (e.g., down-clocking from 2666 MT/s to 2400 MT/s or even 2133 MT/s) to maintain stability. Therefore, the HMA81GR7CJR8N-VK is the superior choice when:

• You need to maximize memory speed in configurations with two DIMMs per channel.
• The target total memory (e.g., 96GB) can be achieved efficiently with 8GB modules.
• The project is cost-sensitive, and the lower per-module cost of 8GB DIMMs is a primary driver.
• You are designing for a platform with strict rank limitations per channel.

In summary, the HMA81GR7CJR8N-VK is an optimal solution for volume server deployments that prioritize a balance of performance, broad compatibility, and acquisition cost.

Recommended Application Circuit

Unlike a discrete component like a MOSFET or an LDO, a DIMM module does not have a "circuit" in isolation. Instead, it is a complex subsystem that plugs into a larger, more intricate application circuit: the motherboard's memory interface. The successful implementation of the HMA81GR7CJR8N-VK depends entirely on the correct design of this surrounding circuitry, which is primarily dictated by the CPU and chipset manufacturer's guidelines.

For a server platform using an Intel Xeon or AMD EPYC processor, the design process involves several key external blocks:

1. CPU Memory Controller (IMC): This is the brain of the operation, integrated directly into the CPU. All design choices must conform to the IMC's specifications for topology, termination, and timing.
2. Power Delivery Network (PDN): The HMA81GR7CJR8N-VK and other DDR4 modules require several voltage rails. The main supply is VDD at 1.2V. Additionally, a 2.5V VPP rail is needed for word line activation, and a VTT rail at 0.6V (half of VDD) is required for bus termination. These rails must be supplied by capable Power Management ICs (PMICs) or discrete DC-DC converters. The PDN must be designed for low noise and excellent transient response to handle the high current swings during memory access.
3. Signal Routing and Termination: The high-speed data (DQ), strobe (DQS), and address/command/control lines must be routed with extreme care. This involves precise impedance control, length matching within byte groups, and adherence to the topology rules (e.g., "T-topology" or "fly-by topology") specified in the platform design guide. On-die termination (ODT) within the CPU and DRAM chips handles much of the termination, but external VTT termination may still be required.
4. SPD and Thermal Sensor Communication: The module includes a Serial Presence Detect (SPD) EEPROM and a thermal sensor, both accessed via an I2C bus (referred to as SMBus in this context). The motherboard must connect to these pins (SA0, SA1, SCL, SDA) to read the module's configuration and timing parameters at boot and to monitor its temperature during operation.

The single most important document for an engineer designing a board to accept this module is the Platform Design Guide (PDG) from the CPU vendor. These documents provide exhaustive rules for schematic design and layout. When designing a system that uses DDR4 memory, it's beneficial to consider the entire ecosystem of components. You can Browse DDR4 Series components, including PMICs, connectors, and other related parts, to build a complete and robust bill of materials.

PCB Layout and Thermal Design Tips

A successful DDR4 implementation is more about layout than almost any other aspect of the design. The high data rates (2666 MT/s) mean that traces on the PCB are no longer simple copper wires; they are transmission lines that must be treated with care to preserve signal integrity.

PCB Layout Guidance:

• Impedance Control: All high-speed traces (DQ, DQS, Address, Command, Clock) must be routed with a controlled characteristic impedance. This is typically 40-50 Ω single-ended and 80-100 Ω differential, but you must follow the specific values in your platform's design guide. This requires careful stack-up design in collaboration with your PCB fabricator.
• Length Matching: Traces within a byte lane (8x DQ, 1x DQS, 1x DM) must be matched in length to ensure data arrives at the receiver simultaneously. The tolerance is extremely tight, often within +/- 1mm. The clock and address/command lines also have strict length-matching rules relative to the data strobes. Use your EDA tool's length matching and delay tuning features extensively.
• Reference Planes: Route all high-speed signals over a solid, uninterrupted ground plane. Avoid crossing plane splits, as this creates a discontinuity in the return path and can cause significant EMI and signal integrity issues. A multi-layer PCB (10+ layers for a server board) is a necessity.
• Via Management: Minimize the use of vias on high-speed traces. When vias are necessary, ensure they are properly stitched with ground vias nearby to provide a continuous return path between layers. Back-drilling vias to remove unused stubs is a common practice for the highest-speed designs.
• Placement: Place the DIMM slots as close to the CPU as possible to minimize trace length. Follow the topology guidelines (e.g., two DIMMs per channel) for placement and routing order.

Thermal Design:

The HMA81GR7CJR8N-VK, operating at 1.2V, is relatively power-efficient. However, in a densely populated server chassis with 12 or 24 modules, the cumulative heat load is significant. The DRAM chips and the RCD are the primary heat sources. Effective thermal management is essential for reliability, as excessive heat can increase error rates. Design for a continuous, unobstructed airflow path across the surface of the modules. Server chassis fans are designed to create specific high-pressure zones over the CPU and DIMM areas. Your mechanical design must not impede this airflow. Perform thermal simulations using the module's power consumption data (available in detailed datasheets) and your chassis's airflow characteristics to ensure the case temperature (Tcase) of the DRAM components remains within the specified operating range (typically 0°C to 85°C).

Where to Buy HMA81GR7CJR8N-VK

The HMA81GR7CJR8N-VK is an enterprise-grade component primarily intended for server and workstation manufacturing. It is not typically found in consumer retail channels. Procurement for engineering builds, EMS production runs, or IT department upgrades should be done through authorized global distributors who specialize in electronic components and can provide traceability and support.

When sourcing these modules, especially for production, consider the following:

• Authenticity and Traceability: Sourcing from a reputable distributor like WWDParts helps ensure that you are receiving genuine SK Hynix modules, not counterfeit or refurbished parts that could compromise system stability.
• Packaging: For volume production, modules are typically shipped in JEDEC trays that hold multiple DIMMs securely. For smaller quantities, individual anti-static bags are common. Confirm the packaging meets your manufacturing or handling requirements.
• Lead Time and Availability: Memory pricing and availability can be volatile. For large-scale deployments, it is crucial to work with your distributor to forecast demand and understand lead times. This helps avoid production line-down situations.

To get the most current information on stock, volume pricing, and available packaging options for your project, it is best to consult a direct source. You can Check HMA81GR7CJR8N-VK Inventory & Pricing to get up-to-date details for your procurement needs.

Video Demonstration

Frequently Asked Questions (HMA81GR7CJR8N-VK FAQ)

What is the difference between this RDIMM (HMA81GR7CJR8N-VK) and a UDIMM?

The key difference is the presence of a Registering Clock Driver (RCD) on the RDIMM. This register buffers the command, address, and clock signals, reducing the electrical load on the CPU's memory controller. This allows a server to support more memory modules and higher total memory capacity. A UDIMM (Unbuffered DIMM) lacks this register, placing a direct load on the controller, which limits the number of modules that can be used. RDIMMs and UDIMMs are not interchangeable; a motherboard is designed for one type or the other.

Is the HMA81GR7CJR8N-VK compatible with my server?

Compatibility depends on your server's CPU and motherboard. You must check your server's technical specification manual. Look for support for DDR4 ECC Registered DIMMs (RDIMMs) at a speed of 2666 MT/s or higher. Also, verify the maximum supported DIMM capacity and rank count. The HMA81GR7CJR8N-VK is an 8GB, single-rank (1Rx8) module, which is a very common and widely supported configuration for platforms like Intel Xeon Scalable and AMD EPYC.

Can I mix this 1Rx8 HMA81GR7CJR8N-VK module with 2Rx4 or 2Rx8 modules?

While technically possible in some servers, mixing memory modules of different ranks (e.g., single-rank 1Rx8 with dual-rank 2Rx8) is generally not recommended. Mixing ranks can lead to performance degradation or stability issues. Most server platforms will default to the speed and timing of the slowest module, and complex population rules may apply. For predictable performance and stability, it is best practice to populate all memory channels with identical modules.

What does the "V" in the speed rating PC4-2666V mean?

The letter at the end of the DDR4 speed rating indicates the specific JEDEC timing and speed bin for the module. For PC4-2666, the "V" suffix typically corresponds to a standard CAS Latency of 19 (CL19). It's a way for the system's BIOS/UEFI to quickly identify the module's primary timing parameters by reading the SPD (Serial Presence Detect) data. This ensures the memory controller configures itself correctly for stable operation at 2666 MT/s.

How does ECC on this module work and why is it important for servers?

ECC, or Error Correction Code, is a critical feature for data integrity. For every 64 bits of data, the HMA81GR7CJR8N-VK stores an additional 8 bits of parity code, which is why it's a 72-bit wide module internally. When the system reads data from memory, the memory controller recalculates the parity and compares it to the stored value. If they don't match, it can detect an error. This allows the system to automatically correct any single-bit errors on the fly, preventing system crashes and silent data corruption that would be disastrous in a server environment running critical applications.
