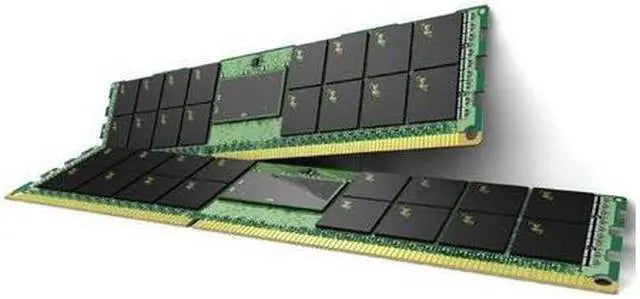

When designing a multi-socket server motherboard for enterprise applications, memory reliability and density are paramount. The HMA81GR7AFR8N-VK, an 8GB DDR4 Registered DIMM with ECC, is specifically engineered to handle the demanding workloads of virtualization, database management, and high-performance computing. Its combination of registration, error correction, and a standard JEDEC speed grade makes it a workhorse component for systems where uptime and data integrity are non-negotiable. This guide will walk through the critical design considerations for successfully integrating this module into a robust server or workstation design.
Table of Contents
Application Context: Where HMA81GR7AFR8N-VK Fits in the System
The HMA81GR7AFR8N-VK is not a standalone component but a complex subsystem designed to function within a high-performance computing architecture, typically a server or workstation. In a system block diagram, these memory modules reside at the edge of the CPU's integrated memory controller (IMC). A modern server CPU, such as an Intel Xeon Scalable or AMD EPYC processor, will feature multiple independent memory channels, each capable of supporting one or more DIMMs.
The HMA81GR7AFR8N-VK connects to the motherboard via a 288-pin DDR4 DIMM socket. The data path flows from the CPU's IMC, across the motherboard traces, through the DIMM socket, and onto the module itself. What distinguishes this module for server use are two key features: it is a Registered DIMM (RDIMM) and it supports Error-Correcting Code (ECC).
As an RDIMM, the HMA81GR7AFR8N-VK includes a Registering Clock Driver (RCD) chip directly on the module's small PCB. This RCD acts as a buffer for the command, address, and control signals sent from the memory controller. By buffering these signals, the RCD reduces the capacitive load on the memory controller's signal lines. This is a critical feature for system scalability. A standard Unbuffered DIMM (UDIMM) presents a direct load for each memory chip to the controller, limiting the number of modules that can be placed on a single channel. The RDIMM's buffered approach allows designers to populate more DIMMs per channel and, consequently, achieve much higher total system memory capacities, which is essential for virtualization servers and in-memory databases.
ECC support is the second critical feature for its target application. The module has a 72-bit wide data bus, comprised of 64 bits for data and an additional 8 bits for the ECC syndrome. During a write operation, the memory controller calculates an ECC code based on the 64 bits of data and writes the full 72 bits to the DRAM. During a read operation, the controller reads all 72 bits, recalculates the ECC, and compares it to the stored code. This process allows the system to detect and correct any single-bit errors on the fly, and to detect (but not correct) all double-bit errors and some multi-bit errors. In a server running 24/7, where cosmic rays or other phenomena can cause random bit flips, this capability is the foundation of system stability and data integrity.
In summary, the HMA81GR7AFR8N-VK sits between the CPU's memory controller and the system's main memory pool, acting as a reliable, high-capacity data store. It interfaces with the CPU via a high-speed parallel bus and relies on motherboard infrastructure for power, physical connection, and thermal management. Its design as an RDIMM with ECC makes it unsuitable for consumer desktops but indispensable for the enterprise computing environment.
Core Specifications for This Application
| Parameter | Value | Application Relevance |
|---|---|---|
| Density | 8GB | Provides a foundational capacity per module. Multiple modules are used to build up the required system memory (e.g., 128GB in a 16-slot system). |
| Module Type | 288-Pin DDR4 Registered DIMM (RDIMM) | Defines the physical connector and electrical interface. The "Registered" aspect is critical for enabling high memory capacity in servers by reducing load on the memory controller. |
| Data Rate / Speed | 2666 MT/s (PC4-21300) | Determines the maximum theoretical bandwidth. The memory controller in the CPU and the motherboard must support this speed to achieve full performance. |
| CAS Latency (CL) | 19 | A primary timing parameter that affects the latency of the first data bit's return after a read command. This is part of the JEDEC standard timing profile for this speed grade. |
| Organization | 1Gx72 (1 Rank, x4) | Indicates a single-rank module using x4 DRAM chips with a 72-bit interface. The 72-bit width confirms ECC capability, essential for server reliability. |
| Operating Voltage (VDD) | 1.2V | Standard JEDEC voltage for DDR4 memory. This low voltage helps manage power consumption and heat generation in dense server configurations. |
| Error Correction | ECC (Error-Correcting Code) | Enables detection and correction of single-bit memory errors. This is a mandatory feature for mission-critical server and workstation applications. |
Reference Circuit and Component Selection
Integrating a DDR4 module like the HMA81GR7AFR8N-VK is less about designing a circuit around the module itself and more about designing the motherboard system to support it. The "reference circuit" is the ecosystem of power, signal routing, and mechanical support on the mainboard. Success hinges on meticulous PCB layout and a robust Power Delivery Network (PDN).
Power Delivery Network (PDN): The DDR4 interface requires several stable, low-noise voltage rails.
- VDD (1.2V): This is the main supply for the DRAM chips. It requires a high-current, fast-transient response regulator. Each DIMM can draw several amps, so in a multi-DIMM system, the current requirement adds up quickly.
- VPP (2.5V): This is the word line boosting voltage, used internally by the DRAMs during activation. While it requires less current than VDD, it must be very stable.
- VTT (0.6V): This is the termination voltage for the address, command, and data bus. It must track VDD/2 precisely and be able to sink and source current as signals switch.
A dedicated DDR4 Power Management IC (PMIC) is often the preferred solution, as it integrates regulators for all three rails into a single package, ensuring proper tracking and sequencing. These regulators must be placed physically close to the DIMM sockets to minimize the impedance of the power path and reduce voltage droop during heavy loads. A generous application of multi-valued decoupling capacitors (e.g., 10uF, 1uF, 0.1uF) is required directly at the DIMM socket power pins and at the output of the regulators.
Signal Routing and Layout: This is the most critical aspect of the design. At 2666 MT/s, signal integrity is paramount.
- Topology: The command, control, and address lines are routed in a "fly-by" topology. The trace runs sequentially past each DIMM on the channel, with the RCD on each module tapping into the signal. This minimizes stubs and reflections. The clock signal is also routed this way.
- Impedance Control: All signal traces must be routed with controlled impedance. Typically, single-ended traces (like DQ) are designed for 40-50 Ω and differential pairs (DQS, CLK) for 80-100 Ω, depending on the specific CPU and motherboard stack-up guidelines.
- Length Matching: Within a byte lane (8 DQ bits and a DQS pair), traces must be meticulously length-matched to prevent timing skew. The tolerance is extremely tight, often within 5 mils (0.127mm). Similar rules apply to the command/address bus relative to the clock. Modern EDA tools are essential for defining and enforcing these constraints.
The design must strictly follow the layout guidelines provided in the datasheet for the chosen CPU. These documents provide detailed rules on trace widths, spacing, via usage, and routing topologies that are validated for the platform. When selecting components, you will need high-quality 288-pin DIMM sockets from a reputable manufacturer and a wide array of passive components for the PDN. For engineers looking to understand the broader ecosystem of memory modules, you can Browse DDR4 Series to see the variety of speeds, capacities, and types available.
Design Pitfalls and How to Avoid Them
| Common Mistake | Symptom | Fix |
|---|---|---|
| Poor Power Delivery Network (PDN) | Random system crashes, especially under heavy memory load. Unexplained ECC errors. Failure to boot (POST). | Use PDN simulation tools (e.g., Keysight ADS, Ansys SIwave) during design. Place regulators and decoupling capacitors as close to the DIMM sockets as possible. Use wide power planes and follow capacitor recommendations from the CPU and PMIC datasheets. |
| Incorrect Signal Routing / Length Mismatch | Memory training failures at POST. System boots but at a lower-than-expected speed. Data corruption and BSODs/kernel panics. | Strictly adhere to the CPU manufacturer's layout guidelines. Use CAD tool constraint managers to enforce length and phase matching rules for byte lanes and address/command groups. Avoid right-angle bends and minimize layer changes (vias). |
| Ignoring DIMM Population Rules | System fails to POST. Memory is not detected or only a portion is recognized. Sub-optimal performance due to disabled channel interleaving. | Consult the motherboard/server manual for the correct DIMM population order. For best performance, populate channels symmetrically. Do not mix RDIMMs with UDIMMs or LRDIMMs in the same system. |
| Inadequate Thermal Management | Increased rate of correctable ECC errors over time. Performance throttling as memory controller reduces speed to compensate for heat. Premature module failure. | Ensure the server chassis provides the specified minimum airflow (CFM or LFM) across the memory modules. Monitor DIMM temperatures using the on-board thermal sensor (TSOD) via the BMC or OS tools. Do not obstruct airflow around the DIMMs. |
Avoiding these pitfalls requires a "measure twice, cut once" mentality. The DDR4 interface is one of the most sensitive and high-speed interfaces on a modern motherboard. The cost of a board respin due to a memory interface failure is substantial. Therefore, investing time in pre-layout simulation, careful review of manufacturer guidelines, and using the full capabilities of modern EDA tools is critical. For example, a common oversight is failing to properly reference signal layers to continuous ground planes, creating impedance discontinuities and return path issues that are notoriously difficult to debug on physical hardware. Always run a design rule check (DRC) specifically for high-speed memory interfaces before sending a board to fabrication.
Performance Optimization Tips
While reliability is the primary goal in a server, performance can still be optimized through careful design and configuration. For the HMA81GR7AFR8N-VK, optimization focuses on maximizing bandwidth and minimizing latency within the bounds of system stability.
Memory Interleaving: The single most important factor for performance is enabling memory channel interleaving. Modern server CPUs have multiple memory controllers (e.g., 6, 8, or even 12 channels). By populating identical DIMMs across these channels, the CPU can access them in parallel, effectively multiplying the memory bandwidth. For example, in a system with an 8-channel memory controller, populating eight HMA81GR7AFR8N-VK modules (one per channel) will yield significantly higher performance than populating four modules in four channels, even though the total capacity might be sufficient. Always follow the motherboard's population guide for optimal interleaving.
BIOS/UEFI Configuration: Server BIOS settings offer some control over memory operation. While overclocking is not a consideration for servers, ensuring the memory is running at its rated speed (2666 MT/s) is crucial. Most systems will automatically configure this based on the module's Serial Presence Detect (SPD) chip. However, it's good practice to verify in the BIOS that the memory is not being down-clocked due to an unsupported CPU or a mis-populated channel. Avoid manually tightening timings (CL, tRCD, etc.) on a production server; the marginal performance gain is not worth the risk to stability.
Thermal Optimization: Heat is the enemy of performance and reliability. The HMA81GR7AFR8N-VK includes a Thermal Sensor on DIMM (TSOD). Advanced server platforms can use this data. The Baseboard Management Controller (BMC) can monitor the temperature of each DIMM and dynamically adjust chassis fan speeds to provide targeted cooling. This prevents thermal throttling, where the memory controller would otherwise have to reduce operating frequency to prevent overheating, directly impacting performance. Ensuring the server's cooling system is functioning correctly is a key part of performance maintenance.
Related Components and Accessories
A successful design with the HMA81GR7AFR8N-VK relies on a well-chosen set of supporting components. The memory module is just one piece of a complex puzzle.
Processors: The choice of CPU is fundamental. The HMA81GR7AFR8N-VK is designed for server platforms. This includes processors like the Intel® Xeon® Scalable family (1st and 2nd generation) or the AMD EPYC™ 7001/7002 series, which have integrated memory controllers that support DDR4 RDIMMs at 2666 MT/s.
Power Management ICs (PMICs): To provide the VDD, VPP, and VTT rails, look for dedicated DDR4 PMICs from manufacturers like Texas Instruments, Renesas, or Monolithic Power Systems. An IC like the TPS51200 from TI is a classic example of a DDR termination regulator, while more integrated solutions can provide all necessary rails from a single package.
DIMM Sockets: Do not underestimate the importance of the physical connector. High-quality 288-pin DDR4 sockets from vendors such as TE Connectivity, Molex, or Amphenol are required. These are specifically designed to maintain signal integrity at high frequencies and provide a reliable mechanical connection.
When you are ready to procure modules for your build or production run, you can Check HMA81GR7AFR8N-VK Inventory & Pricing to ensure you are sourcing authentic components for your mission-critical application.
Video Demonstration
Frequently Asked Questions (HMA81GR7AFR8N-VK FAQ)
How do I verify if my motherboard supports the HMA81GR7AFR8N-VK?
First, confirm your motherboard is a server or workstation board, as this RDIMM module is not for consumer desktops. Check the motherboard's technical specifications for its supported memory type; it must explicitly state "DDR4 RDIMM" or "DDR4 Registered ECC". Next, verify the supported speed; it should list 2666 MT/s or higher. Finally, consult the Qualified Vendor List (QVL) from the motherboard manufacturer, which is the most reliable source listing all tested and validated memory modules.
What is the difference between an RDIMM like this and a UDIMM, and why does it matter for my server design?
An RDIMM (Registered DIMM) like the HMA81GR7AFR8N-VK has an onboard register that buffers the address and command signals between the memory controller and the DRAM chips. A UDIMM (Unbuffered DIMM) does not have this register, presenting a direct electrical load to the controller. This buffering allows a server to support a much higher memory capacity by reducing the electrical strain on the memory controller, enabling more modules per channel. For any server design requiring large amounts of RAM, RDIMMs are the standard choice.
Can I mix HMA81GR7AFR8N-VK (DDR4-2666) modules with faster DDR4-2933 modules in the same system?
While technically possible in some systems, it is strongly discouraged. When you mix memory modules of different speeds, the memory controller will operate all modules at the speed of the slowest one installed. In this case, your entire memory subsystem would run at 2666 MT/s, negating any benefit of the faster modules. Furthermore, mixing modules can sometimes introduce subtle instabilities, so for a production server, it is best practice to use identical modules across all populated slots.
What are the critical layout considerations for the HMA81GR7AFR8N-VK on my PCB?
The three most critical layout considerations are impedance control, trace length matching, and power delivery. All signal traces must be routed with a controlled impedance (e.g., 50-ohm single-ended, 100-ohm differential) to prevent reflections. Within each byte group, the data (DQ) and strobe (DQS) lines must be matched in length very precisely to avoid timing skew. Finally, a robust power delivery network with low-inductance paths and ample decoupling capacitance is essential to provide stable 1.2V (VDD), 2.5V (VPP), and 0.6V (VTT) rails.
My system reports ECC errors. Does this mean the HMA81GR7AFR8N-VK module is faulty?
Not necessarily. The purpose of ECC memory is to detect and correct errors. A low rate of "correctable" errors can be normal in a server running for long periods, as it indicates the ECC is functioning as intended to fix random single-bit flips. However, if you see a high rate of correctable errors from a specific module, or any "uncorrectable" errors, it could indicate a failing module. It could also point to issues with the slot, signal integrity problems on the motherboard, or unstable power, so swapping modules between slots is a good first step in troubleshooting.
