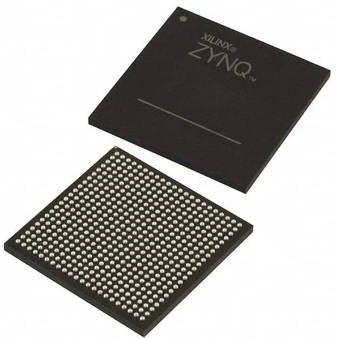

XC7Z020-2CLG400C Application Guide: From Datasheet to Working Circuit

When designing a high-precision, multi-axis motion control system for applications like CNC milling or 3D printing, the XC7Z020-2CLG400C is a powerful choice for integrating real-time motor control with a user-friendly networked interface. The device's unique architecture, part of the Xilinx Zynq-7000 family, combines a dual-core ARM Cortex-A9 processing system (PS) with robust programmable logic (PL). This allows for deterministic, jitter-free pulse generation in the PL fabric while running a full Linux operating system on the ARM cores for tasks like G-code parsing, network communication, and user interface management.

Application Context: Where XC7Z020-2CLG400C Fits in the System

In a modern motion control system, the XC7Z020-2CLG400C serves as the central brain, bridging the gap between high-level user commands and low-level hardware control. Let's consider the block diagram of a 3-axis CNC controller. The XC7Z020-2CLG400C is at the heart of the main controller board.

The Processing System (PS) side, featuring the dual-core ARM Cortex-A9, is responsible for all non-real-time, complex tasks. It connects to a DDR3L memory chip, which is essential for running a full-featured operating system like PetaLinux. An Ethernet PHY is connected to the PS via the RGMII interface, allowing the controller to connect to a local network. This enables users to upload G-code files from a design workstation, monitor progress via a web interface, and perform remote diagnostics. The PS also manages storage, booting from a QSPI flash memory device and using an SD card for secondary storage and firmware updates. A UART connection provides a crucial debug and console interface during development and maintenance.

The Programmable Logic (PL) side is where the real-time magic happens. For each axis of motion (X, Y, Z), we instantiate a dedicated motion control IP block in the PL. These blocks are custom-designed in HDL (Verilog or VHDL). They receive high-level commands from the PS over the internal AXI bus, such as "move axis X forward 5,000 steps at a rate of 20 kHz with a specific acceleration profile." The PL block then takes over, generating the precise, high-frequency step and direction signals required by the external stepper motor drivers. This partitioning guarantees that the motor control signals are completely deterministic and immune to the scheduling latencies of the operating system running on the PS.

Furthermore, the PL interfaces with quadrature encoders on each motor for closed-loop position feedback. The PL can decode the A/B/Z encoder signals at very high speeds, keeping an accurate position count that the PS can read back for verification. The PL also handles other real-time I/O, such as reading limit switches and E-stop inputs, ensuring an immediate and reliable hardware-level response to critical events. This tight integration of a powerful processor with customizable, parallel hardware logic in a single chip is what makes the Zynq architecture, and specifically the XC7Z020-2CLG400C, an ideal platform for such sophisticated embedded systems.

Core Specifications for This Application

Parameter	Value	Application Relevance
Processing System	Dual-core ARM Cortex-A9	Provides the horsepower to run a Linux OS, network stack, and G-code parsing application without interfering with real-time motor control.
Logic Cells	85K	Sufficient logic to implement three or more complex step-generation state machines, quadrature encoder decoders, and custom AXI-lite peripherals for PS-PL communication.
Block RAM	4.9 Mb	Ideal for implementing deep FIFOs to buffer motion commands between the PS and PL, ensuring smooth, continuous movement without underruns.
DSP Slices	220	Essential for implementing digital filters on encoder feedback for noise reduction or for creating advanced S-curve acceleration profiles to reduce mechanical jerk.
Package	CLG400 (400-pin BGA)	This package provides a good balance of I/O pin count and thermal performance for this class of application.
Max User I/O	200	Ample I/O to connect to multiple motor drivers, encoders, limit switches, spindle controls, cooling fans, and other machine peripherals.
Speed Grade	-2	A mid-range speed grade that supports PS clock speeds up to 866 MHz and provides ample performance for the PL to generate high-frequency step pulses.
PS Peripherals	GigE, USB, CAN, SPI, I²C, UART	Integrated hardened peripherals simplify the system design, reducing the need for external components and saving PL resources. The GigE port is key for our networked controller.

Reference Circuit and Component Selection

Designing a board around the XC7Z020-2CLG400C requires careful attention to several key subsystems, primarily power delivery, clocking, and memory interfacing.

Power Delivery Network (PDN): The Zynq-7000 SoC has multiple power domains that must be supplied with specific voltages and sequenced correctly. Key rails include VCCINT (core logic), VCCAUX (auxiliary logic), VCCBRAM (Block RAM), and various VCCO rails for I/O banks, plus the PS-specific rails like VCCPINT and VCCPAUX. While it's possible to use discrete regulators, it is highly recommended to use a Power Management IC (PMIC) designed for Xilinx SoCs. A PMIC integrates multiple regulator outputs and a sequencer, ensuring the power-on and power-off sequences specified in the datasheet (DS191) are met. This drastically simplifies the PDN design and improves system reliability. Decoupling is also critical; follow the manufacturer's recommendations for placing numerous ceramic capacitors of various values (e.g., 10uF, 1uF, 0.1uF, 0.01uF) as close as possible to the BGA pins.

Clocking and Reset: The Processing System requires a primary clock input, PS_CLK, which is typically supplied by a low-jitter 33.333 MHz or 50 MHz oscillator. This single clock is used by the PS PLLs to generate all internal clocks for the ARM cores, memory controller, and peripherals. A separate oscillator can be provided to the PL for specific needs, but often clocks can be routed from the PS to the PL internally. A stable power-on-reset (POR) signal, PS_POR_B, is also required and is often managed by the chosen PMIC or a dedicated supervisor IC.

Memory and Boot: A DDR3L SDRAM interface is a must for running an OS. The XC7Z020-2CLG400C contains a hardened DDR controller in the PS. Layout is paramount: all data, address, and control lines must be meticulously length-matched and routed with controlled impedance (typically 50 ohms single-ended, 100 ohms differential for clocks/strobes) on a multi-layer PCB. For booting, the device's boot mode is set by strapping specific MIO pins during reset. A common and robust configuration is to use a QSPI flash device for the primary boot image (containing the First Stage Bootloader, U-Boot, and bitstream) and an SD card slot for development flexibility, secondary storage, and field updates. You can find a wide variety of compatible parts when you Browse Zynq-7000 Series and their associated components.

Design Pitfalls and How to Avoid Them

Even experienced engineers can run into trouble with a complex SoC like the Zynq-7000. Here are some common issues and how to prevent them.

Common Mistake	Symptom	Fix
Incorrect Power Sequencing	Device does not boot, no JTAG activity, or permanent damage. The DONE pin may not go high.	Use a validated PMIC or a dedicated power sequencer. Meticulously verify your power-on sequence against the datasheet requirements using an oscilloscope on a prototype board.
Improper Boot Mode Pin Configuration	System fails to boot from the intended media (e.g., QSPI or SD card). Console shows no output.	Carefully check the pull-up/pull-down resistor values on the MIO[8:2] pins. Consult the Technical Reference Manual (UG585) for the exact settings for each boot mode. Ensure these pins are stable before and during the de-assertion of PS_POR_B.
DDR3 Signal Integrity Failures	System is unstable, crashes randomly, fails memory tests at high clock speeds, or experiences Linux kernel panics.	Strictly adhere to DDR3 layout guidelines. Use a minimum 6-layer PCB with solid power/ground planes. Perform length matching on all critical nets and run post-layout signal integrity simulations.
Clock Domain Crossing (CDC) Bugs	Data corruption or unpredictable behavior when passing information between the PS (ARM) and PL (FPGA).	Never pass multi-bit signals across clock domains without proper synchronization. Use asynchronous FIFOs (available as Xilinx IP) for data buses. For single-bit control signals, use a two-stage or three-stage flip-flop synchronizer.

Avoiding these pitfalls begins at the schematic capture and layout stages. A thorough design review process is essential. For power sequencing, simulate the ramp-up times of your regulators to ensure they meet the device's requirements. For DDR3 layout, do not treat the guidelines as mere suggestions; they are hard rules for a functional design. Finally, for PS-PL interaction, establish a clear protocol and synchronization strategy early in the architectural phase. Using the AXI interconnect IP provided by the Vivado Design Suite handles much of the complexity, but you must still be mindful of the underlying principles when writing custom logic that interfaces with it.

Performance Optimization Tips

Once your XC7Z020-2CLG400C-based system is functional, the next step is optimization for performance, thermal behavior, and reliability.

Thermal Management: The CLG400 package has a thermal pad on the bottom. It is crucial to design your PCB with an array of thermal vias under the chip, connecting this pad directly to internal ground and power planes. This turns your PCB into a heat spreader. For high-performance applications where both ARM cores and a significant portion of the PL are heavily utilized, a heatsink attached to the top of the package is recommended. Monitor the internal temperature diode to ensure the junction temperature remains within the specified operating range (0°C to 85°C for commercial grade).

Hardware/Software Partitioning: The single most important performance optimization is leveraging the Zynq architecture correctly. Do not perform timing-critical, high-frequency tasks in software on the ARM cores. In our CNC example, generating step pulses from a Linux user-space application would be a disaster due to OS scheduling jitter. Offload these tasks to the PL. Conversely, do not implement a TCP/IP stack or a complex file parser in the PL; the ARM cores are far better suited for this. Use the AXI interconnect to create efficient, high-bandwidth communication channels between the two domains.

Signal Integrity and EMI: A well-designed PCB stack-up is your first line of defense. Use internal ground planes to provide a solid return path for all signals, minimizing loop areas and reducing radiated emissions. Keep high-speed traces like DDR3 and RGMII short and properly terminated. Use series termination resistors on outputs where appropriate to control slew rates and reduce ringing. Filter all power inputs to the board with ferrite beads and bulk capacitance to prevent external noise from affecting the SoC.

Related Components and Accessories

A successful XC7Z020-2CLG400C design relies on a well-chosen ecosystem of supporting components. For power, consider PMICs from the Analog Devices ADP505x family or Texas Instruments TPS65086x series, which are often designed with Xilinx FPGAs and SoCs in mind. For memory, a 512MB or 1GB DDR3L chip like the Micron MT41K256M16 is a common choice, offering a good balance of capacity and power consumption. For boot storage, a 256Mbit or 512Mbit QSPI NOR flash from a vendor like Micron (MT25Q series) or Winbond is a reliable option. To enable the networking capabilities, a Gigabit Ethernet PHY such as the Microchip KSZ9031RNX or Realtek RTL8211F is required to interface with the PS RGMII port. Finally, ensure you have a reliable source for the main SoC itself. You can Check XC7Z020-2CLG400C Inventory & Pricing to secure the core of your design.

Video Demonstration

Frequently Asked Questions (XC7Z020-2CLG400C FAQ)

How do I get started with programming the XC7Z020-2CLG400C?

Getting started involves two main toolchains. For the Programmable Logic (PL), you will use the AMD-Xilinx Vivado Design Suite to write HDL (Verilog/VHDL), configure IP blocks, and generate a bitstream. For the Processing System (PS), you can use the Vitis Unified Software Platform to develop bare-metal applications or a PetaLinux SDK to build a custom embedded Linux distribution. A typical workflow involves creating a hardware platform in Vivado, exporting it to Vitis or PetaLinux, and then developing your software application on top of that hardware definition.

What's the main difference between implementing a function in the Processing System (ARM) versus the Programmable Logic (FPGA)?

The key difference is determinism and parallelism. The Programmable Logic (PL) is ideal for tasks requiring high-speed, parallel processing and precise, deterministic timing, like digital signal processing or generating motor control waveforms. The Processing System (PS) is better for complex, sequential tasks that are not time-critical, such as running an operating system, managing a network stack, or handling a user interface. The art of Zynq design is intelligently partitioning your application between these two domains to get the best of both worlds.

Can the XC7Z020-2CLG400C run a real-time operating system (RTOS)?

Yes, absolutely. While you can run a general-purpose OS like Linux, the ARM Cortex-A9 cores are also perfectly capable of running an RTOS like FreeRTOS or VxWorks. This is a common choice for applications that require more complex software logic than a bare-metal application but need more predictable, real-time behavior than standard Linux can provide. You can even run an RTOS on one core and Linux on the other using an Asymmetric Multiprocessing (AMP) configuration for maximum flexibility.

What are the critical power rails I need to supply for the XC7Z020-2CLG400C?

The device has several critical power domains. The main ones are VCCINT for the internal PL logic, VCCBRAM for Block RAM, VCCAUX for auxiliary logic, and multiple VCCO rails for the I/O banks which can be set to different voltages (e.g., 1.8V, 2.5V, 3.3V). The PS has its own set of rails like VCCPINT and VCCPAUX. It is crucial to consult the datasheet (DS191) for the correct voltages and, most importantly, the required power-on and power-off sequencing to prevent damage to the device.

How do I debug my design on the XC7Z020-2CLG400C?

Debugging is a multi-faceted process. For hardware (PL) debugging, you can use the Vivado Logic Analyzer (formerly ChipScope) to probe internal signals in real-time. For software (PS) debugging, you can use a JTAG debugger (like a Xilinx Platform Cable USB II) with the Vitis IDE to set breakpoints and inspect memory in your C/C++ code. For Linux applications, a UART console is invaluable for viewing boot messages and print statements, and you can use GDB for remote debugging over Ethernet.
