XC7A100T-1CSG324C Datasheet, Pinout, Equivalents, and Specs

The XC7A100T-1CSG324C is a high-performance Field-Programmable Gate Array (FPGA) from the Xilinx (now AMD) Artix-7 family. It is engineered to solve the challenge of delivering substantial logic capacity, digital signal processing (DSP) capability, and high-speed I/O in a cost-effective and power-efficient package. This device is a workhorse for a wide range of applications, from industrial control and machine vision to software-defined radio and professional A/V equipment, offering a significant step up in capability from microcontrollers without the cost of higher-end FPGAs.

What is the XC7A100T-1CSG324C?

The XC7A100T-1CSG324C is a specific member of the Artix-7 FPGA family, built on a 28nm process technology that provides an optimal balance of performance, low power, and cost. To understand its capabilities, it's helpful to decode the part number:

• XC7A: Denotes the Artix-7 family, positioned in the Xilinx 7-series portfolio for cost-sensitive, high-volume applications that still require significant performance.
• 100T: Indicates the device's logic density. This model contains 101,440 logic cells.
• -1: Represents the speed grade. The "-1" grade is the slowest commercial speed grade, offering the lowest cost for applications where maximum clock frequency is not the primary constraint.
• CSG324: Specifies the package type. This is a 324-ball Chip-Scale BGA (Ball Grid Array) with a 0.8mm pitch, measuring 15x15mm.
• C: Designates the commercial temperature grade, with a recommended operating junction temperature range of 0°C to 85°C.

At its core, the XC7A100T is a sea of reconfigurable logic resources. It contains 63,400 6-input Look-Up Tables (LUTs) and 126,800 flip-flops. These are the fundamental building blocks for implementing custom digital logic circuits, from simple state machines to complex data processing pipelines. The 6-input LUT architecture is a key feature of the 7-series, allowing more logic to be packed into a single resource compared to older 4-input LUT designs, leading to better overall device utilization and performance.

Beyond general-purpose logic, the device is heavily fortified with specialized hardware blocks. It includes 240 DSP48E1 slices, which are dedicated hardware blocks for high-speed arithmetic operations. Each slice contains a 25x18 multiplier, an adder, and an accumulator, making them exceptionally efficient for implementing algorithms like Finite Impulse Response (FIR) filters, Fast Fourier Transforms (FFTs), and other common digital signal processing tasks. It also features a substantial 4,860 Kbits of configurable Block RAM (BRAM), essential for on-chip data buffering, implementing FIFOs, and providing memory for embedded soft-core processors like the MicroBlaze.

Pinout Configuration and Packaging

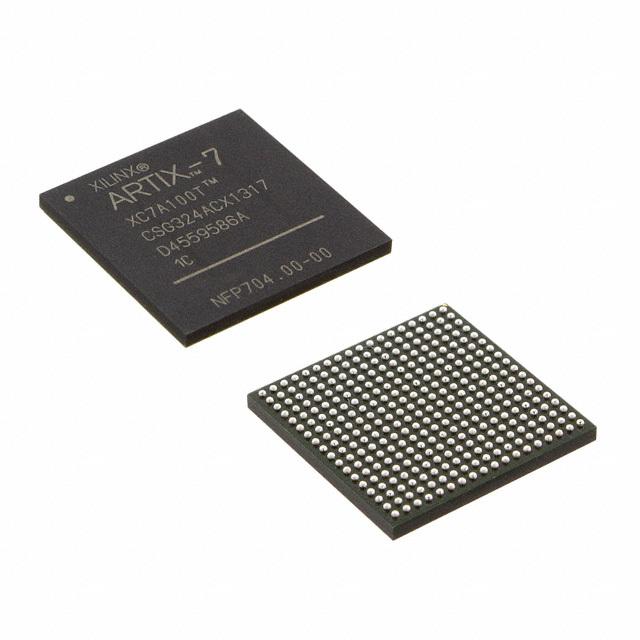

The XC7A100T-1CSG324C is offered in a 324-pin Chip-Scale BGA (CSG324) package. This package has a 15x15mm footprint and a 0.8mm ball pitch, which strikes a balance between small PCB area and manufacturability, typically suitable for 4- to 6-layer PCB designs without requiring advanced and costly fabrication techniques like microvias on all layers.

The 324 balls are assigned to power, ground, configuration, JTAG, and user I/O. For this specific device in this package, there are 210 user I/O pins available to the designer. These I/Os are organized into banks, each with its own power supply pin (VCCO). This architecture allows different I/O banks to operate at different voltage standards (e.g., one bank at 3.3V for LVCMOS, another at 1.8V for LVDS), enabling seamless interfacing with a wide variety of external components.

Key pin categories include:

• Power Pins: A robust Power Delivery Network (PDN) is critical. The main rails are VCCINT (1.0V nominal for the core logic), VCCAUX (1.8V for auxiliary logic like clock management), VCCBRAM (1.0V for Block RAM), and multiple VCCO pins for the I/O banks (configurable from 1.2V to 3.3V).
• Configuration Pins: Pins like M0, M1, and M2 set the configuration mode on power-up (e.g., Master SPI, Slave Serial). PROG_B allows for programmatic reconfiguration, while INIT_B and DONE provide status on the configuration process.
• JTAG Pins: The standard JTAG port (TCK, TMS, TDI, TDO) is used for programming the device via a JTAG cable, in-system debugging with tools like the Vivado Logic Analyzer, and boundary-scan testing.
• Clock Inputs: There are dedicated global clock input pins that can drive the internal Clock Management Tiles (CMTs). Using these dedicated pins ensures the lowest jitter and skew for high-performance clock distribution throughout the FPGA fabric.

Designers must consult the official Xilinx documentation (UG475: 7 Series FPGAs Packaging and Pinout) for the exact pin locations, as they are critical for correct schematic capture and PCB layout.

Core Architectural Features

• Advanced 6-Input LUT Architecture: Unlike older FPGAs that used 4-input Look-Up Tables, the Artix-7 series employs a more powerful 6-input LUT with two independent outputs. This allows each LUT to implement more complex combinatorial logic functions or to function as a small distributed RAM or shift register. This leads to higher logic density, improved performance, and more efficient routing.
• High-Performance DSP48E1 Slices: The device includes 240 dedicated DSP slices. Each DSP48E1 slice is a hardened macro containing a pre-adder, a 25x18 two's complement multiplier, and a 48-bit accumulator. These slices can be cascaded to form powerful, high-throughput signal processing chains for applications like digital filtering, correlation, and FFTs, operating at much higher speeds and lower power than equivalent logic implemented in the general fabric.
• Flexible 36Kb Block RAM (BRAM): The XC7A100T provides a total of 4,860 Kb of BRAM, organized as 135 individual 36Kb blocks. Each block can be configured as two independent 18Kb RAMs and supports true dual-port operation. They are ideal for implementing on-chip data buffers, FIFOs, and memory for soft processors, providing high-bandwidth, low-latency access to data.
• Integrated Clock Management Tiles (CMTs): The device contains six CMTs, each with one Mixed-Mode Clock Manager (MMCM) and one Phase-Locked Loop (PLL). These blocks are crucial for robust clocking. They can be used for clock synthesis (frequency multiplication/division), jitter reduction, phase shifting, and de-skewing, enabling the management of multiple complex clock domains within a single design.
• Versatile SelectIO Technology: The 210 user I/O pins support a wide range of I/O standards, including single-ended standards like LVCMOS (3.3V, 2.5V, 1.8V, etc.) and differential standards like LVDS, TMDS, and LVPECL. This flexibility allows the FPGA to directly interface with a vast array of sensors, memory chips, ADCs/DACs, and other ICs without requiring external level-shifting logic.

Specifications Parameter Table

XC7A100T-1CSG324C Equivalents, Cross Reference & Lifecycle

The Artix-7 family is a mature and widely adopted product line, currently in full production status by AMD-Xilinx. This makes the XC7A100T-1CSG324C a low-risk choice for new designs and long-term production needs.

When considering alternatives, it's important to distinguish between direct and functional equivalents:

• Direct Equivalents: For a drop-in replacement on an existing PCB, you are generally limited to other devices in the same family and package. For instance, the XC7A100T-2CSG324C is a pin-compatible part that offers a higher speed grade for designs needing better timing margins. Similarly, the XC7A100T-1CSG324I is the industrial temperature grade (-40°C to 100°C) version, also pin-compatible.
• Functional Equivalents: If you are starting a new design, you might evaluate other FPGAs with similar resource counts. Competitors could include devices from the Intel (formerly Altera) Cyclone V family or the Lattice ECP5 family. However, these are not pin-compatible and require a complete redesign of the hardware and porting of the HDL code, as the internal architectures, design tools, and IP cores are entirely different.
• Migration: Xilinx provides some level of pin compatibility for migration within the Artix-7 family. For example, moving from a smaller XC7A75T in the CSG324 package to the XC7A100T may be possible, but requires careful verification using the official pinout files to ensure all required I/O and power pins align.

For current availability and to secure parts for your production run, it is always recommended to check with a reliable distributor. Check XC7A100T-1CSG324C Inventory & Pricing.

Typical Applications & Circuit Considerations

The combination of substantial logic, DSP resources, and I/O flexibility makes the XC7A100T-1CSG324C suitable for a broad spectrum of mid-range applications.

Typical Applications:

• Machine Vision and Industrial Cameras: The FPGA can interface directly with high-speed image sensors, using the fabric for real-time image processing pipelines (e.g., color space conversion, filtering, feature detection) and the DSP slices for accelerating algorithms like convolution.
• Software Defined Radio (SDR): The 240 DSP slices are ideal for implementing the digital front-end of a radio, including digital down-conversion (DDC), digital up-conversion (DUC), and complex filtering, while the logic fabric handles modulation, demodulation, and protocol stacks.
• Multi-Axis Motor Control: The parallel nature of FPGAs allows for the implementation of deterministic, low-latency control loops for multiple motors, processing feedback from encoders and generating precise PWM signals.
• Professional Video Equipment: Used in video switchers, format converters, and compositing engines to handle multiple streams of high-definition video, leveraging the high I/O count and internal memory bandwidth.

Circuit Design Considerations:

Successfully designing with the XC7A100T requires attention to several key areas. First, the Power Delivery Network (PDN) is paramount. The 1.0V core rail (VCCINT) can draw significant current with high-frequency transients. A low-impedance PDN with a combination of bulk and high-frequency ceramic decoupling capacitors placed as close as possible to the BGA balls is non-negotiable. Use the Xilinx Power Estimator (XPE) spreadsheet early in the design cycle to budget power and inform your PDN design. Second, Configuration Memory is required. The FPGA is SRAM-based and loses its configuration on power-down. A non-volatile memory, typically a Quad-SPI flash chip, must be included on the board to store the configuration bitstream, which the FPGA loads automatically on power-up. Finally, PCB Layout for the CSG324 package requires careful planning. Signal integrity for high-speed interfaces (e.g., LVDS, DDR memory) demands controlled-impedance routing and length matching. A well-planned BGA escape routing strategy is necessary to bring all the required signals out from under the device.

The Artix-7 family offers a range of devices with varying densities and features. For projects with different requirements, you can Browse Artix-7 Series to find the optimal part.

Video Demonstration

Frequently Asked Questions (XC7A100T-1CSG324C FAQ)

What is the difference between the Artix-7 XC7A100T and a Spartan-7 device?

The primary difference lies in their target applications and resource mix. The Artix-7 family, including the XC7A100T, is optimized for higher performance, featuring more DSP slices, Block RAM, and higher I/O speeds per logic cell. In contrast, the Spartan-7 family is designed for cost-sensitive, I/O-intensive applications, focusing on providing the lowest cost per I/O pin with lower power consumption and fewer performance-oriented resources like DSP slices.

What software is used to program the XC7A100T-1CSG324C?

The XC7A100T-1CSG324C is programmed using the AMD-Xilinx Vivado Design Suite. This comprehensive software package provides all the necessary tools for the entire FPGA design flow, including HDL (VHDL/Verilog) simulation, logic synthesis, place-and-route, static timing analysis, and bitstream generation. The Vivado suite also includes tools for in-system debugging, such as the Vivado Logic Analyzer for capturing internal signals in real-time.

What does the "-1" speed grade signify for this FPGA?

The "-1" in the part number indicates the speed grade of the device. It is the standard, slowest commercial speed grade available for this part. While it still offers significant performance, there are faster grades like "-2" and "-3" that are fabricated and binned to support higher clock frequencies and meet more aggressive timing constraints. Choosing a "-1" speed grade is a common cost-saving measure for designs where the absolute maximum clock speed is not the driving requirement.

Can the XC7A100T-1CSG324C run a processor?

Yes, absolutely. You can implement a "soft-core" processor, such as the 32-bit Xilinx MicroBlaze, using the FPGA's logic fabric and Block RAM. This effectively creates a custom System-on-Chip (SoC) where you can run C/C++ code on the processor for control and decision-making tasks, while leveraging the parallel processing power of the FPGA fabric for hardware acceleration of data-intensive functions. This hybrid approach is one of the key strengths of using FPGAs like the Artix-7.

What are the main power supply rails I need to provide for this FPGA?

A minimal design for the XC7A100T requires several distinct power rails. The most critical are VCCINT (1.0V nominal) for the internal core logic, VCCAUX (1.8V nominal) for auxiliary functions like clocking and JTAG, and one or more VCCO rails for the I/O banks. The VCCO voltage is determined by the I/O standard you need to interface with and can range from 1.2V to 3.3V. Each of these rails requires careful decoupling and proper power sequencing as specified in the device datasheet.
