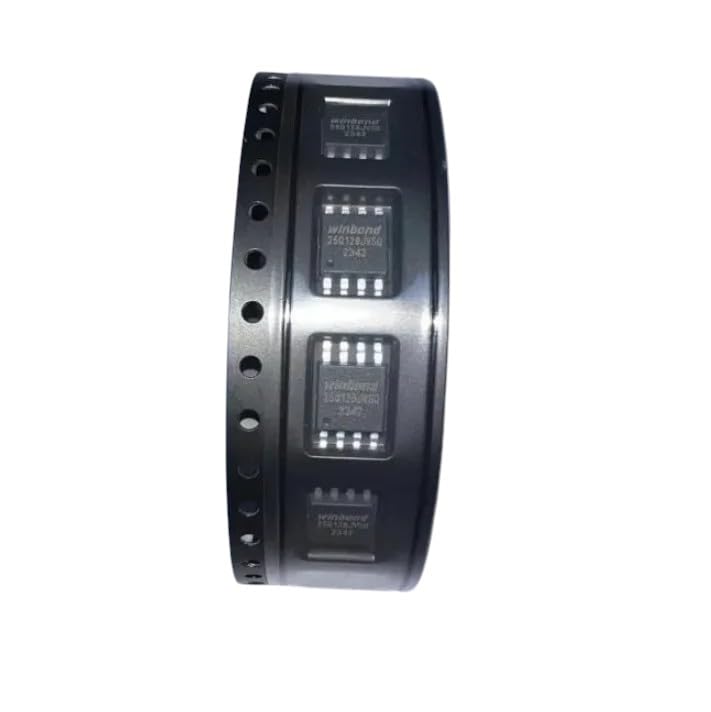

W25Q128JV Datasheet, Pinout, Equivalents, and Specs

The W25Q128JV is a 128M-bit Serial NOR Flash memory integrated circuit manufactured by Winbond. It utilizes a high-speed SPI/QPI interface and is engineered for applications requiring reliable, non-volatile data storage with fast read access. As part of the SpiFlash family, this component is widely adopted in consumer electronics, computing peripherals, and embedded systems for code shadowing, data logging, and boot code storage.

What is the W25Q128JV?

The W25Q128JV is a non-volatile memory IC providing 16,777,216 bytes of storage. Its internal architecture is organized into 65,536 programmable pages of 256 bytes each. The device operates on a standard Serial Peripheral Interface (SPI) and supports higher throughput Dual and Quad I/O modes, as well as a Quad Peripheral Interface (QPI). This flexibility allows hardware engineers to balance pin count, board space, and data transfer rates. The W25Q128JV is designed for a wide voltage supply range and offers low power consumption, making it suitable for battery-powered devices and systems with stringent power budgets. Its primary engineering benefit is providing a high-density, cost-effective storage solution in a small form factor for execute-in-place (XIP) operations or general data storage.

Pinout Configuration and Packaging

The W25Q128JV is available in several industry-standard packages to accommodate different manufacturing and design requirements. Common packages include 8-pin SOIC (SOIC-8), 8-pad WSON, 16-pin SOIC (SOIC-16), and 24-ball TFBGA. The pinout is standardized for SPI flash devices, featuring Chip Select (/CS), Serial Clock (CLK), Data I/O pins (DI, DO, IO0-IO3), Write Protect (/WP), and Hold (/HOLD). For high-speed Quad-SPI operation, pins /WP and /HOLD are repurposed as IO2 and IO3, respectively. Thermal management is typically not a primary concern due to the device's low power dissipation, but a proper ground plane connection via the exposed pad on WSON packages is necessary for optimal electrical and thermal performance.

Core Architectural Features

• Flexible Memory Architecture: The 128M-bit memory array is organized into 256 blocks of 64KB or 512 blocks of 32KB. Each block is subdivided into 16 sectors of 4KB. This granularity allows for efficient data management and sector-level erase operations, which is critical for applications performing frequent data updates.
• High-Performance Serial Interface: The device supports standard single SPI (up to 133MHz), Dual SPI, and Quad SPI (Q-SPI) operations. In Quad I/O mode with a 133MHz clock, it can achieve a continuous data transfer rate of 532M-bits per second (66.5M-bytes/s), enabling fast boot times and direct code execution (XIP).
• Advanced Security and Identification: The W25Q128JV incorporates multiple security features, including a 64-bit factory-programmed Unique ID number, a 256-byte One-Time Programmable (OTP) security register, and block/sector protection mechanisms. These features are essential for securing device firmware, storing keys, and preventing unauthorized modifications.
• Low Power Consumption and Wide Voltage Range: The W25Q128JV (specifically the 'J' family with 'V' voltage range) operates from 2.7V to 3.6V. It features low standby current (typically 1µA) and deep power-down modes, significantly extending battery life in portable applications. The active read current is also optimized for efficiency.

Specifications Parameter Table

W25Q128JV Equivalents, Cross Reference, and Lifecycle

The W25Q128JV is an active, in-production component from Winbond. For buyers facing allocation or long lead times, several alternatives may serve as potential drop-in replacements. A common equivalent is the Macronix MX25L12835F or the GigaDevice GD25Q128C. When considering a replacement, engineers must verify pin-to-pin compatibility for the specific package (e.g., SOIC-8 208-mil). While the core SPI commands are largely standardized, it is critical to review the datasheet for minor differences in command sets, timing parameters, and the device ID register values to ensure full firmware compatibility. The W25Q128JV itself is a successor to the older W25Q128FV, offering improved performance and features, and is often a suitable upgrade path.

Typical Application & Circuit Considerations

In a typical system-level application, the W25Q128JV is connected to a microcontroller or SoC's SPI master port. For reliable operation, a 0.1µF ceramic decoupling capacitor must be placed as close as possible between the VCC and GND pins to filter power supply noise. PCB layout guidelines recommend keeping the SPI signal traces (CLK, /CS, IOx) short, direct, and of controlled impedance to maintain signal integrity at high clock speeds. The /WP (Write Protect) and /HOLD pins can be tied to VCC via a pull-up resistor if not actively used, preventing them from floating and ensuring the device is always ready for operation. In many designs, these pins are connected to host GPIOs for dynamic control over write protection and SPI transaction pausing.

Video Demonstration

Market Availability and Pricing Trends

High-density serial NOR flash memory, including the W25Q128JV, is a high-volume component subject to fluctuations in supply based on demand from the consumer and automotive sectors. Lead times can vary, and allocation is common during periods of high demand. To check real-time stock, pricing, or to request a quote for the W25Q128JV and its verified alternatives, upload your BOM to WWDParts for fast processing.
