5CEBA4F23C8N Intel Cyclone V E FPGA: Datasheet, Pinout, and Application Guide
Overview of the 5CEBA4F23C8N
The 5CEBA4F23C8N is a high-performance FPGA from Intel's (formerly Altera) Cyclone V E family. Built on an advanced 28nm low-power process technology, this device delivers an optimal balance between performance, power consumption, and cost-effectiveness. With 49,000 logic elements and 224 user I/O pins housed in a compact 484-ball FBGA package, the 5CEBA4F23C8N is designed for a wide range of embedded and industrial applications.
The Cyclone V E family is engineered to meet the increasing bandwidth demands of modern applications while maintaining the low power consumption and cost efficiency that high-volume markets require. The 5CEBA4F23C8N supports Quartus Prime design software and ModelSim simulation, providing a mature and robust development ecosystem for FPGA engineers.
Typical applications include industrial automation, motor control, protocol bridging, video and image processing, wireless infrastructure, and military/defense systems. Its combination of logic density, embedded memory, and DSP capability makes it suitable for designs that previously required more expensive FPGA families.
Key Specifications and Parameters
| Parameter | Value |
|---|---|
| Manufacturer | Intel (formerly Altera) |
| Family | Cyclone V E |
| Part Number | 5CEBA4F23C8N |
| Logic Elements (LEs) | 49,000 |
| Logic Array Blocks (LABs) | 1,848 |
| Total RAM Bits | 3,464,192 |
| Number of User I/O | 224 |
| Package Type | 484-FBGA (23 x 23 mm) |
| Supply Voltage | 1.07V ~ 1.13V (core) |
| Operating Temperature | 0°C to 85°C (commercial) |
| Process Technology | 28nm Low-Power |
| Maximum Frequency | 800 MHz |
| Speed Grade | C8N (commercial, speed grade 8) |
| Mounting Type | Surface Mount |
| RoHS Compliance | Yes (Lead-Free) |
| Product Status | Active |
The 5CEBA4F23C8N features a rich set of embedded resources including M10K memory blocks for efficient on-chip storage, variable-precision DSP blocks for signal processing applications, and PLLs for flexible clock management. The C8N suffix indicates a commercial temperature range device with speed grade 8 and lead-free (N) packaging.
Block Diagram and Architecture
The Cyclone V E architecture used in the 5CEBA4F23C8N features a column-based structure that optimizes routing efficiency and logic utilization. The FPGA fabric consists of Adaptive Logic Modules (ALMs) organized into LABs, with embedded memory and DSP blocks distributed across the device in dedicated columns.
Key architectural features include:
- Adaptive Logic Modules (ALMs): Each ALM contains a fracturable look-up table (LUT) that can implement two independent combinational functions, two dedicated registers, and carry chain logic for arithmetic operations.
- M10K Memory Blocks: Provide 10 Kbit true dual-port memory blocks configurable as RAM, ROM, FIFO, or shift registers in various width/depth configurations.
- Variable-Precision DSP Blocks: Support 9×9, 18×18, and 27×27 multiplier modes for flexible signal processing implementations.
- Clock Networks and PLLs: Up to 6 PLLs provide frequency synthesis and clock management with low jitter performance.
Pinout and Package Information

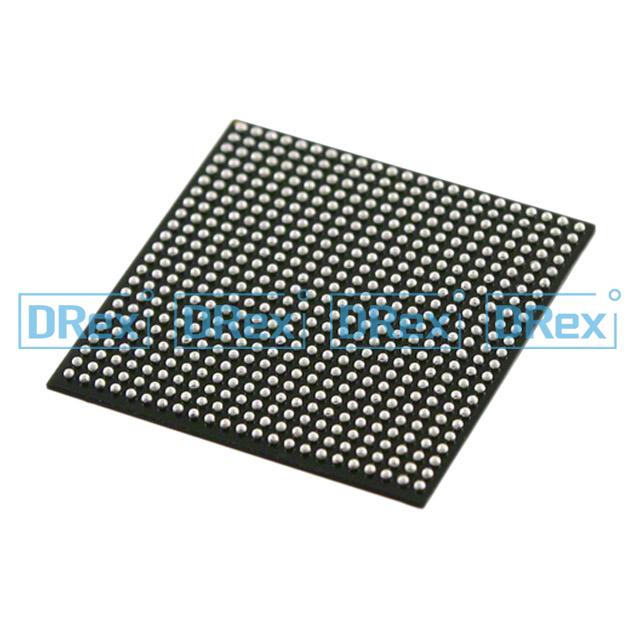

The 5CEBA4F23C8N is packaged in a 484-ball Fine-Pitch Ball Grid Array (FBGA) with a 23mm × 23mm body size and 1.0mm ball pitch. The F23 package designation identifies the specific pin configuration optimized for the Cyclone V E 5CEA4 device variant.
The 224 user I/O pins are organized into multiple I/O banks supporting various voltage standards including LVTTL, LVCMOS, SSTL, HSUL, and LVDS. The device supports differential I/O pairs for high-speed serial interfaces and includes dedicated configuration pins for JTAG, AS (Active Serial), and PS (Passive Serial) programming modes.
For detailed pin assignment tables and recommended PCB layout guidelines, refer to the official Intel Cyclone V Device Handbook.
Application Circuit and Design Guide
The 5CEBA4F23C8N is used in a variety of industrial, automotive, and communications applications. Typical development platforms include the Cyclone V E FPGA Development Kit, which provides a complete hardware environment for prototyping and evaluation.
When designing with the 5CEBA4F23C8N, consider the following guidelines:
- Power Supply Design: The core voltage (VCCINT) must be regulated to 1.1V ±3%. Use a dedicated low-noise LDO or switching regulator with proper decoupling capacitors placed close to the FPGA power pins.
- Configuration: The device supports Active Serial (AS), Passive Serial (PS), JTAG, and Fast Passive Parallel (FPP) configuration modes. An external EEPROM or flash memory stores the configuration bitstream.
- PCB Layout: Follow Intel's recommended via patterns for the 484-FBGA package. Use a minimum 6-layer PCB stackup with dedicated power and ground planes.
- Signal Integrity: For high-speed LVDS pairs, maintain controlled impedance traces with 100Ω differential impedance. Route differential pairs with tight coupling and matched lengths.
Development is supported by Intel Quartus Prime software, which provides synthesis, place-and-route, timing analysis, and programming capabilities.
Video Tutorial: Getting Started with Intel Cyclone V FPGA
Frequently Asked Questions
What is the 5CEBA4F23C8N and what family does it belong to?
The 5CEBA4F23C8N is an FPGA (Field Programmable Gate Array) from Intel's Cyclone V E family. It features 49,000 logic elements, 3,464,192 RAM bits, and 224 user I/O pins in a 484-FBGA package. It is manufactured using 28nm low-power process technology and operates at a core voltage of 1.1V.
What is the operating temperature range of the 5CEBA4F23C8N?
The 5CEBA4F23C8N operates over a commercial temperature range of 0°C to 85°C (junction temperature). The C8N speed grade designation confirms this is a commercial-grade device. For extended or industrial temperature range requirements, other variants in the Cyclone V E family may be available.
What software tools are used to program the 5CEBA4F23C8N?
The 5CEBA4F23C8N is programmed using Intel Quartus Prime design software, which handles HDL synthesis, place-and-route, timing analysis, and device programming. ModelSim is used for functional simulation. The free Quartus Prime Lite Edition supports the Cyclone V device family for development without a paid license.
What are the main applications of the 5CEBA4F23C8N FPGA?
The 5CEBA4F23C8N is used in industrial automation, motor control, protocol bridging, video and image processing, wireless infrastructure, military electronics, and automotive systems. Its combination of logic density, embedded memory, and DSP blocks makes it versatile for medium-complexity digital designs requiring real-time processing.
Is the 5CEBA4F23C8N RoHS compliant?
Yes, the 5CEBA4F23C8N is fully RoHS compliant and uses lead-free (Pb-free) packaging, as indicated by the "N" suffix in the part number. This makes it suitable for designs that must meet EU RoHS Directive 2011/65/EU and its amendments for restriction of hazardous substances.
Where can I buy the 5CEBA4F23C8N and what is its availability?
The 5CEBA4F23C8N is an active product available from authorized distributors including WWD Parts, Mouser Electronics, Digi-Key, and Arrow Electronics. As an active-status device in Intel's product lineup, it has stable long-term supply. Contact distributors directly for current pricing, lead times, and minimum order quantities.
