The 10M16SAU169C8G is a non-volatile, single-chip FPGA from Intel’s (formerly Altera) MAX 10 family, built on 55 nm flash process technology. It delivers 16,000 logic elements (LEs), 549 Kb of embedded SRAM (M9K blocks), up to 2,304 Kb of user flash memory (UFM), and an integrated 12-bit ADC — all within a compact 169-ball UBGA package. Operating at a 1.2 V core voltage with C8G speed grade, this device enables instant-on functionality with no external configuration memory required, making it an ideal fit for industrial control, sensor aggregation, motor drives, and cost-sensitive embedded systems.
Table of Contents
1. Overview and Core Features
The MAX 10 FPGA family represents Intel’s most cost-optimized non-volatile FPGA platform. The 10M16SAU169C8G sits in the mid-range of the family, offering 16,000 logic elements — sufficient for moderately complex digital designs including state machines, protocol bridges, and sensor fusion pipelines. Unlike SRAM-based FPGAs that require external flash or EEPROM for configuration, MAX 10 devices store their configuration internally in on-chip flash, enabling instant-on operation within milliseconds of power-up.
Key features of the 10M16SAU169C8G include dual configuration images for remote update with fail-safe fallback, an integrated 12-bit successive-approximation ADC with up to 18 analog input channels, and support for single-supply operation. The device also provides 32 general-purpose PLLs and global clock networks, enabling complex clocking schemes without external clock management ICs. With 130 maximum user I/O pins available on the U169 package variant, designers gain substantial connectivity for multi-sensor and multi-protocol applications.

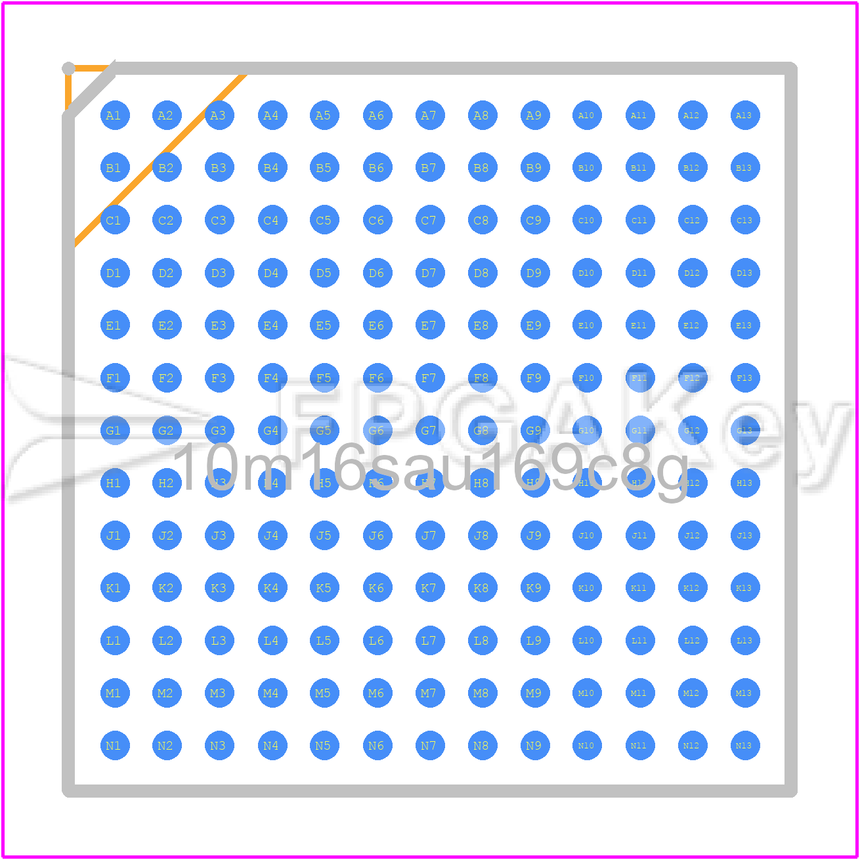

10M16SAU169C8G Package Footprint — 169-Ball UBGA (11 mm × 11 mm) Pin Layout (Source: Intel/Altera Package Documentation)
2. Specifications and Parameter Table
| Parameter | Value |
|---|---|
| Manufacturer | Intel (formerly Altera) |
| Family | MAX 10 FPGA |
| Part Number | 10M16SAU169C8G |
| Logic Elements (LEs) | 16,000 |
| Embedded Memory (M9K SRAM) | 549 Kb |
| User Flash Memory (UFM) | 2,304 Kb |
| Embedded Multipliers (18×18) | 45 |
| PLLs | 4 |
| Maximum User I/O Pins | 130 |
| ADC | 12-bit SAR, up to 1 MSPS, 18 analog channels |
| Core Voltage | 1.2 V |
| I/O Voltage | 1.2 V / 1.5 V / 1.8 V / 2.5 V / 3.0 V / 3.3 V |
| Speed Grade | C8G (commercial, −40°C to +100°C) |
| Process Technology | 55 nm Flash |
| Package | 169-Ball UBGA (11 mm × 11 mm) |
| Configuration | Internal flash (instant-on), dual boot images |
| Operating Temperature | −40°C to +100°C |
| RoHS Compliance | RoHS3 Compliant |
