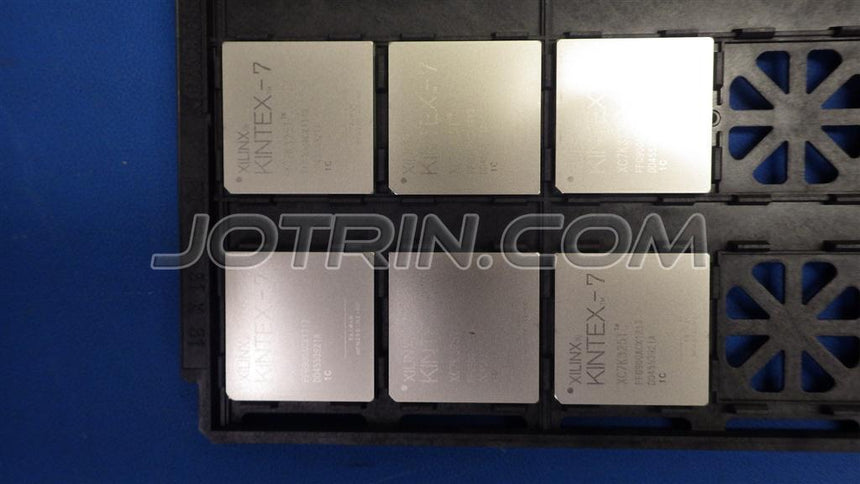

XC7K325T-1FFG900C Troubleshooting Guide (Xilinx Kintex-7)

Having issues with the XC7K325T-1FFG900C? As a core component in many high-performance systems, from software-defined radio to machine vision and data center acceleration, even minor issues can cause significant project delays. This guide covers the most common problems hardware engineers encounter during board bring-up and production testing, providing proven, step-by-step fixes based on official Xilinx documentation and extensive field experience.

XC7K325T-1FFG900C Quick Reference

The XC7K325T-1FFG900C is a high-performance FPGA from the Xilinx (now AMD) Kintex-7 family, designed to offer a balance of price, performance, and power consumption. It's built on a 28nm process technology, enabling significant logic density and I/O capabilities. Its architecture is particularly well-suited for applications requiring high-speed serial connectivity, parallel processing, and substantial on-chip memory. Common use cases include 10G Ethernet interfaces, video processing pipelines, medical imaging, aerospace and defense signal processing, and custom compute acceleration. The FFG900 package provides a large number of user I/O pins and sufficient thermal performance for demanding designs.

Common Problem #1: Configuration and Boot Failure

Symptom: The most common and frustrating bring-up issue. After power-on, the FPGA fails to configure. This typically manifests in one of several ways: the `DONE` pin remains low, the JTAG chain is not detected by Vivado Hardware Manager, or the device draws excessive current and becomes unusually hot.

Root Cause: The Kintex-7 configuration process is a multi-stage sequence that is highly sensitive to power supply sequencing, mode pin settings, and signal integrity on configuration pins. Any deviation from the datasheet specifications can halt this process. The most frequent culprits are:

• Incorrect Power Supply Sequencing: The Kintex-7 family has a specific power-on sequence requirement. According to the 7 Series FPGAs Configuration User Guide (UG470), VCCINT (core voltage) must be stable before VCCAUX (auxiliary voltage), which in turn must be stable before the VCCO (I/O bank voltage) rails. Failure to follow this can place the device in an unknown state.
• Incorrect Mode Pin Strapping: The M[2:0] pins determine the configuration mode (e.g., JTAG, Master SPI, Slave Serial). These pins are sampled at power-on. If they are floating, have weak pull-ups/pull-downs, or are connected incorrectly, the FPGA will attempt to boot in the wrong mode.
• JTAG Signal Integrity Issues: For JTAG configuration, ringing, slow rise/fall times, or crosstalk on TCK, TMS, TDI, or TDO can corrupt the communication between the programmer and the FPGA.
• Bitstream Issues: Using a bitstream generated for a different part (e.g., a different speed grade like -2 or -3) or a corrupted file from the configuration memory (e.g., SPI flash).

Fix: A systematic approach is crucial. Do not assume anything.

1. Verify Power Rails: Use an oscilloscope, not just a multimeter. Probe each power rail (VCCINT, VCCAUX, VCCOs, MGTAVCC, MGTAVTT) directly at the BGA balls or nearby decoupling capacitors.
   • Voltage Level: Confirm each rail is within the recommended operating conditions specified in the Kintex-7 FPGAs DC and AC Switching Characteristics Data Sheet (DS182). For example, VCCINT should be at its nominal voltage.
   • Sequencing: Use a multi-channel scope to capture the power-on event. Trigger on the first rail (typically VCCINT) and verify that VCCAUX and VCCOs ramp up in the correct order and with the specified timing delays.
   • Ripple: Check for excessive ripple on the core voltage (VCCINT) under load. High ripple can indicate an inadequate Power Delivery Network (PDN).
2. Inspect Configuration Pins:
   • Mode Pins (M[2:0]): Measure the voltage on these pins *during the power-on ramp*. A logic probe or oscilloscope is best. Ensure they are held at a stable logic high or low as required for your intended boot mode (e.g., for JTAG mode, M[2:0] is typically '101').
   • Program_B Pin: This pin should be high. If it's held low, the FPGA is held in a configuration reset state. Check its pull-up resistor.
   • INIT_B Pin: This pin is an open-drain output that signals initialization status. It should go high after power-up. If it is stuck low, it indicates an error during the initial power-on-reset (POR) or a CRC error in the bitstream.
3. Debug the JTAG Chain: If Vivado cannot detect the device, simplify the problem. If there are multiple devices in the chain, try to isolate the XC7K325T-1FFG900C. Scope the TCK signal at the FPGA pin; it should be a clean clock. Check TMS, TDI, and TDO for proper logic levels and clean transitions. Ensure the VREF_xx pin for the JTAG bank is properly powered.
4. Validate the Bitstream: In Vivado, double-check that the project's target device exactly matches "xc7k325tffg900-1". Regenerate the bitstream file. If using an SPI flash, re-flash it with a verified programmer and perform a read-back verification to ensure the data was written correctly.

Common Problem #2: GTX Transceiver Link Instability or Failure

Symptom: The high-speed serial links (using the GTX transceivers) fail to establish a connection (link training fails), or the link is established but suffers from a high Bit Error Rate (BER), leading to data corruption or frequent disconnects.

Root Cause: Multi-gigabit serial communication is an analog problem solved with digital tools. The GTX transceivers in the Kintex-7 are incredibly capable but require precise conditions to operate correctly.

• Reference Clock Quality: The GTX transceivers require an ultra-low jitter reference clock. If the clock source has excessive jitter, phase noise, or is off-frequency, the transceiver's internal PLLs cannot lock, and the serialized data will have severe timing errors.
• Signal Integrity (SI): The differential traces on the PCB are transmission lines. Impedance mismatches from vias, connectors, or poor routing, as well as crosstalk from adjacent signals, can severely degrade the signal eye at the receiver.
• Incorrect Transceiver Attributes: The GTX transceivers have dozens of configurable attributes (TX pre-emphasis, TX differential swing, RX equalization). Using default settings without tuning for the specific channel (PCB trace + cable + connector) can result in a marginal link.
• Power Supply Noise: The analog supplies for the transceivers (MGTAVCC, MGTAVTT) are very sensitive to noise. Insufficient decoupling or noise coupling from digital supplies can degrade performance.

Fix: Debugging GTX issues requires specialized tools and a methodical approach.

1. Verify the Reference Clock: This is non-negotiable. Use a high-bandwidth oscilloscope with jitter analysis software to measure the reference clock as close to the FPGA pins as possible. Verify that the peak-to-peak and RMS jitter are within the specifications listed in the 7 Series FPGAs GTX/GTH Transceivers User Guide (UG476). Also, confirm the frequency is accurate to the required PPM tolerance for your protocol (e.g., +/- 100 ppm for 10GbE).
2. Leverage the IBERT Core: The Integrated Bit Error Ratio Tester (IBERT) is your most powerful tool. Instantiate an IBERT core from the Vivado IP Catalog for the GTX quads you are using. This allows you to create internal pattern generators and checkers, bypassing your own logic.
   • Link Status Check: Use IBERT to perform a simple link test. If it can't establish a link, the problem is at the physical layer (clock, power, SI).
   • Perform an Eye Scan: IBERT's key feature is the 2D statistical eye scan. This scan runs in-system and generates a plot showing the signal margin at the receiver. A wide, open "eye" indicates a healthy link. A closed eye points to SI problems or the need for more equalization. This is a direct, quantitative measure of your link quality.
3. Tune Transceiver Attributes: If the eye is marginal, you must tune the transceiver settings.
   • TX Pre-emphasis/Post-cursor: These settings adjust the transmitter to pre-compensate for channel losses. Increase pre-emphasis to combat high-frequency attenuation in long traces.
   • RX Equalization: The receiver has equalizers (LPM or DFE mode) to help open a closed eye. Experiment with different settings. The goal is to find the combination that produces the largest eye opening in the IBERT scan. Make small, incremental changes and re-run the eye scan after each change.
4. Check Transceiver Power: Probe the MGTAVCC and MGTAVTT rails with a high-bandwidth scope set to AC coupling. Look for high-frequency noise. If you see significant noise (tens of mV), review your PDN design, especially the placement and values of decoupling capacitors and the effectiveness of ferrite beads.

Common Problem #3: In-System Timing Failures and Data Corruption

Symptom: The design passes all simulations and meets timing in the Vivado implementation reports. However, on the actual hardware, the system is unstable, produces intermittent incorrect results, or fails completely when running at the target clock speed. The issue may also be sensitive to temperature or operating voltage.

Root Cause: This is the classic "it works in simulation" problem. Static Timing Analysis (STA) performed by Vivado is only as good as the constraints it is given.

• Incomplete or Incorrect Constraints (XDC): The most common cause. Missing clock definitions, no input/output delay constraints, or false paths that aren't actually false can lead the tool to optimize the design based on incorrect assumptions.
• Clock Domain Crossing (CDC) Errors: Signals passing between asynchronous clock domains without proper synchronization logic (e.g., multi-flop synchronizers, asynchronous FIFOs) are a primary source of metastability and intermittent failures.
• Power Delivery Network (PDN) Insufficiency: When large portions of the FPGA logic switch simultaneously, it causes a large, transient current draw. If the PDN has high impedance, this results in a voltage drop ("droop") on the VCCINT rail. This droop can slow down logic paths enough to cause a timing violation that wasn't present at the nominal voltage.
• Thermal Issues: As the device heats up, logic paths become slower. If your design has very little timing margin to begin with, it may fail once the FPGA reaches its operational temperature.

Fix: This requires a combination of static analysis review and in-system debug.

1. Scrutinize Timing Reports and Constraints:
   • Go back to Vivado and run `report_timing_summary`. Look for any unconstrained paths. Run `check_timing` to find constraint issues.
   • Every single clock entering the FPGA must have a `create_clock` constraint. All asynchronous inputs must have `set_input_delay` constraints relative to a virtual clock.
   • Use the Vivado Clock Interaction Report to identify all clock domain crossings. Manually review each one to ensure proper CDC logic is in place. Do not rely on the tool to fix these implicitly.
2. Instrument Your Design with an ILA: The Integrated Logic Analyzer (ILA) IP core is the FPGA equivalent of a logic analyzer. It allows you to capture the state of internal signals in real-time on the hardware.
   • Instantiate an ILA and connect it to the signals on the failing path (identified from the timing report) or around the logic module you suspect is failing.
   • Set up a trigger condition (e.g., trigger when an error state is detected). When the trigger fires, the ILA will capture a buffer of signal data, allowing you to see exactly what the logic was doing leading up to the failure. This is invaluable for finding race conditions or incorrect state machine transitions.
3. Analyze the Power Delivery Network: Measure the VCCINT rail at a decoupling capacitor with a high-bandwidth scope while the FPGA is running the failing application. Set the scope to trigger on a significant voltage drop. If you see droop exceeding the datasheet tolerance (typically a few percent), your PDN needs improvement. This may require adding more bulk or high-frequency decoupling capacitors on the next board revision. In the short term, sometimes lowering the clock frequency can reduce the transient current and mitigate the issue.
4. Test Across Corners: If possible, test the board in a thermal chamber to see if the failures are temperature-dependent. You can also use a programmable power supply to slightly lower the core voltage (while staying within the recommended operating range) to reduce your timing margin and see if failures become more frequent. This helps confirm if the issue is marginal timing.

System-Level Debug Checklist

When a board with an XC7K325T-1FFG900C is not working, run through this checklist systematically before diving deep into any single issue. This helps isolate the problem to a specific domain (power, configuration, application logic).

Advanced debugging often requires correlating behavior across multiple domains. For example, a timing failure (Logic domain) might be caused by power supply noise (Power domain). Using tools like the Vivado ILA is essential for observing the internal state of the FPGA, but it's only useful if the device can be reliably powered on and configured first. If you are facing persistent issues that seem to point to a faulty component, it's crucial to ensure your parts are genuine and from a reliable source. The entire Browse Kintex-7 Series is a target for counterfeiting due to its high value and wide usage. A counterfeit part may power on but fail on performance-critical tasks like high-speed I/O or maximum frequency operation.

Sourcing and Verifying Genuine XC7K325T-1FFG900C Parts

In today's constrained supply chain, the temptation to source components from unauthorized channels is high. However, for a complex and high-value device like the XC7K325T-1FFG900C, this is exceptionally risky. Counterfeit FPGAs are a significant and growing problem. These parts are often remarked (lower-grade parts re-labeled as higher-grade), reclaimed from e-waste, or are simply empty packages. A counterfeit part can introduce insidious failures that are incredibly difficult and expensive to debug.

Common characteristics of counterfeit or substandard parts include:

• Performance Failures: The most common failure mode. A remarked part (e.g., a slower -1 speed grade part sold as a faster -2 or -3) will fail timing analysis when run at the target speed. A reclaimed part may have internal damage from previous use or improper handling, leading to intermittent failures.
• Physical Defects: Look for inconsistent laser markings, different fonts or logos, or signs of blacktopping (a fresh coat of black paint to hide original markings). Bent or re-balled BGA spheres are also a red flag.
• Inconsistent Behavior: One board works, another identical board fails. This device-to-device variation is a hallmark of using parts from mixed, untraceable lots.

The only way to guarantee authenticity is to source through authorized or highly reputable, traceable distributors. A trusted independent distributor maintains rigorous inspection processes and provides supply chain traceability. This protects your project from the immense financial and schedule risks of counterfeit components. When you source from a reliable partner, you get a part that meets the manufacturer's full datasheet specifications for performance, power, and reliability. Don't let a questionable component derail your entire project. Check XC7K325T-1FFG900C Inventory & Pricing from a trusted source to ensure you receive genuine, fully functional devices.

Video Demonstration

Frequently Asked Questions (XC7K325T-1FFG900C FAQ)

Why does my XC7K325T-1FFG900C get very hot even with no design loaded?

Excessive idle heat is a serious red flag. First, immediately power down the board to prevent permanent damage. The most likely cause is a power-to-ground short, either on the PCB itself or internally within the FPGA (a rare but possible manufacturing defect). Other causes include an incorrect, over-voltage supply on VCCINT, or contention on I/O pins where multiple drivers are fighting. Systematically check all power rails for shorts to ground with a multimeter before applying power again.

My JTAG chain is not recognized by Vivado. What's wrong?

This is a common bring-up issue. Start with the physical connections: check your JTAG programming cable, the header on your board, and any level shifters in the path. Then, verify the JTAG-related power. The I/O bank powering the TCK, TMS, TDI, and TDO pins must be active, and its corresponding VREF pin (if used) must be correctly biased. Finally, use an oscilloscope to probe the TCK signal directly at the FPGA pin; it should be a clean, low-jitter clock. A noisy or absent TCK is a primary reason for JTAG failure.

The FPGA configures successfully (DONE is high), but my design doesn't work. What's the next step?

This means the problem is in your logic, not the basic configuration process. The first step is to verify all clocks and resets. Use an Integrated Logic Analyzer (ILA) core to probe your main system clock and primary reset signal inside the FPGA. Confirm the clock is toggling at the correct frequency and the reset is de-asserted. Many designs fail simply because they are being held in a reset state.

Can I use a bitstream for a XC7K325T-2FFG900C on my XC7K325T-1FFG900C board?

No, you cannot. The bitstream contains a device ID check, and the configuration will fail if the ID in the bitstream does not match the silicon ID. Even if you could bypass this check, it would be extremely unwise. Different speed grades have different timing models. A bitstream compiled for a faster (-2) part will likely fail timing on a slower (-1) part, leading to unpredictable behavior and data corruption.

What is the most common power supply mistake with the XC7K325T-1FFG900C?

The most common and damaging mistake is ignoring the power-on sequence. The Kintex-7 datasheet strictly requires that the core voltage (VCCINT) ramps up first, followed by the auxiliary voltage (VCCAUX), and finally the I/O voltages (VCCO). Reversing this order or having them all ramp at once can cause high inrush currents and latch-up conditions that can permanently damage the device. Always use a dedicated power sequencer or a power management IC (PMIC) designed for FPGAs to enforce the correct sequence.
