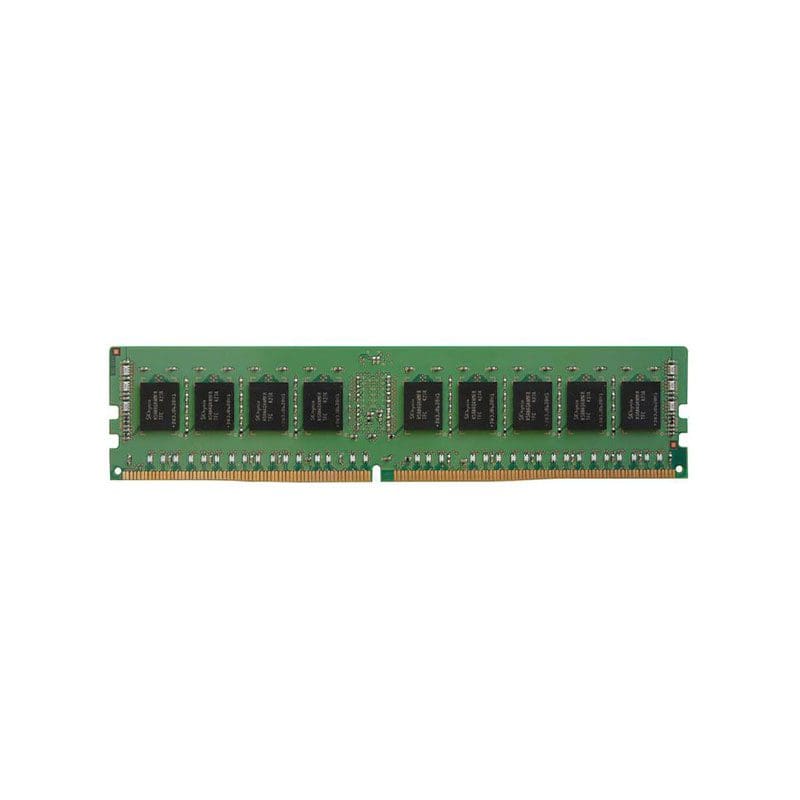

Engineers designing server, workstation, or embedded systems face a persistent challenge: scaling memory capacity and bandwidth while maintaining stringent reliability and signal integrity. As processor core counts and data processing demands increase, the memory subsystem often becomes a bottleneck. The Hynix HMA41GR7MFR8N-TF is a DDR4 Registered DIMM (RDIMM) specifically engineered to address this triad of challenges, providing a stable and reliable memory solution for enterprise-grade platforms where data integrity is not merely a feature, but a fundamental requirement.
Table of Contents
The Design Challenge HMA41GR7MFR8N-TF Solves
In the realm of high-performance computing, particularly in servers and data centers, the memory subsystem is a critical performance and reliability pillar. The primary design challenge is to provide the CPU with fast, expansive, and error-free access to data. This becomes exponentially more difficult as you increase both the speed and the number of memory modules in a system. The HMA41GR7MFR8N-TF directly confronts these issues through its specific design as a Registered DIMM with Error Correction Code (ECC).
First, consider the signal integrity problem. A standard desktop memory module, an Unbuffered DIMM (UDIMM), connects the DRAM chips directly to the memory controller on the CPU. While simple and low-latency for a small number of modules, this direct connection presents a significant capacitive load on the controller's address and command bus. As you add more modules to a channel, this load increases, degrading signal integrity, limiting the maximum stable clock speed, and ultimately restricting the total memory capacity of the system. For a server that might need 12, 16, or even 24 memory slots, the UDIMM approach is not viable.
The HMA41GR7MFR8N-TF solves this by being a Registered DIMM (RDIMM). It incorporates a Registering Clock Driver (RCD) chip directly on the module. This RCD acts as a buffer for all address, command, and clock signals, presenting a single, clean electrical load to the memory controller, regardless of how many DRAM chips are on the module. The controller only "sees" the RCD, not the individual DRAMs. This decoupling allows a memory channel to support a greater number of modules and thus achieve much higher total system memory capacities, a crucial requirement for virtualization, in-memory databases, and large-scale scientific computing.
Second, there is the non-negotiable requirement for data integrity. In a server environment running critical applications, a single-bit memory error—often caused by background radiation or electrical noise—can lead to silent data corruption, application crashes, or complete system failure. Standard non-ECC memory has no mechanism to combat this. The HMA41GR7MFR8N-TF is built with a 72-bit wide data bus, comprising 64 bits for data and 8 bits for Error Correction Code (ECC). The memory controller uses this extra information to detect and correct any single-bit errors in real-time, and to detect (but not correct) most multi-bit errors. This feature is the bedrock of system stability in any 24/7 enterprise application.
By combining the registered design for scalability and the ECC functionality for reliability, the HMA41GR7MFR8N-TF provides a robust solution for mainstream server platforms that require a balance of performance, capacity, and stability without moving to more complex and costly alternatives like Load-Reduced DIMMs (LRDIMMs).
Key Specifications at a Glance
The following specifications are derived from official manufacturer documentation and are critical for design and validation. These parameters define the module's performance envelope and compatibility with target systems.
| Parameter | Value | Why It Matters |
|---|---|---|
| Module Type | DDR4 RDIMM (Registered DIMM) | The onboard RCD buffers address/command signals, reducing load on the memory controller and enabling higher memory capacity per system. This is a key differentiator from UDIMMs. |
| Density | 8GB | Provides a foundational capacity point for dual- or quad-channel server configurations, allowing for cost-effective initial builds with room for expansion. |
| Organization | 1Gx72 (1 Rank x8) | Indicates an 8GB module built using x8-width DRAM chips with ECC support (64 data bits + 8 ECC bits). The single-rank (1R) design presents a lower electrical load than a dual-rank module of the same capacity. |
| Speed Grade | DDR4-2133P / PC4-17000 | Specifies a maximum data transfer rate of 2133 MT/s. This speed was common for server platforms like the Intel Xeon E5-v3 generation, offering a solid performance baseline. |
| CAS Latency (CL) | 15 (at 2133 MT/s) | The time, in clock cycles, between the column address strobe (CAS) command and the availability of data. A CL of 15 is standard for this speed grade. |
| Operating Voltage (VDD) | 1.2V | Standard JEDEC voltage for DDR4, offering a significant power reduction compared to the 1.5V or 1.35V of DDR3, which is critical for thermal management in dense server racks. |
| Pin Count | 288-pin | The standard physical connector for DDR4 DIMMs, featuring a curved edge connector to aid insertion and prevent damage. Not compatible with DDR3 (240-pin) or DDR5 (288-pin, different keying) slots. |
| Error Correction | ECC (Error Correction Code) | The module supports on-the-fly detection and correction of single-bit memory errors, a mandatory feature for server and workstation reliability. |
HMA41GR7MFR8N-TF vs Alternatives: Head-to-Head
Choosing the right memory type is a critical system architecture decision. Here's how the HMA41GR7MFR8N-TF RDIMM compares to other common module types.
| Feature | HMA41GR7MFR8N-TF (RDIMM) | Typical UDIMM (Unbuffered) | Typical LRDIMM (Load-Reduced) |
|---|---|---|---|
| Buffering | Address, command, and clock signals are buffered by an on-module RCD. | No buffering. Direct connection between controller and DRAM. | Address, command, clock, AND data signals are buffered. |
| Target Application | Mainstream servers, workstations, high-end embedded systems. | Desktops, low-end servers, some embedded systems. | High-capacity, memory-intensive servers (e.g., large databases, virtualization hosts). |
| Max Capacity/Channel | High. The RCD reduces electrical load, allowing more DIMMs per channel (typically 2-3 DPC). | Low. High electrical load limits configurations to 1 or 2 DIMMs per channel (DPC). | Highest. Data buffers further reduce load, enabling maximum DIMM population and capacity. |
| Latency | Base latency + 1 clock cycle for the RCD. | Lowest. No buffer delay. | Highest. Additional latency from the data buffers (DBs) on top of the RCD delay. |
| Power Consumption | Moderate. The RCD consumes a small amount of power. | Lowest. No active buffer components on the module. | Highest. Both the RCD and multiple data buffer chips consume power. |
| Cost | Moderate. More complex than UDIMMs due to the RCD. | Lowest. Simplest design. | Highest. Most complex design with additional buffer components. |
In summary, the HMA41GR7MFR8N-TF is the optimal choice for the majority of server and workstation designs. It strikes a crucial balance that UDIMMs cannot achieve. While a UDIMM offers slightly lower latency, it severely restricts memory scalability, making it unsuitable for systems that need more than 32GB or 64GB of total RAM. On the other end of the spectrum, an LRDIMM offers the absolute maximum capacity but at the cost of increased latency, power, and expense. For a typical enterprise server, web server, or development workstation that requires between 64GB and 512GB of reliable, ECC-protected memory, the RDIMM, as exemplified by the HMA41GR7MFR8N-TF, provides the most effective and balanced solution. You choose this part when reliability and scalability are more important than the single clock cycle of latency saved by a UDIMM.
System-Level Integration and Power
Integrating a memory module like the HMA41GR7MFR8N-TF is less about a discrete component "circuit" and more about system-level architecture, particularly power delivery and bus interfacing. The module is a complete subsystem designed to interface with a DDR4-compliant memory controller, typically integrated within a server-class CPU.
The primary electrical interface consists of several key bus groups:
- Data/Strobe (DQ/DQS): The 64-bit data bus and its associated differential strobes are the high-speed pathways for data transfer.
- Address/Command/Control: These signals are routed from the memory controller to the RCD on the module, which then re-drives them to the individual DRAM chips.
- Clock (CK): A differential clock signal, also buffered by the RCD.
- Serial Presence Detect (SPD) Bus: An I2C/SMBus interface connects to an onboard EEPROM. At boot, the system BIOS reads this SPD data to learn the module's characteristics (timings, capacity, organization) and configure the memory controller accordingly. This is a critical part of the plug-and-play functionality.
Power delivery is paramount for stability. The motherboard must provide three clean, well-regulated voltage rails to the DIMM socket:
- VDD (1.2V): The main supply for the DRAM chips and RCD logic. This rail has the highest current demand and requires extensive local decoupling on the motherboard, right at the DIMM socket.
- VPP (2.5V): A higher voltage rail used internally by the DRAMs for wordline activation. While its current draw is lower than VDD, its stability is equally important.
- VTT (0.6V): A termination voltage, nominally half of VDD. This rail is used for the termination of the address, command, and control buses, and is essential for maintaining signal integrity by preventing reflections.
A capable Power Management IC (PMIC) or a set of discrete DC-DC converters is required to generate these rails with low ripple and fast transient response. When selecting supporting components for your design, it's wise to consider the full range of memory modules your platform might support. For a comprehensive selection of memory solutions and related components, you can Browse DDR4 Series available from various manufacturers.
PCB Layout and Thermal Design Tips
The performance of the HMA41GR7MFR8N-TF is fundamentally tied to the quality of the motherboard's PCB design. High-speed memory layout is a discipline in itself, and mistakes here can lead to intermittent errors that are difficult to debug.
PCB Layout Guidance:
- Trace Length Matching: This is the most critical rule. All data lines (DQ) within a byte lane must be matched in length to their corresponding strobe (DQS). Furthermore, all byte lanes within a channel should be matched to each other and to the clock (CK) and address/command lines. Modern EDA tools have automated features for this, often using serpentine routing to add delay to shorter traces. Failure to match lengths results in timing skew, causing data capture errors at the receiver.
- Impedance Control: All high-speed traces must be routed with a controlled characteristic impedance, typically 40-50 Ohms single-ended and 80-100 Ohms differential, as specified by the CPU and JEDEC standards. This requires careful PCB stackup design, defining trace widths and spacing relative to the reference ground/power planes.
- Routing Topology: For RDIMMs, the address/command/control signals are typically routed in a "fly-by" topology. The trace runs past each DIMM socket in a daisy-chain fashion, with the RCD on each module tapping into the bus. This topology is more manageable for signal integrity at high speeds compared to the "T-topology" used in older systems.
- Power and Ground Planes: Use solid, uninterrupted ground and power planes directly beneath the signal routing layers. This provides a clean return path for high-frequency currents and helps control impedance. Any splits or voids in these planes under high-speed traces can create impedance discontinuities and EMI issues.
- Decoupling: Place a bank of decoupling capacitors (typically 0.1uF, 1uF, and 10uF) as close as physically possible to the VDD and VTT pins of the DIMM socket to supply instantaneous current and filter noise.
Thermal Management:
A bank of RDIMMs can be a significant heat source. The HMA41GR7MFR8N-TF has a specified operating case temperature range (Tcase), often 0°C to 85°C. Exceeding this can lead to increased error rates and reduced component lifetime. Effective thermal management is a system-level task. In a server chassis, this is achieved by powerful fans creating strong, directed front-to-back airflow across the DIMM slots. The motherboard layout should place DIMMs parallel to this intended airflow. Ensure no tall components upstream block air from reaching the modules. For very dense or high-ambient-temperature environments, modules with heat spreaders may be necessary to increase the surface area for heat dissipation.
Where to Buy HMA41GR7MFR8N-TF
The Hynix HMA41GR7MFR8N-TF is a widely used module in the enterprise sector, making it available through authorized distributors and component specialists. When sourcing for production, it's important to work with a supplier who can provide traceability and ensure authentic parts. Counterfeit memory modules are a known problem and can introduce severe reliability issues into a system.
Modules are typically supplied in JEDEC-standard anti-static trays for bulk orders intended for automated assembly lines (EMS). For smaller quantities for prototyping or repair, they are usually available in individual anti-static bags. Lead times can vary based on market demand and factory allocation. For mission-critical production schedules, it is advisable to establish a forecast with your supplier to secure inventory.
As a global distributor of electronic components, WWDParts offers access to a wide range of memory modules, including this specific Hynix part. You can verify stock levels, get quotes for volume pricing, and place orders directly through our platform. To see current availability and detailed pricing information, please Check HMA41GR7MFR8N-TF Inventory & Pricing.
Video Demonstration
Frequently Asked Questions (HMA41GR7MFR8N-TF FAQ)
What is the primary difference between this HMA41GR7MFR8N-TF RDIMM and a standard UDIMM?
The key difference is the presence of a Registering Clock Driver (RCD) on the RDIMM. This RCD buffers the address, command, and clock signals between the CPU's memory controller and the DRAM chips. This greatly reduces the electrical load on the controller, allowing it to reliably drive more memory modules per channel, which in turn enables much higher total system memory capacity compared to what is possible with unbuffered DIMMs (UDIMMs).
Can I use the HMA41GR7MFR8N-TF in my consumer desktop PC?
Generally, no. This module is an RDIMM with ECC, designed for servers and workstations. Most consumer desktop motherboards and processors (like Intel Core i-series or AMD Ryzen) only support non-ECC UDIMMs. The physical slot may be the same 288-pin DDR4 connector, but the electrical signaling is different, and the motherboard's BIOS will not be able to initialize the module. Always consult your motherboard's Qualified Vendor List (QVL) to confirm memory compatibility.
How does the ECC (Error Correction Code) function on this module benefit my system?
The ECC function is critical for system stability in enterprise environments. The module uses an extra 8 bits for every 64 bits of data to store a checksum. The memory controller uses this checksum to detect and automatically correct any single-bit errors that may occur in the data as it's stored or transferred. This prevents silent data corruption and system crashes that can be caused by random bit flips, which is an unacceptable risk for servers running critical applications.
In what scenario should I choose a more advanced LRDIMM over this RDIMM?
You should consider an LRDIMM (Load-Reduced DIMM) when your design requires the absolute maximum memory capacity that a platform can support. While an RDIMM like the HMA41GR7MFR8N-TF buffers the command and address bus, an LRDIMM goes a step further by also buffering the data (DQ) bus. This further reduces the electrical load, allowing for the highest possible DIMM population per channel, but it comes at the cost of slightly higher power consumption and increased latency. LRDIMMs are typically reserved for high-end servers with terabytes of RAM.
What are the most critical PCB layout rules when designing a motherboard for this module?
The three most critical layout rules are trace length matching, impedance control, and clean power delivery. First, all high-speed traces (data, strobes, clock) must be meticulously length-matched to prevent timing skew. Second, these traces must be routed with a controlled impedance (e.g., 50 Ohms single-ended) to prevent signal reflections. Finally, providing stable VDD, VPP, and VTT power rails with extensive local decoupling capacitance right at the DIMM socket is essential for stable operation under load.
