MC68HC705J1ACP–Microcontroller, HC05 @ 4MHz, 20-DIP (0.300\ | NXP USA Inc.
● Obsolete The MC68HC705J1ACP is a microcontroller from NXP USA Inc., featuring HC05 running at 4MHz, in...
- $2.78
- $2.78
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$2.78
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x● Obsolete

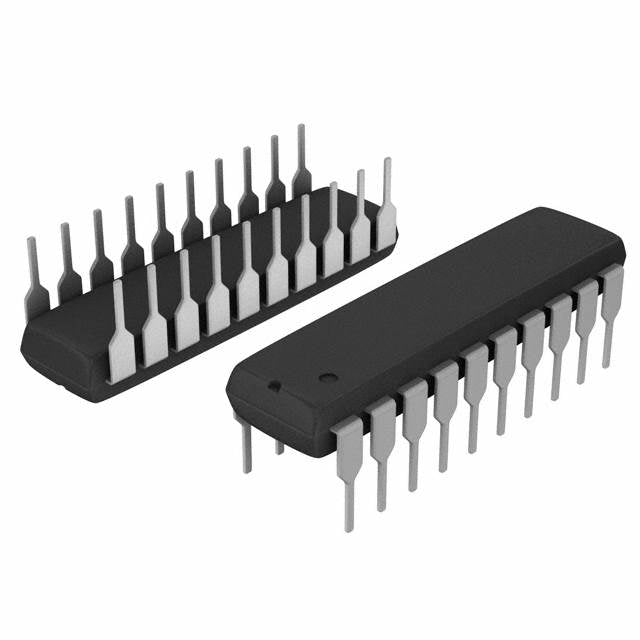

The MC68HC705J1ACP is a microcontroller from NXP USA Inc., featuring HC05 running at 4MHz, in 20-DIP (0.300\ package. Specified operating temperature: -40°C ~ 85°C (TA).
📋 Key Specifications
- Core Processor:HC05
- Speed:4MHz
- Program Memory Size:1.2KB (1.2K x 8)
- RAM Size:64 x 8
- Number of I/O:14
- Package / Case:20-DIP (0.300\
- Operating Temperature:-40°C ~ 85°C (TA)
- Peripherals:POR, WDT
🎯 Typical Applications
- Embedded control systems (typical for this category)
- IoT sensor nodes and endpoints
- Motor control applications
- Human-machine interfaces (HMI)
- Consumer electronics
❓ FAQ
What is the specified operating temperature range for MC68HC705J1ACP?
According to the specifications, the MC68HC705J1ACP is rated for operation from -40°C ~ 85°C (TA).
What package is the MC68HC705J1ACP available in?
The MC68HC705J1ACP is offered in 20-DIP (0.300\ package format.
What processor is integrated in the MC68HC705J1ACP?
The MC68HC705J1ACP integrates HC05 processor.
Where can I find detailed specifications for MC68HC705J1ACP?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Core Processor | HC05 |
|---|---|
| Speed | 4MHz |
| Program Memory Size | 1.2KB (1.2K x 8) |
| RAM Size | 64 x 8 |
| Number of I/O | 14 |
| Package / Case | 20-DIP (0.300\ |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Peripherals | POR, WDT |
| Product Status | Obsolete |
| Core Size | 8-Bit |
| DigiKey Programmable | Not Verified |
| Mounting Type | Through Hole |
| Oscillator Type | Internal |
| Package | Tube |
| Program Memory Type | OTP |
| Supplier Device Package | 20-DIP |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
Tier Pricing
xVolume Pricing
💡 Custom Pricing Available:
For quantities exceeding 10,000 units or special requirements, please contact our sales team for a customized quote.
Datasheet
xMC68HC705J1ACP Datasheet
Official datasheet from NXP USA Inc. with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: NXP USA Inc. • Format: PDF
