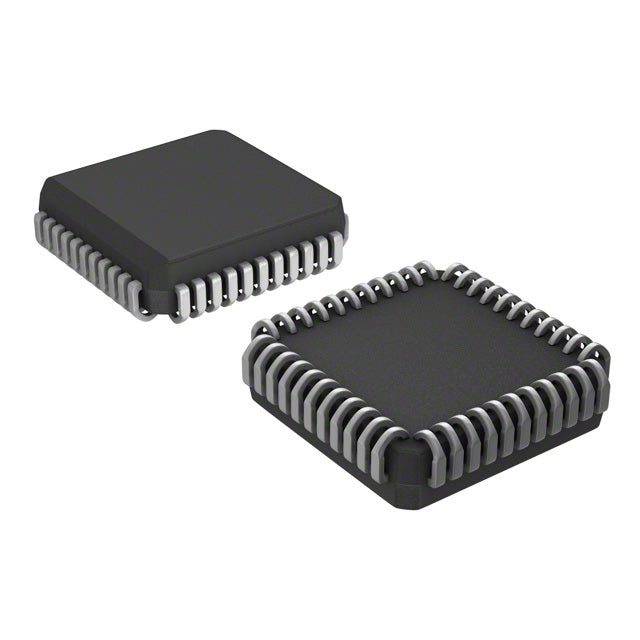

MC68HC705C8AFNE–Microcontroller, HC05 @ 2.1MHz, 44-LCC (J-Lead) | NXP USA Inc.
✓ RoHS● Obsolete The MC68HC705C8AFNE is a microcontroller from NXP USA Inc., featuring HC05 running at 2.1MHz,...
- $0.00
- $0.00
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$0.00
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x
✓ RoHS● Obsolete
The MC68HC705C8AFNE is a microcontroller from NXP USA Inc., featuring HC05 running at 2.1MHz, in 44-LCC (J-Lead) package. Specified operating temperature: 0°C ~ 70°C (TA).
📋 Key Specifications
- Core Processor:HC05
- Speed:2.1MHz
- Program Memory Size:8KB (8K x 8)
- RAM Size:304 x 8
- Number of I/O:24
- Package / Case:44-LCC (J-Lead)
- Operating Temperature:0°C ~ 70°C (TA)
- Peripherals:POR, WDT
🎯 Typical Applications
- Embedded control systems (typical for this category)
- IoT sensor nodes and endpoints
- Motor control applications
- Human-machine interfaces (HMI)
- Consumer electronics
❓ FAQ
What is the specified operating temperature range for MC68HC705C8AFNE?
According to the specifications, the MC68HC705C8AFNE is rated for operation from 0°C ~ 70°C (TA).
What package is the MC68HC705C8AFNE available in?
The MC68HC705C8AFNE is offered in 44-LCC (J-Lead) package format.
What processor is integrated in the MC68HC705C8AFNE?
The MC68HC705C8AFNE integrates HC05 processor.
Is the MC68HC705C8AFNE RoHS compliant?
Yes, the MC68HC705C8AFNE is listed as RoHS compliant.
Where can I find detailed specifications for MC68HC705C8AFNE?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Core Processor | HC05 |
|---|---|
| Speed | 2.1MHz |
| Program Memory Size | 8KB (8K x 8) |
| RAM Size | 304 x 8 |
| Number of I/O | 24 |
| Package / Case | 44-LCC (J-Lead) |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Peripherals | POR, WDT |
| Connectivity | SCI, SPI |
| Product Status | Obsolete |
| Core Size | 8-Bit |
| DigiKey Programmable | Verified |
| Mounting Type | Surface Mount |
| Oscillator Type | Internal |
| Package | Tube |
| Program Memory Type | OTP |
| Supplier Device Package | 44-PLCC (16.59x16.59) |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
Datasheet
xMC68HC705C8AFNE Datasheet
Official datasheet from NXP USA Inc. with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: NXP USA Inc. • Format: PDF
MC68HC705C8AFNE vs MC68HC705C8ACFN vs MC68HC705C9ACFB
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | MC68HC705C8AFNE Current | MC68HC705C8ACFN | MC68HC705C9ACFB |
|---|---|---|---|
| Core Processor | HC05 | HC05 | HC05 |
| Speed | 2.1MHz | 2.1MHz | 2.1MHz |
| Program Memory Size | 8KB (8K x 8) | 8KB (8K x 8) | 16KB (16K x 8) |
| RAM Size | 304 x 8 | 304 x 8 | 352 x 8 |
| Number of I/O | 24 | 24 | 24 |
| Package / Case | 44-LCC (J-Lead) | 44-LCC (J-Lead) | 44-QFP |
| Operating Temperature | 0°C ~ 70°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Peripherals | POR, WDT | POR, WDT | POR, WDT |
| Connectivity | SCI, SPI | SCI, SPI | SCI, SPI |
| Product Status | Obsolete | Obsolete | Obsolete |
| Price | $0.00 | $7.88 | $9.03 |
| Availability | In Stock | In Stock | In Stock |
