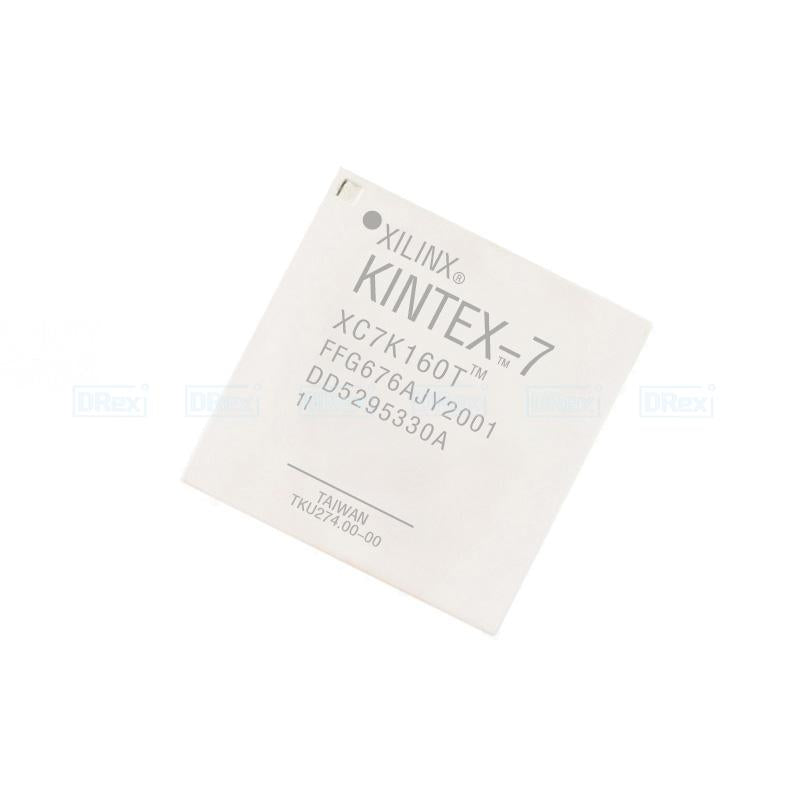

XC7K160T FPGA: Resources and Image-Buffer Design Guide

February 21, 2026 · Published by WWDParts

XC7K160T provides more logic and on-chip storage than XC7K70T, but its suitability for image processing depends on the buffering architecture. A design that processes a few image lines needs far less memory than one that holds complete frames. This guide uses a monochrome-video example to show why those requirements should be calculated before selecting external memory.

Count LUTs separately from logic cells

Logic cells	162,240
CLB slices	25,350
6-input LUTs / flip-flops	101,400 / 202,800
DSP48E1 slices	600
Block RAM	325 blocks of 36 Kb; 11,700 Kb total
Device maximum GTX / user I/O	8 / 400; package dependent

The logic figures come from AMD CLB Resources, UG474 v1.9; the device resource totals are listed in AMD 7 Series Overview, DS180 v2.6.1. Writing 162,240 as the LUT count overstates the physical LUT resources. Review utilization by resource type and hierarchy instead of relying on one headline percentage.

Full-frame storage versus line processing

Assume an uncompressed 1,920 × 1,080 image with one 8-bit sample per pixel. One active frame requires 2,073,600 bytes; two frames require 4,147,200 bytes. The advertised 11,700 Kb of block RAM corresponds to 11,700 × 1,024 / 8 = 1,497,600 raw byte-equivalents, already below one frame. This comparison is an upper-bound capacity check, not a claim that all raw bits map into byte-wide storage.

For a streaming algorithm needing three complete active lines, the sample storage is only 1,920 × 3 = 5,760 bytes. Line buffers, pipeline registers and border handling may therefore be a better starting architecture than a full-frame store. Whether that works depends on the algorithm: frame-wide reordering, large temporal windows or unpredictable downstream stalls can require additional memory.

Use AMD Memory Resources, UG473 v1.14 to select the port arrangement and map each buffer to real blocks. Include separate entries for image data, descriptors, coefficients and debug capture. Two designs with the same byte total can consume different block counts because of width/depth choices and independent access requirements.

Budget the traffic, not only the capacity

At 60 active frames per second, the example produces 2,073,600 × 60 = 124,416,000 bytes/s. If external memory receives one write and one read for each byte, those two transfers alone total 248,832,000 bytes/s. Blanking representation, memory refresh, arbitration, additional passes and protocol overhead are outside this simple calculation.

Separate peak bursts from average flow. A source can deliver pixels in active periods while a host or output interface pauses. Document the maximum pause the buffer must absorb and the behavior when that budget is exceeded. During verification, make the downstream interface stall on purpose and check output frame boundaries and sequence counters.

For external DDR, AMD Memory Interface Solutions, UG586 v4.2 describes controller RTL generated for the selected interface. Generate and implement the intended configuration, then evaluate its usable traffic rate. The family memory-interface headline does not establish the sustained bandwidth of a particular board, memory part or access pattern.

Package and serial-interface selection

DS180 lists FBG484, FBG676 and FFG676 for XC7K160T. The 484-ball option exposes four GTX lanes and 285 user I/O; the listed 676-ball options expose eight lanes and 400 user I/O. Consult AMD Kintex-7 package and pinout files for the pin assignment of the actual package, including the bank types and clock-capable pins.

FBG676 and FFG676 must not be treated as identical high-speed channels simply because both have 676 balls. AMD Kintex-7 Electrical Characteristics, DS182 v2.19 Table 56 specifies 6.6 Gb/s for FBG676; the 12.5 Gb/s figure belongs to the applicable -3 FF conditions. Package, speed grade, supplies and the table notes all matter. A footprint relationship is not an unconditional performance-equivalence statement.

From a resource estimate to a reviewable design

Build a small version of the intended pixel pipeline and inspect inferred DSP and RAM resources. Multiplication width, coefficient precision and sharing choices affect the result.
State the processing clock and the number of pixels handled per cycle. Validate the chosen rate with the routed design; a DSP count alone is not a throughput measurement.
Constrain input/output timing and clock-domain crossings. Test reset recovery while traffic is active, rather than only at startup.
Compare the implemented power estimate and measured board temperatures with the selected grade and cooling arrangement. Do not assume a fixed power reduction or battery-life gain from the family name.

For a smaller device and a serial acquisition example, see the XC7K70T package and buffer guide. Moving between devices still requires a new resource, pinout and timing assessment; this article does not approve a direct substitution.

Ordering and manufacturer references

Send the full XC7K160T ordering code, quantity, required delivery date and any packaging or documentation requirements through the WWDParts RFQ list. Price, availability and delivery terms are confirmed in the written quotation.

Technical content reviewed October 13, 2026. The budgets and validation steps here are engineering examples, not measured performance, qualification results or replacement approvals. Use the applicable manufacturer document revision and exact order code for design release.
