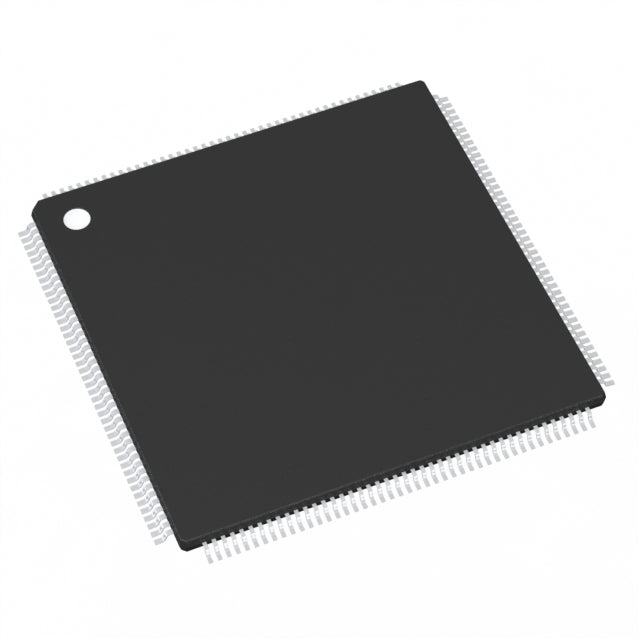

MC68HC16Z1CPV16–Microcontroller, CPU16 @ 16MHz, 144-LQFP | NXP USA Inc.
● Obsolete The MC68HC16Z1CPV16 is a microcontroller from NXP USA Inc., featuring CPU16 running at 16MHz, in...
- $12.72
- $12.72
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$12.72
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x● Obsolete
The MC68HC16Z1CPV16 is a microcontroller from NXP USA Inc., featuring CPU16 running at 16MHz, in 144-LQFP package. Specified operating temperature: -40°C ~ 85°C (TA).
📋 Key Specifications
- Core Processor:CPU16
- Speed:16MHz
- RAM Size:1K x 8
- Number of I/O:16
- Package / Case:144-LQFP
- Operating Temperature:-40°C ~ 85°C (TA)
- Peripherals:POR, PWM, WDT
🎯 Typical Applications
- Embedded control systems (typical for this category)
- IoT sensor nodes and endpoints
- Motor control applications
- Human-machine interfaces (HMI)
- Consumer electronics
❓ FAQ
What is the specified operating temperature range for MC68HC16Z1CPV16?
According to the specifications, the MC68HC16Z1CPV16 is rated for operation from -40°C ~ 85°C (TA).
What package is the MC68HC16Z1CPV16 available in?
The MC68HC16Z1CPV16 is offered in 144-LQFP package format.
What processor is integrated in the MC68HC16Z1CPV16?
The MC68HC16Z1CPV16 integrates CPU16 processor.
Where can I find detailed specifications for MC68HC16Z1CPV16?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Core Processor | CPU16 |
|---|---|
| Speed | 16MHz |
| RAM Size | 1K x 8 |
| Number of I/O | 16 |
| Package / Case | 144-LQFP |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Peripherals | POR, PWM, WDT |
| Connectivity | EBI/EMI, SCI, SPI |
| Product Status | Obsolete |
| Core Size | 16-Bit |
| Data Converters | A/D 8x10b |
| DigiKey Programmable | Not Verified |
| Mounting Type | Surface Mount |
| Oscillator Type | Internal |
| Package | Tray |
| Program Memory Type | ROMless |
| Supplier Device Package | 144-LQFP (20x20) |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
Tier Pricing
xVolume Pricing
💡 Custom Pricing Available:
For quantities exceeding 10,000 units or special requirements, please contact our sales team for a customized quote.
Datasheet
xMC68HC16Z1CPV16 Datasheet
Official datasheet from NXP USA Inc. with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: NXP USA Inc. • Format: PDF
MC68HC16Z1CPV16 vs MC68HC16Z1CEH25 vs MC68HC16Z1CPV25
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | MC68HC16Z1CPV16 Current | MC68HC16Z1CEH25 | MC68HC16Z1CPV25 |
|---|---|---|---|
| Core Processor | CPU16 | CPU16 | CPU16 |
| Speed | 16MHz | 25MHz | 25MHz |
| RAM Size | 1K x 8 | 1K x 8 | 1K x 8 |
| Number of I/O | 16 | 16 | 16 |
| Package / Case | 144-LQFP | 132-BQFP Bumpered | 144-LQFP |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Peripherals | POR, PWM, WDT | POR, PWM, WDT | POR, PWM, WDT |
| Connectivity | EBI/EMI, SCI, SPI | EBI/EMI, SCI, SPI | EBI/EMI, SCI, SPI |
| Product Status | Obsolete | Not For New Designs | Obsolete |
| Price | $12.72 | $38.64 | $13.94 |
| Availability | In Stock | In Stock | In Stock |
