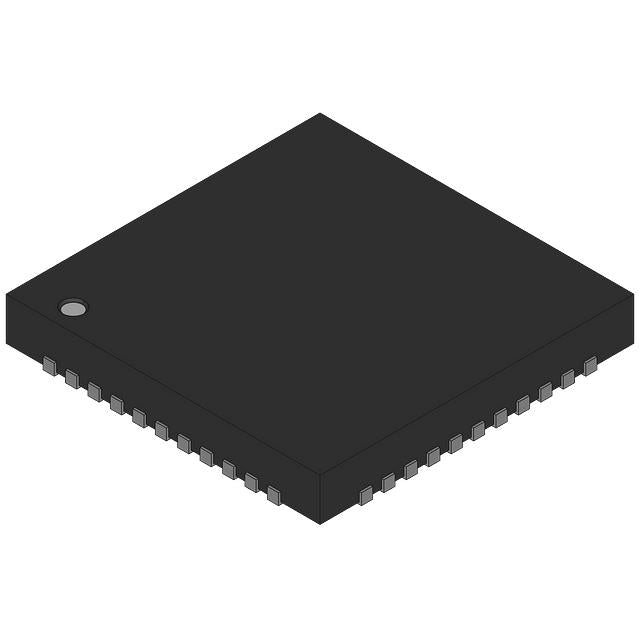

5962-9056401UA–Microcontroller, 80C51 @ 12MHz, 44-CLCC | Altera
● Active The 5962-9056401UA is a microcontroller from Altera, featuring 80C51 running at 12MHz, in 44-CLCC package....
- $188.06
- $188.06
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$188.06
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x● Active
The 5962-9056401UA is a microcontroller from Altera, featuring 80C51 running at 12MHz, in 44-CLCC package. Specified operating temperature: -55°C ~ 125°C (TC).
📋 Key Specifications
- Core Processor:80C51
- Speed:12MHz
- Program Memory Size:16KB (16K x 8)
- RAM Size:256 x 8
- Number of I/O:32
- Package / Case:44-CLCC
- Operating Temperature:-55°C ~ 125°C (TC)
- Peripherals:POR, WDT
🎯 Typical Applications
- Embedded control systems (typical for this category)
- IoT sensor nodes and endpoints
- Motor control applications
- Human-machine interfaces (HMI)
- Consumer electronics
❓ FAQ
What is the specified operating temperature range for 5962-9056401UA?
According to the specifications, the 5962-9056401UA is rated for operation from -55°C ~ 125°C (TC).
What package is the 5962-9056401UA available in?
The 5962-9056401UA is offered in 44-CLCC package format.
What processor is integrated in the 5962-9056401UA?
The 5962-9056401UA integrates 80C51 processor.
Where can I find detailed specifications for 5962-9056401UA?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Core Processor | 80C51 |
|---|---|
| Speed | 12MHz |
| Program Memory Size | 16KB (16K x 8) |
| RAM Size | 256 x 8 |
| Number of I/O | 32 |
| Package / Case | 44-CLCC |
| Operating Temperature | -55°C ~ 125°C (TC) |
| Peripherals | POR, WDT |
| Connectivity | Serial Port |
| Product Status | Active |
| Core Size | 8-Bit |
| DigiKey Programmable | Not Verified |
| Mounting Type | Surface Mount |
| Oscillator Type | External, Internal |
| Package | Bulk |
| Program Memory Type | EPROM |
| Supplier Device Package | 44-CLCC |
| Voltage - Supply (Vcc/Vdd) | 4V ~ 6V |
Tier Pricing
xVolume Pricing
💡 Custom Pricing Available:
For quantities exceeding 10,000 units or special requirements, please contact our sales team for a customized quote.
Datasheet
x5962-9056401UA Datasheet
Official datasheet from Altera with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: Altera • Format: PDF
5962-9056401UA vs 5962-9056401UA vs 5962-9056901EA
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | 5962-9056401UA Current | 5962-9056401UA | 5962-9056901EA |
|---|---|---|---|
| Core Processor | 80C51 | 80C51 | — |
| Speed | 12MHz | 12MHz | — |
| Program Memory Size | 16KB (16K x 8) | 16KB (16K x 8) | — |
| RAM Size | 256 x 8 | 256 x 8 | — |
| Number of I/O | 32 | 32 | — |
| Package / Case | 44-CLCC | 44-CLCC | 16-CDIP |
| Operating Temperature | -55°C ~ 125°C (TC) | -55°C ~ 125°C (TC) | -55°C ~ 125°C |
| Peripherals | POR, WDT | POR, WDT | — |
| Connectivity | Serial Port | Serial Port | — |
| Product Status | Active | Active | Active |
| Price | $188.06 | $188.06 | $8.27 |
| Availability | In Stock | In Stock | In Stock |
