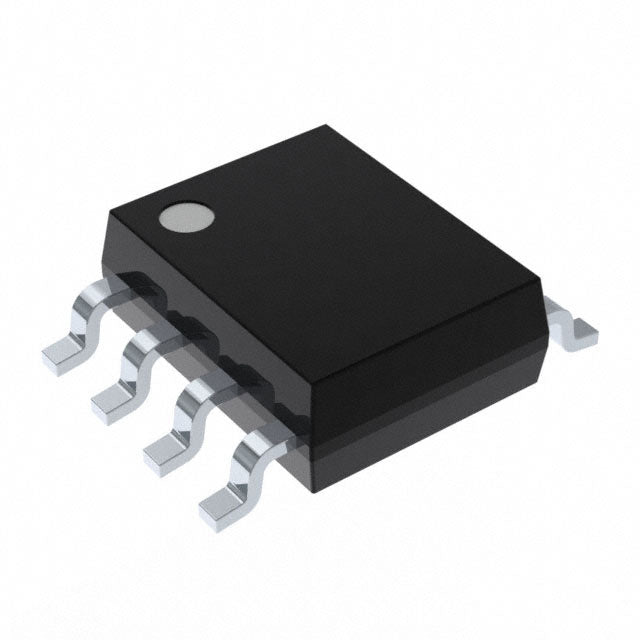

MAX1688ESA+–Voltage Regulator, 8-SOIC (0.154" | Analog Devices Inc./Maxim Integrated
✓ RoHS● Obsolete The MAX1688ESA+ is a voltage regulator from Analog Devices Inc./Maxim Integrated, in 8-SOIC (0.154"...
SKU:
1513189
Availability:
Many In Stock
Product type:
Voltage Regulator
- $3.27
- $3.27
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$3.27
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x
✓ RoHS● Obsolete
The MAX1688ESA+ is a voltage regulator from Analog Devices Inc./Maxim Integrated, in 8-SOIC (0.154" package. Specified operating temperature: -40°C ~ 85°C (TA).
📋 Key Specifications
- Output Type:Adjustable
- Voltage - Output (Min/Fixed):1.25V
- Voltage - Output (Max):6V
- Current - Output:730mA (Switch)
- Voltage - Input (Max):6V
- Package / Case:8-SOIC (0.154", 3.90mm Width)
- Operating Temperature:-40°C ~ 85°C (TA)
- Product Status:Obsolete
🎯 Typical Applications
- Board-level power regulation (typical for this category)
- Point-of-load power supply
- Battery-powered devices
- Low-noise analog circuits
❓ FAQ
What is the specified operating temperature range for MAX1688ESA+?
According to the specifications, the MAX1688ESA+ is rated for operation from -40°C ~ 85°C (TA).
What package is the MAX1688ESA+ available in?
The MAX1688ESA+ is offered in 8-SOIC (0.154" package format.
Is the MAX1688ESA+ RoHS compliant?
Yes, the MAX1688ESA+ is listed as RoHS compliant.
Where can I find detailed specifications for MAX1688ESA+?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Output Type | Adjustable |
|---|---|
| Voltage - Output (Min/Fixed) | 1.25V |
| Voltage - Output (Max) | 6V |
| Current - Output | 730mA (Switch) |
| Voltage - Input (Max) | 6V |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Product Status | Obsolete |
| Frequency - Switching | 1MHz |
| Function | Step-Up |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Package | Bulk |
| Supplier Device Package | 8-SOIC |
| Synchronous Rectifier | Yes |
| Topology | Boost |
| Voltage - Input (Min) | 2.7V |
Datasheet
xMAX1688ESA+ Datasheet
Official datasheet from Analog Devices Inc./Maxim Integrated with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: Analog Devices Inc./Maxim Integrated • Format: PDF
MAX1688ESA+ vs MAX1688ESA vs MAX1688EUE
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | MAX1688ESA+ Current | MAX1688ESA | MAX1688EUE |
|---|---|---|---|
| Output Type | Adjustable | Adjustable | Adjustable |
| Voltage - Output (Min/Fixed) | 1.25V | 1.25V | 1.25V |
| Voltage - Output (Max) | 6V | 6V | 6V |
| Current - Output | 730mA (Switch) | 730mA (Switch) | 730mA (Switch) |
| Voltage - Input (Max) | 6V | 6V | 6V |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 16-TSSOP (0.173", 4.40mm Width) |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Product Status | Obsolete | Obsolete | Obsolete |
| RoHS | Compliant | — | — |
| Price | $3.27 | $2.73 | $3.70 |
| Availability | In Stock | In Stock | In Stock |
