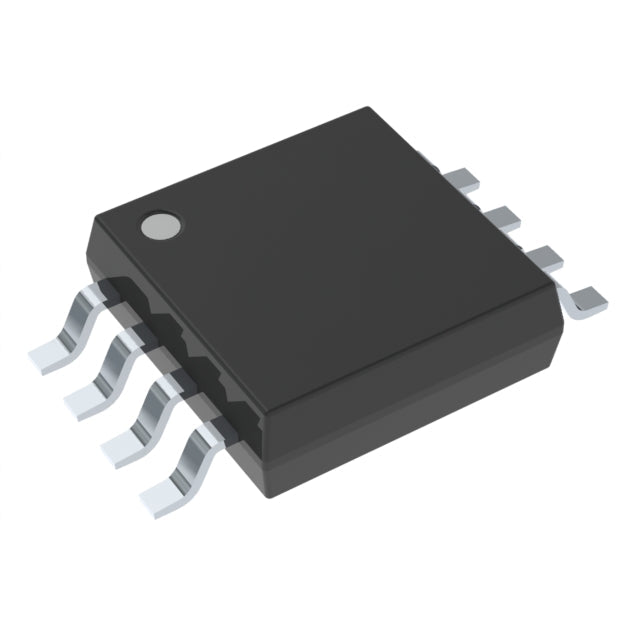

MAX1606EUA+–Voltage Regulator, 8-TSSOP | Analog Devices Inc./Maxim Integrated
✓ RoHS● Active The MAX1606EUA+ is a voltage regulator from Analog Devices Inc./Maxim Integrated, in 8-TSSOP package....
SKU:
1475025
Availability:
Many In Stock
Product type:
Voltage Regulator
- $5.09
- $5.09
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$5.09
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x
✓ RoHS● Active
The MAX1606EUA+ is a voltage regulator from Analog Devices Inc./Maxim Integrated, in 8-TSSOP package. Specified operating temperature: -40°C ~ 85°C (TA).
📋 Key Specifications
- Output Type:Adjustable
- Voltage - Output (Min/Fixed):0.8V
- Voltage - Output (Max):28V
- Current - Output:350mA (Switch)
- Voltage - Input (Max):5.5V
- Package / Case:8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Operating Temperature:-40°C ~ 85°C (TA)
- Product Status:Active
🎯 Typical Applications
- Board-level power regulation (typical for this category)
- Point-of-load power supply
- Battery-powered devices
- Low-noise analog circuits
❓ FAQ
What is the specified operating temperature range for MAX1606EUA+?
According to the specifications, the MAX1606EUA+ is rated for operation from -40°C ~ 85°C (TA).
What package is the MAX1606EUA+ available in?
The MAX1606EUA+ is offered in 8-TSSOP package format.
Is the MAX1606EUA+ RoHS compliant?
Yes, the MAX1606EUA+ is listed as RoHS compliant.
Where can I find detailed specifications for MAX1606EUA+?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Output Type | Adjustable |
|---|---|
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 28V |
| Current - Output | 350mA (Switch) |
| Voltage - Input (Max) | 5.5V |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Product Status | Active |
| Frequency - Switching | 500kHz |
| Function | Step-Up |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Package | Tube |
| Supplier Device Package | 8-uMAX/uSOP |
| Synchronous Rectifier | No |
| Topology | Boost |
| Voltage - Input (Min) | 2.4V |
Datasheet
xMAX1606EUA+ Datasheet
Official datasheet from Analog Devices Inc./Maxim Integrated with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: Analog Devices Inc./Maxim Integrated • Format: PDF
MAX1606EUA+ vs MAX1606EUA vs MAX16063TG+
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | MAX1606EUA+ Current | MAX1606EUA | MAX16063TG+ |
|---|---|---|---|
| Output Type | Adjustable | Adjustable | — |
| Voltage - Output (Min/Fixed) | 0.8V | 0.8V | — |
| Voltage - Output (Max) | 28V | 28V | — |
| Current - Output | 350mA (Switch) | 350mA (Switch) | — |
| Voltage - Input (Max) | 5.5V | 5.5V | — |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 24-WFQFN Exposed Pad |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C |
| Product Status | Active | Obsolete | Active |
| RoHS | Compliant | — | — |
| Price | $5.09 | $2.70 | $23.52 |
| Availability | In Stock | In Stock | In Stock |
