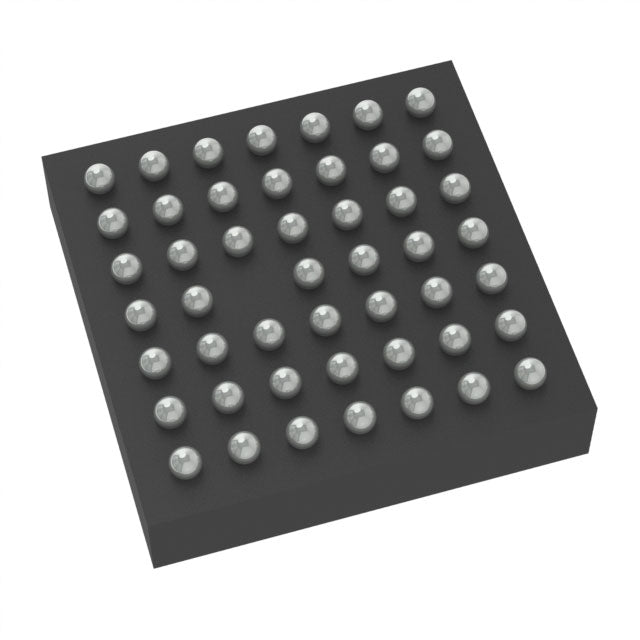

XC9536XL-7CS48C–CPLD, 48-FBGA | AMD
● Obsolete The XC9536XL-7CS48C is a cpld from AMD, in 48-FBGA package. Specified operating temperature: 0°C ~...
- $6.79
- $6.79
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$6.79
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x● Obsolete
The XC9536XL-7CS48C is a cpld from AMD, in 48-FBGA package. Specified operating temperature: 0°C ~ 70°C (TA).
📋 Key Specifications
- Number of Macrocells:36
- Number of I/O:36
- Package / Case:48-FBGA, CSPBGA
- Operating Temperature:0°C ~ 70°C (TA)
- Product Status:Obsolete
🎯 Typical Applications
- General electronic systems (typical applications vary by specific device)
- Industrial and commercial equipment
- Consumer electronics
- Embedded systems
❓ FAQ
What is the specified operating temperature range for XC9536XL-7CS48C?
According to the specifications, the XC9536XL-7CS48C is rated for operation from 0°C ~ 70°C (TA).
What package is the XC9536XL-7CS48C available in?
The XC9536XL-7CS48C is offered in 48-FBGA package format.
Where can I find detailed specifications for XC9536XL-7CS48C?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Number of Macrocells | 36 |
|---|---|
| Number of I/O | 36 |
| Package / Case | 48-FBGA, CSPBGA |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Product Status | Obsolete |
| Delay Time tpd(1) Max | 7.5 ns |
| DigiKey Programmable | Not Verified |
| Mounting Type | Surface Mount |
| Number of Gates | 800 |
| Number of Logic Elements/Blocks | 2 |
| Package | Tray |
| Programmable Type | In System Programmable (min 10K program/erase cycles) |
| Supplier Device Package | 48-CSBGA (7x7) |
| Voltage Supply - Internal | 3V ~ 3.6V |
Tier Pricing
xVolume Pricing
💡 Custom Pricing Available:
For quantities exceeding 10,000 units or special requirements, please contact our sales team for a customized quote.
Datasheet
xXC9536XL-7CS48C Datasheet
Official datasheet from AMD with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: AMD • Format: PDF
XC9536XL-7CS48C vs XC9536XL-7CS48I vs XC9536XL-7PC44C
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | XC9536XL-7CS48C Current | XC9536XL-7CS48I | XC9536XL-7PC44C |
|---|---|---|---|
| Number of Macrocells | 36 | 36 | 36 |
| Number of I/O | 36 | 36 | 34 |
| Package / Case | 48-FBGA, CSPBGA | 48-FBGA, CSPBGA | 44-LCC (J-Lead) |
| Operating Temperature | 0°C ~ 70°C (TA) | -40°C ~ 85°C (TA) | 0°C ~ 70°C (TA) |
| Product Status | Obsolete | Obsolete | Obsolete |
| Package | Tray | 48-FBGA, CSPBGA | 44-LCC (J-Lead) |
| DigiKey Programmable | Not Verified | Not Verified | Not Verified |
| Programmable Type | In System Programmable (min 10K program/erase cycles) | In System Programmable (min 10K program/erase cycles) | In System Programmable (min 10K program/erase cycles) |
| Delay Time tpd(1) Max | 7.5 ns | 7.5 ns | 7.5 ns |
| Voltage Supply - Internal | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V |
| Price | $6.79 | $8.47 | $0.00 |
| Availability | In Stock | In Stock | In Stock |
