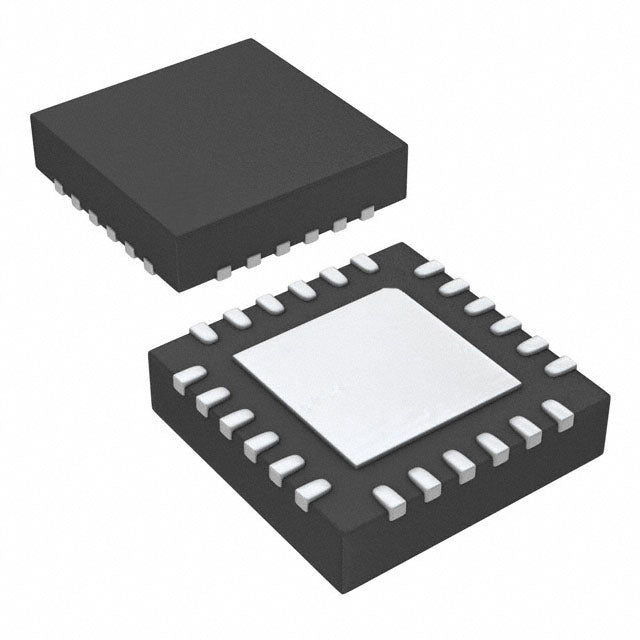

XC9519A12AZR-GImage for reference. See datasheet for package details.Torex Semiconductor LtdVoltage Regulator
XC9519A12AZR-G
Step-Up, Step-Up/Step-Down · 24-QFN (4x4)
Manufacturer part numberXC9519A12AZR-G
WWDParts part numberWWD-14886698582383
Catalog lifecycle statusNot For New Designs
RoHS CompliantCatalog declaration · Confirm compliance documentation with your quotation
- Package / case
- 24-WFQFN Exposed Pad
- Output type
- Adjustable
- Output voltage
- ±4V
- Input voltage (max)
- 5.5V
- Output current
- 2A (Switch)
- Operating temperature
- -40°C ~ 85°C (TA)
- Packaging
- Tape & Reel (TR)
