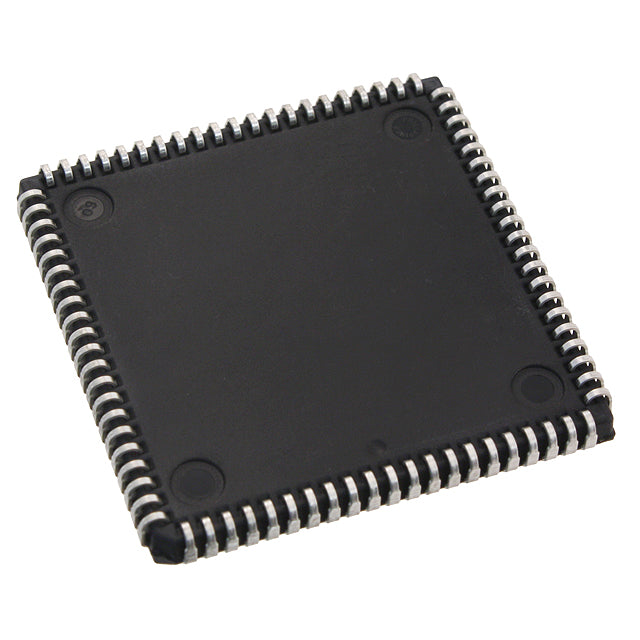

XC95108-15PCG84C–CPLD, 84-LCC (J-Lead) | AMD
● Obsolete The XC95108-15PCG84C is a cpld from AMD, in 84-LCC (J-Lead) package. Specified operating temperature: 0°C...
- $0.00
- $0.00
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$0.00
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x● Obsolete
The XC95108-15PCG84C is a cpld from AMD, in 84-LCC (J-Lead) package. Specified operating temperature: 0°C ~ 70°C (TA).
📋 Key Specifications
- Number of Macrocells:108
- Number of I/O:69
- Package / Case:84-LCC (J-Lead)
- Operating Temperature:0°C ~ 70°C (TA)
- Product Status:Obsolete
🎯 Typical Applications
- General electronic systems (typical applications vary by specific device)
- Industrial and commercial equipment
- Consumer electronics
- Embedded systems
❓ FAQ
What is the specified operating temperature range for XC95108-15PCG84C?
According to the specifications, the XC95108-15PCG84C is rated for operation from 0°C ~ 70°C (TA).
What package is the XC95108-15PCG84C available in?
The XC95108-15PCG84C is offered in 84-LCC (J-Lead) package format.
Where can I find detailed specifications for XC95108-15PCG84C?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Number of Macrocells | 108 |
|---|---|
| Number of I/O | 69 |
| Package / Case | 84-LCC (J-Lead) |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Product Status | Obsolete |
| Delay Time tpd(1) Max | 15 ns |
| DigiKey Programmable | Not Verified |
| Mounting Type | Surface Mount |
| Number of Gates | 2400 |
| Number of Logic Elements/Blocks | 6 |
| Package | Tube |
| Programmable Type | In System Programmable (min 10K program/erase cycles) |
| Supplier Device Package | 84-PLCC (29.31x29.31) |
| Voltage Supply - Internal | 4.75V ~ 5.25V |
Datasheet
xXC95108-15PCG84C Datasheet
Official datasheet from AMD with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: AMD • Format: PDF
XC95108-15PCG84C vs XC95108-15PQ100C vs XC95108-15PQ100I
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | XC95108-15PCG84C Current | XC95108-15PQ100C | XC95108-15PQ100I |
|---|---|---|---|
| Number of Macrocells | 108 | 108 | 108 |
| Number of I/O | 69 | 81 | 81 |
| Package / Case | 84-LCC (J-Lead) | 100-BQFP | 100-BQFP |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | -40°C ~ 85°C (TA) |
| Product Status | Obsolete | Obsolete | Obsolete |
| Package | Tube | 100-BQFP | 100-BQFP |
| DigiKey Programmable | Not Verified | Not Verified | Not Verified |
| Programmable Type | In System Programmable (min 10K program/erase cycles) | In System Programmable (min 10K program/erase cycles) | In System Programmable (min 10K program/erase cycles) |
| Delay Time tpd(1) Max | 15 ns | 15 ns | 15 ns |
| Voltage Supply - Internal | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.5V ~ 5.5V |
| Price | $0.00 | $0.00 | $0.00 |
| Availability | In Stock | In Stock | In Stock |
