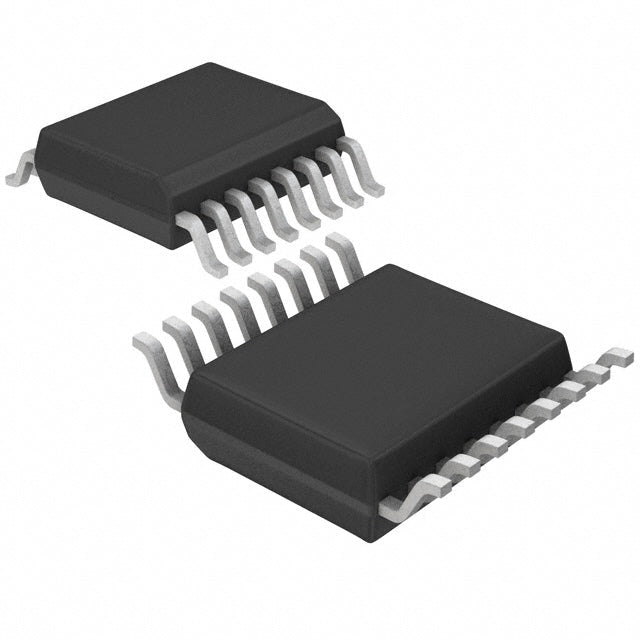

MC68HC908QY2CDTE–Microcontroller, HC08 @ 8MHz, 16-TSSOP (0.173\ | NXP USA Inc.
✓ RoHS● Obsolete The MC68HC908QY2CDTE is a microcontroller from NXP USA Inc., featuring HC08 running at 8MHz,...
- $5.84
- $5.84
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$5.84
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x
✓ RoHS● Obsolete
The MC68HC908QY2CDTE is a microcontroller from NXP USA Inc., featuring HC08 running at 8MHz, in 16-TSSOP (0.173\ package. Specified operating temperature: -40°C ~ 85°C (TA).
📋 Key Specifications
- Core Processor:HC08
- Speed:8MHz
- Program Memory Size:1.5KB (1.5K x 8)
- RAM Size:128 x 8
- Number of I/O:13
- Package / Case:16-TSSOP (0.173\
- Operating Temperature:-40°C ~ 85°C (TA)
- Peripherals:LVD, POR, PWM
🎯 Typical Applications
- Embedded control systems (typical for this category)
- IoT sensor nodes and endpoints
- Motor control applications
- Human-machine interfaces (HMI)
- Consumer electronics
❓ FAQ
What is the specified operating temperature range for MC68HC908QY2CDTE?
According to the specifications, the MC68HC908QY2CDTE is rated for operation from -40°C ~ 85°C (TA).
What package is the MC68HC908QY2CDTE available in?
The MC68HC908QY2CDTE is offered in 16-TSSOP (0.173\ package format.
What processor is integrated in the MC68HC908QY2CDTE?
The MC68HC908QY2CDTE integrates HC08 processor.
Is the MC68HC908QY2CDTE RoHS compliant?
Yes, the MC68HC908QY2CDTE is listed as RoHS compliant.
Where can I find detailed specifications for MC68HC908QY2CDTE?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Core Processor | HC08 |
|---|---|
| Speed | 8MHz |
| Program Memory Size | 1.5KB (1.5K x 8) |
| RAM Size | 128 x 8 |
| Number of I/O | 13 |
| Package / Case | 16-TSSOP (0.173\ |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Peripherals | LVD, POR, PWM |
| Product Status | Obsolete |
| Core Size | 8-Bit |
| Data Converters | A/D 4x8b |
| DigiKey Programmable | Not Verified |
| Mounting Type | Surface Mount |
| Oscillator Type | Internal |
| Package | Tube |
| Program Memory Type | FLASH |
| Supplier Device Package | 16-TSSOP |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
Tier Pricing
xVolume Pricing
💡 Custom Pricing Available:
For quantities exceeding 10,000 units or special requirements, please contact our sales team for a customized quote.
Datasheet
xMC68HC908QY2CDTE Datasheet
Official datasheet from NXP USA Inc. with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: NXP USA Inc. • Format: PDF
MC68HC908QY2CDTE vs MC68HC908QY1VDTE vs MC68HC908QY2MDTE
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | MC68HC908QY2CDTE Current | MC68HC908QY1VDTE | MC68HC908QY2MDTE |
|---|---|---|---|
| Core Processor | HC08 | HC08 | HC08 |
| Speed | 8MHz | 8MHz | 8MHz |
| Program Memory Size | 1.5KB (1.5K x 8) | 1.5KB (1.5K x 8) | 1.5KB (1.5K x 8) |
| RAM Size | 128 x 8 | 128 x 8 | 128 x 8 |
| Number of I/O | 13 | 13 | 13 |
| Package / Case | 16-TSSOP (0.173\ | 16-TSSOP (0.173\ | 16-TSSOP (0.173\ |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 125°C (TA) |
| Peripherals | LVD, POR, PWM | LVD, POR, PWM | LVD, POR, PWM |
| Product Status | Obsolete | Obsolete | Obsolete |
| RoHS | Compliant | Compliant | Compliant |
| Price | $5.84 | $0.00 | $0.00 |
| Availability | In Stock | In Stock | In Stock |
