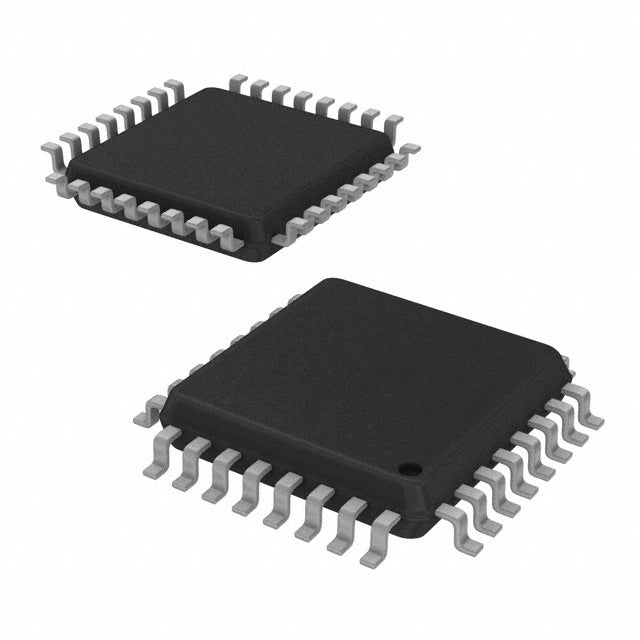

MC68HC908JL8CFAE–Microcontroller, HC08 @ 8MHz, 32-LQFP | NXP USA Inc.
✓ RoHS● Obsolete The MC68HC908JL8CFAE is a microcontroller from NXP USA Inc., featuring HC08 running at 8MHz,...
- $0.00
- $0.00
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$0.00
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x
✓ RoHS● Obsolete
The MC68HC908JL8CFAE is a microcontroller from NXP USA Inc., featuring HC08 running at 8MHz, in 32-LQFP package. Specified operating temperature: -40°C ~ 85°C (TA).
📋 Key Specifications
- Core Processor:HC08
- Speed:8MHz
- Program Memory Size:8KB (8K x 8)
- RAM Size:256 x 8
- Number of I/O:26
- Package / Case:32-LQFP
- Operating Temperature:-40°C ~ 85°C (TA)
- Peripherals:LED, LVD, POR, PWM
🎯 Typical Applications
- Embedded control systems (typical for this category)
- IoT sensor nodes and endpoints
- Motor control applications
- Human-machine interfaces (HMI)
- Consumer electronics
❓ FAQ
What is the specified operating temperature range for MC68HC908JL8CFAE?
According to the specifications, the MC68HC908JL8CFAE is rated for operation from -40°C ~ 85°C (TA).
What package is the MC68HC908JL8CFAE available in?
The MC68HC908JL8CFAE is offered in 32-LQFP package format.
What processor is integrated in the MC68HC908JL8CFAE?
The MC68HC908JL8CFAE integrates HC08 processor.
Is the MC68HC908JL8CFAE RoHS compliant?
Yes, the MC68HC908JL8CFAE is listed as RoHS compliant.
Where can I find detailed specifications for MC68HC908JL8CFAE?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Core Processor | HC08 |
|---|---|
| Speed | 8MHz |
| Program Memory Size | 8KB (8K x 8) |
| RAM Size | 256 x 8 |
| Number of I/O | 26 |
| Package / Case | 32-LQFP |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Peripherals | LED, LVD, POR, PWM |
| Connectivity | SCI |
| Product Status | Obsolete |
| Core Size | 8-Bit |
| Data Converters | A/D 13x8b |
| DigiKey Programmable | Verified |
| Mounting Type | Surface Mount |
| Oscillator Type | Internal |
| Package | Tray |
| Program Memory Type | FLASH |
| Supplier Device Package | 32-LQFP (7x7) |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
Datasheet
xMC68HC908JL8CFAE Datasheet
Official datasheet from NXP USA Inc. with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: NXP USA Inc. • Format: PDF
MC68HC908JL8CFAE vs MC68HC908JL3ECFA vs MC68HC908JL8CSPE
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | MC68HC908JL8CFAE Current | MC68HC908JL3ECFA | MC68HC908JL8CSPE |
|---|---|---|---|
| Core Processor | HC08 | HC08 | HC08 |
| Speed | 8MHz | 8MHz | 8MHz |
| Program Memory Size | 8KB (8K x 8) | 4KB (4K x 8) | 8KB (8K x 8) |
| RAM Size | 256 x 8 | 128 x 8 | 256 x 8 |
| Number of I/O | 26 | 23 | 26 |
| Package / Case | 32-LQFP | 48-LQFP | 32-SDIP (0.400\ |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Peripherals | LED, LVD, POR, PWM | LED, LVD, POR, PWM | LED, LVD, POR, PWM |
| Connectivity | SCI | — | SCI |
| Product Status | Obsolete | Active | Obsolete |
| Price | $0.00 | $4.14 | $0.00 |
| Availability | In Stock | In Stock | In Stock |
