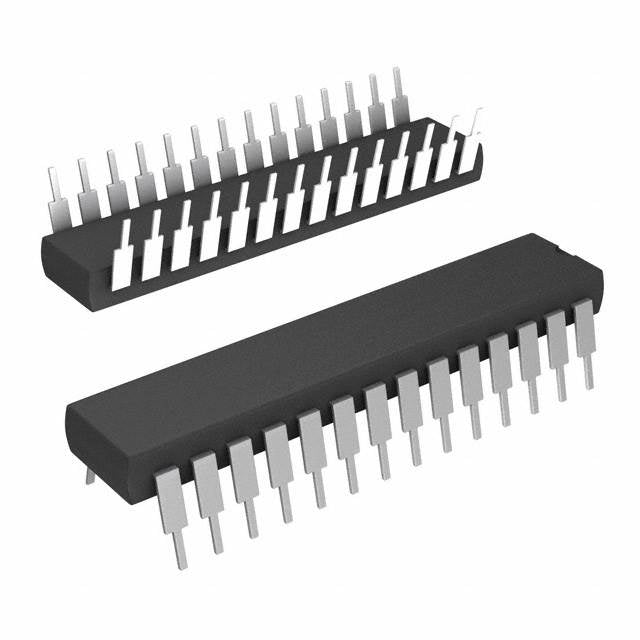

MC68HC908JL3CP–Microcontroller, HC08 @ 8MHz, 28-DIP (0.600\ | NXP USA Inc.
● Obsolete The MC68HC908JL3CP is a microcontroller from NXP USA Inc., featuring HC08 running at 8MHz, in...
- $0.00
- $0.00
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$0.00
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x● Obsolete
The MC68HC908JL3CP is a microcontroller from NXP USA Inc., featuring HC08 running at 8MHz, in 28-DIP (0.600\ package. Specified operating temperature: -40°C ~ 85°C (TA).
📋 Key Specifications
- Core Processor:HC08
- Speed:8MHz
- Program Memory Size:4KB (4K x 8)
- RAM Size:128 x 8
- Number of I/O:23
- Package / Case:28-DIP (0.600\
- Operating Temperature:-40°C ~ 85°C (TA)
- Peripherals:LED, LVD, POR, PWM
🎯 Typical Applications
- Embedded control systems (typical for this category)
- IoT sensor nodes and endpoints
- Motor control applications
- Human-machine interfaces (HMI)
- Consumer electronics
❓ FAQ
What is the specified operating temperature range for MC68HC908JL3CP?
According to the specifications, the MC68HC908JL3CP is rated for operation from -40°C ~ 85°C (TA).
What package is the MC68HC908JL3CP available in?
The MC68HC908JL3CP is offered in 28-DIP (0.600\ package format.
What processor is integrated in the MC68HC908JL3CP?
The MC68HC908JL3CP integrates HC08 processor.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Core Processor | HC08 |
|---|---|
| Speed | 8MHz |
| Program Memory Size | 4KB (4K x 8) |
| RAM Size | 128 x 8 |
| Number of I/O | 23 |
| Package / Case | 28-DIP (0.600\ |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Peripherals | LED, LVD, POR, PWM |
| Product Status | Obsolete |
| Core Size | 8-Bit |
| Data Converters | A/D 12x8b |
| DigiKey Programmable | Not Verified |
| Mounting Type | Through Hole |
| Oscillator Type | External |
| Package | Tube |
| Program Memory Type | FLASH |
| Supplier Device Package | 28-PDIP |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.3V |
MC68HC908JL3CP vs MC68HC908JK3CP vs MC68HC908JL8CP
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | MC68HC908JL3CP Current | MC68HC908JK3CP | MC68HC908JL8CP |
|---|---|---|---|
| Core Processor | HC08 | HC08 | HC08 |
| Speed | 8MHz | 8MHz | 8MHz |
| Program Memory Size | 4KB (4K x 8) | 4KB (4K x 8) | 8KB (8K x 8) |
| RAM Size | 128 x 8 | 128 x 8 | 256 x 8 |
| Number of I/O | 23 | 15 | 23 |
| Package / Case | 28-DIP (0.600\ | 20-DIP (0.300\ | 28-DIP (0.600\ |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Peripherals | LED, LVD, POR, PWM | LED, LVD, POR, PWM | LED, LVD, POR, PWM |
| Product Status | Obsolete | Obsolete | Obsolete |
| Price | $0.00 | $0.00 | $5.23 |
| Availability | In Stock | In Stock | In Stock |
