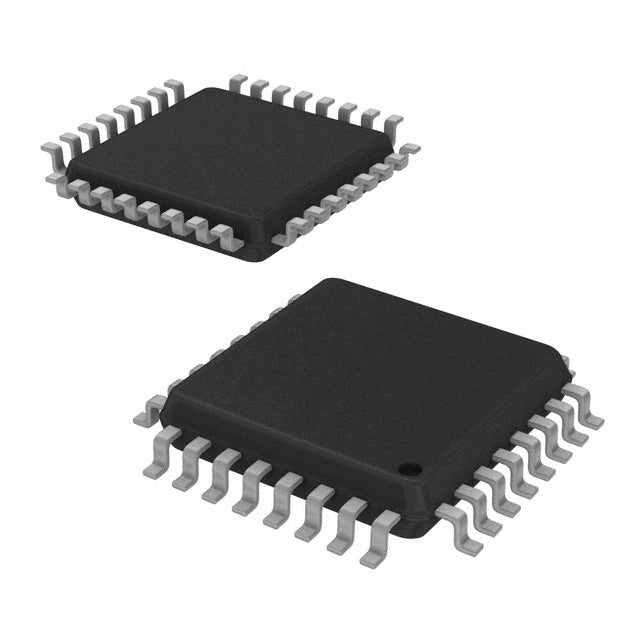

MC68HC908GZ16MFJ–Microcontroller, HC08 @ 8MHz, 32-LQFP | NXP USA Inc.
● Obsolete The MC68HC908GZ16MFJ is a microcontroller from NXP USA Inc., featuring HC08 running at 8MHz, in...
- $6.35
- $6.35
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$6.35
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x● Obsolete
The MC68HC908GZ16MFJ is a microcontroller from NXP USA Inc., featuring HC08 running at 8MHz, in 32-LQFP package. Specified operating temperature: -40°C ~ 125°C (TA).
📋 Key Specifications
- Core Processor:HC08
- Speed:8MHz
- Program Memory Size:16KB (16K x 8)
- RAM Size:1K x 8
- Number of I/O:21
- Package / Case:32-LQFP
- Operating Temperature:-40°C ~ 125°C (TA)
- Peripherals:LVD, POR, PWM
🎯 Typical Applications
- Embedded control systems (typical for this category)
- IoT sensor nodes and endpoints
- Motor control applications
- Human-machine interfaces (HMI)
- Consumer electronics
❓ FAQ
What is the specified operating temperature range for MC68HC908GZ16MFJ?
According to the specifications, the MC68HC908GZ16MFJ is rated for operation from -40°C ~ 125°C (TA).
What package is the MC68HC908GZ16MFJ available in?
The MC68HC908GZ16MFJ is offered in 32-LQFP package format.
What processor is integrated in the MC68HC908GZ16MFJ?
The MC68HC908GZ16MFJ integrates HC08 processor.
Where can I find detailed specifications for MC68HC908GZ16MFJ?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Core Processor | HC08 |
|---|---|
| Speed | 8MHz |
| Program Memory Size | 16KB (16K x 8) |
| RAM Size | 1K x 8 |
| Number of I/O | 21 |
| Package / Case | 32-LQFP |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Peripherals | LVD, POR, PWM |
| Connectivity | CANbus, LINbus, SCI, SPI |
| Product Status | Obsolete |
| Core Size | 8-Bit |
| Data Converters | A/D 8x10b |
| DigiKey Programmable | Not Verified |
| Mounting Type | Surface Mount |
| Oscillator Type | Internal |
| Package | Tray |
| Program Memory Type | FLASH |
| Supplier Device Package | 32-LQFP (7x7) |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
Tier Pricing
xVolume Pricing
💡 Custom Pricing Available:
For quantities exceeding 10,000 units or special requirements, please contact our sales team for a customized quote.
Datasheet
xMC68HC908GZ16MFJ Datasheet
Official datasheet from NXP USA Inc. with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: NXP USA Inc. • Format: PDF
MC68HC908GZ16MFJ vs MC68HC908GZ16MFA vs MC68HC908GZ16VFJ
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | MC68HC908GZ16MFJ Current | MC68HC908GZ16MFA | MC68HC908GZ16VFJ |
|---|---|---|---|
| Core Processor | HC08 | HC08 | HC08 |
| Speed | 8MHz | 8MHz | 8MHz |
| Program Memory Size | 16KB (16K x 8) | 16KB (16K x 8) | 16KB (16K x 8) |
| RAM Size | 1K x 8 | 1K x 8 | 1K x 8 |
| Number of I/O | 21 | 37 | 21 |
| Package / Case | 32-LQFP | 48-LQFP | 32-LQFP |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 105°C (TA) |
| Peripherals | LVD, POR, PWM | LVD, POR, PWM | LVD, POR, PWM |
| Connectivity | CANbus, LINbus, SCI, SPI | CANbus, LINbus, SCI, SPI | CANbus, LINbus, SCI, SPI |
| Product Status | Obsolete | Obsolete | Obsolete |
| Price | $6.35 | $6.65 | $6.35 |
| Availability | In Stock | In Stock | In Stock |
