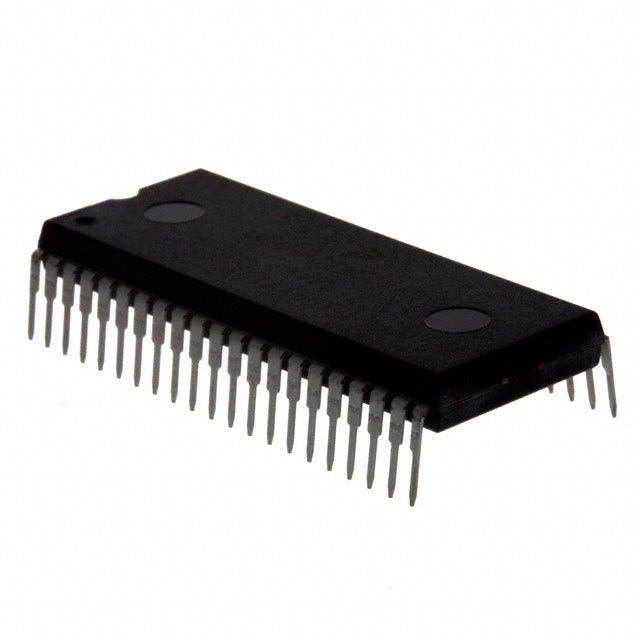

MC68HC908AP32CB–Microcontroller, HC08 @ 8MHz, 42-SDIP (0.600\ | NXP USA Inc.
● Obsolete The MC68HC908AP32CB is a microcontroller from NXP USA Inc., featuring HC08 running at 8MHz, in...
- $6.14
- $6.14
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$6.14
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x● Obsolete
The MC68HC908AP32CB is a microcontroller from NXP USA Inc., featuring HC08 running at 8MHz, in 42-SDIP (0.600\ package. Specified operating temperature: -40°C ~ 85°C (TA).
📋 Key Specifications
- Core Processor:HC08
- Speed:8MHz
- Program Memory Size:32KB (32K x 8)
- RAM Size:2K x 8
- Number of I/O:32
- Package / Case:42-SDIP (0.600\
- Operating Temperature:-40°C ~ 85°C (TA)
- Peripherals:LED, LVD, POR, PWM
🎯 Typical Applications
- Embedded control systems (typical for this category)
- IoT sensor nodes and endpoints
- Motor control applications
- Human-machine interfaces (HMI)
- Consumer electronics
❓ FAQ
What is the specified operating temperature range for MC68HC908AP32CB?
According to the specifications, the MC68HC908AP32CB is rated for operation from -40°C ~ 85°C (TA).
What package is the MC68HC908AP32CB available in?
The MC68HC908AP32CB is offered in 42-SDIP (0.600\ package format.
What processor is integrated in the MC68HC908AP32CB?
The MC68HC908AP32CB integrates HC08 processor.
Where can I find detailed specifications for MC68HC908AP32CB?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Core Processor | HC08 |
|---|---|
| Speed | 8MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 2K x 8 |
| Number of I/O | 32 |
| Package / Case | 42-SDIP (0.600\ |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Peripherals | LED, LVD, POR, PWM |
| Connectivity | I2C, IRSCI, SCI, SPI |
| Product Status | Obsolete |
| Core Size | 8-Bit |
| Data Converters | A/D 8x10b |
| DigiKey Programmable | Not Verified |
| Mounting Type | Through Hole |
| Oscillator Type | Internal |
| Package | Tube |
| Program Memory Type | FLASH |
| Supplier Device Package | 42-PDIP |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
Tier Pricing
xVolume Pricing
💡 Custom Pricing Available:
For quantities exceeding 10,000 units or special requirements, please contact our sales team for a customized quote.
Datasheet
xMC68HC908AP32CB Datasheet
Official datasheet from NXP USA Inc. with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: NXP USA Inc. • Format: PDF
MC68HC908AP32CB vs MC68HC908AP16CB vs MC68HC908AP64CB
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | MC68HC908AP32CB Current | MC68HC908AP16CB | MC68HC908AP64CB |
|---|---|---|---|
| Core Processor | HC08 | HC08 | HC08 |
| Speed | 8MHz | 8MHz | 8MHz |
| Program Memory Size | 32KB (32K x 8) | 16KB (16K x 8) | 64KB (64K x 8) |
| RAM Size | 2K x 8 | 1K x 8 | 2K x 8 |
| Number of I/O | 32 | 32 | 30 |
| Package / Case | 42-SDIP (0.600\ | 42-SDIP (0.600\ | 42-SDIP (0.600\ |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Peripherals | LED, LVD, POR, PWM | LED, LVD, POR, PWM | LED, LVD, POR, PWM |
| Connectivity | I2C, IRSCI, SCI, SPI | I2C, IRSCI, SCI, SPI | I2C, IRSCI, SCI, SPI |
| Product Status | Obsolete | Active | Active |
| Price | $6.14 | $5.06 | $8.30 |
| Availability | In Stock | In Stock | In Stock |
