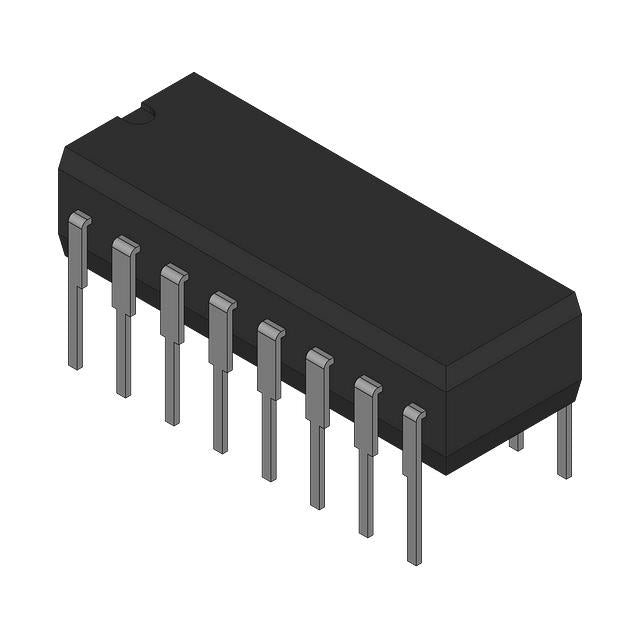

MC145505P–Interface IC, 16-DIP (0.300" | Motorola
● Active The MC145505P is a interface ic from Motorola, in 16-DIP (0.300" package. Specified operating temperature:...
- $3.50
- $3.50
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$3.50
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x● Active
The MC145505P is a interface ic from Motorola, in 16-DIP (0.300" package. Specified operating temperature: -40°C ~ 85°C (TA).
📋 Key Specifications
- Package / Case:16-DIP (0.300", 7.62mm)
- Operating Temperature:-40°C ~ 85°C (TA)
- Product Status:Active
🎯 Typical Applications
- Communication interfaces (typical for this category)
- Level shifting and signal conditioning
- Protocol conversion
- System interconnects
❓ FAQ
What is the specified operating temperature range for MC145505P?
According to the specifications, the MC145505P is rated for operation from -40°C ~ 85°C (TA).
What package is the MC145505P available in?
The MC145505P is offered in 16-DIP (0.300" package format.
Where can I find detailed specifications for MC145505P?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Package / Case | 16-DIP (0.300", 7.62mm) |
|---|---|
| Operating Temperature | -40°C ~ 85°C (TA) |
| Product Status | Active |
| Data Interface | PCM |
| Mounting Type | Through Hole |
| Number of ADCs / DACs | 1 / 1 |
| Package | Bulk |
| Resolution (Bits) | 13 b |
| Sigma Delta | No |
| Supplier Device Package | 16-PDIP |
| Type | PCM, Filter |
| Voltage - Supply, Analog | 4.75V ~ 6.3V |
| Voltage - Supply, Digital | 4.75V ~ 6.3V |
Tier Pricing
xVolume Pricing
💡 Custom Pricing Available:
For quantities exceeding 10,000 units or special requirements, please contact our sales team for a customized quote.
Datasheet
xMC145505P Datasheet
Official datasheet from Motorola with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: Motorola • Format: PDF

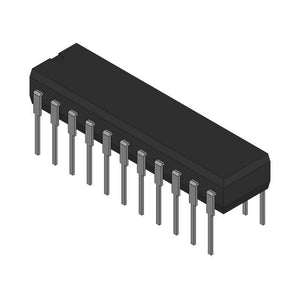

MC145505P vs MC145503P vs MC145506P
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | MC145505P Current | MC145503P | MC145506P |
|---|---|---|---|
| Package / Case | 16-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 22-DIP (0.400", 10.16mm) |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C | -40°C ~ 85°C (TA) |
| Product Status | Active | Active | Active |
| Package | Bulk | 16-DIP (0.300", 7.62mm) | 22-DIP (0.400", 10.16mm) |
| Type | PCM, Filter | PCM, Filter | PCM, Filter |
| Data Interface | PCM | PCM Audio Interface | PCM |
| Resolution (Bits) | 13 b | 13 b | 13 b |
| Number of ADCs / DACs | 1 / 1 | 1 / 1 | 1 / 1 |
| Sigma Delta | No | No | No |
| Voltage - Supply, Analog | 4.75V ~ 6.3V | — | 4.75V ~ 6.3V |
| Price | $3.50 | $2.96 | $5.82 |
| Availability | In Stock | In Stock | In Stock |
