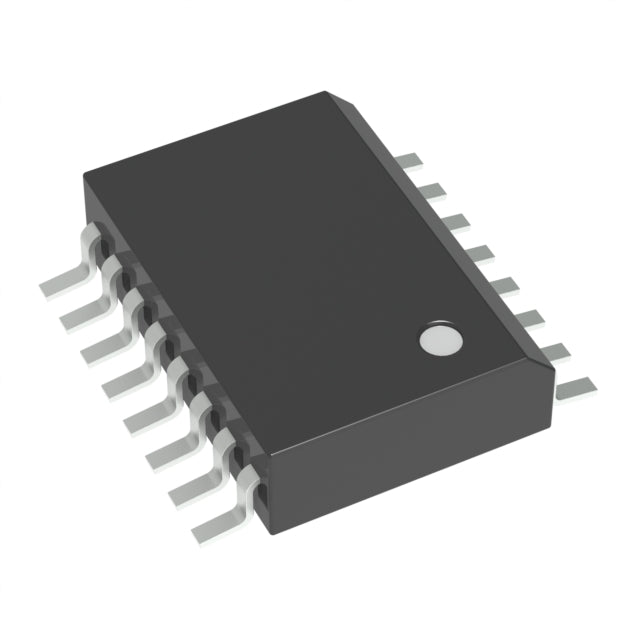

MC14526BDWG–Logic IC, 16-SOIC (0.295" | onsemi
✓ RoHS● Active The MC14526BDWG is a logic ic from onsemi, in 16-SOIC (0.295" package. Specified operating...
- $0.81
- $0.81
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$0.81
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x
✓ RoHS● Active
The MC14526BDWG is a logic ic from onsemi, in 16-SOIC (0.295" package. Specified operating temperature: -55°C ~ 125°C.
📋 Key Specifications
- Logic Type:Binary Counter
- Voltage - Supply:3 V ~ 18 V
- Package / Case:16-SOIC (0.295", 7.50mm Width)
- Operating Temperature:-55°C ~ 125°C
- Product Status:Active
🎯 Typical Applications
- General electronic systems (typical applications vary by specific device)
- Industrial and commercial equipment
- Consumer electronics
- Embedded systems
❓ FAQ
What is the specified operating temperature range for MC14526BDWG?
According to the specifications, the MC14526BDWG is rated for operation from -55°C ~ 125°C.
What package is the MC14526BDWG available in?
The MC14526BDWG is offered in 16-SOIC (0.295" package format.
Is the MC14526BDWG RoHS compliant?
Yes, the MC14526BDWG is listed as RoHS compliant.
Where can I find detailed specifications for MC14526BDWG?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Logic Type | Binary Counter |
|---|---|
| Voltage - Supply | 3 V ~ 18 V |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Operating Temperature | -55°C ~ 125°C |
| Product Status | Active |
| Count Rate | 6.6 MHz |
| Direction | Down |
| Mounting Type | Surface Mount |
| Number of Bits per Element | 4 |
| Number of Elements | 1 |
| Package | Tube |
| Reset | Asynchronous |
| Supplier Device Package | 16-SOIC |
| Trigger Type | Positive, Negative |
Tier Pricing
xVolume Pricing
💡 Custom Pricing Available:
For quantities exceeding 10,000 units or special requirements, please contact our sales team for a customized quote.
Datasheet
xMC14526BDWG Datasheet
Official datasheet from onsemi with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: onsemi • Format: PDF
MC14526BDWG vs MC14526BDW vs MC14526BFG
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | MC14526BDWG Current | MC14526BDW | MC14526BFG |
|---|---|---|---|
| Logic Type | Binary Counter | Binary Counter | Binary Counter |
| Voltage - Supply | 3 V ~ 18 V | 3 V ~ 18 V | 3 V ~ 18 V |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) | 16-SOIC (0.295", 7.50mm Width) | 16-SOIC (0.209", 5.30mm Width) |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Product Status | Active | Obsolete | Obsolete |
| Package | Tube | 16-SOIC (0.295", 7.50mm Width) | 16-SOIC (0.209", 5.30mm Width) |
| Direction | Down | Down | Down |
| Number of Elements | 1 | 1 | 1 |
| Number of Bits per Element | 4 | 4 | 4 |
| Reset | Asynchronous | Asynchronous | Asynchronous |
| Price | $0.81 | $0.38 | $0.00 |
| Availability | In Stock | In Stock | In Stock |
