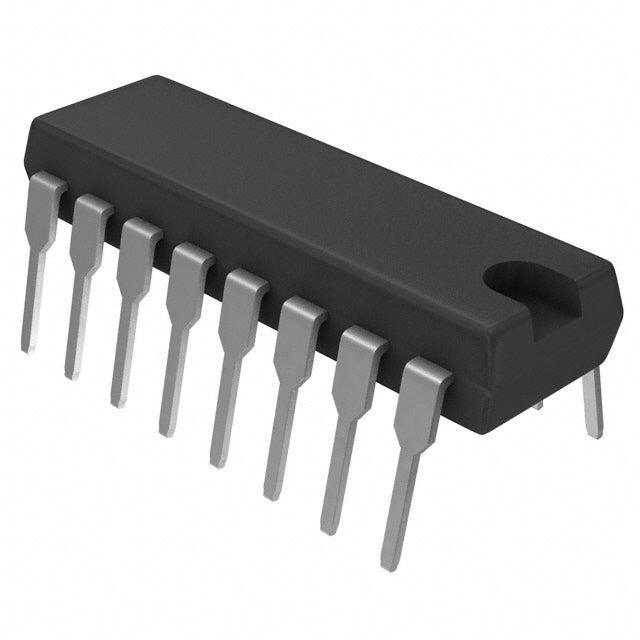

MC14504BCPG–Logic IC, 16-DIP (0.300" | onsemi
● Obsolete The MC14504BCPG is a logic ic from onsemi, in 16-DIP (0.300" package. Specified operating temperature:...
- $0.00
- $0.00
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$0.00
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x● Obsolete
The MC14504BCPG is a logic ic from onsemi, in 16-DIP (0.300" package. Specified operating temperature: -55°C ~ 125°C (TA).
📋 Key Specifications
- Package / Case:16-DIP (0.300", 7.62mm)
- Operating Temperature:-55°C ~ 125°C (TA)
- Product Status:Obsolete
🎯 Typical Applications
- General electronic systems (typical applications vary by specific device)
- Industrial and commercial equipment
- Consumer electronics
- Embedded systems
❓ FAQ
What is the specified operating temperature range for MC14504BCPG?
According to the specifications, the MC14504BCPG is rated for operation from -55°C ~ 125°C (TA).
What package is the MC14504BCPG available in?
The MC14504BCPG is offered in 16-DIP (0.300" package format.
Where can I find detailed specifications for MC14504BCPG?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Package / Case | 16-DIP (0.300", 7.62mm) |
|---|---|
| Operating Temperature | -55°C ~ 125°C (TA) |
| Product Status | Obsolete |
| Channel Type | Unidirectional |
| Channels per Circuit | 6 |
| Mounting Type | Through Hole |
| Number of Circuits | 1 |
| Output Type | Non-Inverted |
| Package | Tube |
| Supplier Device Package | 16-PDIP |
| Translator Type | Voltage Level |
| Voltage - VCCA | 3 V ~ 18 V |
| Voltage - VCCB | 3 V ~ 18 V |
Datasheet
xMC14504BCPG Datasheet
Official datasheet from onsemi with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: onsemi • Format: PDF
MC14504BCPG vs MC14504BDG vs MC14504BDT
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | MC14504BCPG Current | MC14504BDG | MC14504BDT |
|---|---|---|---|
| Package / Case | 16-DIP (0.300", 7.62mm) | 16-SOIC (0.154", 3.90mm Width) | 16-TSSOP (0.173", 4.40mm Width) |
| Operating Temperature | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) |
| Product Status | Obsolete | Active | Obsolete |
| Package | Tube | 16-SOIC (0.154", 3.90mm Width) | 16-TSSOP (0.173", 4.40mm Width) |
| Translator Type | Voltage Level | Voltage Level | Voltage Level |
| Channel Type | Unidirectional | Unidirectional | Unidirectional |
| Number of Circuits | 1 | 1 | 1 |
| Channels per Circuit | 6 | 6 | 6 |
| Voltage - VCCA | 3 V ~ 18 V | 3 V ~ 18 V | 3 V ~ 18 V |
| Voltage - VCCB | 3 V ~ 18 V | 3 V ~ 18 V | 3 V ~ 18 V |
| Price | $0.00 | $0.70 | $0.00 |
| Availability | In Stock | In Stock | In Stock |
