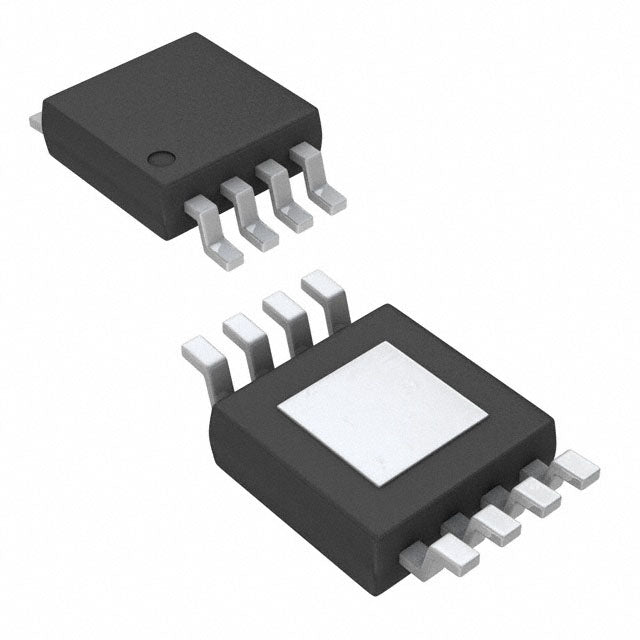

MAX16999AUA11+–Voltage Regulator, 8-TSSOP | Analog Devices Inc./Maxim Integrated
✓ RoHS● Obsolete The MAX16999AUA11+ is a voltage regulator from Analog Devices Inc./Maxim Integrated, in 8-TSSOP package....
SKU:
1937918
Availability:
Many In Stock
Product type:
Voltage Regulator
- $1.09
- $1.09
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$1.09
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x
✓ RoHS● Obsolete
The MAX16999AUA11+ is a voltage regulator from Analog Devices Inc./Maxim Integrated, in 8-TSSOP package. Specified operating temperature: -40°C ~ 125°C (TJ).
📋 Key Specifications
- Output Type:Fixed
- Voltage - Output (Min/Fixed):1.1V
- Current - Output:100mA
- Voltage - Input (Max):5.5V
- Package / Case:8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
- Operating Temperature:-40°C ~ 125°C (TJ)
- Product Status:Obsolete
🎯 Typical Applications
- Board-level power regulation (typical for this category)
- Point-of-load power supply
- Battery-powered devices
- Low-noise analog circuits
❓ FAQ
What is the specified operating temperature range for MAX16999AUA11+?
According to the specifications, the MAX16999AUA11+ is rated for operation from -40°C ~ 125°C (TJ).
What package is the MAX16999AUA11+ available in?
The MAX16999AUA11+ is offered in 8-TSSOP package format.
Is the MAX16999AUA11+ RoHS compliant?
Yes, the MAX16999AUA11+ is listed as RoHS compliant.
Where can I find detailed specifications for MAX16999AUA11+?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Output Type | Fixed |
|---|---|
| Voltage - Output (Min/Fixed) | 1.1V |
| Current - Output | 100mA |
| Voltage - Input (Max) | 5.5V |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Product Status | Obsolete |
| Control Features | Enable, Power On Reset, Reset |
| Current - Quiescent (Iq) | 20 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| PSRR | 70dB ~ 40dB (100Hz ~ 100kHz) |
| Package | Tube |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Supplier Device Package | 8-uMAX-EP |
Tier Pricing
xVolume Pricing
💡 Custom Pricing Available:
For quantities exceeding 10,000 units or special requirements, please contact our sales team for a customized quote.
Datasheet
xMAX16999AUA11+ Datasheet
Official datasheet from Analog Devices Inc./Maxim Integrated with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: Analog Devices Inc./Maxim Integrated • Format: PDF
MAX16999AUA11+ vs MAX16999AUA09+ vs MAX16999AUA12+
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | MAX16999AUA11+ Current | MAX16999AUA09+ | MAX16999AUA12+ |
|---|---|---|---|
| Output Type | Fixed | Fixed | Fixed |
| Voltage - Output (Min/Fixed) | 1.1V | 0.9V | 1.2V |
| Current - Output | 100mA | 100mA | 100mA |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Product Status | Obsolete | Active | Obsolete |
| RoHS | Compliant | Compliant | Compliant |
| Price | $1.09 | $2.15 | $1.09 |
| Availability | In Stock | In Stock | In Stock |
