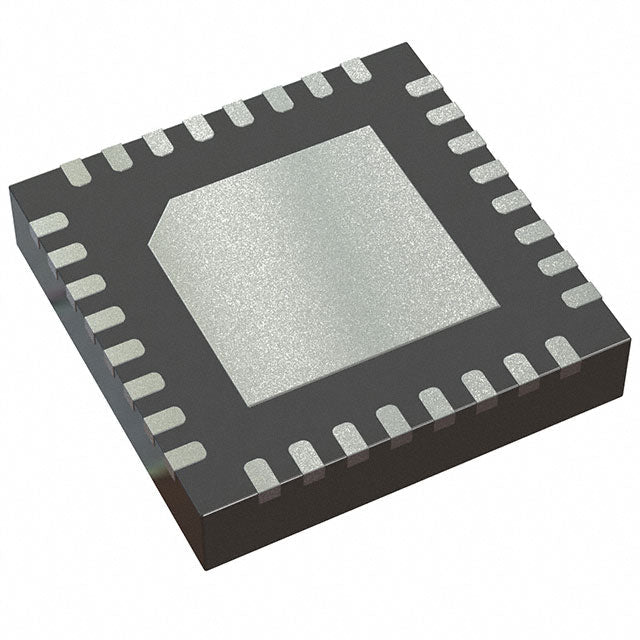

MAX16993ATJC/V+–Voltage Regulator, 32-WFQFN Exposed Pad | Analog Devices Inc./Maxim Integrated
✓ RoHS● Active The MAX16993ATJC/V+ is a voltage regulator from Analog Devices Inc./Maxim Integrated, in 32-WFQFN Exposed...
SKU:
5020880
Availability:
Many In Stock
Product type:
Voltage Regulator
- $9.56
- $9.56
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$9.56
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x
✓ RoHS● Active
The MAX16993ATJC/V+ is a voltage regulator from Analog Devices Inc./Maxim Integrated, in 32-WFQFN Exposed Pad package. Specified operating temperature: -40°C ~ 125°C (TJ).
📋 Key Specifications
- Output Type:Adjustable (Programmable)
- Voltage - Output (Min/Fixed):0.8V
- Voltage - Output (Max):3.95V
- Current - Output:3A
- Voltage - Input (Max):36V
- Package / Case:32-WFQFN Exposed Pad
- Operating Temperature:-40°C ~ 125°C (TJ)
- Product Status:Active
🎯 Typical Applications
- Board-level power regulation (typical for this category)
- Point-of-load power supply
- Battery-powered devices
- Low-noise analog circuits
❓ FAQ
What is the specified operating temperature range for MAX16993ATJC/V+?
According to the specifications, the MAX16993ATJC/V+ is rated for operation from -40°C ~ 125°C (TJ).
What package is the MAX16993ATJC/V+ available in?
The MAX16993ATJC/V+ is offered in 32-WFQFN Exposed Pad package format.
Is the MAX16993ATJC/V+ RoHS compliant?
Yes, the MAX16993ATJC/V+ is listed as RoHS compliant.
Where can I find detailed specifications for MAX16993ATJC/V+?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Output Type | Adjustable (Programmable) |
|---|---|
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 3.95V |
| Current - Output | 3A |
| Voltage - Input (Max) | 36V |
| Package / Case | 32-WFQFN Exposed Pad |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Product Status | Active |
| Frequency - Switching | 2.1MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 3 |
| Output Configuration | Positive |
| Package | Tube |
| Supplier Device Package | 32-TQFN (5x5) |
| Synchronous Rectifier | Yes |
| Topology | Buck |
| Voltage - Input (Min) | 3.5V |
Datasheet
xMAX16993ATJC/V+ Datasheet
Official datasheet from Analog Devices Inc./Maxim Integrated with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: Analog Devices Inc./Maxim Integrated • Format: PDF
MAX16993ATJC/V+ vs MAX16993ATJA/V+ vs MAX16993ATJF/V+
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | MAX16993ATJC/V+ Current | MAX16993ATJA/V+ | MAX16993ATJF/V+ |
|---|---|---|---|
| Output Type | Adjustable (Programmable) | Adjustable (Programmable) | Adjustable (Programmable) |
| Voltage - Output (Min/Fixed) | 0.8V | 0.8V | 0.8V (3.3V, 5V) |
| Voltage - Output (Max) | 3.95V | 3.95V | 3.95V |
| Current - Output | 3A | 3A | 3A |
| Voltage - Input (Max) | 36V | 36V | 36V |
| Package / Case | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Product Status | Active | Active | Obsolete |
| RoHS | Compliant | Compliant | Compliant |
| Price | $9.56 | $9.85 | $6.60 |
| Availability | In Stock | In Stock | In Stock |
