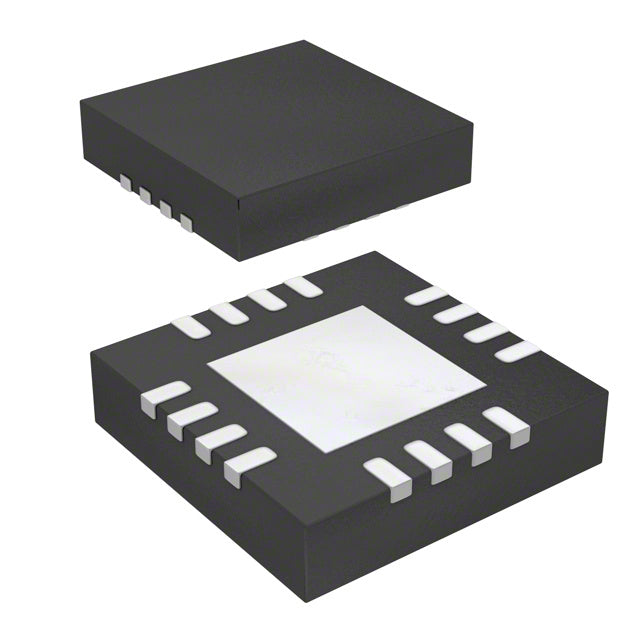

MAX16977RATE+–Voltage Regulator, 16-WQFN Exposed Pad | Analog Devices Inc./Maxim Integrated
✓ RoHS● Active The MAX16977RATE+ is a voltage regulator from Analog Devices Inc./Maxim Integrated, in 16-WQFN Exposed...
SKU:
4290523
Availability:
Many In Stock
Product type:
Voltage Regulator
- $4.18
- $4.18
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$4.18
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x
✓ RoHS● Active
The MAX16977RATE+ is a voltage regulator from Analog Devices Inc./Maxim Integrated, in 16-WQFN Exposed Pad package. Specified operating temperature: -40°C ~ 125°C (TJ).
📋 Key Specifications
- Output Type:Adjustable (Fixed)
- Voltage - Output (Min/Fixed):1V (5V)
- Voltage - Output (Max):10V
- Current - Output:2A
- Voltage - Input (Max):36V
- Package / Case:16-WQFN Exposed Pad
- Operating Temperature:-40°C ~ 125°C (TJ)
- Product Status:Active
🎯 Typical Applications
- Board-level power regulation (typical for this category)
- Point-of-load power supply
- Battery-powered devices
- Low-noise analog circuits
❓ FAQ
What is the specified operating temperature range for MAX16977RATE+?
According to the specifications, the MAX16977RATE+ is rated for operation from -40°C ~ 125°C (TJ).
What package is the MAX16977RATE+ available in?
The MAX16977RATE+ is offered in 16-WQFN Exposed Pad package format.
Is the MAX16977RATE+ RoHS compliant?
Yes, the MAX16977RATE+ is listed as RoHS compliant.
Where can I find detailed specifications for MAX16977RATE+?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Output Type | Adjustable (Fixed) |
|---|---|
| Voltage - Output (Min/Fixed) | 1V (5V) |
| Voltage - Output (Max) | 10V |
| Current - Output | 2A |
| Voltage - Input (Max) | 36V |
| Package / Case | 16-WQFN Exposed Pad |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Product Status | Active |
| Frequency - Switching | 2.2MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Package | Strip |
| Supplier Device Package | 16-TQFN (5x5) |
| Synchronous Rectifier | No |
| Topology | Buck |
| Voltage - Input (Min) | 3.5V |
Tier Pricing
xVolume Pricing
💡 Custom Pricing Available:
For quantities exceeding 10,000 units or special requirements, please contact our sales team for a customized quote.
Datasheet
xMAX16977RATE+ Datasheet
Official datasheet from Analog Devices Inc./Maxim Integrated with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: Analog Devices Inc./Maxim Integrated • Format: PDF
MAX16977RATE+ vs MAX16977RATE+T vs MAX16977RAUE+
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | MAX16977RATE+ Current | MAX16977RATE+T | MAX16977RAUE+ |
|---|---|---|---|
| Output Type | Adjustable (Fixed) | Adjustable (Fixed) | Adjustable (Fixed) |
| Voltage - Output (Min/Fixed) | 1V (5V) | 1V (5V) | 1V (5V) |
| Voltage - Output (Max) | 10V | 10V | 10V |
| Current - Output | 2A | 2A | 2A |
| Voltage - Input (Max) | 36V | 36V | 36V |
| Package / Case | 16-WQFN Exposed Pad | 16-WQFN Exposed Pad | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Product Status | Active | Active | Active |
| RoHS | Compliant | Compliant | Compliant |
| Price | $4.18 | $5.47 | $4.08 |
| Availability | In Stock | In Stock | In Stock |
