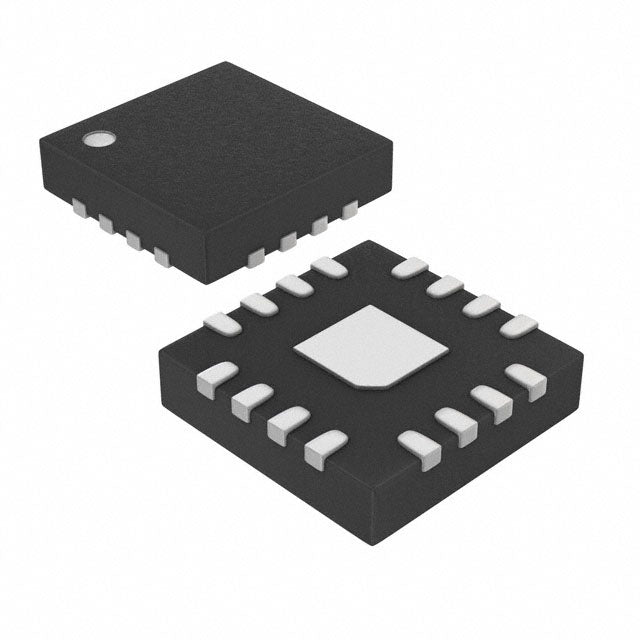

MAX16963SATEF/V+T–Voltage Regulator, 16-WQFN Exposed Pad | Analog Devices Inc./Maxim Integrated
✓ RoHS● Active The MAX16963SATEF/V+T is a voltage regulator from Analog Devices Inc./Maxim Integrated, in 16-WQFN Exposed...
SKU:
4500759
Availability:
Many In Stock
Product type:
Voltage Regulator
- $6.86
- $6.86
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$6.86
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x
✓ RoHS● Active
The MAX16963SATEF/V+T is a voltage regulator from Analog Devices Inc./Maxim Integrated, in 16-WQFN Exposed Pad package. Specified operating temperature: -40°C ~ 125°C (TJ).
📋 Key Specifications
- Output Type:Adjustable
- Voltage - Output (Min/Fixed):0.8V
- Voltage - Output (Max):3.6V
- Current - Output:1.5A
- Voltage - Input (Max):5.5V
- Package / Case:16-WQFN Exposed Pad
- Operating Temperature:-40°C ~ 125°C (TJ)
- Product Status:Active
🎯 Typical Applications
- Board-level power regulation (typical for this category)
- Point-of-load power supply
- Battery-powered devices
- Low-noise analog circuits
❓ FAQ
What is the specified operating temperature range for MAX16963SATEF/V+T?
According to the specifications, the MAX16963SATEF/V+T is rated for operation from -40°C ~ 125°C (TJ).
What package is the MAX16963SATEF/V+T available in?
The MAX16963SATEF/V+T is offered in 16-WQFN Exposed Pad package format.
Is the MAX16963SATEF/V+T RoHS compliant?
Yes, the MAX16963SATEF/V+T is listed as RoHS compliant.
Where can I find detailed specifications for MAX16963SATEF/V+T?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Output Type | Adjustable |
|---|---|
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 3.6V |
| Current - Output | 1.5A |
| Voltage - Input (Max) | 5.5V |
| Package / Case | 16-WQFN Exposed Pad |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Product Status | Active |
| Frequency - Switching | 2.2MHz |
| Function | Step-Down |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Output Configuration | Positive |
| Package | Tape & Reel (TR) |
| Qualification | AEC-Q100 |
| Supplier Device Package | 16-TQFN (4x4) |
| Synchronous Rectifier | Yes |
| Topology | Buck |
| Voltage - Input (Min) | 2.7V |
Datasheet
xMAX16963SATEF/V+T Datasheet
Official datasheet from Analog Devices Inc./Maxim Integrated with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: Analog Devices Inc./Maxim Integrated • Format: PDF
MAX16963SATEF/V+T vs MAX16963SATEF/V+ vs MAX16963SATED/V+T
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | MAX16963SATEF/V+T Current | MAX16963SATEF/V+ | MAX16963SATED/V+T |
|---|---|---|---|
| Output Type | Adjustable | Adjustable | Adjustable |
| Voltage - Output (Min/Fixed) | 0.8V | 0.8V | 0.8V |
| Voltage - Output (Max) | 3.6V | 3.6V | 3.6V |
| Current - Output | 1.5A | 1.5A | 1.5A |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V |
| Package / Case | 16-WQFN Exposed Pad | 16-WQFN Exposed Pad | 16-WQFN Exposed Pad |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Product Status | Active | Active | Obsolete |
| RoHS | Compliant | Compliant | Compliant |
| Price | $6.86 | $2.42 | $5.12 |
| Availability | In Stock | In Stock | In Stock |
