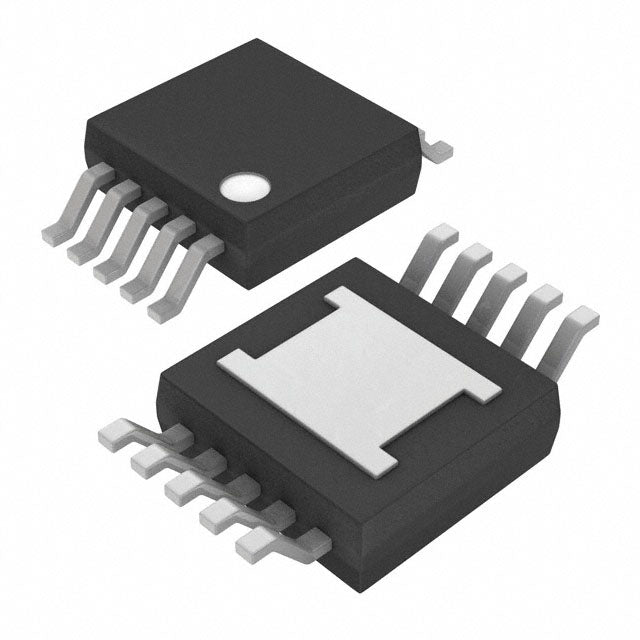

MAX16956AUBA+–Voltage Regulator, 10-TFSOP | Analog Devices Inc./Maxim Integrated
✓ RoHS● Discontinued at Digi-Key The MAX16956AUBA+ is a voltage regulator from Analog Devices Inc./Maxim Integrated, in...
SKU:
11483633
Availability:
Many In Stock
Product type:
Voltage Regulator
- $7.52
- $7.52
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$7.52
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x
✓ RoHS● Discontinued at Digi-Key
The MAX16956AUBA+ is a voltage regulator from Analog Devices Inc./Maxim Integrated, in 10-TFSOP package. Specified operating temperature: -40°C ~ 125°C (TA).
📋 Key Specifications
- Output Type:Fixed
- Voltage - Output (Min/Fixed):5V
- Current - Output:300mA
- Voltage - Input (Max):36V
- Package / Case:10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad
- Operating Temperature:-40°C ~ 125°C (TA)
- Product Status:Discontinued at Digi-Key
🎯 Typical Applications
- Board-level power regulation (typical for this category)
- Point-of-load power supply
- Battery-powered devices
- Low-noise analog circuits
❓ FAQ
What is the specified operating temperature range for MAX16956AUBA+?
According to the specifications, the MAX16956AUBA+ is rated for operation from -40°C ~ 125°C (TA).
What package is the MAX16956AUBA+ available in?
The MAX16956AUBA+ is offered in 10-TFSOP package format.
Is the MAX16956AUBA+ RoHS compliant?
Yes, the MAX16956AUBA+ is listed as RoHS compliant.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Output Type | Fixed |
|---|---|
| Voltage - Output (Min/Fixed) | 5V |
| Current - Output | 300mA |
| Voltage - Input (Max) | 36V |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Product Status | Discontinued at Digi-Key |
| Frequency - Switching | 2.1MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Package | Tube |
| Supplier Device Package | 10-uMAX-EP |
| Synchronous Rectifier | Yes |
| Topology | Buck |
| Voltage - Input (Min) | 3.5V |
Tier Pricing
xVolume Pricing
💡 Custom Pricing Available:
For quantities exceeding 10,000 units or special requirements, please contact our sales team for a customized quote.
MAX16956AUBA+ vs MAX16956AUBA+T vs MAX16956AUBB+
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | MAX16956AUBA+ Current | MAX16956AUBA+T | MAX16956AUBB+ |
|---|---|---|---|
| Output Type | Fixed | Fixed | — |
| Voltage - Output (Min/Fixed) | 5V | 5V | — |
| Current - Output | 300mA | 300mA | — |
| Voltage - Input (Max) | 36V | 36V | — |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad | — |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | — |
| Product Status | Discontinued at Digi-Key | Active | Active |
| RoHS | Compliant | Compliant | Compliant |
| Price | $7.52 | $4.47 | $4.28 |
| Availability | In Stock | In Stock | In Stock |
