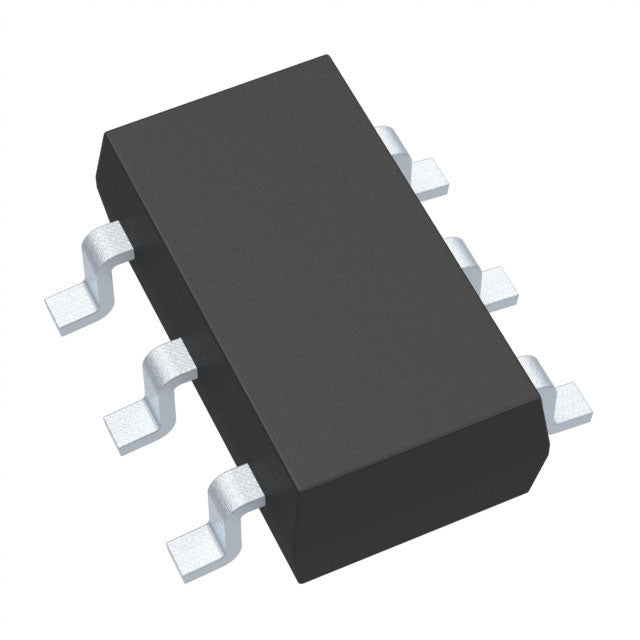

MAX16945TGUT/V+T–Voltage Regulator, SOT-23-6 | Analog Devices Inc./Maxim Integrated
✓ RoHS● Active The MAX16945TGUT/V+T is a voltage regulator from Analog Devices Inc./Maxim Integrated, in SOT-23-6 package....
SKU:
11483679
Availability:
Many In Stock
Product type:
Voltage Regulator
- $5.18
- $5.18
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$5.18
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x
✓ RoHS● Active
The MAX16945TGUT/V+T is a voltage regulator from Analog Devices Inc./Maxim Integrated, in SOT-23-6 package. Specified operating temperature: -40°C ~ 105°C.
📋 Key Specifications
- Output Type:Adjustable
- Voltage - Output (Min/Fixed):-1.4V
- Voltage - Output (Max):-5.5V
- Current - Output:30mA
- Voltage - Input (Max):5.5V
- Package / Case:SOT-23-6
- Operating Temperature:-40°C ~ 105°C
- Product Status:Active
🎯 Typical Applications
- Board-level power regulation (typical for this category)
- Point-of-load power supply
- Battery-powered devices
- Low-noise analog circuits
❓ FAQ
What is the specified operating temperature range for MAX16945TGUT/V+T?
According to the specifications, the MAX16945TGUT/V+T is rated for operation from -40°C ~ 105°C.
What package is the MAX16945TGUT/V+T available in?
The MAX16945TGUT/V+T is offered in SOT-23-6 package format.
Is the MAX16945TGUT/V+T RoHS compliant?
Yes, the MAX16945TGUT/V+T is listed as RoHS compliant.
Where can I find detailed specifications for MAX16945TGUT/V+T?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Output Type | Adjustable |
|---|---|
| Voltage - Output (Min/Fixed) | -1.4V |
| Voltage - Output (Max) | -5.5V |
| Current - Output | 30mA |
| Voltage - Input (Max) | 5.5V |
| Package / Case | SOT-23-6 |
| Operating Temperature | -40°C ~ 105°C |
| Product Status | Active |
| Frequency - Switching | 125kHz |
| Function | Ratiometric |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | Negative |
| Package | Tape & Reel (TR) |
| Qualification | AEC-Q100 |
| Supplier Device Package | SOT-23-6 |
| Synchronous Rectifier | No |
| Topology | Charge Pump |
| Voltage - Input (Min) | 1.4V |
Datasheet
xMAX16945TGUT/V+T Datasheet
Official datasheet from Analog Devices Inc./Maxim Integrated with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: Analog Devices Inc./Maxim Integrated • Format: PDF
MAX16945TGUT/V+T vs MAX16945TGUT#TG16 vs MAX16945TGUT#G16
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | MAX16945TGUT/V+T Current | MAX16945TGUT#TG16 | MAX16945TGUT#G16 |
|---|---|---|---|
| Output Type | Adjustable | — | — |
| Voltage - Output (Min/Fixed) | -1.4V | — | — |
| Voltage - Output (Max) | -5.5V | — | — |
| Current - Output | 30mA | — | — |
| Voltage - Input (Max) | 5.5V | — | — |
| Package / Case | SOT-23-6 | — | — |
| Operating Temperature | -40°C ~ 105°C | — | — |
| Product Status | Active | Obsolete | Obsolete |
| RoHS | Compliant | Compliant | Compliant |
| Price | $5.18 | $5.99 | $0.00 |
| Availability | In Stock | In Stock | In Stock |
